Foxboro FBM207 Base P0916PH

Technical Specifications
  • Interface: PCIe
  • Operating Temperature: -40°C to 85°C
  • Power Supply: 3.3V
  • Transmission Speed: 10Gbps
  • Input Voltage: 24V DC
  • Power Consumption: 5W
  • Storage Temperature: -40°C to 85°C
  • Humidity: 10% to 95% (non - condensing)
  • Protection Level: IP67
Read more
Quick view

FOXBORO FBM207B P0916JS I/O Module

Technical Specifications
  • Input/Output Channels:
    • Supports a mix of analog and discrete signals (specific configurations vary by model variant).
    • Analog inputs: 0–20 mA, 4–20 mA, 0–10 V, or thermocouple signals (e.g., K, J, T types).
    • Discrete inputs/outputs: 24 V DC for binary control signals.
  • Accuracy: ±0.1% of full scale for analog signals.
  • Isolation: Channel-to-channel and channel-to-ground isolation (up to 250 V AC).
  • Response Time: ≤10 ms for analog signals; ≤5 ms for discrete signals.
  • Environmental Tolerance:
    • Operating temperature: -40°C to +70°C.
    • Storage temperature: -40°C to +85°C.
    • Humidity: 5%–95% non-condensing.
Read more
Quick view

FOXBORO FBM207C High-Performance Analog Input/Output Module

Technical Specifications
  • Input/Output Channels:
    • Supports 8 analog input/output channels (configurable based on model variants).
    • Signal types: 0–20 mA, 4–20 mA, 0–10 V, thermocouples (e.g., K, J, T types).
  • Accuracy: High-precision analog conversion with ±0.1% full-scale accuracy.
  • Isolation: Channel-to-channel and channel-to-ground isolation (up to 250 V AC).
  • Response Time: ≤10 ms for analog signals; ≤5 ms for discrete signals.
  • Environmental Tolerance:
    • Operating temperature: -40°C to +70°C.
    • Storage temperature: -40°C to +85°C.
    • Humidity: 5%–95% non-condensing.
  • Power Requirements: 24 V DC ±10%.
  • Physical Dimensions: Compact DIN rail-mountable design (approx. 110 mm × 45 mm × 16.8 mm).
  • Weight: 0.26–0.5 kg (depending on configuration).
  • Certifications: CE, CSA, UL, and GOST for safety and industrial compliance.
Read more
Quick view

FOXBORO FBM211 P0916JT I/O Module

Technical Specifications
  • Input/Output Channels:
    • Supports 16 isolated independent channels (specific configurations may vary by model variant).
    • Signal types: 0–20 mA DC (current-limited to 33 mA per channel).
  • Accuracy: High-precision analog conversion with ±0.1% full-scale accuracy.
  • Isolation: Channel-to-channel and channel-to-ground isolation (up to 250 V AC).
  • Response Time: ≤10 ms for analog signals; ≤5 ms for discrete signals.
  • Environmental Tolerance:
    • Operating temperature: -40°C to +70°C.
    • Storage temperature: -40°C to +85°C.
    • Humidity: 5%–95% non-condensing.
Read more
Quick view

FOXBORO FBM214 Industrial Control Module

Technical Specifications
  • Input/Output Channels:
    • Supports up to 8 isolated input channels (specific configurations may vary by model variant).
    • Signal types: 0–20 mA, 4–20 mA, 0–10 V, and thermocouple inputs (e.g., K, J, T types).
  • Accuracy: High-precision analog conversion with ±0.1% full-scale accuracy.
  • Isolation: Channel-to-channel and channel-to-ground isolation (up to 250 V AC).
  • Response Time: ≤10 ms for analog signals; ≤5 ms for discrete signals.
  • Environmental Tolerance:
    • Operating temperature: -40°C to +85°C.
    • Storage temperature: -40°C to +85°C.
    • Humidity: 5%–95% non-condensing.
  • Power Requirements:
    • Voltage range: 10 V–30 V DC (FBM214B variant supports 26–42 V DC).
    • Power consumption: 14 W (typical).
Read more
Quick view

FOXBORO FBM214B Industrial Control Module

Technical Specifications
  • Input/Output Channels:
    • Supports up to 8 isolated input channels (configurable based on model variants).
    • Signal types: 0–20 mA, 4–20 mA, 0–10 V, and thermocouple inputs (e.g., K, J, T types).
  • Accuracy: High-precision analog conversion with ±0.1% full-scale accuracy.
  • Isolation: Channel-to-channel and channel-to-ground isolation (up to 250 V AC).
  • Response Time: ≤10 ms for analog signals; ≤5 ms for discrete signals.
  • Environmental Tolerance:
    • Operating temperature: -40°C to +85°C.
    • Storage temperature: -40°C to +85°C.
    • Humidity: 5%–95% non-condensing.
Read more
Quick view

FOXBORO FBM214B RH101AB

  • Product Name:​ Foxboro (Schneider Electric) FBM214B 8-Channel Isolated Analog Input Module with HART Pass-Through
  • Product Introduction:​ A high-resolution analog input module for the Foxboro I/A Series Distributed Control System (DCS). Accepts 4–20 mA, 0–20 mA, 0–5 VDC, 1–5 VDC, or 0–10 VDC signals from field transmitters and provides 16-bit resolution with full channel-to-channel and channel-to-ground isolation. Supports HART digital communication pass-through to asset management software.
Read more
Quick view

FOXBORO FBM215 HART® Communication Output Interface Module

Technical Specifications
  • Output Channels:
    • 8 isolated channels, each configurable for:
      • Standard 4–20 mA analog output
      • Digital HART FSK signal (superimposed on 4–20 mA)
  • HART Communication:
    • Built-in FSK modem for each channel for HART protocol compliance.
    • Supports HART universal commands, common-practice commands, and device-specific commands (excluding burst mode).
  • Isolation:
    • Channel-to-channel and channel-to-ground isolation (up to 250 V AC).
  • Response Time:
    • ≤10 ms for analog signals; ≤5 ms for discrete signals.
Read more
Quick view

FOXBORO FBM216 Industrial Control Module

Technical Specifications
  • Input/Output Channels:
    • Supports up to 8 isolated channels (configurable for analog or digital signals).
    • Signal types: 4–20 mA, 0–10 V, thermocouple inputs (e.g., K, J, T types), and HART digital signals.
  • Communication Protocols:
    • Ethernet/IP for high-speed data transfer (10/100 Mbps).
    • HART protocol for bidirectional communication with smart field devices.
    • Modbus RTU/TCP for compatibility with legacy systems.
  • Accuracy:
    • Analog signal accuracy: ±0.075% full-scale.
    • Resolution: 15-bit for precise signal detection.
Read more
Quick view

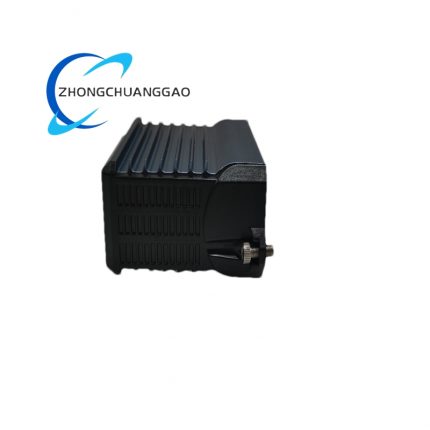

FOXBORO FBM217 P0914TR Discrete Input Interface Module

Technical Specifications
  • Input Channels: 32 isolated channels, each accepting 2-wire DC voltage inputs.
  • Input Voltage Range: Supports signals below 60 V AC, 120 V AC/125 V DC, or 240 V AC via associated terminal assemblies (TA).
  • Current Consumption: 2.2 mA (typical) at 30 V DC input.
  • Communication Protocol: Connects to redundant 2 Mbps module fieldbuses, enabling communication with associated Field Control Modules (FCM) or Field Control Processors (FCP).
  • Power Requirements: 24 V DC ±5%, -10%; consumes 3 W at 24 V DC.
  • Physical Dimensions: Approximately 10.2 cm (height) × 11.4 cm (width, including mounting ears) × 4.5 cm (depth) × 10.4 cm.
  • Environmental Tolerance: Operates reliably in industrial settings with standard temperature and humidity ranges.
  • Certifications: Complies with industrial safety and reliability standards.
Read more
Quick view

Foxboro FBM217 RH916XZ — 16-Channel Analog Input Module

Product Series: Foxboro I/A Series Fieldbus Module (FBM) — Analog Input Product Introduction: The FBM217 RH916XZ is a 16-channel analog input module of the FBM217 family with a distinct part number and revision code (RH916XZ). It provides 4–20 mA and 1–5 VDC input acquisition for 16 process measurement channels and is designed for deployment in Foxboro I/A Series DCS systems requiring high-density analog input coverage.
Read more
Quick view

Foxboro FBM218 — 8-Channel Analog Output Module

Product Series: Foxboro I/A Series Fieldbus Module (FBM) — Analog Output Product Introduction: The FBM218 is an 8-channel analog output module that generates 4–20 mA current loop outputs (or 1–5 VDC voltage outputs) to control final control elements including control valves, VSDs, and dampers. It is the standard 8-channel output module in the Foxboro I/A Series FBM family and provides precise, isolated analog output signals for process control applications.
Read more
