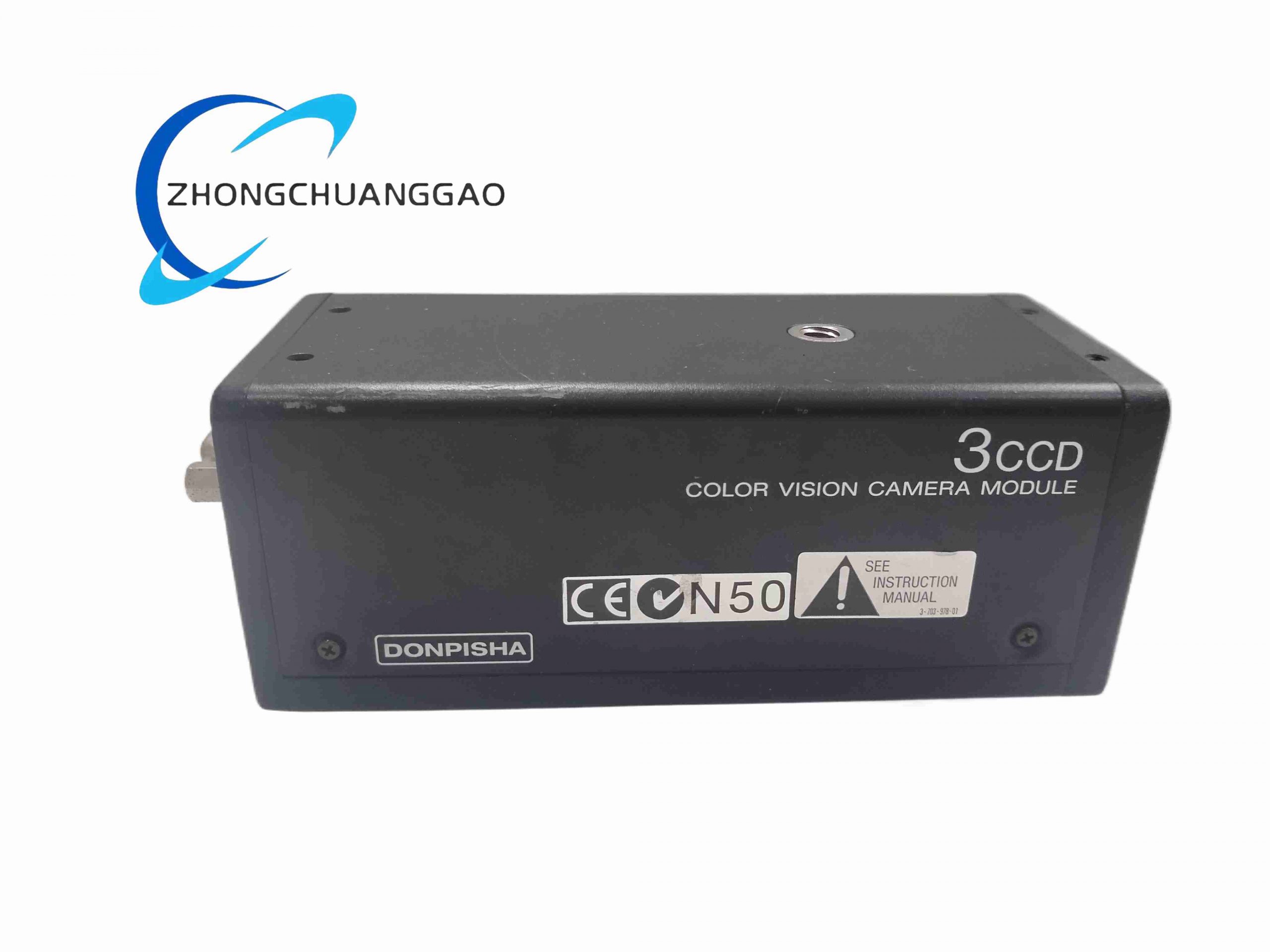

SONY DONPISHA XC-003P3CCD - Image 1
Click to enlarge
Schneider Electric XBTF011310
Schneider Electric XBTF011310
Back to products
Honeywell XFL821A
Honeywell XFL821A

SONY DONPISHA XC-003P3CCD

Product Name: 3CCD Color Industrial Camera Module

Product Description: PAL standard 3CCD prism color camera module with C-mount lens interface, using three CCD sensors separated by optical prism for high-precision RGB color imaging for machine vision inspection.

Category:
Description

Technical Specifications: Sensor: 1/3 inch Hyper HAD 3CCD TV resolution: 570 TV lines Pixel: RGB each 739(H) ×575(V) Pixel size:6.5(H) ×6.25(V)µm Signal to noise ratio:58dB Shutter: E-DONPISHA asynchronous shutter 1/1000~1/10000 sec, long exposure up to 128 frames Video output: RGB, Y/C, VBS simultaneous output Sync: HD/VD external trigger or internal sync Power supply:12VDC Lens mount: C-mount

Functional Features: Prism optical separation, true RGB three channel color acquisition. External trigger capture function and restart-reset function for position locking capture. One push automatic white balance. Menu setting for exposure parameters.

Application Scenarios: Color print inspection, electronic component visual detection, liquid crystal defect inspection, semiconductor inspection, high-precision color measurement.

Material Composition: Metal camera housing, optical prism block, three CCD sensors, drive PCB, C-mount metal lens interface.

Structural Characteristics: Compact rectangular metal casing, C-mount lens thread, rear signal and power connector.

Working Principle: Light passes through lens and prism, split into red, green, blue three optical paths onto three separate CCD chips. Convert optical signal into analog RGB video signal for vision processing system.

Installation Requirements: Install lens with C-mount thread. Fix camera on adjustable bracket. Connect power cable and video signal cable, shield grounding required.

Usage Notes: Prevent dust contamination on prism and CCD surface. Avoid strong vibration impact. Use regulated 12V DC power supply.
