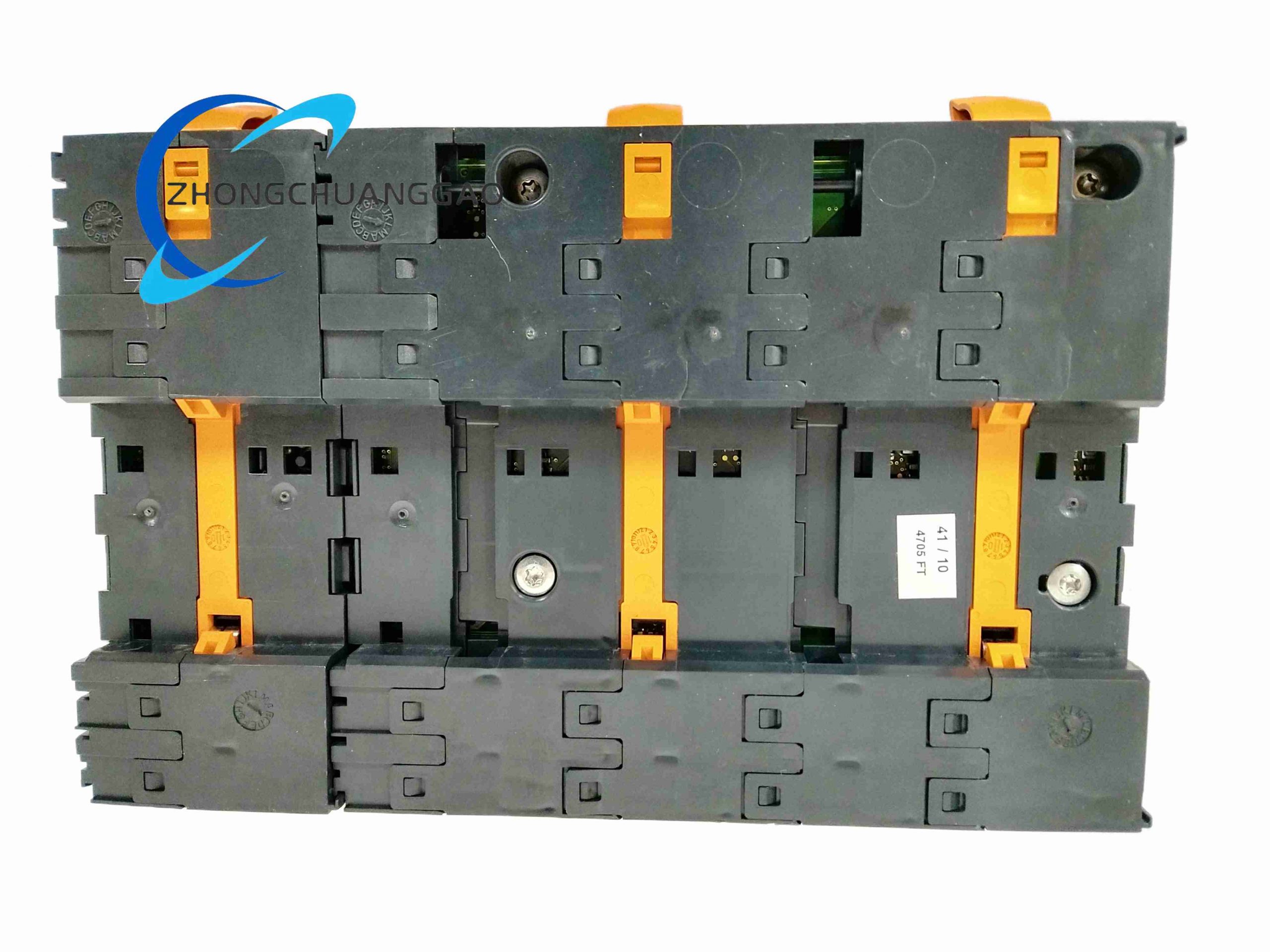

B&R X20CP1485 - Image 1
B&R X20CP1485 - Image 2
Click to enlarge
B&R X20CP1485
B&R X20CP1485 - Image 2
B&R X20BR9300
B&R X20BR9300
Back to products

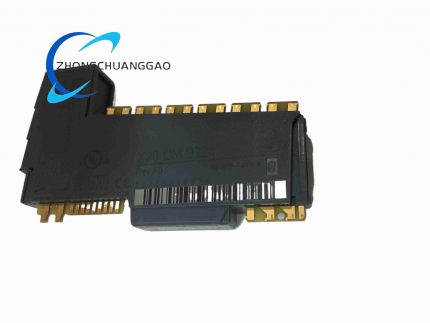

B&R X20DM9324
B&R X20DM9324

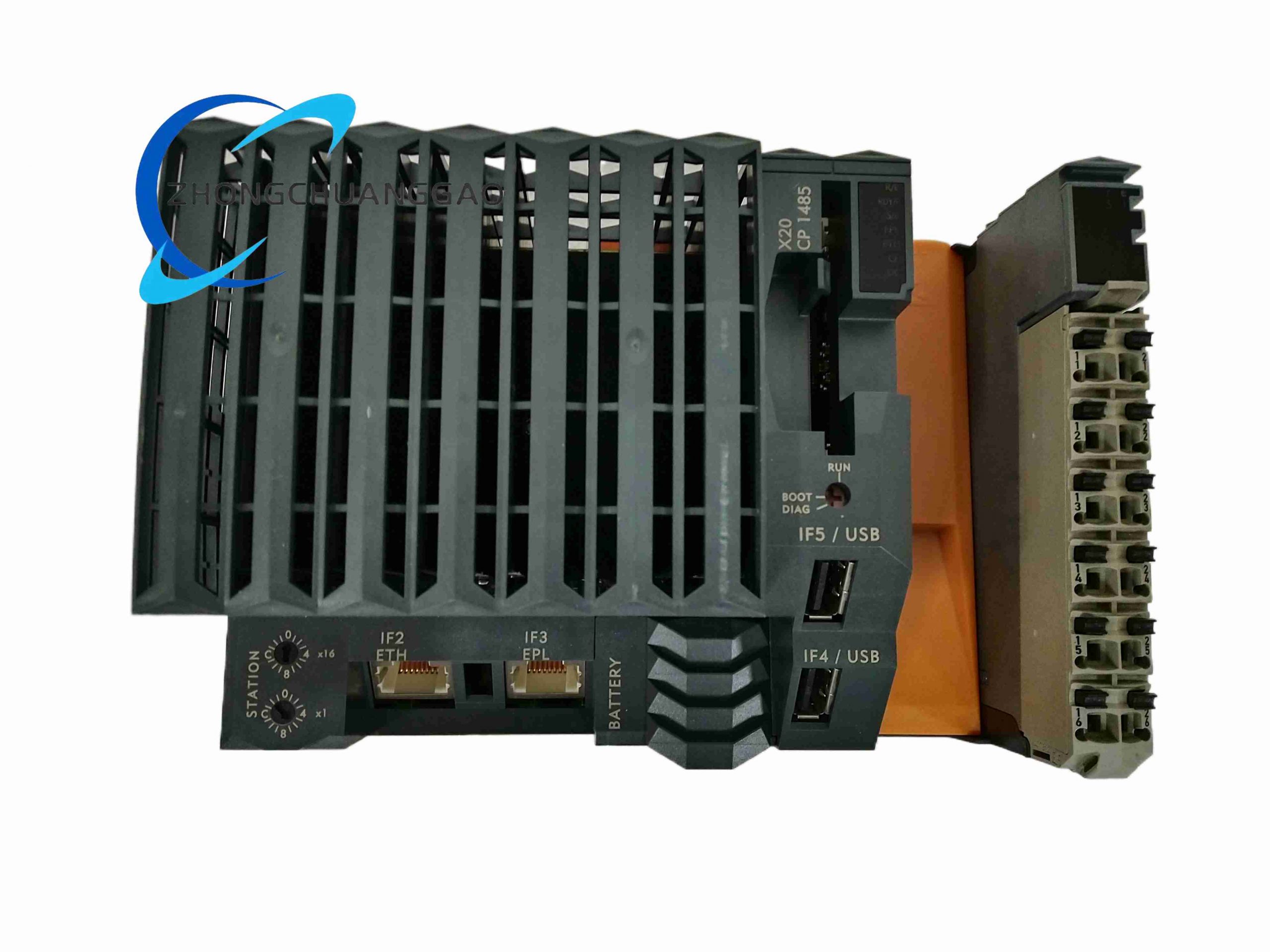

B&R X20CP1485

Product Name: X20 System CPU Controller

Product Description: Fanless compact PLC CPU for X20 system, equipped with Intel Celeron 400 processor plus dedicated I/O processor, for high-speed control, floating-point calculation and large-volume data processing. It supports removable CompactFlash for application program storage.

Category:
Description

Technical Specifications: Processor: Intel Celeron 400 Dimensions: Width 150 mm, Height 99 mm, Depth 85 mm Interfaces: 1×Ethernet, 1×POWERLINK, 2×USB, 1×RS232, 1 slot for expansion interface module Power supply: integrated power supply for CPU, X2X Link and I/O Over-temperature protection: automatic shutoff at 100°C Memory: SDRAM, CompactFlash as removable application memory

Functional Features: Fan-free maintenance-free structure. POWERLINK real-time communication supports high-speed motion control. It supports ACOPOS drive system and Visual Components simulation. LED status indicators for CPU, Ethernet, POWERLINK, temperature and CompactFlash. Backup lithium battery is included.

Application Scenarios: Motion control, machine tool, printing machine, packaging line, material handling, high-speed production automation.

Material Composition: Flame retardant plastic casing, main control PCB, memory chip, communication transceiver, metal DIN rail buckle, lithium button battery.

Structural Characteristics: Integrated slice module, DIN rail mount, built-in terminal block port, interface expansion slot.

Working Principle: Execute user control program, communicate with X20 I/O modules via X2X Link, exchange real-time data with drives and upper system through Ethernet and POWERLINK.

Installation Requirements: Install on standard DIN rail. CompactFlash memory card is ordered separately. Use X20TB12 12-pin terminal block for wiring.

Usage Notes: Avoid operation beyond 0-60°C temperature range. Do not replace battery while powered on. Firmware upgrade shall use official Automation Studio package.
