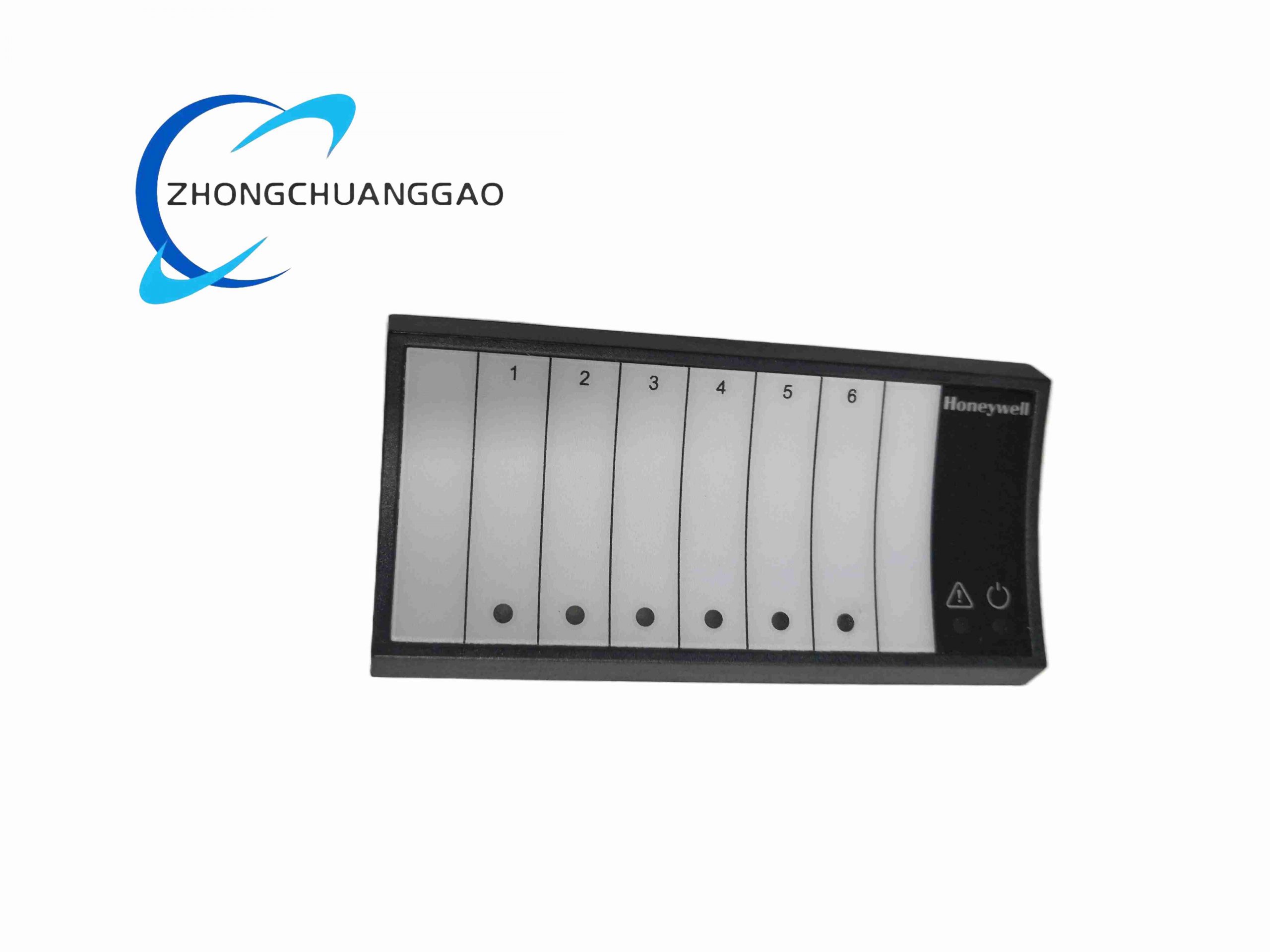

Honeywell XFL824A - Image 1
Honeywell XFL824A - Image 2
Click to enlarge
Honeywell XFL824A
Honeywell XFL824A - Image 2

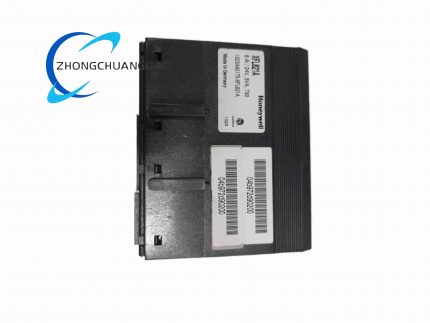

Honeywell XFL821A
Honeywell XFL821A
Back to products
Rexroth VT1600S3X
Rexroth VT1600S3X

Honeywell XFL824A

Product Name: LONWORKS Relay Output Module

Product Description: Distributed 6-channel relay output module for Honeywell Excel 5000 building automation system, LonMark compliant, for switching control of field equipment.

Category:
Description

Technical Specifications: Output channel:6 relay outputs Relay rating:19~250VAC per channel Total maximum current:12A for all channels Bus: LonWorks two wire bus Module type: distributed I/O relay output, no manual override

Functional Features: Electromechanical relay contact output for switching actuators. LonWorks bus communication receive control command from controller. LED indicator for relay channel state.

Application Scenarios: HVAC fan, water valve, pump, lighting on-off control, building automation equipment switching.

Material Composition: Flame retardant plastic casing, relay components, drive PCB, LonWorks communication circuit, LED indicators.

Structural Characteristics: DIN rail installation, pluggable terminal base XS824 / XSU824.

Working Principle: Receive digital switch command from controller via LonWorks bus, drive internal relay contact to close or open to switch field AC load circuit.

Installation Requirements: Install on DIN rail with XS824 or XSU824 terminal base. Separate low voltage bus wiring and high voltage load wiring.

Usage Notes: Do not exceed total 12A aggregate current. Use contactor for heavy load. Check relay contact aging after long-time operation.
