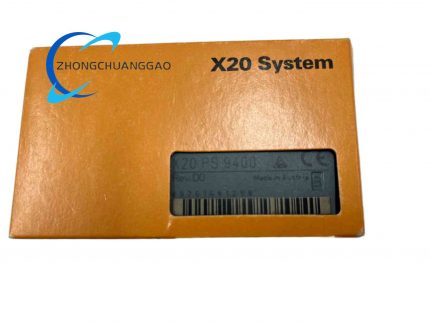

B&R X20PS9400
B&R X20PS9400

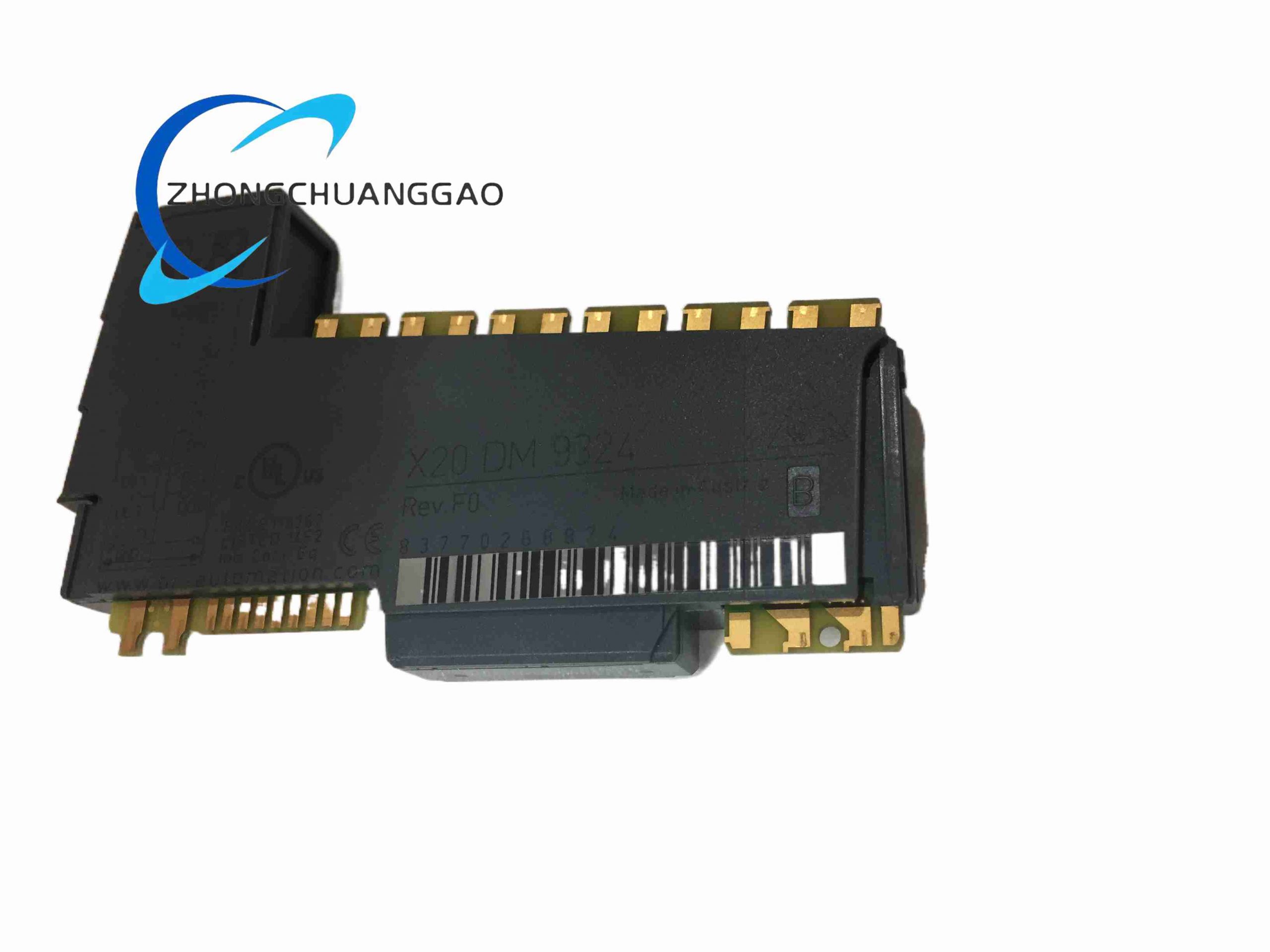

B&R X20DM9324

Product Name: Digital Mixed Input / Output Module

Product Description: X20 digital mixed I/O slice module with 8 sink-type digital inputs and 4 source-type digital outputs for discrete signal acquisition and actuator driving.

Category:
Description

Technical Specifications: Digital Input: 8 channels, 24VDC sink input Input voltage range: 24 VDC -15% / +20% Typical input current: 3.75mA @24VDC Input filter: hardware ≤100µs, software configurable 0~25ms in 0.2ms step Switch threshold: low <5VDC, high >15VDC Digital Output: 4 channels, 24VDC source output Single channel nominal current: 0.5A Total output current: 2A Output protection: thermal shutdown, short-circuit protection, internal freewheeling diode Insulation voltage between channel and bus: 500 Veff Connection: 1-wire wiring

Functional Features: Configurable software input filter for signal de-bounce. Output short-circuit and overheat protection. Output fault monitoring with 10ms delay. 1-wire wiring reduces wiring quantity. Coated version X20cDM9324 is available for harsh environment.

Application Scenarios: General machine automation, conveyor control, sensor signal collection, solenoid valve driving, small relay control.

Material Composition: Flame retardant plastic housing, signal PCB, FET power switch, opto-isolation components, LED indicator.

Structural Characteristics: Slice modular design, DIN rail mounting, match X20 terminal block X20TB12.

Working Principle: Collect digital on/off signal from field sensors and transmit data to CPU via X2X Link. Receive control command from CPU and switch output channel to drive field actuators.

Installation Requirements: Install on X20 bus base module such as X20BM11 or X20BM15. Use matching X20TB12 terminal block.

Usage Notes: Do not exceed total 2A output current. Inductive loads need to consider freewheeling protection. Use coated model under condensation condition.
