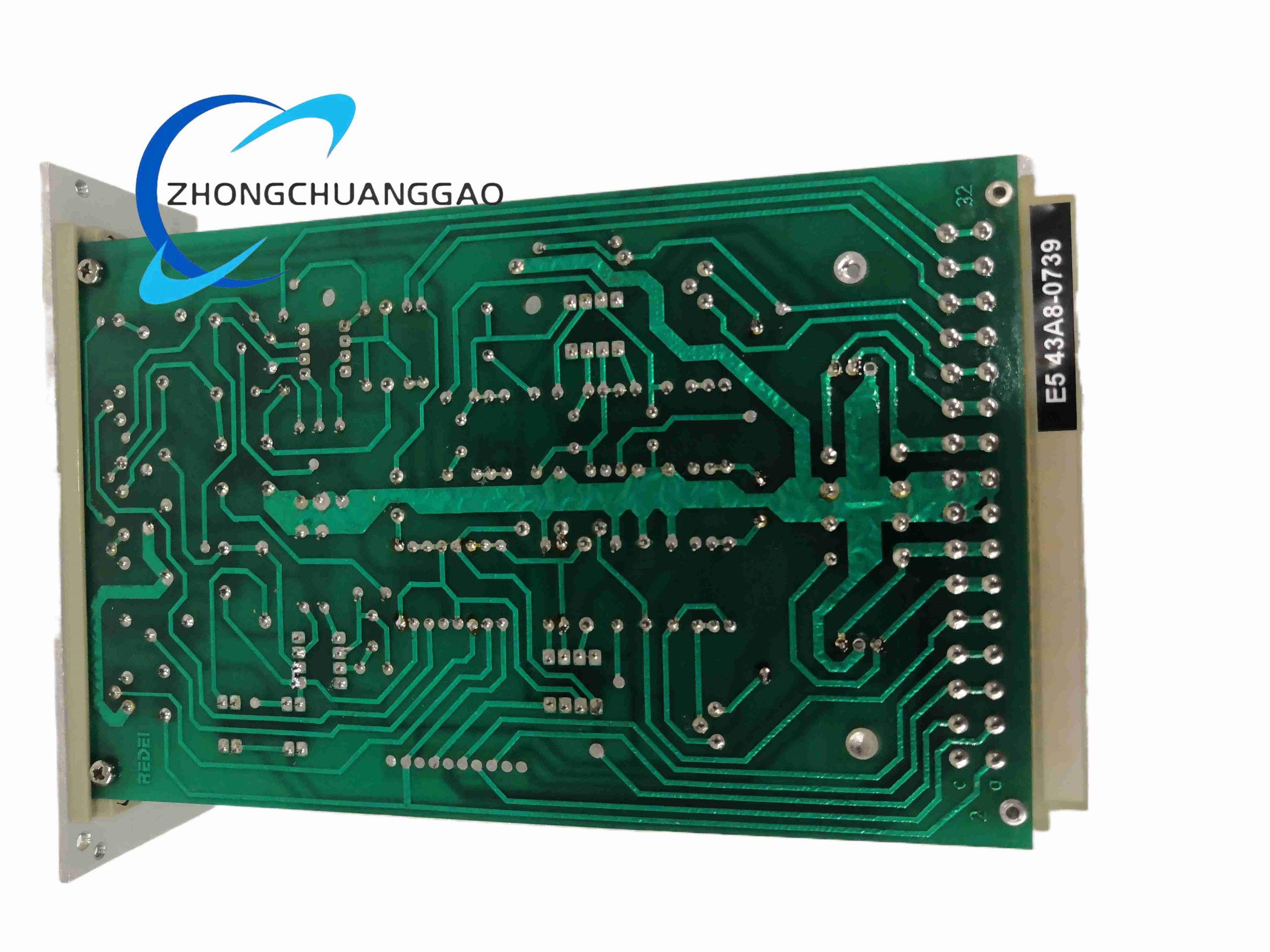

Rexroth VT1600S3X

Product Name: Servo Amplifier Card

Product Introduction: This is a VT1600 series servo amplifier card, designed to drive servo valves without LVDT feedback for closed-loop electro-hydraulic control systems. It adopts Euro card modular design and is factory pre-assembled with built-in voltage regulator.

Category:
Description

Technical Specifications: Power supply current: <200 mA Internal control voltage: ±10 V Output current: ±60 mA / ±100 mA Ambient operating temperature: 0 °C ~ 50 °C Storage temperature: -20 °C ~70 °C PCB dimension: 100 mm ×160 mm Front plate dimension: 128 mm ×5 mm Approximate weight: 0.33 lbs

Function Features: Integrated PID control circuit; three accessible potentiometers on front panel for parameter tuning; front plate equipped with ammeter for real-time valve current monitoring; 32-pin external connector.

Application Scenarios: Electro-hydraulic servo control, machine tool hydraulic servo, press machinery, metal forming equipment.

Material Composition: FR4 printed circuit board, metal front panel, precision resistors, capacitors and semiconductor components.

Structural Characteristics: Vertical rack mounting structure, Eurocard standard form factor, pluggable module.

Working Principle: Convert analog control input signal into proportional output current to drive servo valve coil, realize closed-loop velocity and position regulation via PID algorithm.

Installation Requirements: Install in Euro card holder or subrack, vertical mounting; maintain sufficient air convection for heat dissipation.

Usage Notes: Do not exceed rated output current; protect against conductive dust and moisture; adjust potentiometer only after power-off to avoid electric shock.
