PARKER ZETA6104

Product Introduction: Parker Compumotor ZETA6000 series integrated stepper drive and motion indexer, single-axis standalone motion controller integrating drive and positioning control.

Technical Specifications: Power input 95-132 VAC single phase 50/60 Hz; position range ±2147483648 steps; speed range 1~2000000 steps/sec; acceleration range 1~24999975 steps/sec²; communication RS232C, RS485; maximum 99 units daisy chain.

Function Features: Built-in motion indexer; support electronic gearbox, flying cutoff and phase shift function; programmable I/O points; Motion Architect software programming; multi-device daisy chain connection.

Application Scenarios: Material cutting, labeling, positioning table, automated assembly, packaging machinery and single-axis precision positioning equipment.

Performance Parameters: Speed accuracy ±0.02% of maximum rate; speed repeatability ±0.02%; motion algorithm update cycle 2 ms.

Material Composition: Metal alloy casing; power semiconductor components, industrial control microprocessor, signal isolation circuit.

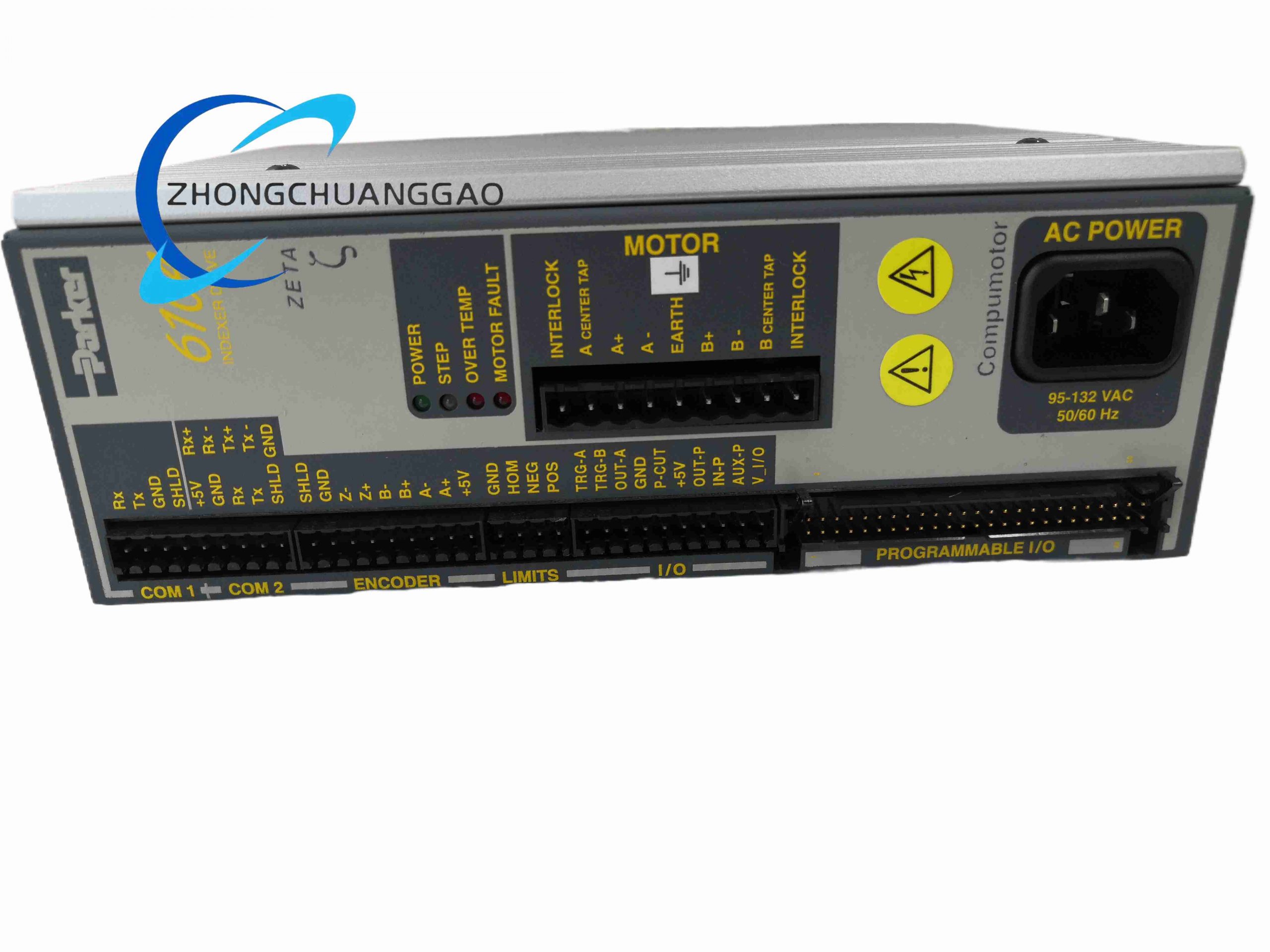

Structural Features: Removable screw terminals and 50-pin standard header; integrated power drive and control circuit in one housing.

Working Principle: Receive motion program commands, generate pulse and direction signal, drive stepper motor to complete positioning, speed and acceleration control; read limit, trigger and sensor signal through I/O interface.

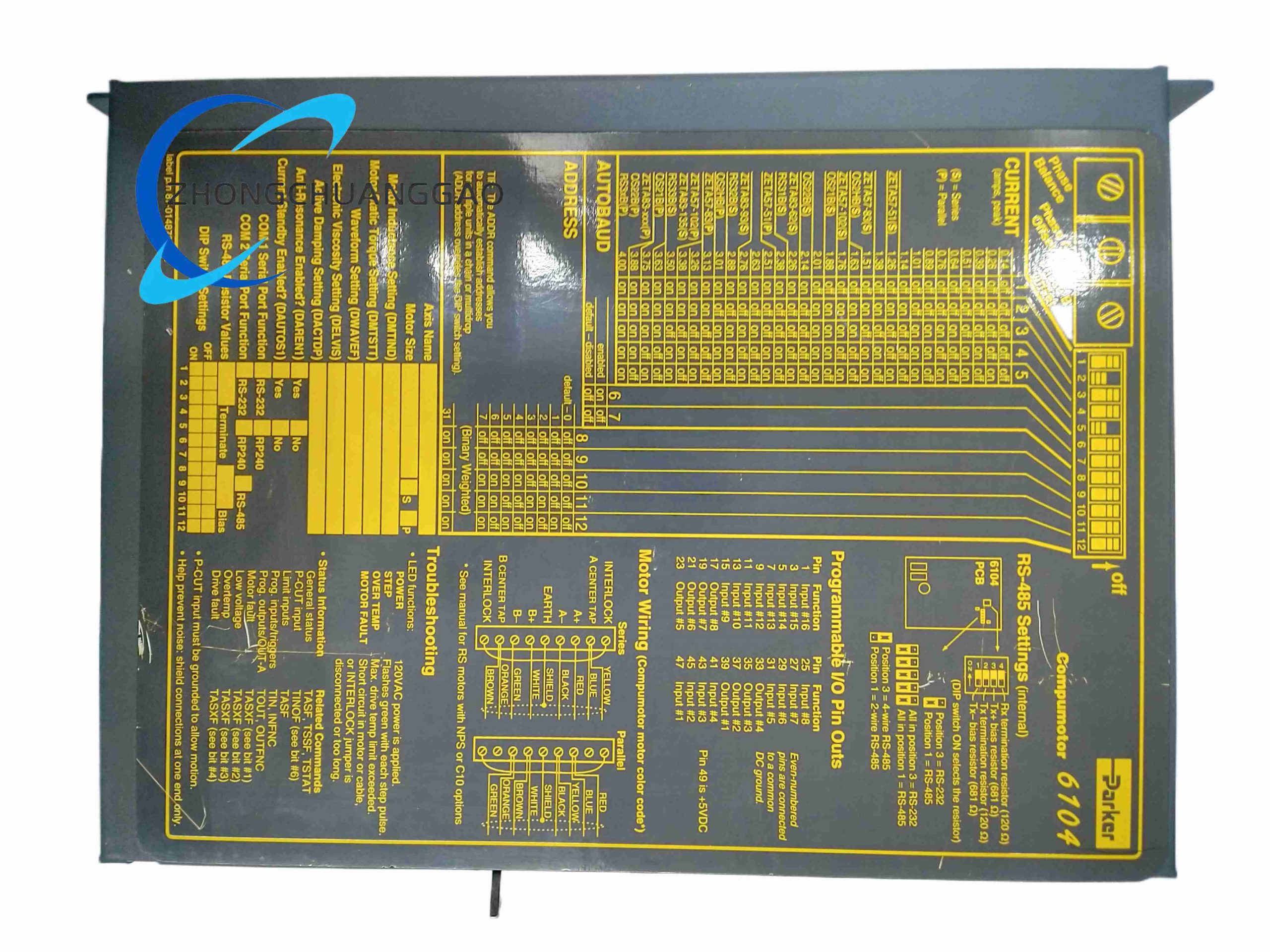

Installation Requirements: Install in ventilated control cabinet; leave heat dissipation gap; use shielded motor cable; set DIP switch and jumper for communication address selection.

Usage Notes: Match with compatible stepper motor and complete motor parameter configuration; avoid continuous overcurrent operation; do not modify internal jumpers without instruction.
