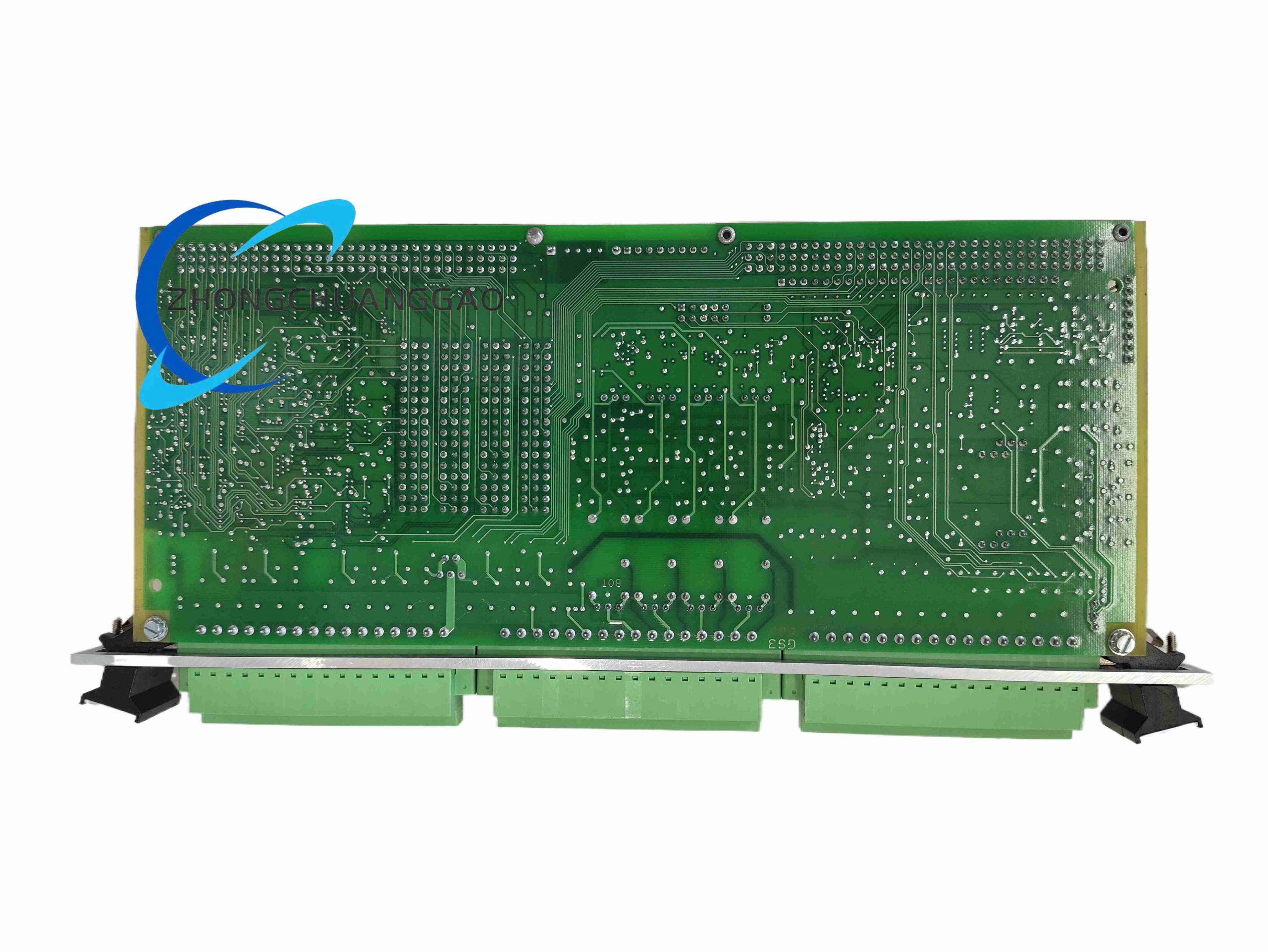

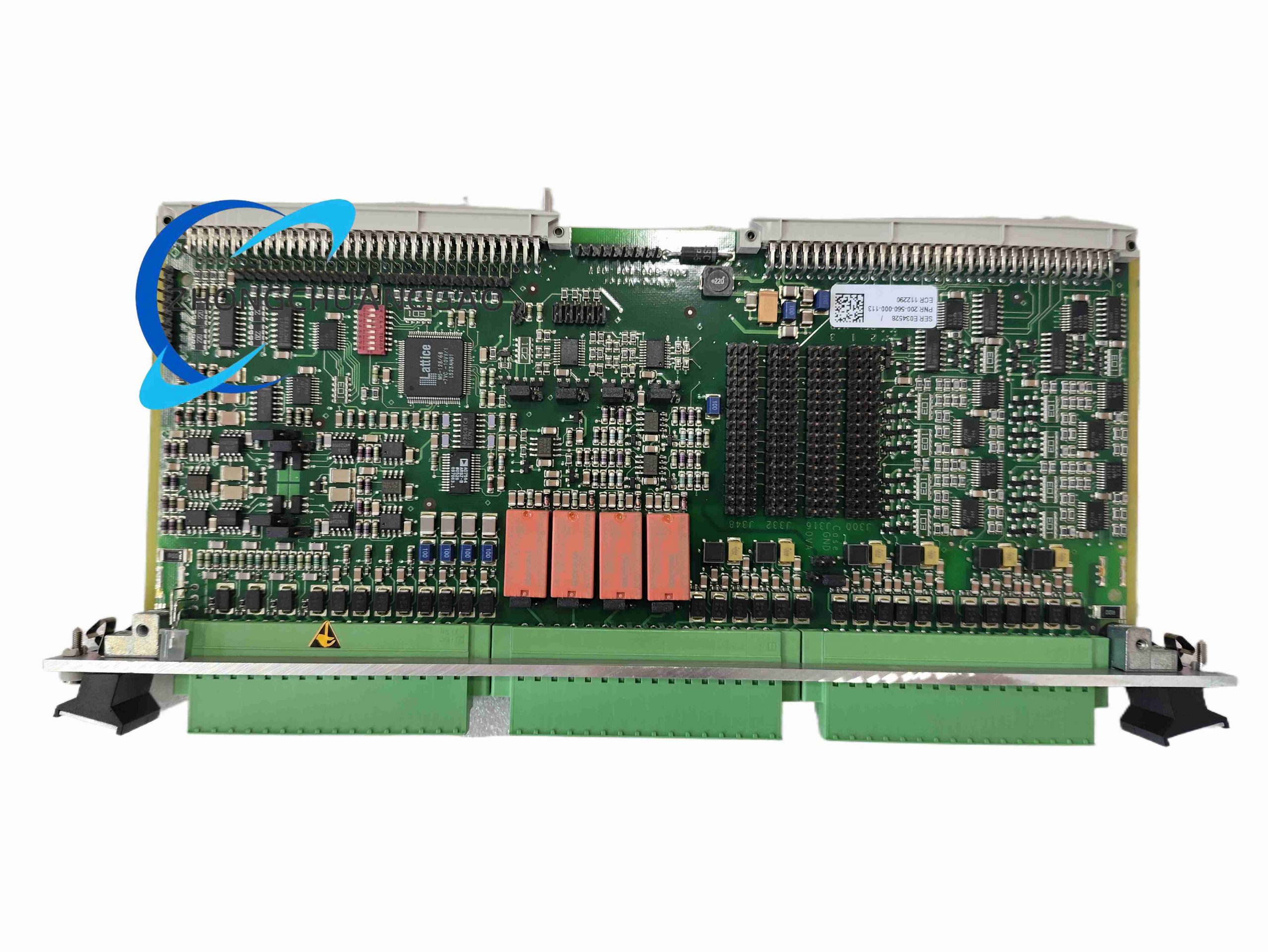

Vibro-Meter VM600 RLC16 200-570-000-111

Product Overview
The RLC16 is a relay expansion module for the VM600 Machinery Protection System (MPS). It receives alarm/danger logic from MPC4 protection cards or CPUM and drives 16 independently configurable SPDT electromechanical relays for trip, shutdown (ESD), or annunciation. The -101-015 variant carries SIL 2 certification per IEC 61508. Hot-swappable in VM600 ABE04x or ABE056 racks.
Category:
Description
Technical Specifications
  • Relay Channels:​ 16 × SPDT (Form C), epoxy-sealed
  • Contact Rating:​ 250 V AC / 5 A (resistive); 125 V DC / 0.35–10 A depending on version
  • Switching Capacity:​ 1250 VA (max.)
  • Response Time:​ Operate ≈ 8 ms, Release ≈ 8 ms, Bounce ≤ 6 ms
  • Configuration:​ Jumper-selectable Normally Energized (NE) / Normally De-energized (NDE)
  • Logic Programming:​ AND / OR / NOT / voting (1oo2, 2oo2, 2oo3) via VibroSight software
  • Backplane Bus:​ VM600 proprietary backplane (receives logic from MPC4 / CPUM)
  • Terminals:​ 3 × 16 screw terminals (COM / NO / NC)
  • Power:​ +5 V DC from rack backplane; typical 40 mA per relay (~640 mA total)
  • Indicators:​ LED per channel + module status LEDs
  • Operating Temp.:​ –20 °C to +70 °C
  • Certification:​ API 670 compliant; SIL 2 (200-570-101-015)
Installation Notes
  • Install in rear slots 1, 2, 15, or 16 of ABE04x rack
  • Ensure proper fusing on field wiring; isolate high-voltage field wiring from low-voltage backplane
  • Use VibroSight to assign alarm sources and configure fail-safe (de-energize on fault) behavior
