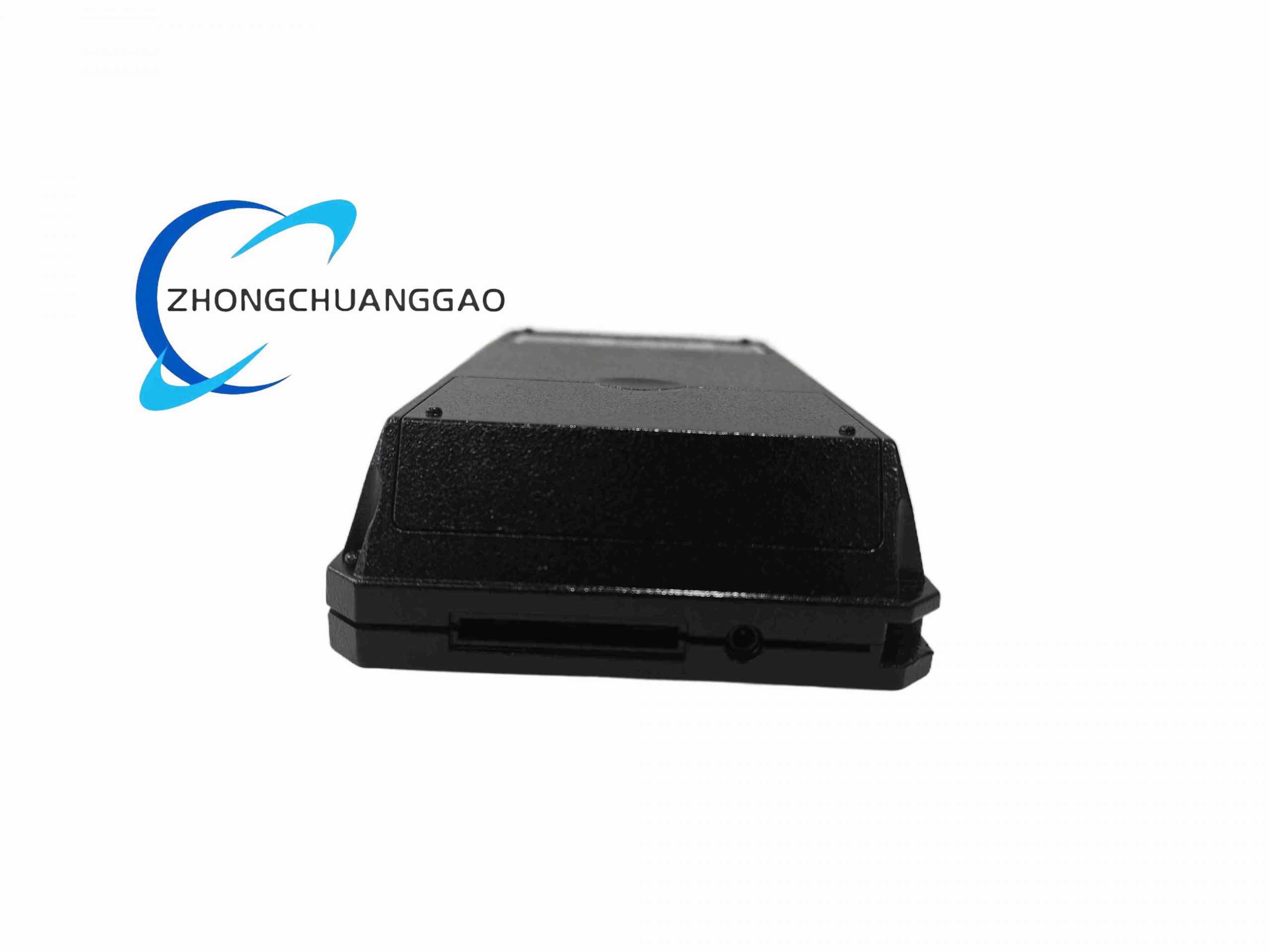

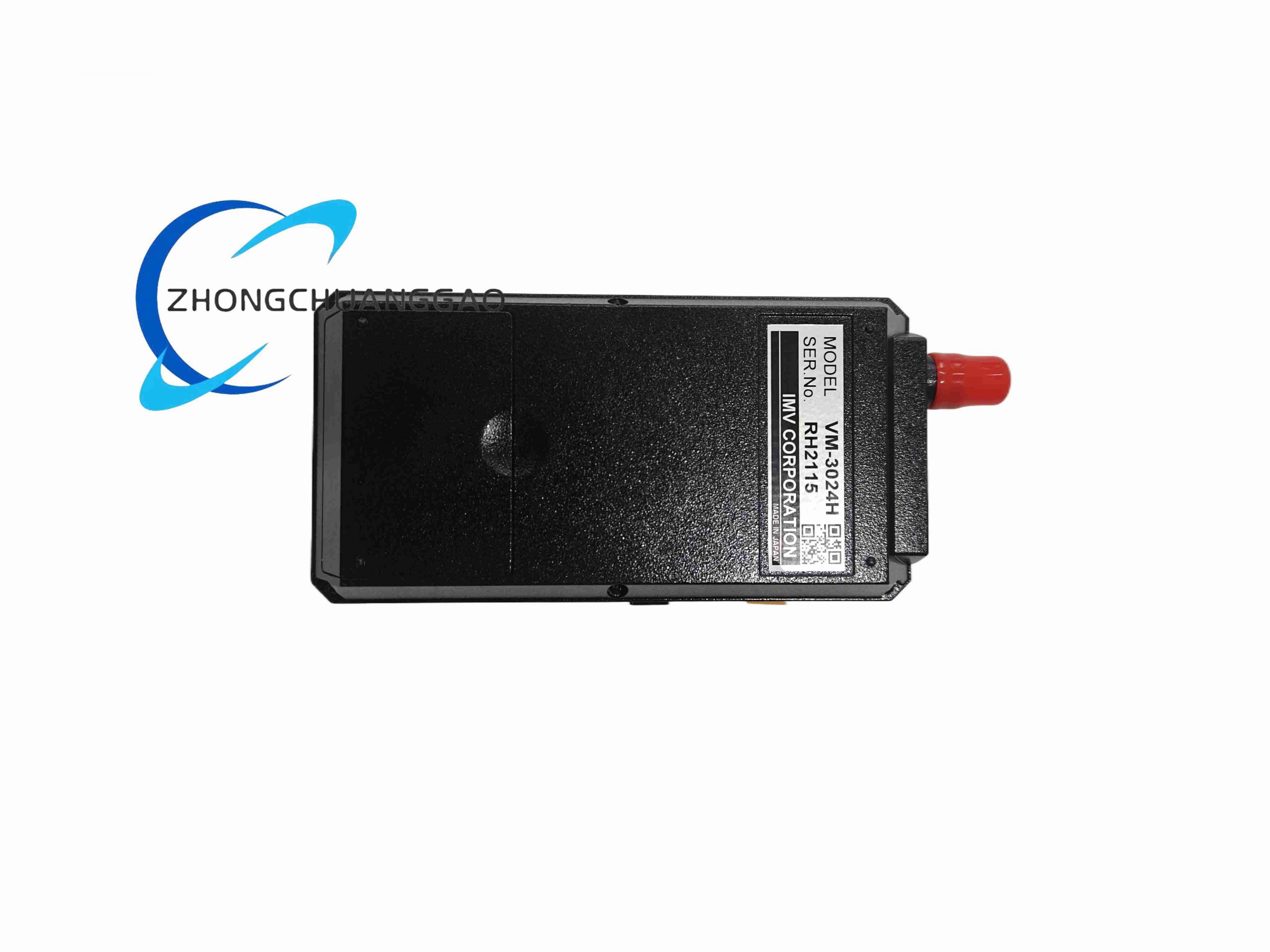

Vibro-Meter VM-3024H

Product Overview
The VM-3024H is a high-reliability DC power supply module designed for Vibro-Meter’s vintage VM-3 or VM600 racks, providing stabilized 24 V DC to power transducer electronics, signal conditioners, and system modules. Often used in redundant pairs for continuous availability.
Category:
Description
Typical Specifications
  • Input:​ 100–240 V AC, 50/60 Hz (or 110/220 V AC selectable)
  • Output:​ 24 V DC regulated, typical 5 A / 10 A rating
  • Ripple:​ < 50 mV p-p
  • Protection:​ Short-circuit, over-temperature, overload
  • Indicators:​ Power ON LED, Alarm relay contact (fail)
  • Cooling:​ Convection or fan-assisted depending on load
  • Operating Temp.:​ –10 °C to +60 °C
  • Mounting:​ Dedicated slot in VM-series instrument rack
