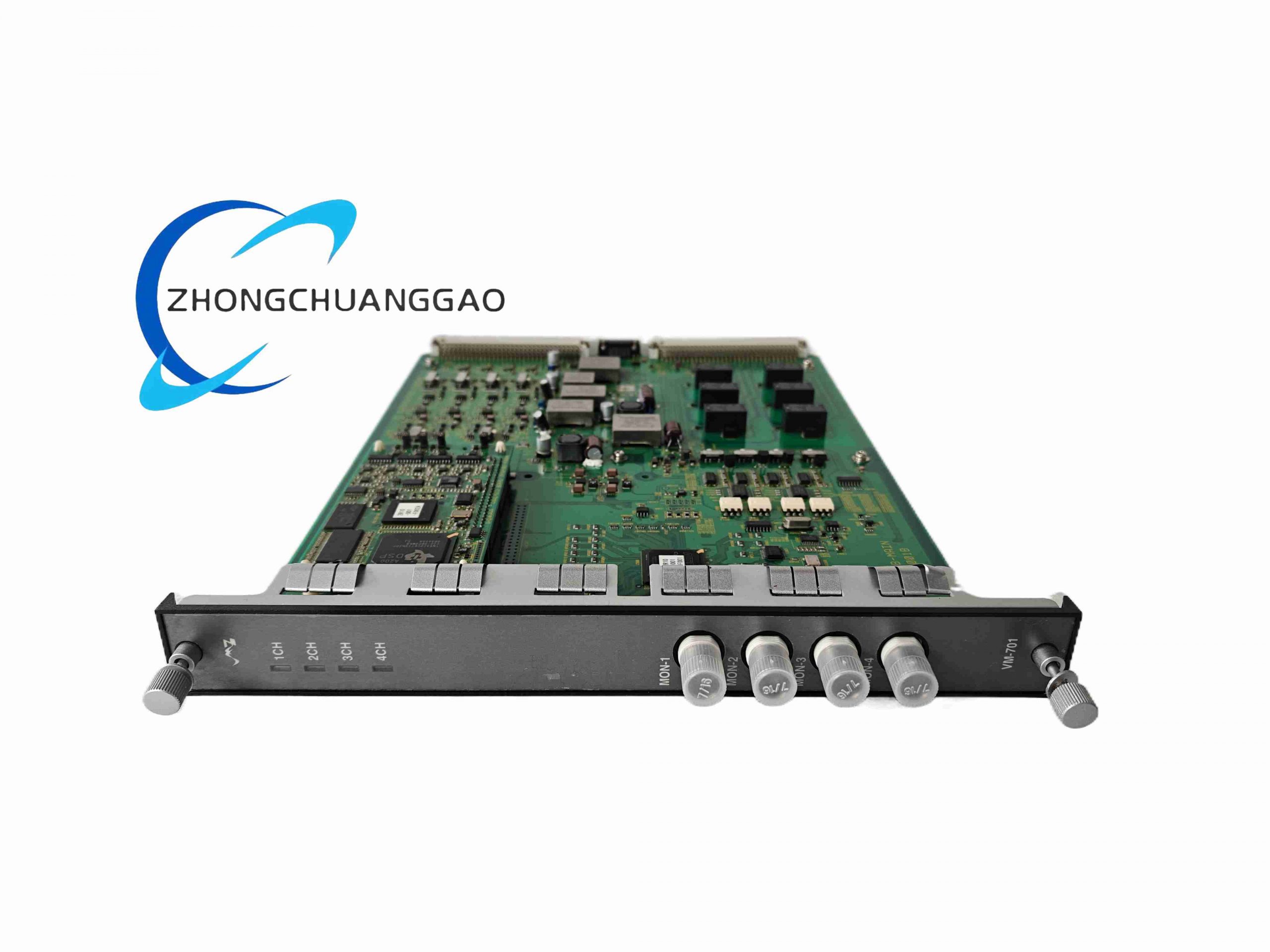

Vibro-Meter VM-701BNB1TRPTB1 - Image 1

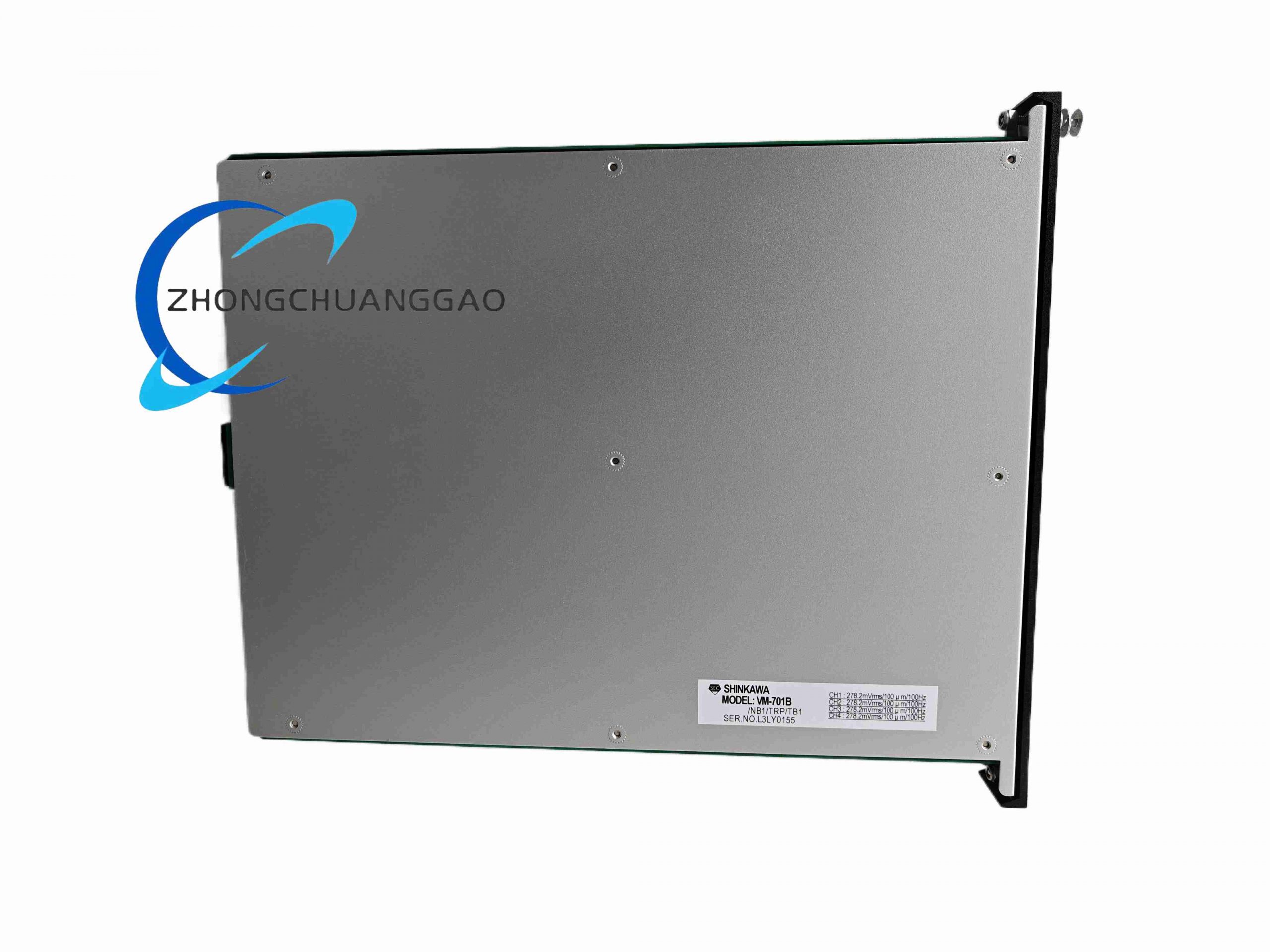

Vibro-Meter VM-701BNB1TRPTB1 - Image 2
Click to enlarge
Vibro-Meter VM-701BNB1TRPTB1
Vibro-Meter VM-701BNB1TRPTB1 - Image 2
Vibro-Meter VM600 RLC16 200-570-000-111
Vibro-Meter VM600 RLC16 200-570-000-111
Back to products
Vibro-Meter VM-742B1-1
Vibro-Meter VM-742B1-1

Vibro-Meter VM-701BNB1TRPTB1

Product Overview
The VM-701 (and variants such as BNB1TRPTB1) is typically a VM600 rack power supply unit (RPS6U type) or a combined CPU/Communications module designation within the VM600 family. The RPS6U supplies regulated +24 V DC and ±15 V / +5 V to the VM600 backplane. When specified as a CPU variant (CPUM + IOCN pair), it provides rack management, Ethernet/serial communications, and data buffering.
Category:
Description
Typical Power Supply (RPS6U) Specs
  • Input:​ 100–240 V AC, 50/60 Hz (or 24 V DC option)
  • Output:​ 24 V DC @ up to 10 A (typical); 5 V DC for logic; ±15 V for sensors
  • Redundancy:​ Dual RPS6U units can be paralleled for N+1 redundancy
  • Alarm Contact:​ Dry contact for PSU OK / Fail
  • Mounting:​ Front of ABE04x rack (occupies 1 slot)
  • Operating Temp.:​ –10 °C to +55 °C
  • Indicators:​ AC ON, DC OK, OVERTEMP, ALARM LEDs
