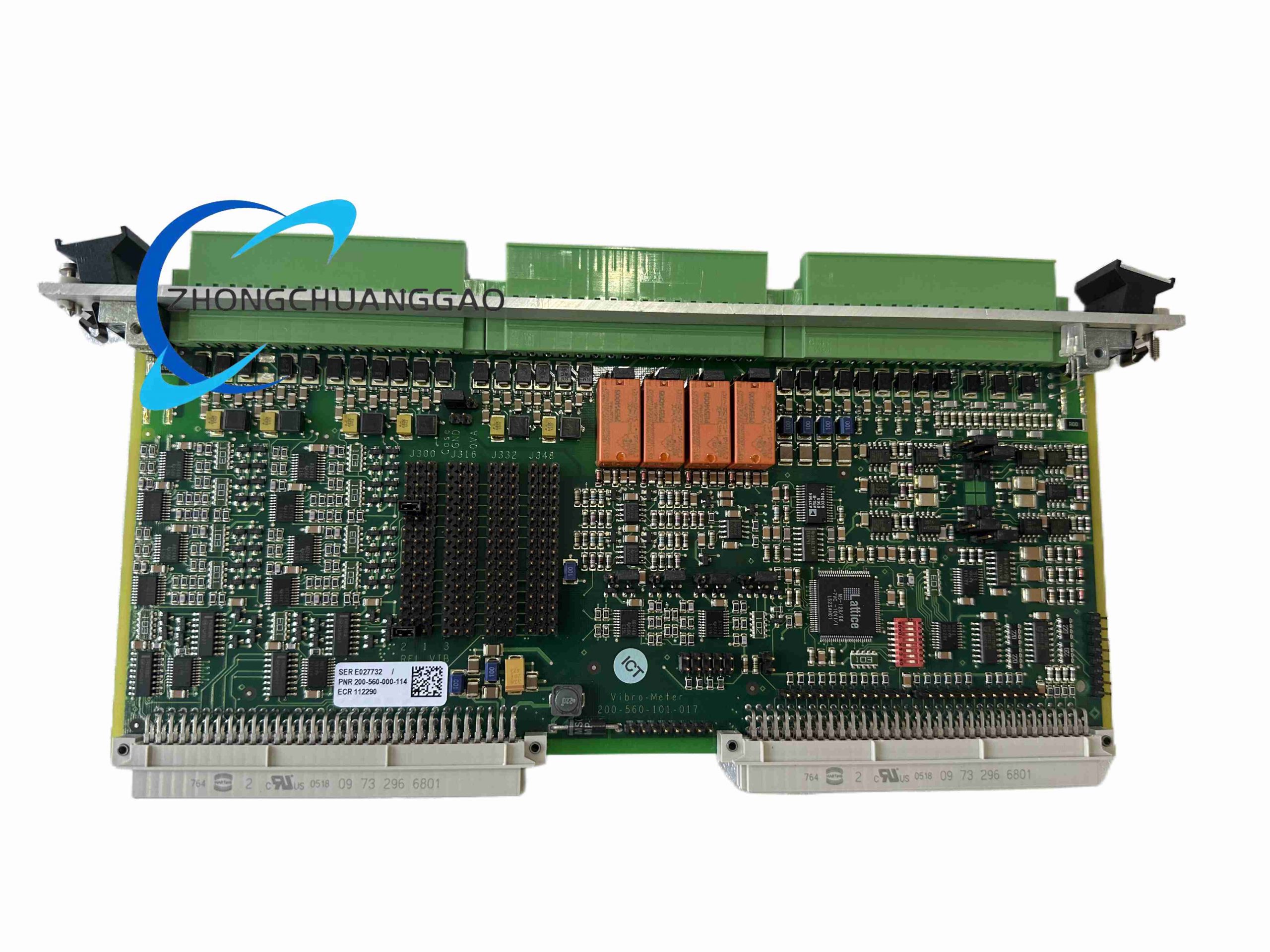

Vibro-Meter VMF-IOC4T 200-560-000-111/200-560-101-017 - Image 1

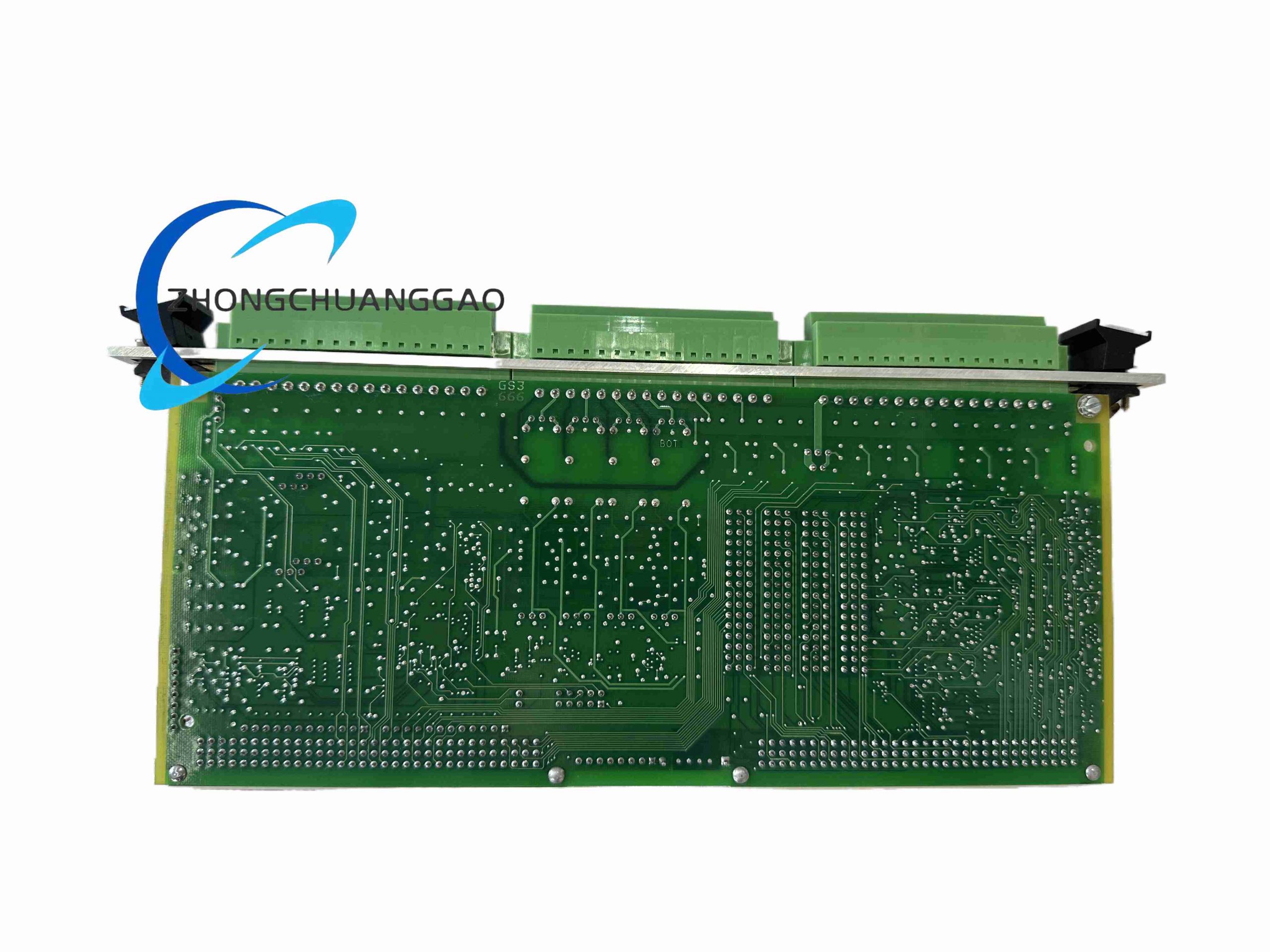

Vibro-Meter VMF-IOC4T 200-560-000-111/200-560-101-017 - Image 2
Click to enlarge
Vibro-Meter VMF-IOC4T 200-560-000-111/200-560-101-017
Vibro-Meter VMF-IOC4T 200-560-000-111/200-560-101-017 - Image 2
Vibro-Meter VM-3024H
Vibro-Meter VM-3024H
Back to products
Vibro-Meter VMF-MPC4 200-510-111-034/200-510-070-113
Vibro-Meter VMF-MPC4 200-510-111-034/200-510-070-113

Vibro-Meter VMF-IOC4T 200-560-000-111/200-560-101-017

Product Overview
The IOC4T (Input/Output Conditioning & Transmitter) card is the physical I/O companion to the MPC4 protection processor in the VM600 system. It provides 4 dynamic signal input channels and 2 tachometer/keyphasor inputs, plus 4 analog outputs (4–20 mA) and 4 SPDT alarm relays. The MPC4 + IOC4T form a “card pair” — MPC4 processes, IOC4T interfaces to the field.
Category:
Description
Technical Specifications
  • Dynamic Inputs:​ 4 × isolated, supports eddy-current probes (−24 V DC bias), IEPE accelerometers (2–20 mA excitation), velocity sensors
  • Tach/Keyphasor Inputs:​ 2 × configurable for magnetic pickup, TTL, or eddy-current probe
  • Input Range:​ Displacement 0–2 mm pk-pk (probe); Acceleration ±50 g (IEPE); Speed 1–20,000 RPM
  • Measurement Accuracy:​ ±0.1 % of reading
  • Sampling:​ Up to 100 kHz/channel synchronous, 24-bit ADC
  • Analog Outputs:​ 4 × 4–20 mA isolated, scalable to any measured parameter
  • Relay Outputs:​ 4 × SPDT, 5 A @ 250 V AC / 30 V DC (Alert & Danger)
  • Communication:​ Backplane to MPC4; RS-485 Modbus RTU (optional)
  • Power:​ From VM600 rack backplane (+24 V DC)
  • Operating Temp.:​ –10 °C to +60 °C
  • Compliance:​ API 670, ISO 7919
Installation Notes
  • Must be paired with MPC4 in adjacent slot (front MPC4 + rear IOC4T)
  • Sensor shield must be grounded only at the rack end
  • Use VibroSight software for gap voltage setup, calibration, and alarm threshold programming
