HIMA F3240

  • Product Name: 16-Channel Safety-Related Input Module (110 V DC / 127 V AC)
  • Product Introduction: A high-density binary input module for HIMA PES / H51q series safety controllers, designed to acquire high-voltage digital signals from field devices in process automation.
Category:
Description
  • Technical Specifications:
    • Input Channels: 16​ digital input channels
    • Input Voltage: 110 V DC​ or 127 V AC​ (single-phase)
    • Input Current: < 1 mA​ at approx. 45 V​ switching threshold
    • Switching Time: Approx. 50 ms
    • Supply Voltage: 5 V DC​ (100 mA), 24 V DC​ (120 mA)
    • Space Requirement: 4 SU​ (module width)
    • Operating Temperature: -20°C to +60°C
    • Protection Rating: IP20
  • Functional Features: Safety isolation between inputs and system bus; configurable filtering; automatic full operational self-test including crosstalk and filter capacitor verification.
  • Performance Parameters: Certified SIL 3​ according to IEC 61508; supports positive/negative logic configuration.
  • Material Composition: Metal-reinforced housing; high-temperature resistant PCB; insulated terminal blocks.
  • Structural Features: Rack-mountable with cable plug interface; front LED indicators for channel and fault status; 4 SU horizontal width.
  • Working Principle: Input voltage is optically or galvanically isolated and converted to safe low-voltage logic; dual-processor comparison ensures signal integrity; walking-zero test detects stuck-at faults.
  • Advantage Highlights: High-voltage input capability reduces external interposing relays; compact design for high I/O density; comprehensive diagnostic coverage.
  • Applicable Industries: Chemical Processing, Power Plants, Manufacturing Automation, Water Treatment.
  • Model Series: HIMA F3 Series / H51q compatible.
  • Installation Requirements: Mount on HIMA standard 19-inch rack or DIN rail adapter; connect via front cable plug; ensure backplane 5 V DC​ / 24 V DC​ supply within tolerance (±20%).
  • Usage Precautions: Verify input voltage type (DC/AC) matches field wiring; do not mix 24 V DC​ and 110 V DC​ channels on same module; ensure isolation clearance for high-voltage terminals.
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “HIMA F3240”

Your email address will not be published. Required fields are marked *

Shipping and Delivery
wd-ship-1
wd-ship-2

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Related products

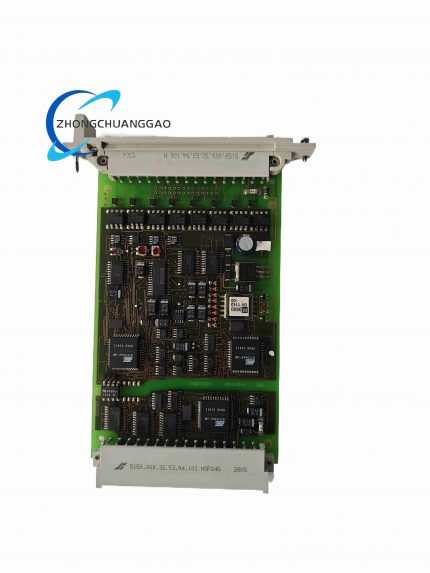

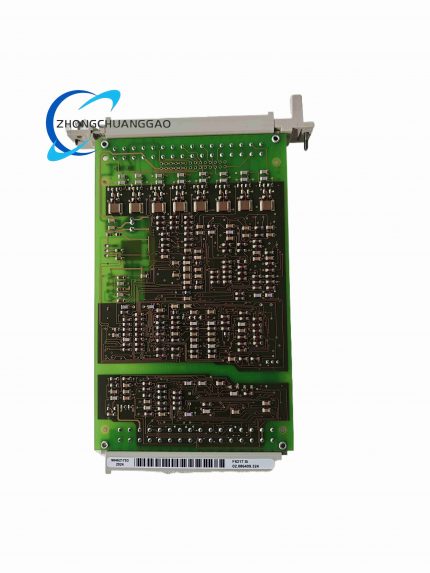

HIMA F6217

  • Product Name:​ HIMA F6217 Safety Digital Input Module, 16-Channel, 24 VDC
  • Product Introduction:​ A safety-related discrete input module for HIMA H41q/H51q and HIMax systems, designed to acquire 16 dry-contact or 24 VDC proximity signals from field sensors (e.g., emergency pushbuttons, limit switches, valve feedback) and feed them into the safety logic solver with galvanic isolation and comprehensive diagnostics.
Read more
Quick view

HIMA F8650E

  • Product Name:​ HIMA F8650E Safety System Central Processing Unit (CPU) Module
  • Product Introduction:​ The core processor for HIMA HIQuad (H51q) Safety Instrumented Systems. Executes user safety application program, performs 1oo2D / 2oo4D redundant processing, manages I/O communication, and logs Sequence of Events (SOE). Certified SIL 3 for ESD, HIPPS, F&G, burner management applications.
Read more
Quick view

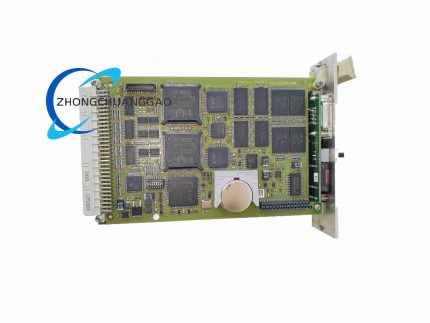

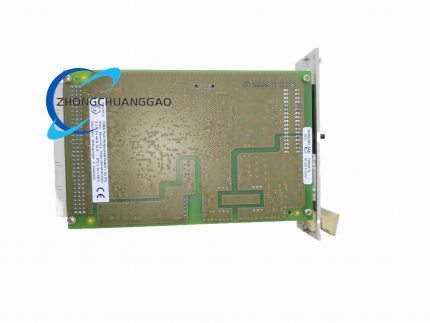

HIMA F8650X
