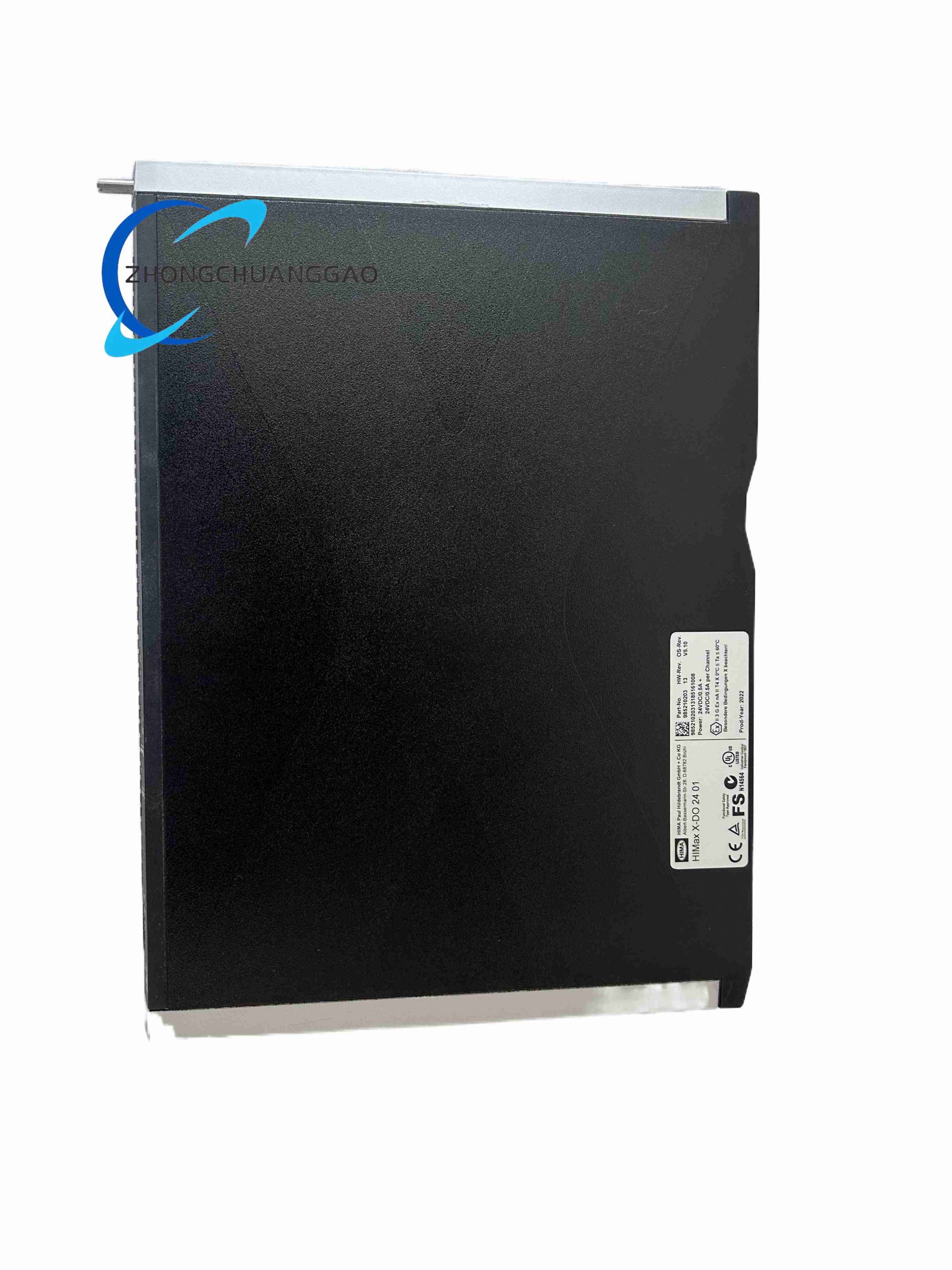

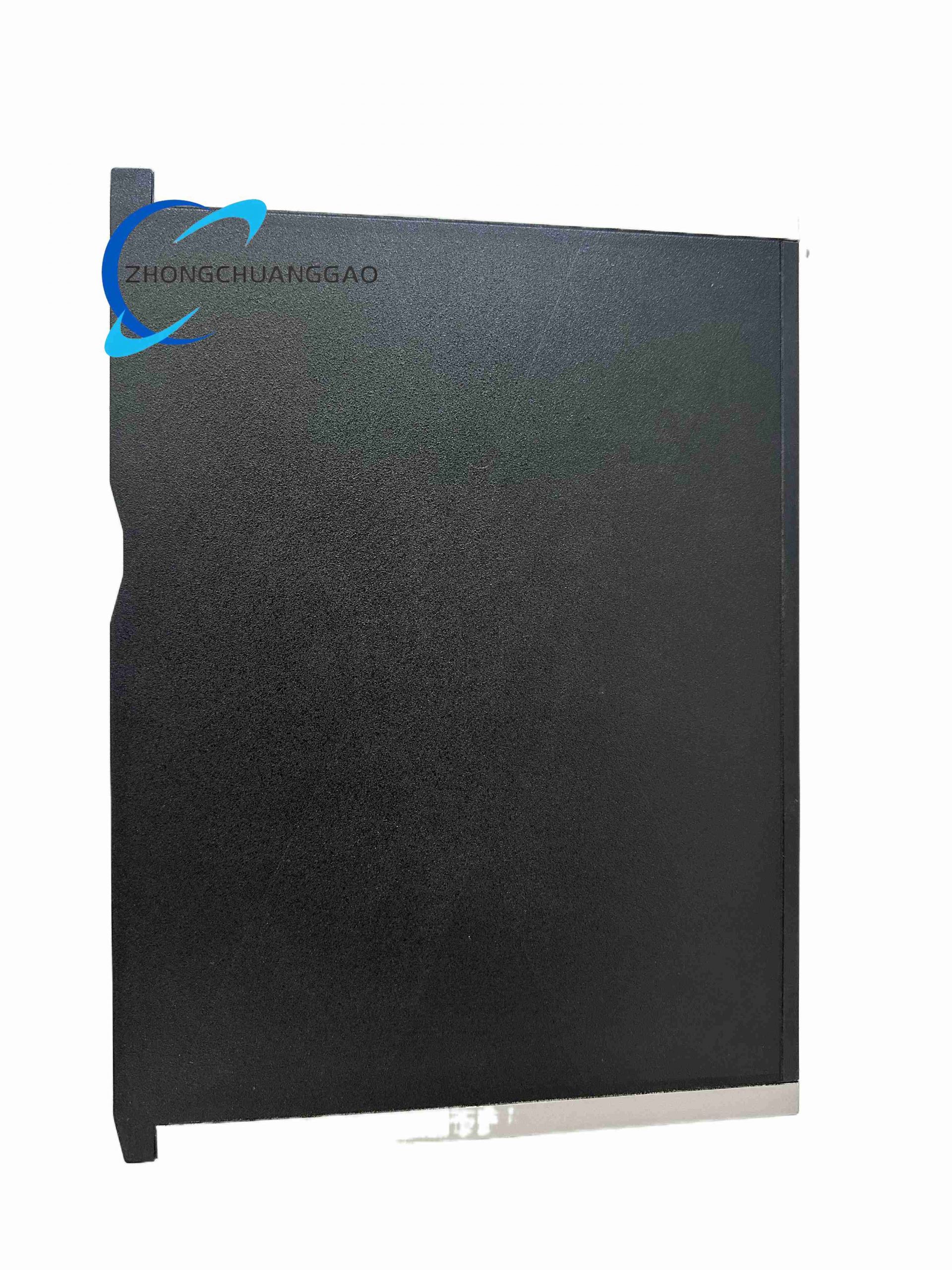

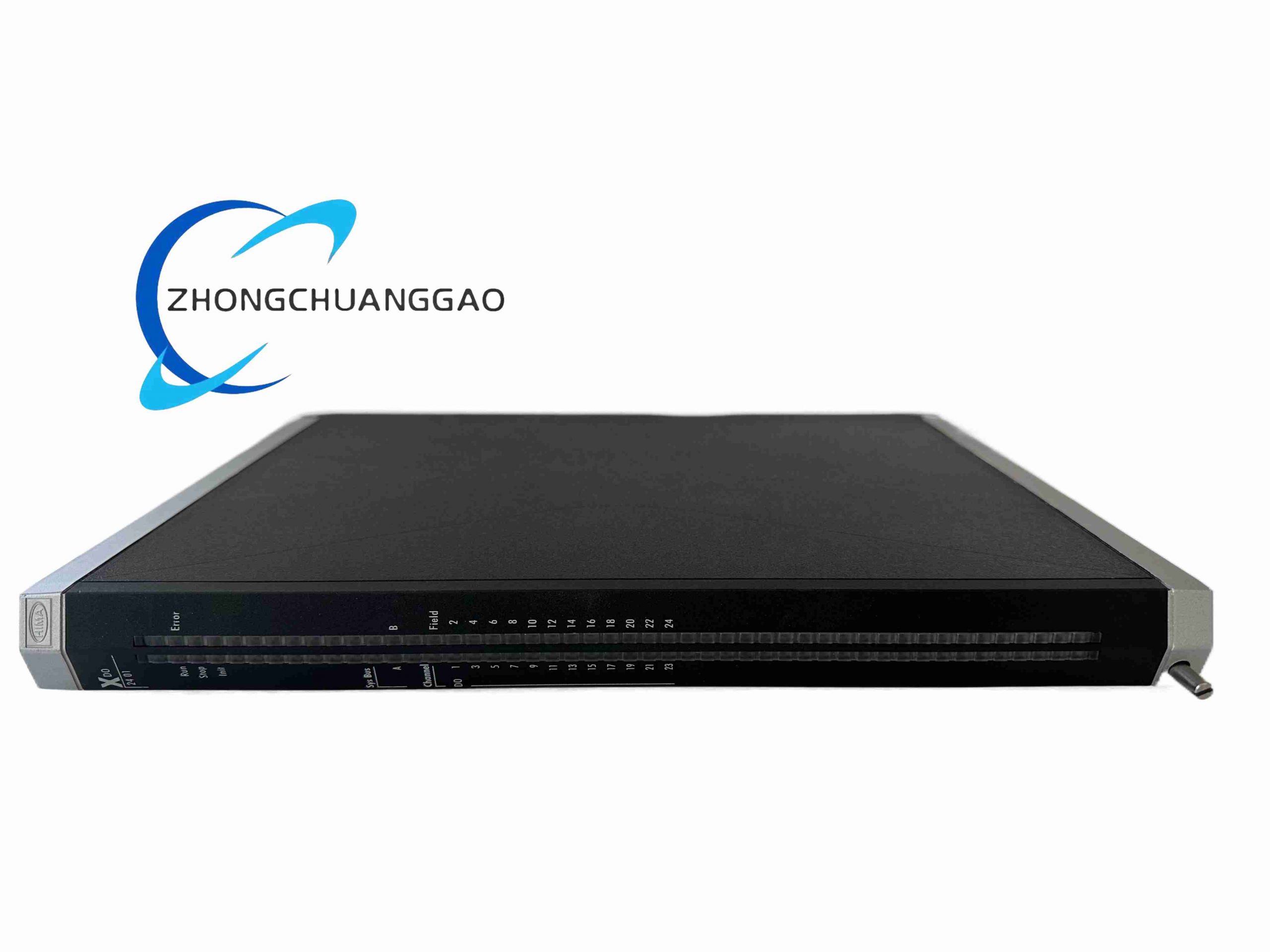

HIMA X-DO2401 985210203

Product Name:​ HIMax 24-Channel Safety Digital Output Module
Overview:​ Provides 24 safety-rated digital outputs (typically 24 V DC, source type) to drive solenoids, LEDs, annunciators, or interposing relays. Includes short-circuit protection per group and comprehensive diagnostics.
Category:
Description
Technical Specifications:
  • Channels:​ 24 digital outputs (usually grouped in 8 or 12)
  • Output Type:​ Semiconductor switch, 24 V DC source (PNP), short-circuit protected per group
  • Max Load Current:​ Typically 0.5 A per channel; total module current limited (~2–4 A depending on variant)
  • Switching Time:​ <1 ms ON/OFF
  • Cable Monitoring:​ Open-load / broken-wire detection available on selected channels
  • Isolation:​ Galvanic isolation field ↔ system
  • Diagnostics:​ Per-group error LED, short-circuit alert, overtemperature warning, diagnostic bits sent to CPU
  • Power Supply:​ Field-side 24 V DC supplied externally via connection board; logic side via backplane
  • Mounting:​ HIMax base plate with X-CB connection board
  • Operating Temp.:​ –20 °C to +60 °C
  • Certification:​ SIL 3 (IEC 61508)
    Installation Note:​ Use flyback diodes / RC snubbers on inductive loads; verify fusing on field supply. Module is hot-swappable in redundant configuration only when system permits.
