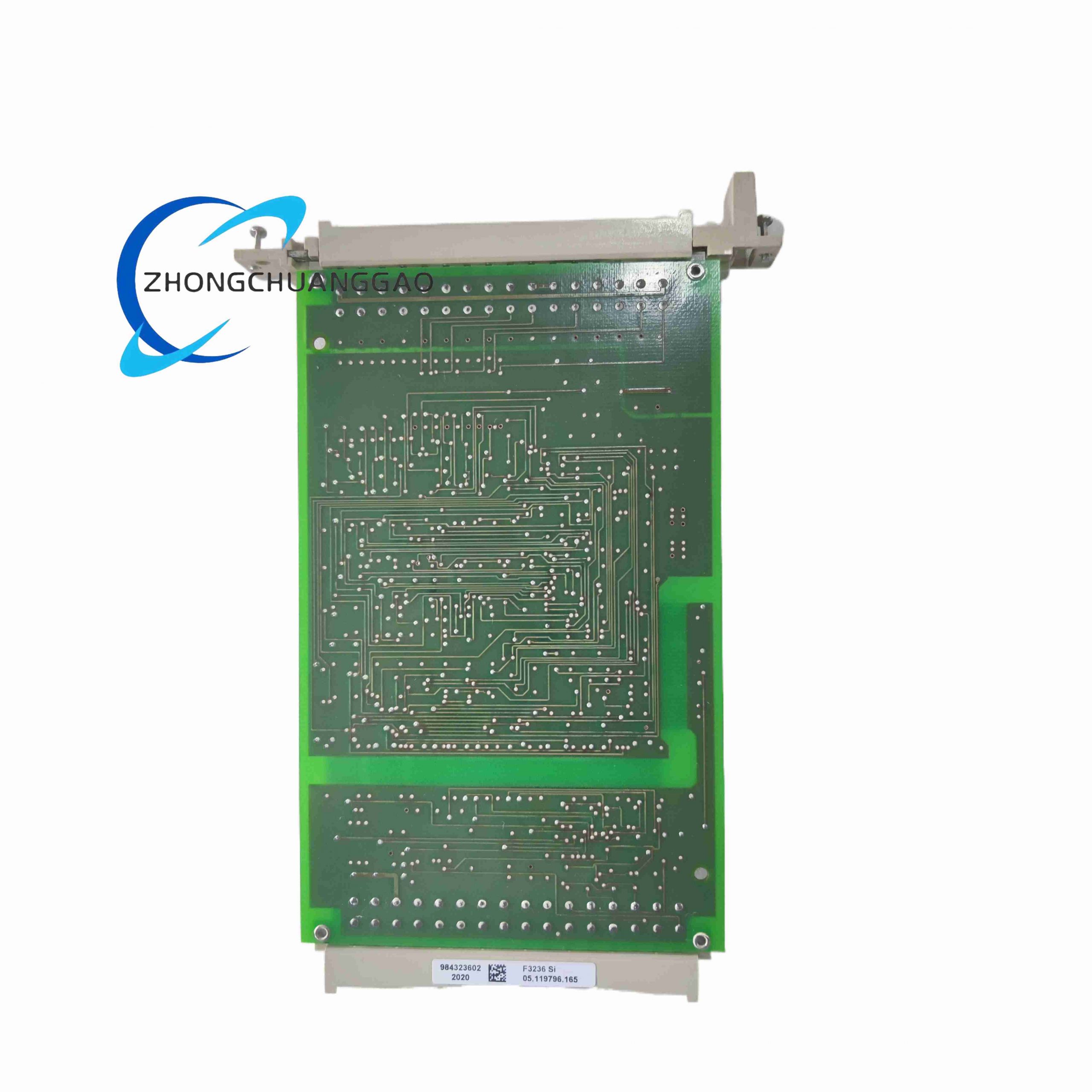

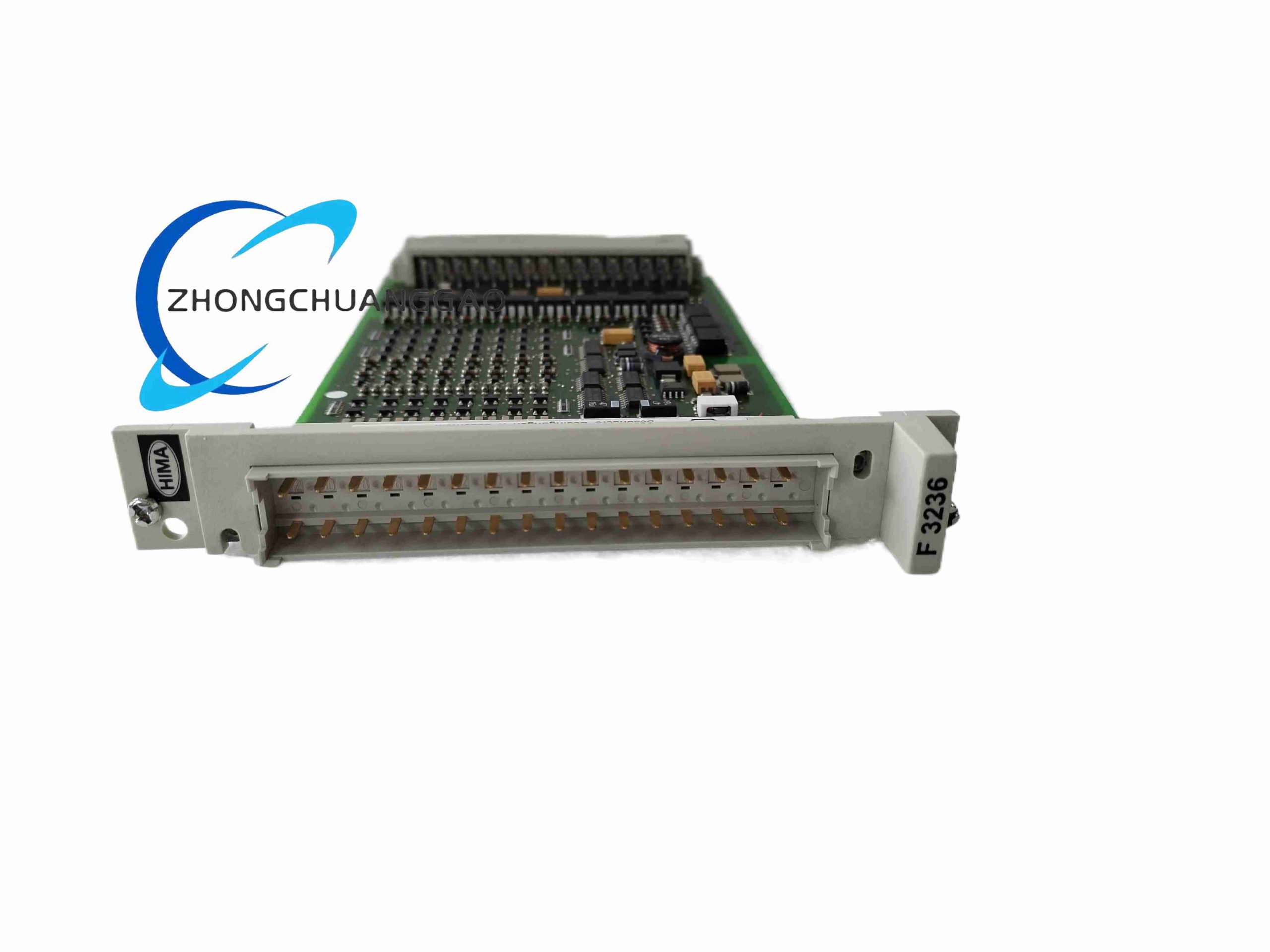

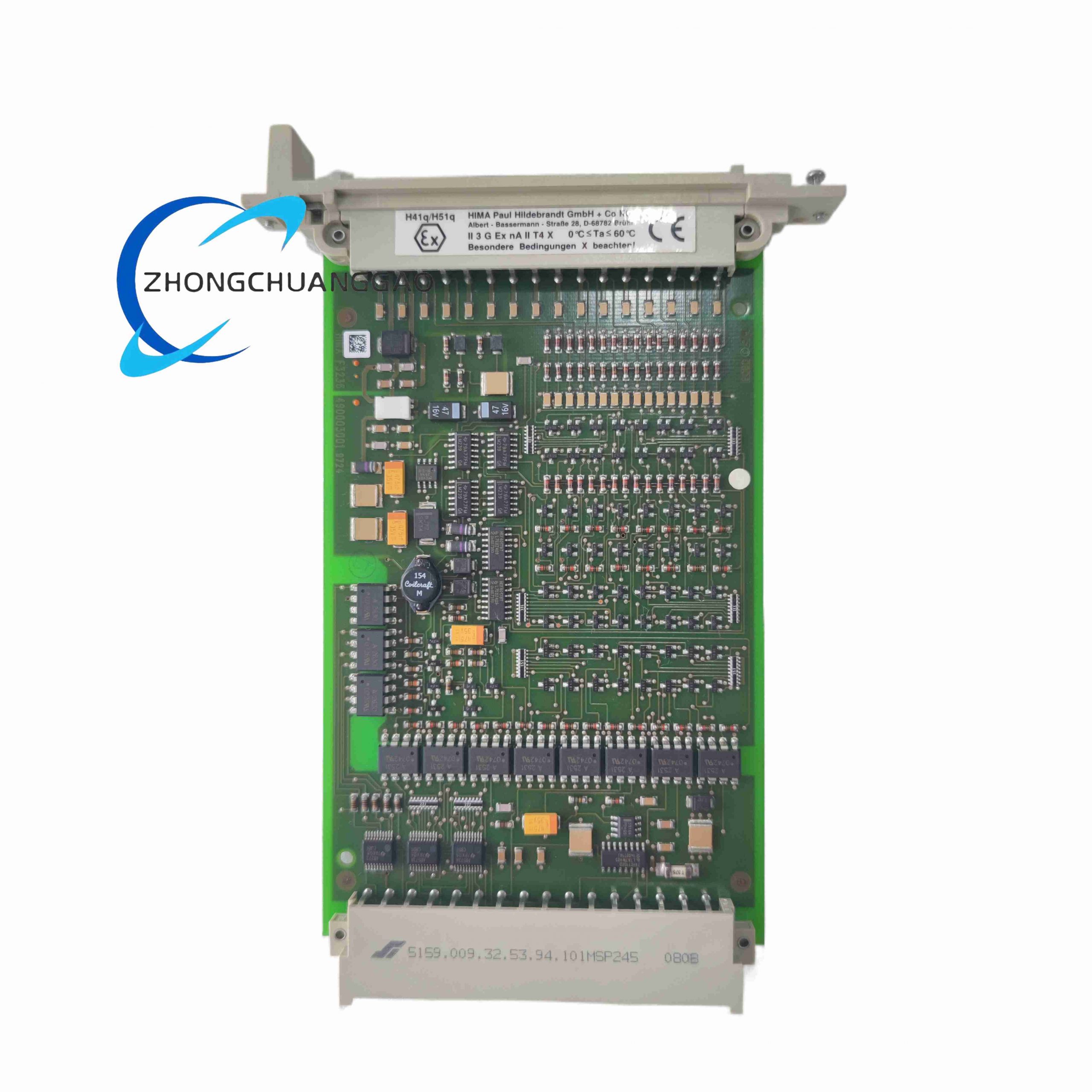

HIMA F3236

  • Product Name: 16-Channel Safety-Related Digital Input Module
  • Product Introduction: Engineered for HIMA HIQuad / H41q / H51q / HIMatrix safety systems to acquire 24 V DC digital signals from field sensors, emergency stop buttons, and limit switches with integrated diagnostics.
Category:
Description
  • Technical Specifications:
    • Input Channels: 16​ independent safety-related digital inputs
    • Input Signal: 24 V DC​ mechanical contacts or 6 mA​ current sinking
    • Switching Time: Typical 8 ms
    • Supply Voltage: 5 V DC​ (120 mA) or 24 V DC​ (200 mA)
    • Space Requirement: 4 TE​ (module width)
    • Operating Temperature: -40°C to +70°C
    • Storage Temperature: -40°C to +85°C
    • Relative Humidity: 5% to 95%​ non-condensing
    • Protection Rating: IP20​ (cabinet mounted)
    • Weight: Approx. 0.6 kg
  • Functional Features: Dual microprocessor architecture with hardware comparator; automatic walk-zero testing; line break monitoring; fail-safe mechanism.
  • Performance Parameters: Safety integrity level SIL 3​ per IEC 61508; TÜV AK 1–6​ certified; channel-to-bus electrical isolation.
  • Material Composition: Industrial-grade PCB with conformal coating; metal/aluminum front plate; flame-retardant plastic housing.
  • Structural Features: Plug-in module for standard HIMA rack; front-panel status LEDs; separate cable plug interface.
  • Working Principle: Two synchronized microprocessors process input logic independently and compare results; discrepancy triggers safe state; continuous self-diagnostics verify capacitor, crosstalk, and function integrity.
  • Advantage Highlights: Hot-swappable capability; high fault coverage (>99%); compact 4 TE design reducing cabinet footprint; redundant internal data paths.
  • Applicable Industries: Oil & Gas, Petrochemical, Offshore Platforms, Power Generation, Fire & Gas (F&G) systems.
  • Model Series: HIMA F3 Series / HIQuad X / HIMatrix compatible.
  • Installation Requirements: Install in designated HIMA C300/C500/C700 or H41q/H51q rack slots; ensure 24 V DC​ or 5 V DC​ backplane power is stable; secure DIN rail or rack locking lever.
  • Usage Precautions: Do not exceed 24 V DC​ input rating; ensure proper grounding of shield at cable entry; verify firmware compatibility before hot insertion; isolate power during initial wiring to prevent back-feed damage.
