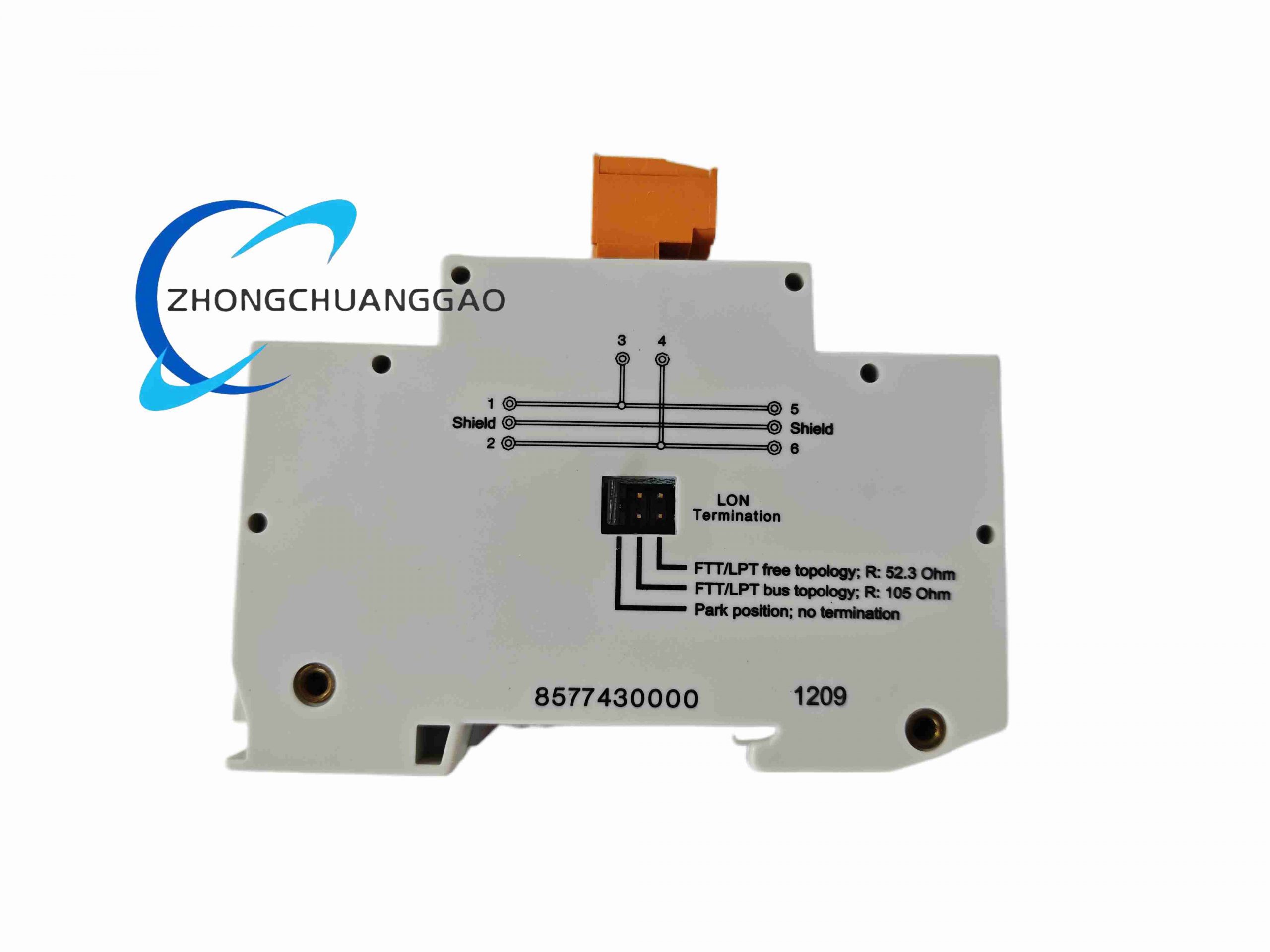

HIMA XAL-TERM - Image 1
HIMA XAL-TERM - Image 2
Click to enlarge
HIMA XAL-TERM
HIMA XAL-TERM - Image 2
HIMA X-AI3201
HIMA X-AI3201
Back to products
SHINKAWA VM-5T-21010-111-111-011-0EX5
SHINKAWA VM-5T-21010-111-111-011-0EX5

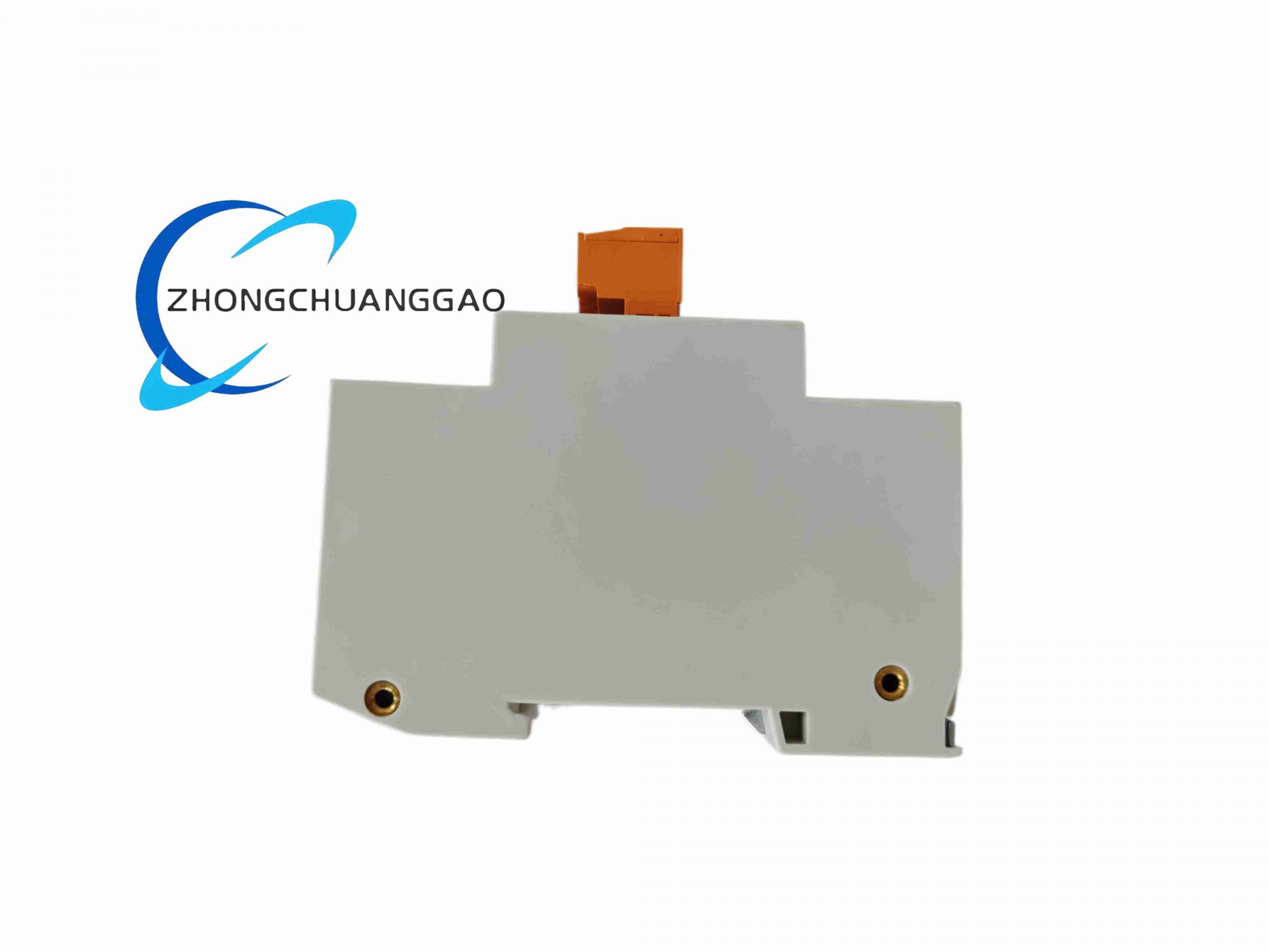

HIMA XAL-TERM

Product Introduction:
The XAL-TERM is a field-termination or shunt/adaptor module used in conjunction with HIMA X-series analog or digital I/O modules (such as X-AI3201, X-DI…). It provides screw-terminal connections for field wiring (shielded cables) and often includes built-in terminating resistors (for analog loops) or jumper options, allowing field cabling to be disconnected without removing the electronic I/O module.
Category:
Description
Key Features:
  • Function:​ Field wiring interface with screw terminals; some variants include 250 Ω HART shunt resistor for 4–20 mA loops
  • Connection:​ Spring or screw clamp terminals for shielded twisted pair (typically 0.2–2.5 mm²)
  • Mounting:​ Directly onto the front of the I/O module (plug-on) or in separate termination rack (depending on HIMA cabinet concept)
  • Material:​ Flame-retardant plastic housing (UL 94V-0)
  • Isolation:​ Matches I/O module isolation; no additional isolation unless specified
  • Application Note:​ Always verify exact XAL-TERM variant (e.g., with/without HART resistor, for AI vs DI) against the I/O module part number in the HIMA configuration manual
