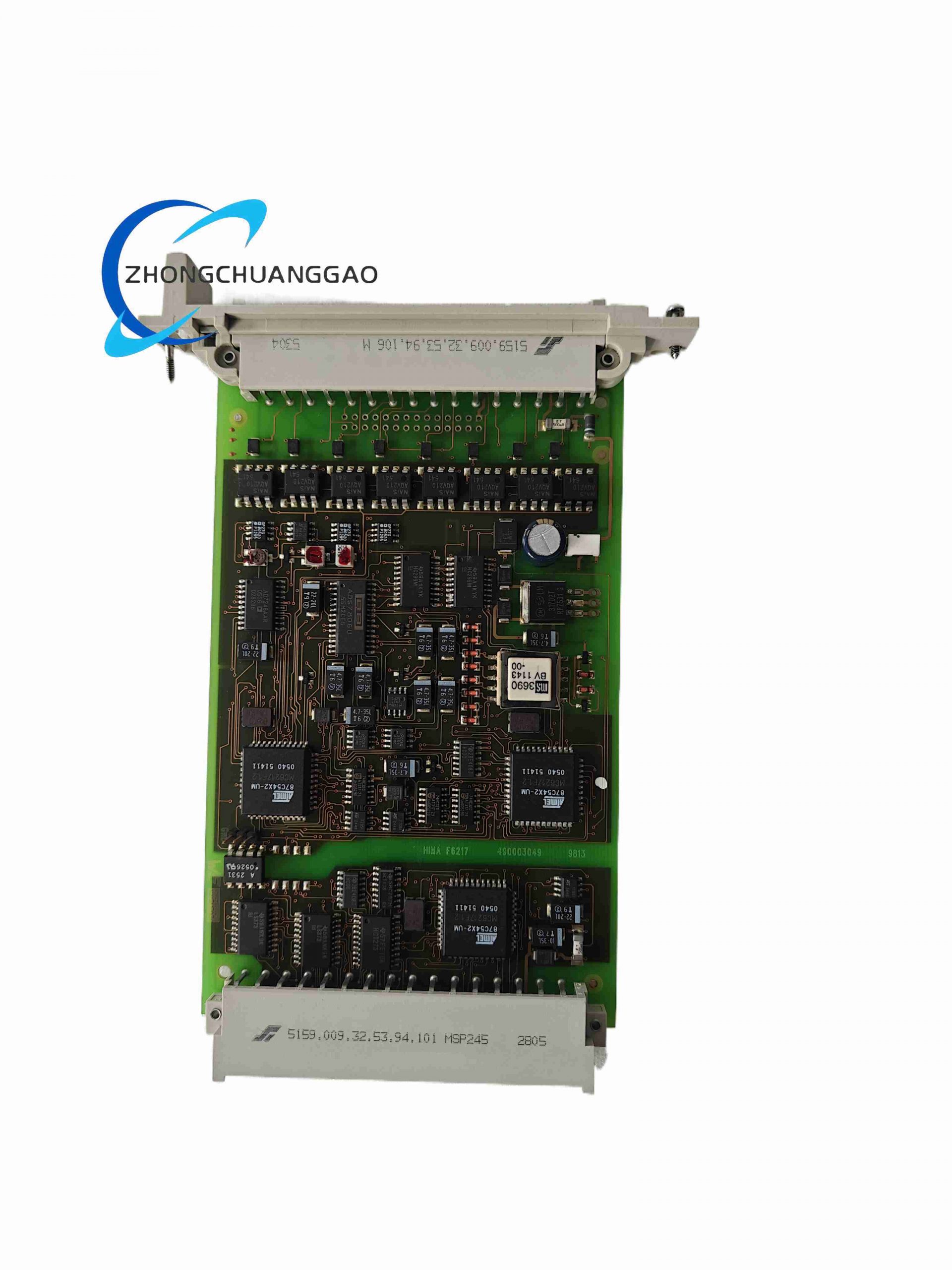

HIMA F6217 - Image 1

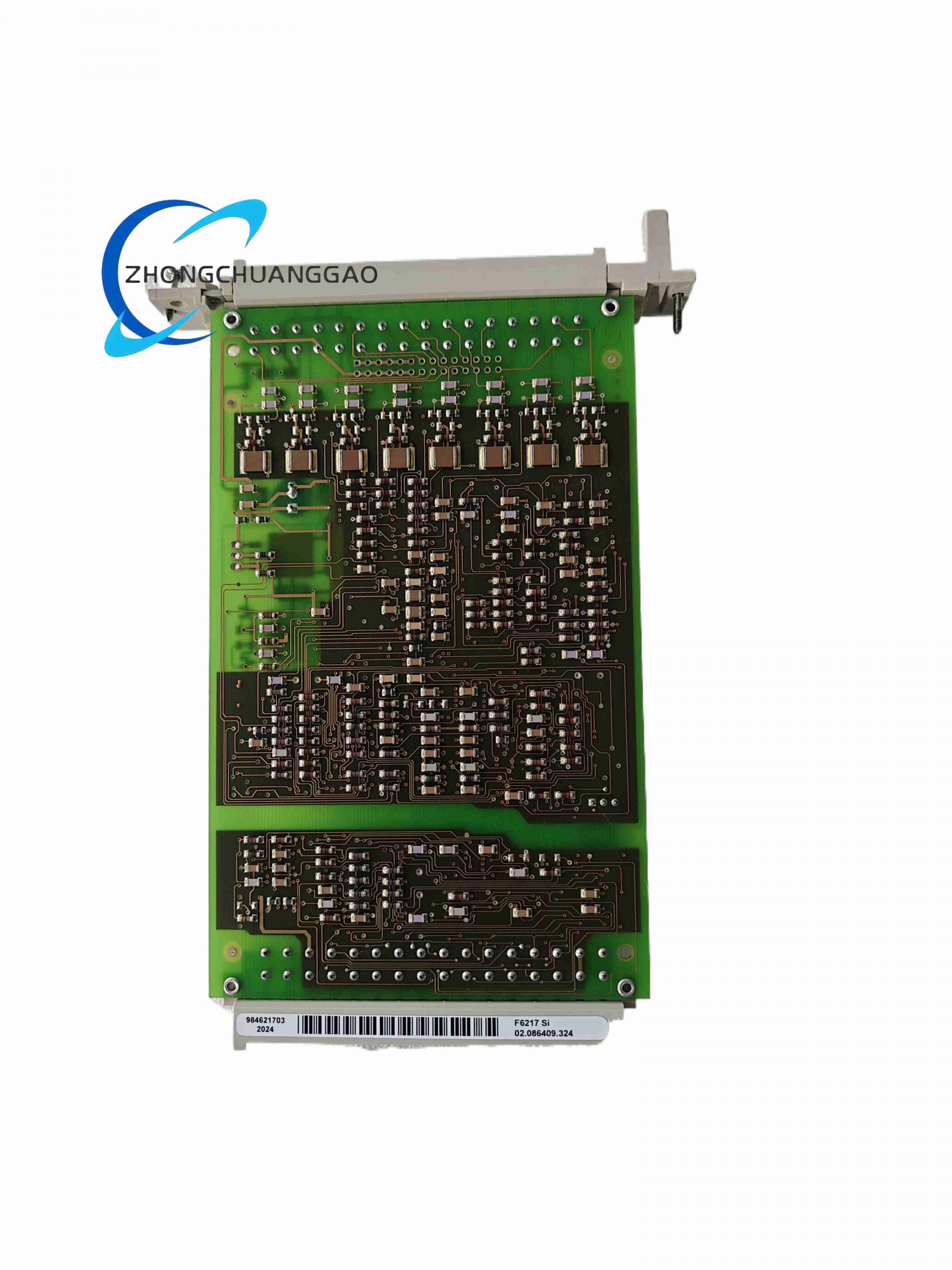

HIMA F6217 - Image 2
Click to enlarge
HIMA F6217
HIMA F6217 - Image 2
HIMA F3330
HIMA F3330
Back to products
HIMA F8650E
HIMA F8650E

HIMA F6217

  • Product Name:​ HIMA F6217 Safety Digital Input Module, 16-Channel, 24 VDC
  • Product Introduction:​ A safety-related discrete input module for HIMA H41q/H51q and HIMax systems, designed to acquire 16 dry-contact or 24 VDC proximity signals from field sensors (e.g., emergency pushbuttons, limit switches, valve feedback) and feed them into the safety logic solver with galvanic isolation and comprehensive diagnostics.
Category:
Description
  • Technical Specifications:
    • Channels:​ 16 digital inputs (grouped in 2 × 8), electrically isolated from system
    • Input Type:​ 24 VDC (Type 1/Type 2 compatible), also accepts NAMUR signals (with proper config)
    • Input Current:​ typ. 7 mA per channel at 24 VDC
    • Signal Delay:​ typ. ≤ 10 ms (configurable filter)
    • Cable Length:​ max. approx. 500 m (shielded twisted pair recommended)
    • Safety Integrity:​ SIL 3 / AK 6 (IEC 61508)
    • Backplane Power:​ 5 VDC ≈ 120 mA
    • Indicators:​ LED per channel + module status LED (RUN/ERR)
    • Operating Temp.:​ -20 °C to +60 °C; Storage: -40 °C to +85 °C
    • Slot Width:​ 4 TE
  • Structure & Material:​ Plug-in PCB module with screw-terminal or ribbon-cable header (depending on terminal block), FR4 with metal shielding plate.
  • Working Principle:​ Each input is optically isolated and periodically tested by the module’s watchdog. The processed binary state is transmitted to the Central Unit via the safety backplane bus. Wire-break and short-to-ground are detectable via threshold monitoring.
  • Installation & Notes:​ Use shielded cable for long runs. Do not exceed max. capacitance on NAMUR inputs. Commission by forcing each input and verifying logic response. Hot-swappable in redundant configuration.
