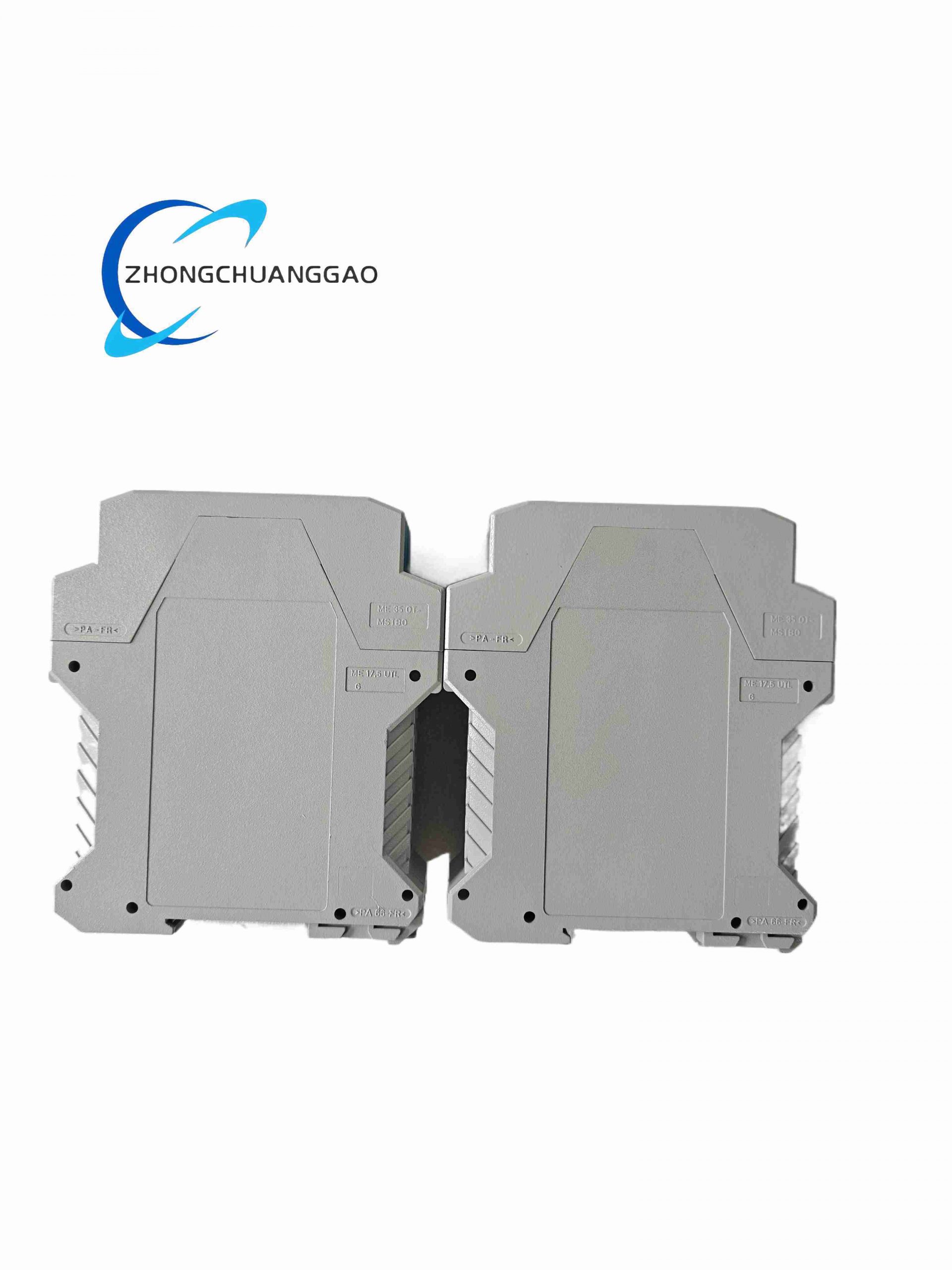

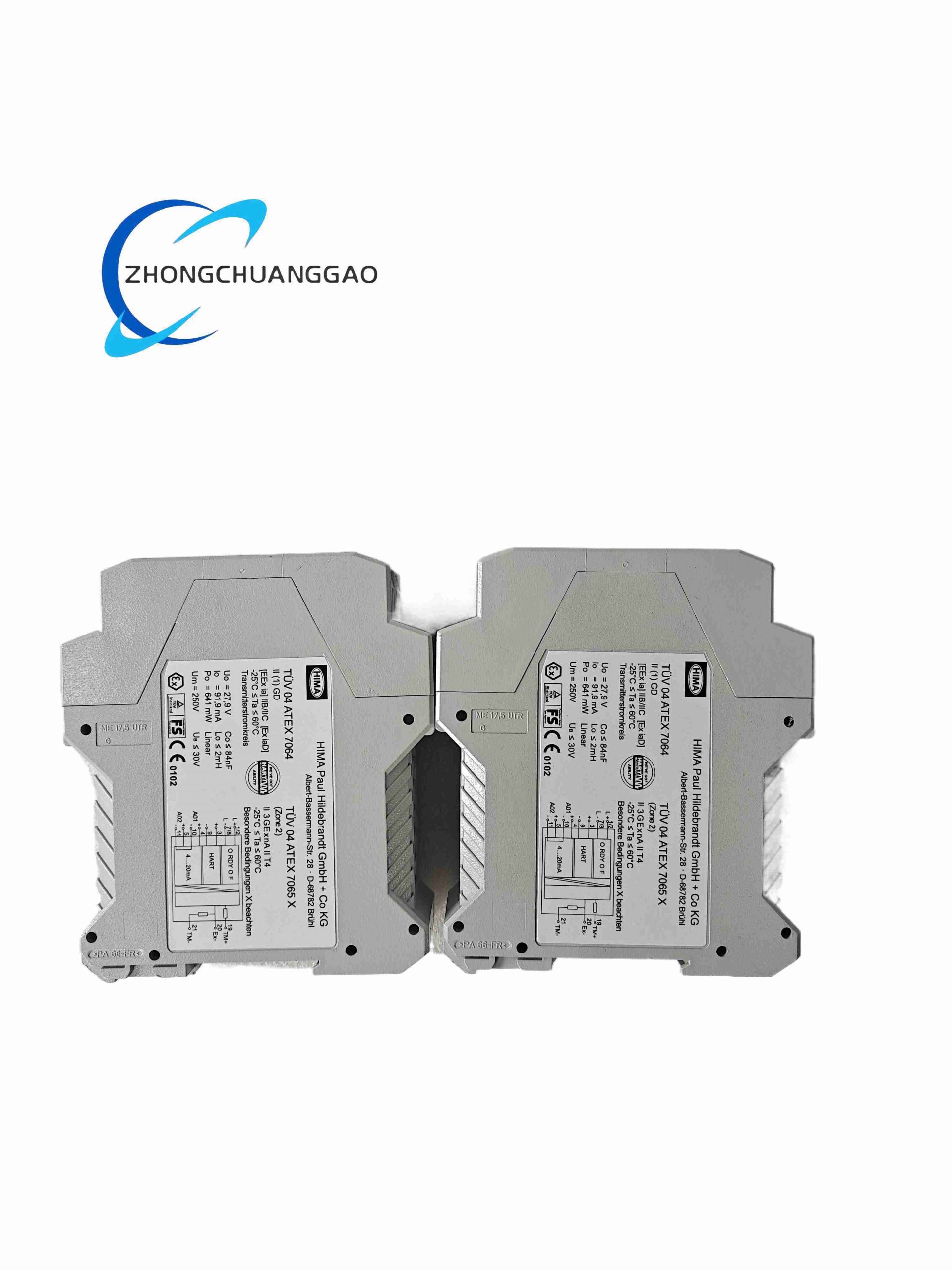

HIMA H6200A

Manufacturer:​ HIMA Paul Hildebrandt GmbH & Co KG (Germany)
Product Brief:​ The H6200A is the central CPU module of the HIMA H6000 or HIMatrix safety instrumented system (SIS), designed for high-integrity emergency shutdown (ESD), fire & gas (F&G), and burner management (BMS) applications. It executes certified safety logic with continuous self-diagnostics and fail-safe behavior.
Category:
Description
Key Technical Specifications:
  • Safety Integrity Level:​ SIL 3 per IEC 61508/ IEC 61511; AK6 per DIN V 19250; PL e per ISO 13849-1
  • CPU Architecture:​ Dual-channel heterogeneous redundant CPUs (1oo2D architecture) with cross-checking
  • Program Memory:​ 8 MB – 32 MB (model dependent); Data memory 4 MB+
  • Scan Cycle:​ ≤ 10 ms (configurable)
  • Supply Voltage:​ 24 V DC (±10%, 19–28 V DC), typical power consumption < 15 W
  • Communication Interfaces:​ HIS backplane bus to I/O, PROFIBUS-DP (redundant optional), RS-232 for diagnostics, optional HART multiplexer / SafeEthernet
  • Redundancy:​ Supports 1:1 CPU hot-standby with fiber synchronization link
  • Operating Temperature:​ 0 °C to +60 °C (some versions -20 °C to +60 °C)
  • Storage Temperature:​ -40 °C to +85 °C
  • Humidity:​ 5 % – 95 % RH, non-condensing
  • Protection:​ IP20 (for control cabinet installation)
  • Mounting:​ DIN rail or 19″ rack slot in HIMA system chassis
  • Weight:​ Approx. 0.65 – 1.0 kg
  • Certifications:​ TÜV, CE, UL, CSA, ATEX (when used in certified system)
Functional Features:
  • Continuous CPU self-test, memory parity check, I/O watchdog, communication supervision
  • Front-panel LEDs for RUN, STOP, ERROR, BUS, and redundancy status
  • Hot-swappable in redundant configuration
  • Supports online download of modified safety logic (with password protection)
Application Scenarios:​ ESD (Emergency Shutdown) in oil & gas / petrochemical plants, burner management systems (BMS), high-pressure protection, turbine overspeed protection, fire & gas logic solving.
Installation & Notes:
  • Install in properly grounded control cabinet; ensure 24 V DC redundant power supply.
  • Do NOT mix safety and non-safety wiring in same cable ducts without separation.
  • Only configure / program using HIMA ELOP II or SILworX engineering software with valid licenses.
