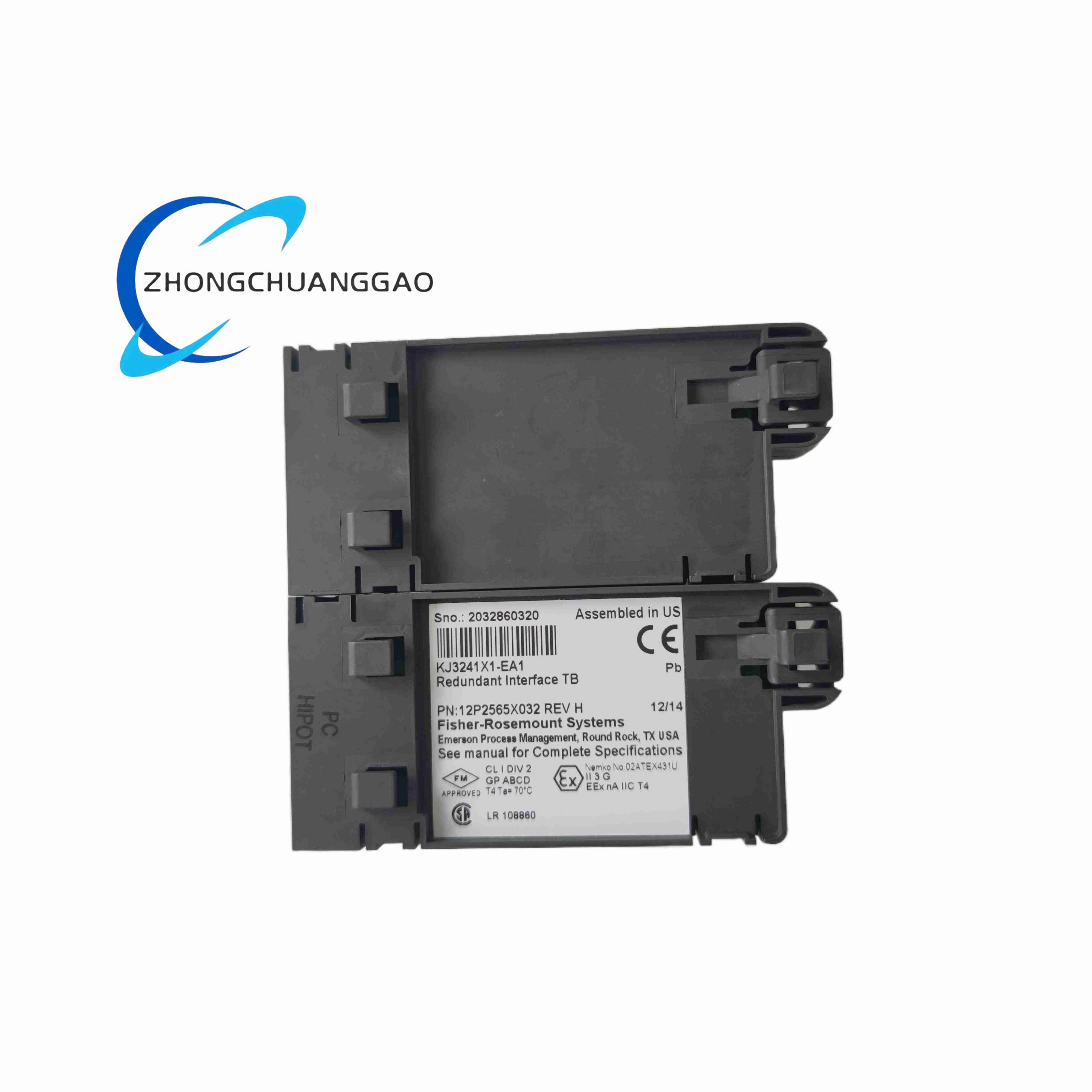

Emerson KJ3241X1-EA1

  • Product Name: DeltaV Redundant Serial Interface Terminal Block
  • Product Introduction: A specialized terminal block designed to provide the physical wiring interface for KJ3241X1 series serial interface cards, supporting dual redundant serial paths.
Category:
Description
  • Technical Specifications:
    • Type: Redundant Serial Interface Terminal Block
    • Channels: Matches paired serial card architecture
    • Voltage: +5 VDC / +24 VDC via DeltaV backplane
    • Operating Temp: 0°C to +60°C (ambient control cabinet)
    • Dimensions: Approx. 180x120x40 mm
    • Weight: 0.141 kg
  • Functional Features: Provides error detection and fault isolation at the wiring level; supports high-availability redundant architecture; rotary keying system prevents mismating.
  • Application Scenarios: Critical process control loops where serial communication continuity is mandatory, such as turbine control or safety system interfacing.
  • Material & Structure: High-impact thermoplastic body with screw-type terminal connectors for field wiring; integrated shield connection points.
  • Working Principle: Acts as a passive/active bridge routing field serial signals to the interface card while maintaining redundant signal integrity through isolated pathways.
  • Installation Requirements: Install only with matching KJ3241X1-BK1 or BA1 cards; power must be de-energized before insertion/removal.
  • Usage Notes: Verify key position settings before locking into the carrier; do not disassemble as it contains no user-serviceable parts.
