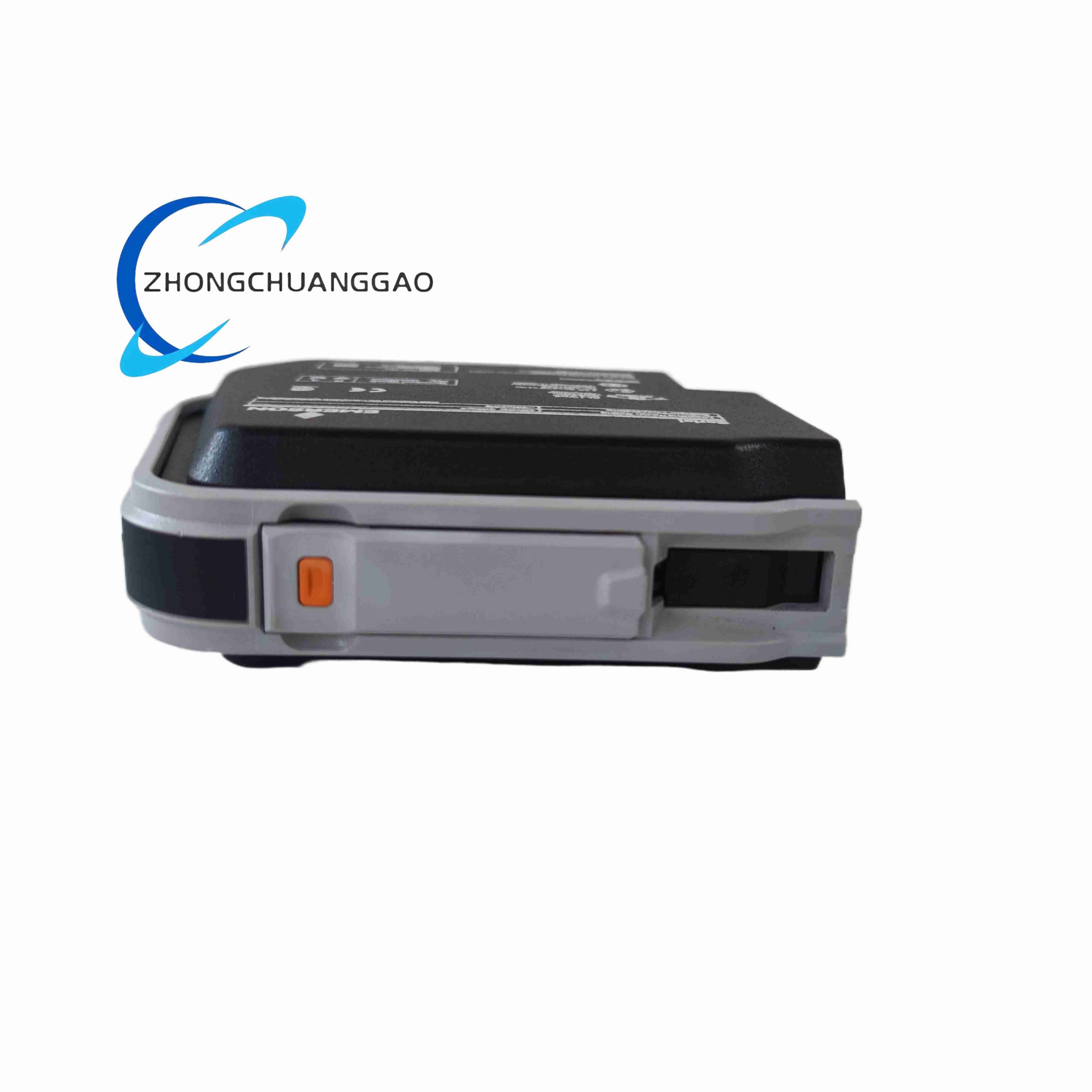

Emerson KJ3241X1-BK1 - Image 1
Emerson KJ3241X1-BK1 - Image 2
Emerson KJ3241X1-BK1 - Image 3
Click to enlarge
Emerson KJ3241X1-BK1
Emerson KJ3241X1-BK1 - Image 2
Emerson KJ3241X1-BK1 - Image 3
Lenel LNL-1320
Lenel LNL-1320
Back to products

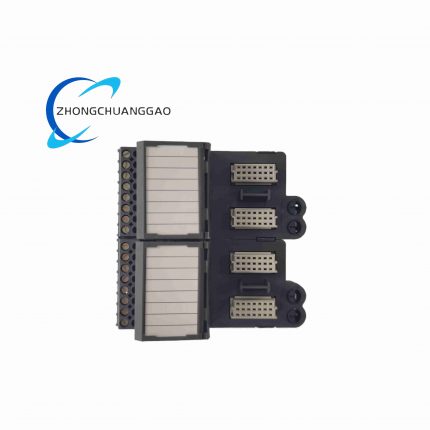

Emerson KJ3241X1-EA1
Emerson KJ3241X1-EA1

Emerson KJ3241X1-BK1

  • Product Name: DeltaV S-Series Redundant Serial Interface Card
  • Product Introduction: This module facilitates seamless serial communication between the DeltaV Distributed Control System and various field devices such as PLCs, RTUs, and HMIs. It is designed for high-reliability industrial environments requiring continuous data exchange.
Category:
Description
  • Technical Specifications:
    • Communication Protocols: RS-232, RS-422, RS-485
    • Ports: Up to 4 serial ports per card
    • Baud Rate: Up to 115.2 kbps
    • Power Requirement: 12 VDC at 300 mA (LocalBus)
    • Operating Temperature: -40°C to +70°C
    • Isolation: Galvanically isolated communication ports
    • Dimensions: Approx. 161x161x12 mm (vendor dependent) or 200x120x60 mm
    • Weight: Approx. 0.14 kg – 0.18 kg
  • Functional Features: Supports redundant configuration for automatic failover, hot-swappable design for maintenance without shutdown, built-in self-diagnostics, and electrical noise immunity.
  • Application Scenarios: Data acquisition from legacy serial devices, integration of third-party analyzers, remote terminal unit connectivity in Oil & Gas, Chemical, and Power industries.
  • Material & Structure: Industrial-grade molded plastic housing with DIN rail compatible mounting clips; DB-9 or screw terminal interfaces depending on variant.
  • Working Principle: Converts serial field device data into DeltaV LocalBus protocol via an onboard microcontroller and isolation circuitry, enabling transparent data transmission to the controller.
  • Installation Requirements: Must be installed on a compatible DeltaV carrier or rack with proper keying alignment; requires shielded cabling for noise-prone environments.
  • Usage Notes: Cannot be removed or inserted with system power energized; calibration is not required; ensure terminal block key position matches the I/O card (e.g., D4).
