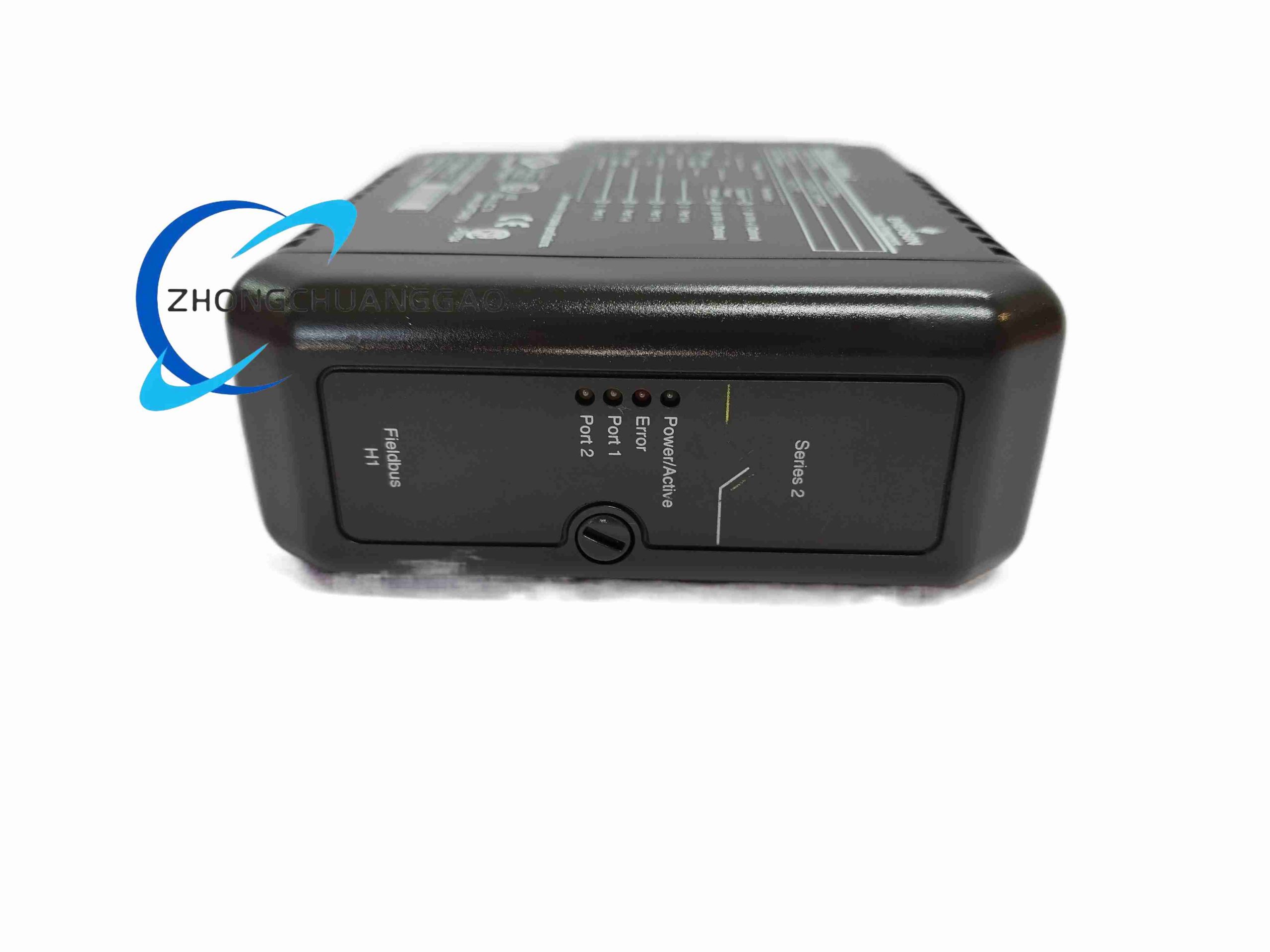

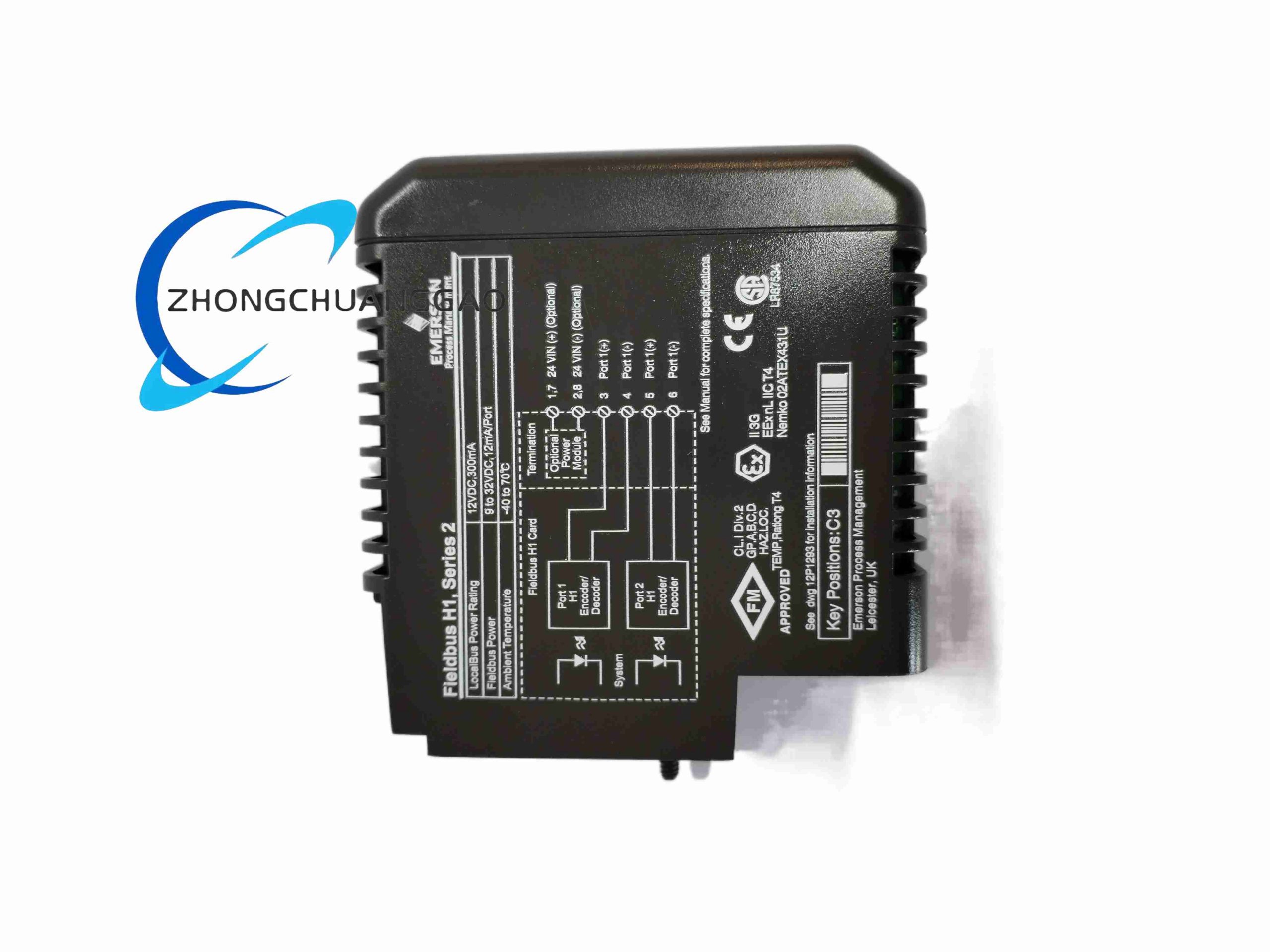

Emerson KJ3242X1-BA1
Emerson KJ3242X1-BA1 - Image 2
Emerson KJ3241X1-EA1
Emerson KJ3241X1-EA1
Back to products

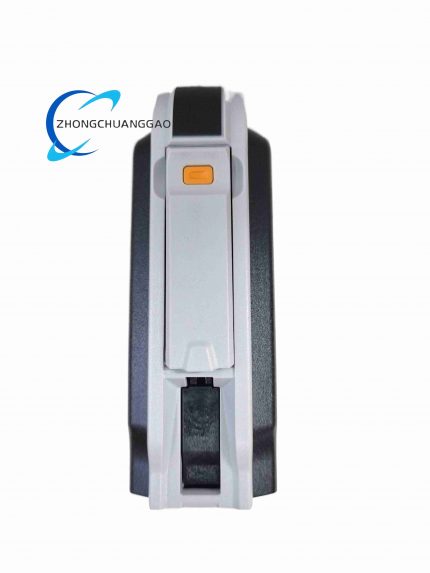

Emerson KJ3242X1-BK1
Emerson KJ3242X1-BK1

Emerson KJ3242X1-BA1

  • Product Name: DeltaV S-Series Redundant Network Interface Card (or H1 Terminal Block variant depending on context)
  • Product Introduction: Part of the DeltaV S-Series communication interface family, typically utilized for Foundation Fieldbus H1 or redundant serial networking within the DeltaV ecosystem.
Category:
Description
  • Technical Specifications:
    • Power: 12 VDC LocalBus (typical for interface cards) or 35 VDC @ 500mA for H1 Term Blocks
    • Environment: -40°C to +70°C operating temp
    • Shock/Vibration: 10g half-sine 11ms; 1mm p-p (5-16Hz), 0.5g (16-150Hz)
    • Humidity: 5% to 95% non-condensing
    • Protection: IP20
  • Functional Features: Redundant channel support, intrinsic safety options for hazardous areas (Zone 2/Class I Div 2), real-time data mirroring.
  • Application Scenarios: Foundation Fieldbus H1 segment coupling in process plants; redundant serial links for asset management systems.
  • Material & Structure: Conformal coated PCB in shielded metal/plastic enclosure; DIN rail mountable.
  • Working Principle: Manages time-critical network scheduling (for H1) or serial packet routing with hardware-level redundancy switching (<5ms).
  • Installation Requirements: Requires certified hazardous area installation practices if used in Zone 2; use ISA G3 rated enclosures for corrosive atmospheres.
  • Usage Notes: Unit cannot be hot-swapped; ensure bus power is disconnected before servicing; follow document 12P2046 for Zone 2 instructions.
