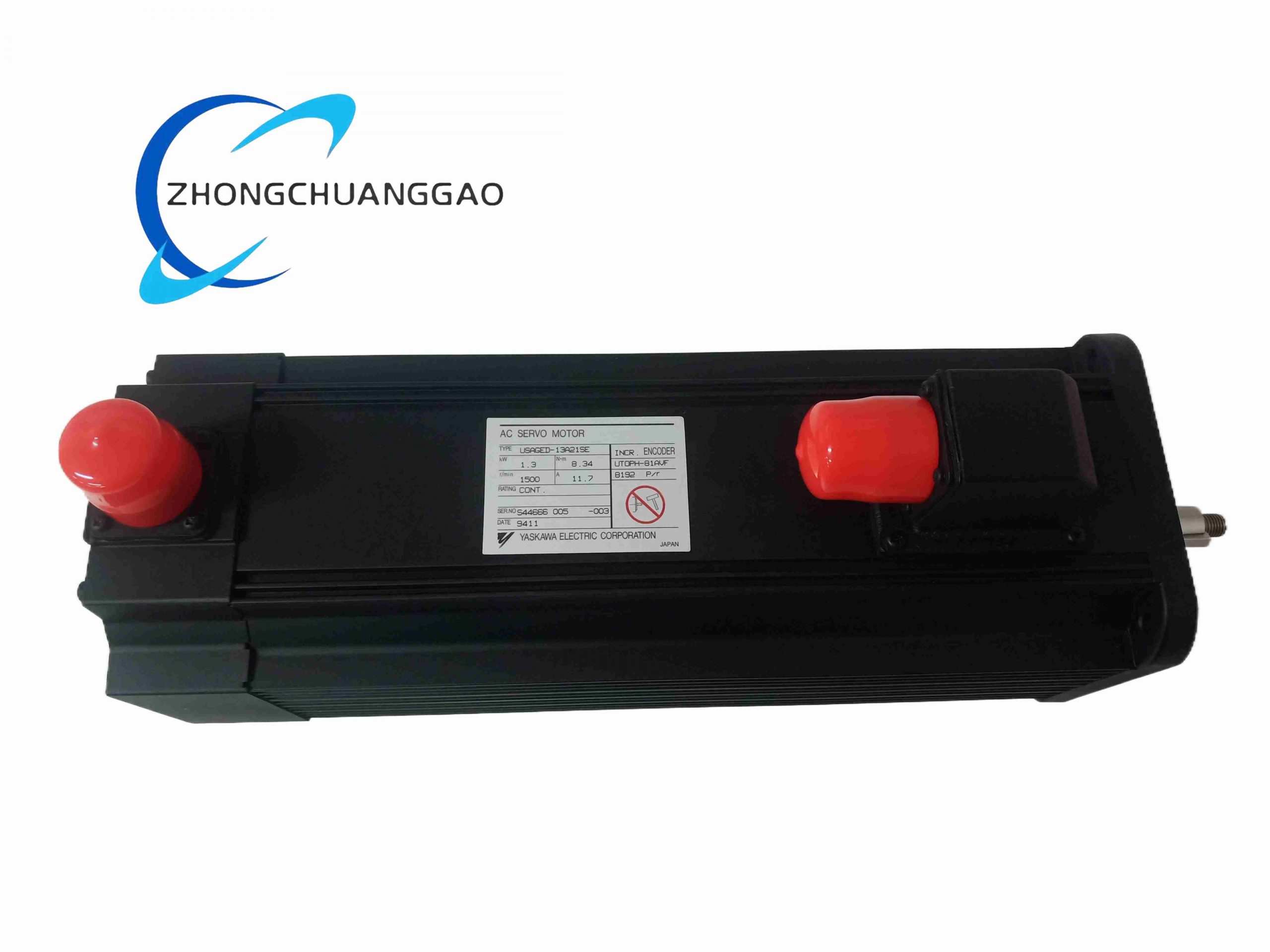

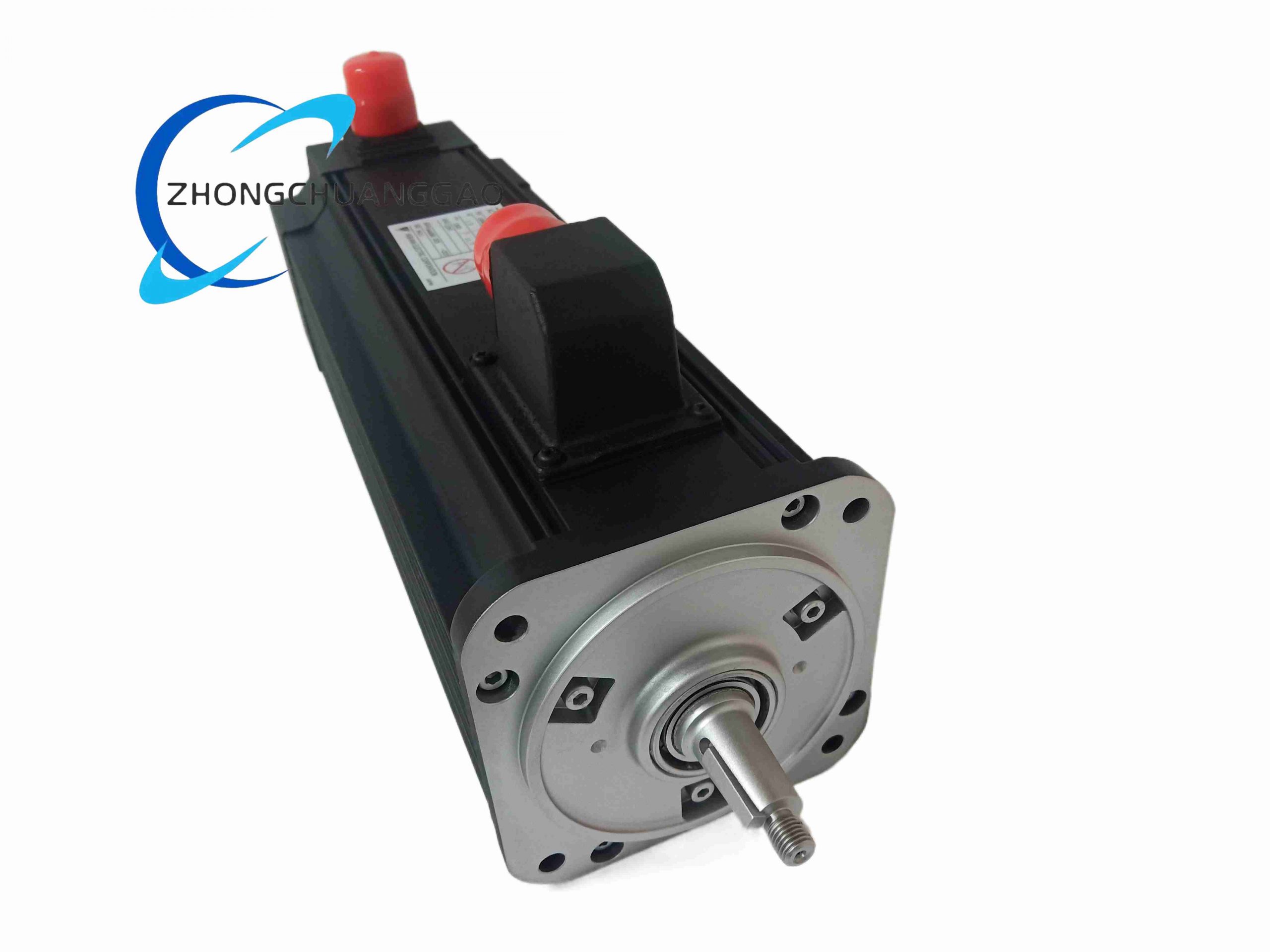

Yaskawa USAGED-13A21SE

Product Name: AC Servo Motor

Product Description: US series medium inertia AC servo motor, designed for high-precision continuous operation.

Technical Specifications: Rated power 1.3kW; Rated speed 1500rpm; Rated torque 8.34N·m; Built-in incremental encoder 8192ppr; Rated current 11.7A.

Category:
Description

Function Features: Low torque ripple; High overload capacity; Electromagnetic brake optional; High rigidity rotor structure.

Application Scenarios: Machine tool feed axis, packaging machine, textile equipment, automated gantry.

Material & Structure: Aluminum alloy housing, rare-earth permanent magnet rotor, sealed bearing assembly.

Working Principle: Permanent magnet synchronous motor, driven by servo amplifier for closed-loop position and speed control.

Installation Requirements: Mount on rigid base; use flexible coupling; align shaft concentricity; install encoder cable with shielding.

Usage Notes: Avoid radial and axial overload beyond specification; check brake release signal before manual rotation; prevent oil and dust intrusion.
