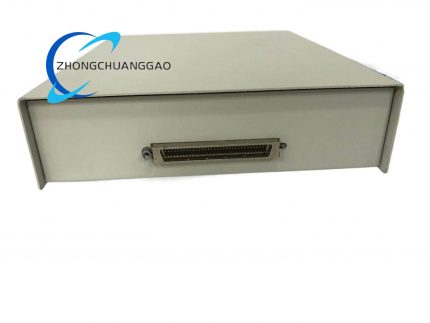

NI UMI-7764
NI UMI-7764
Back to products
Yaskawa USAGED-13A21SE
Yaskawa USAGED-13A21SE

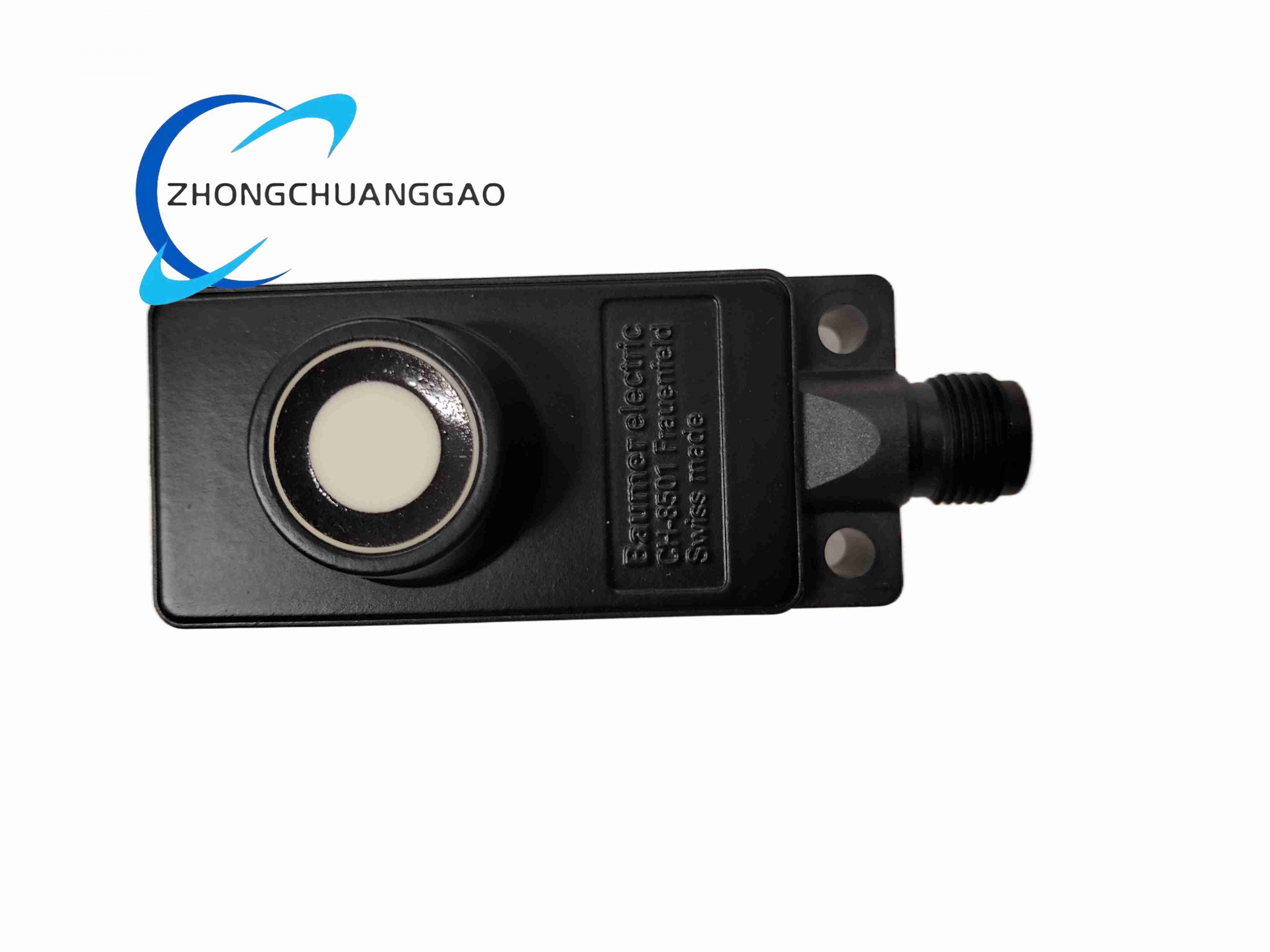

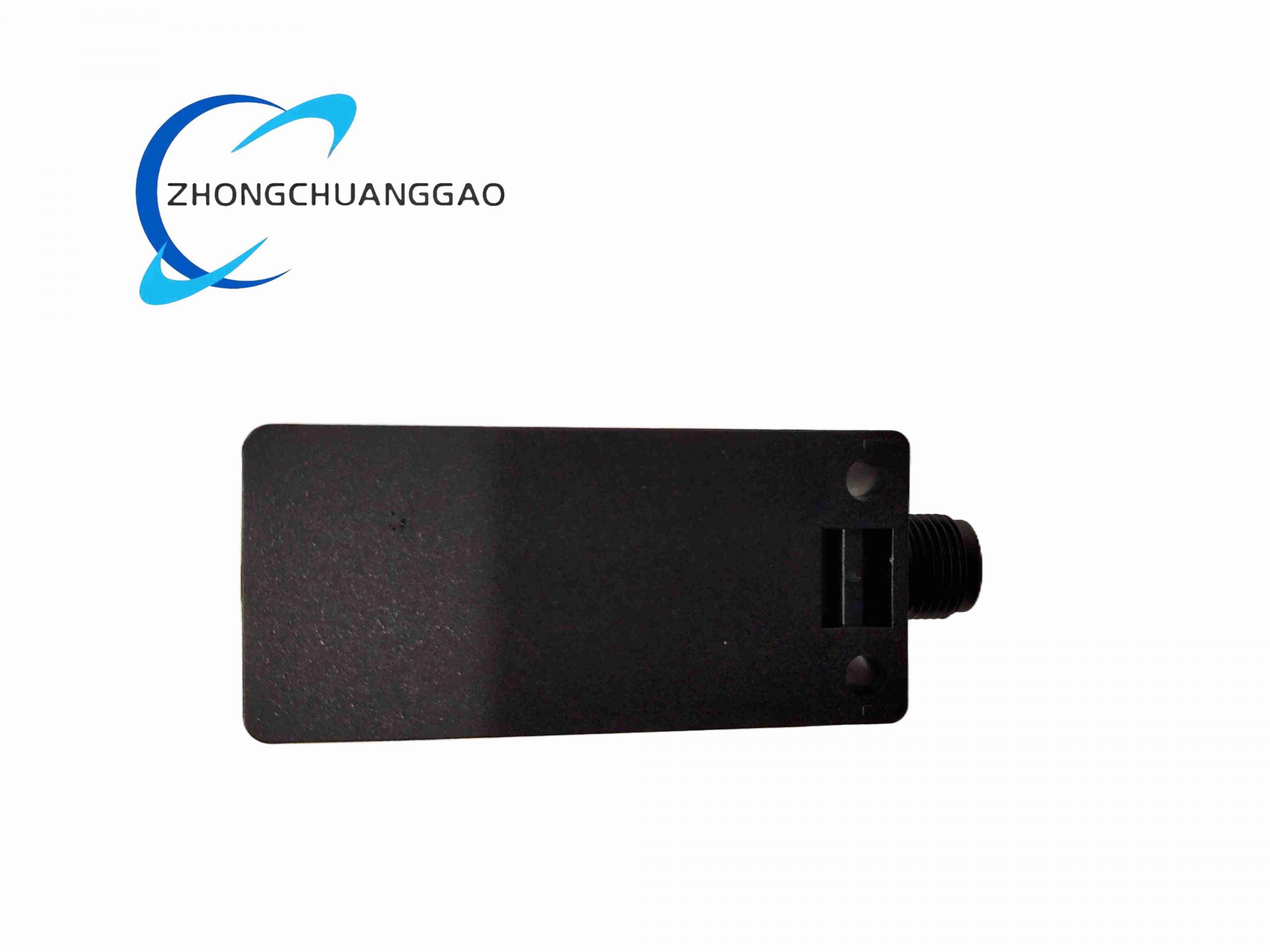

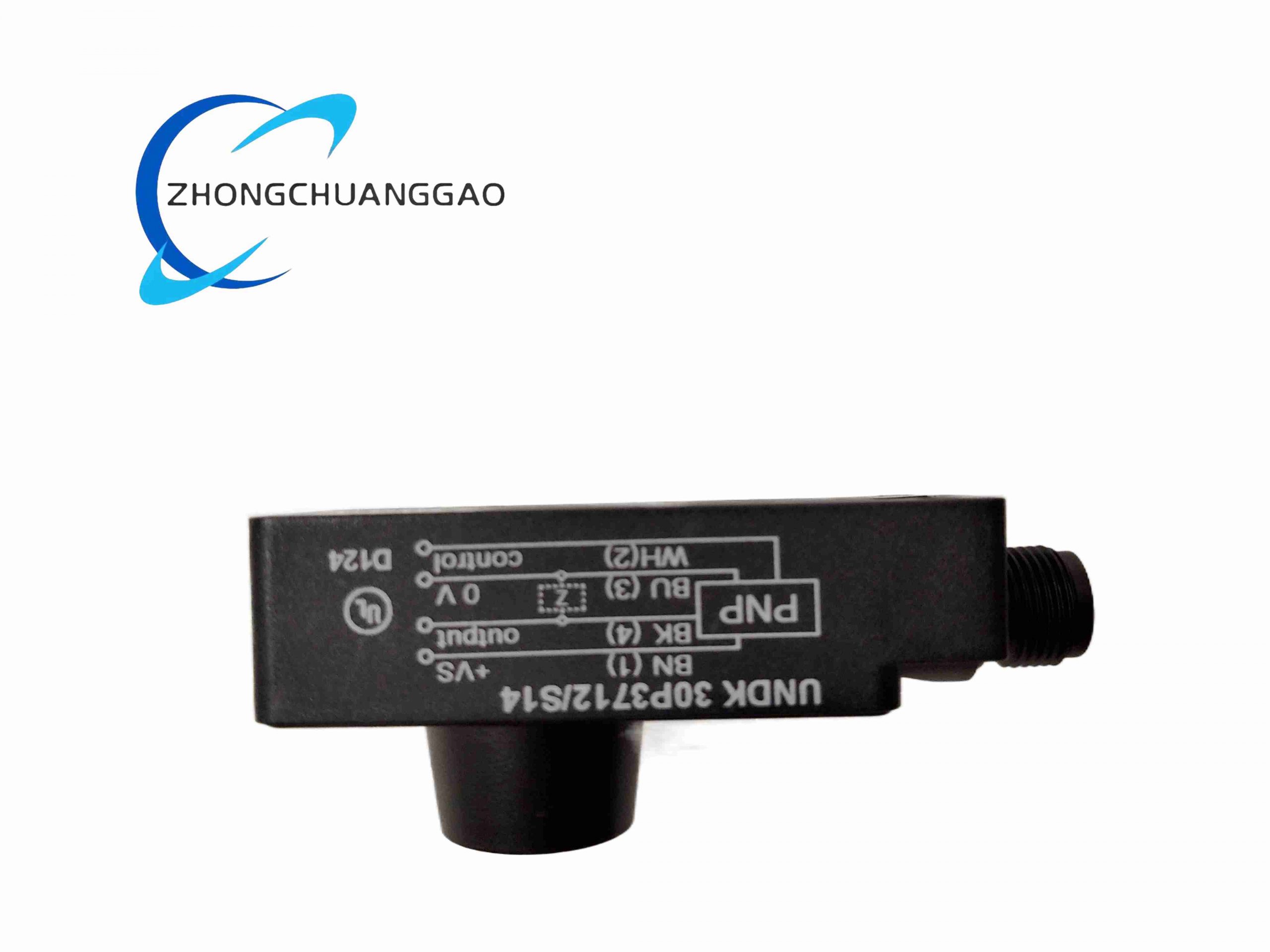

Baumer UNDK30P3712S14

Product Name: Ultrasonic Proximity Sensor

Product Description: Diffuse ultrasonic sensor with background suppression, used for non-contact object detection regardless of color, surface or transparency.

Technical Specifications: Sensing range 300~700mm; PNP output; Supply voltage 10~30VDC; Switching frequency 8Hz; Ultrasonic frequency 370kHz; IP67 protection rating.

Category:
Description

Function Features: Background suppression function eliminates interference from rear objects; Temperature compensation; Short-circuit protection and reverse polarity protection; LED status indicator.

Application Scenarios: Material handling, conveyor object counting, level detection, packaging machinery, automotive assembly line.

Material & Structure: ABS housing, threaded barrel structure for mounting adjustment.

Working Principle: Emit ultrasonic pulses and calculate distance by measuring echo time-of-flight.

Installation Requirements: Avoid strong air turbulence; maintain clearance to reflective background objects; align sensor axis toward target.

Usage Notes: Foam or soft material may attenuate ultrasonic signal; avoid direct strong sunlight and high vibration environment.
