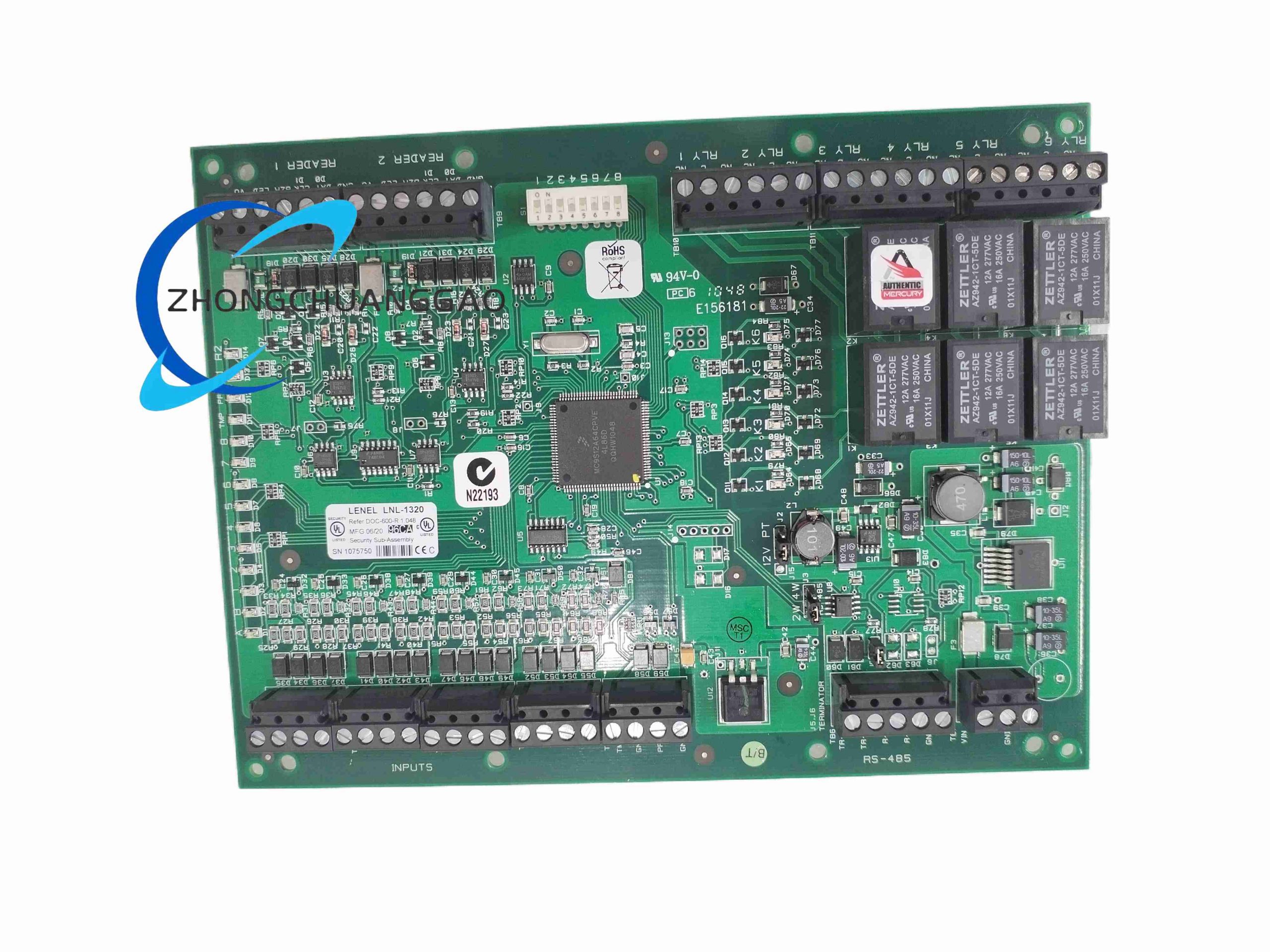

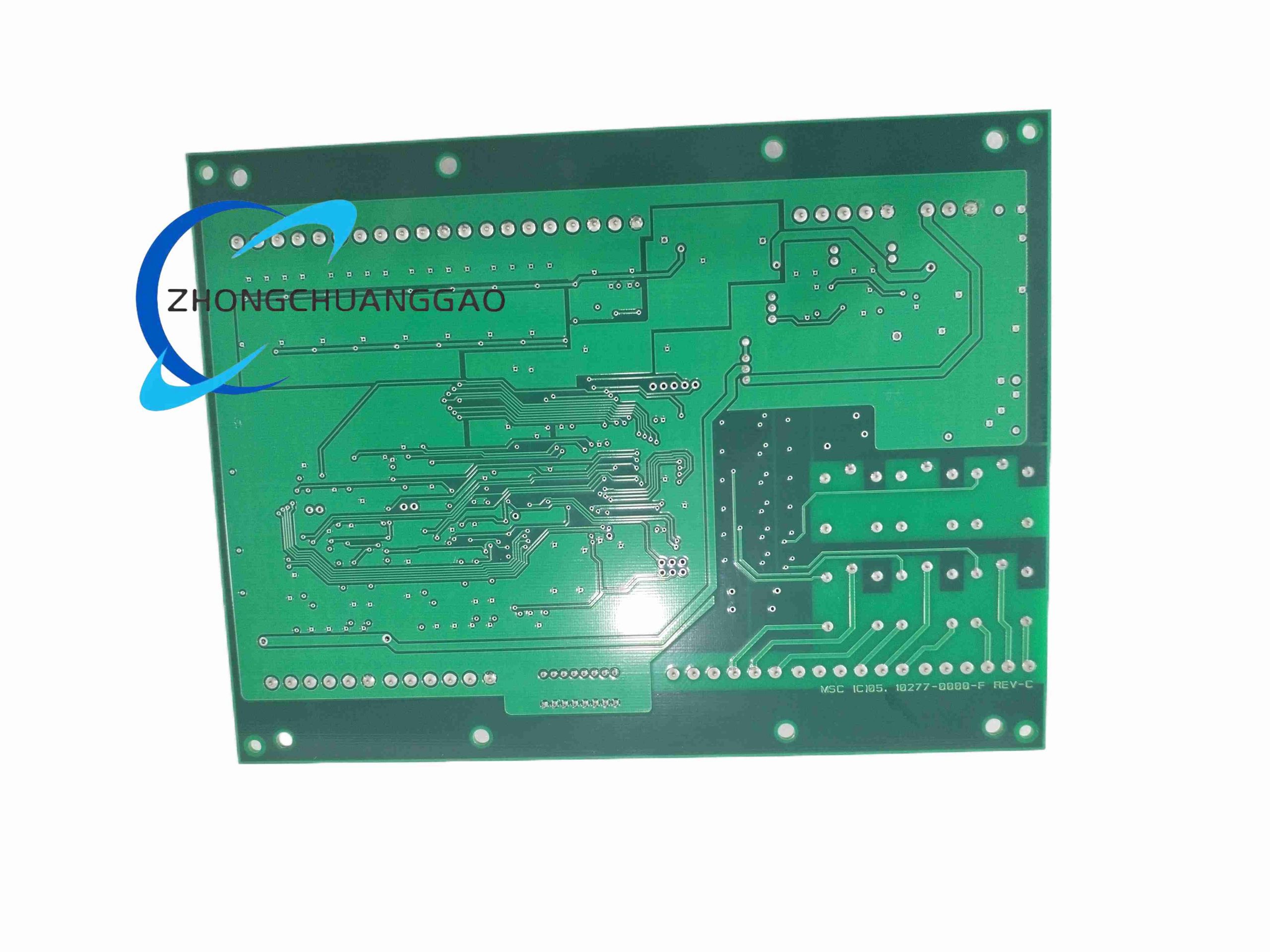

Lenel LNL-1320

  • Product Name: Lenel LNL-1320 Dual Reader Interface (DRI) Module
  • Product Introduction: An intelligent access control interface module that connects two card readers to a Lenel Intelligent System Controller (ISC), supporting legacy and secure protocols.
Category:
Description
  • Technical Specifications:
    • Readers Supported: 2 Readers (Wiegand Data1/Data0, Clock/Data, OSDP RS-485)
    • Inputs: 8 Monitoring Inputs (NO/NC/Monitored/Non-monitored)
    • Outputs: 6 Type C Relays (5A 30V DC), Fail-Safe/Fail-Secure configurable
    • Power: 12 or 24V DC ±10% (Max 550mA + reader load)
    • Communication: RS-485 to ISC (up to 32 modules per port, 4000 ft / 1219m)
    • Encryption: AES 128/256-bit (OSDP Secure Channel)
    • Card Formats: Supports up to 16 (8 card + 8 resource)
    • Operating Temp: 0°C to +70°C
    • Dimensions: 152mm(W) x 203mm(L) x 25mm(H)
  • Functional Features: Onboard 12V DC regulator for reader power from 24V supply; dual-color LED reader status support; offline operation capability; downloadable firmware; non-volatile flash for 500k cardholders.
  • Application Scenarios: Enterprise access control doors, security turnstiles, elevator control, integrated building security systems using Lenel OnGuard/NetBox.
  • Structural Features: PCB module with DIP switches for addressing, terminal blocks for I/O, RJ-style or screw connectors for reader ports.
  • Installation Requirements: Mount in secure enclosure; set unique DIP address per module; wire readers according to Wiegand or OSDP pinout; ensure RS-485 bus termination at ends.
  • Precautions: Use ESD protection when handling; verify reader voltage compatibility with onboard regulator; ensure AES keys are synchronized for OSDP encryption; backup configuration before firmware updates.
