MKS 979B-01-0013

Model Series: 979B Series — Baratron Capacitance Diaphragm Gauge Product Introduction: The MKS 979B-01-0013 is a high-accuracy absolute pressure transducer based on the Baratron capacitance manometer principle. It provides precise absolute pressure measurement from atmosphere down to 0.001 Torr, making it ideal for semiconductor process control, vacuum system monitoring, and leak detection applications.
Read more
Quick view

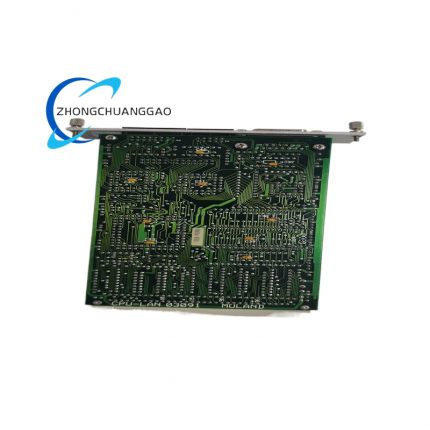

MOLAND 203091-511B

Product Name: Moland Electronic Relay / Control Module, Part Number 203091-511B Product Overview: This is a Moland-brand industrial electronic control relay module used in process control, automation, and power distribution systems. It provides signal conditioning, isolation, and switching functions for PLC and DCS integration.
Read more
Quick view

MOLEX SST-PFB-SLC

Product Introduction

The MOLEX SST-PFB-SLC is a Profibus scanner module designed for use with the Allen-Bradley SLC 500 controller series. It is manufactured by SST, a brand under Molex. The module enables communication between an SLC processor (SLC 5/03 or later) and DP remote I/O devices on a Profibus network, acting as a Profibus DP remote I/O scanner.
Read more
Quick view

Monico CDL-MCLE-FWM

Technical Specifications
  • Input Protocol: Caterpillar® CDL (Cat Data Link).
  • Output Protocols: Supports Modbus (RTU/TCP), CANopen, and other industrial protocols via configurable modules.
  • Data Polling Rate: High-speed, multi-threaded polling at 20–60 parameters per second for real-time monitoring.
  • Pre-configured Registers: Over 400 CDL-based registers for rapid deployment, with customizable mapping for specific applications.
Read more
Quick view

Motorola IPMC761-002

  • Processor: Equipped with an MPC7450 series PowerPC processor at 1 GHz, with 512 KB of on - chip L2 cache and 2 MB of L3 cache, and an Altivec coprocessor for high - performance computational applications.
  • Memory: Two banks of soldered flash memory.
  • Communication Interfaces: Includes 1 parallel port, 2 asynchronous serial ports, and 2 synchronous/asynchronous serial ports.
  • Bus Type: VME bus.
  • Power Supply: Draws +5 V and +3.3 V through the PMC connectors.
  • Dimensions: 263 × 58 × 28 mm.
  • Weight: 4.3 kg.
Read more
Quick view

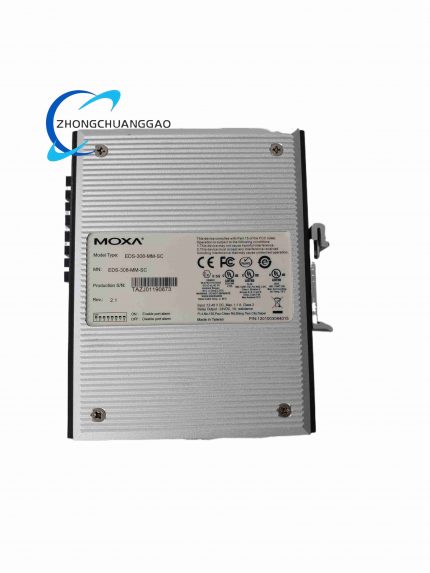

MOXA EDS-308-MM-SC

Product Name:​ Moxa EDS-308 Series Unmanaged Ethernet Switch, 6×10/100BaseT(X) RJ45 + 2×100BaseFX Multi-Mode SC
Product Introduction:​ Compact DIN-rail mount unmanaged industrial switch providing 6 copper Fast Ethernet ports plus 2 multi-mode 100 Mbps fiber ports with SC connectors for extended-distance segment links.
Read more
Quick view

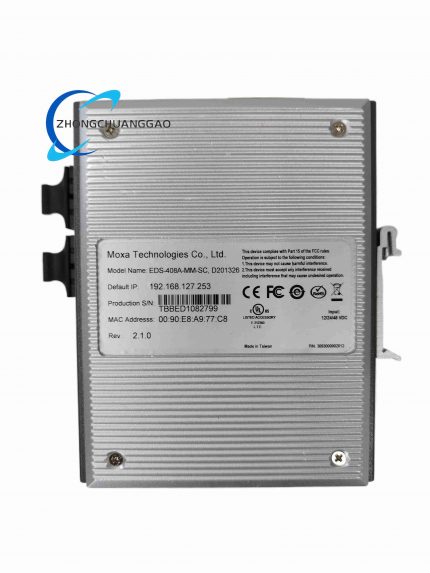

MOXA EDS-408A-MM-SC

Product Name:​ Moxa EDS-408A Series Managed Ethernet Switch, 6×10/100BaseT(X) + 2×100BaseFX MM SC
Product Introduction:​ Entry-level Layer-2 managed switch with Turbo Ring redundancy, VLAN, IGMP snooping, and SNMP management for industrial networks.
Read more
Quick view

MOXA EDS-508A-MM-SC

Product Name:​ Moxa EDS-508A Series Managed Ethernet Switch, 6×10/100BaseT(X) + 2×100BaseFX MM SC
Product Introduction:​ Enhanced Layer-2 managed switch with larger MAC table, more advanced security & diagnostics compared to EDS-408A, suitable for critical process automation and substation networks.
Read more
Quick view

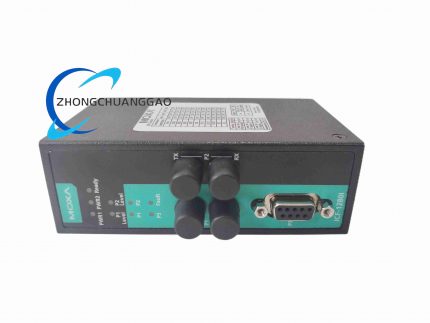

MOXA ICF-1280I-M-ST-T

Manufacturer:​ Moxa Inc. (Taiwan)
Product Brief:​ Converts a standard PROFIBUS DP RS-485 electrical segment to a fiber-optic link, providing galvanic isolation, noise immunity, and extended distance. Intended for connecting PROFIBUS masters/slaves across electrically noisy or geographically separated areas in industrial plants.
Read more
Quick view

MTL 2213 Switch/Proximity Detector Relay

  1. Technical Specifications
    • Power Supply: 24V DC, 120V AC, or 240V AC with a power consumption of 5VA.
    • Channel Parameters: Three interconnected and fully floating input circuits are configured. Each channel responds to sensors with a voltage range of 7.7 - 9.0V DC supplied by a 1kΩ source.
    • Input/Output Characteristics: For each channel, the relay is energized when the sensor circuit current exceeds 2.1mA (or the resistance is less than 2kΩ), and de-energized when the current is less than 1.2mA (or the resistance is greater than 10kΩ). The nominal hysteresis of the circuit is 200μA (650Ω).
    • Contact Rating: The maximum rating for AC is 250V, 5A, 100VA; the maximum rating for DC is 250V, 5A, 100W. Reactive loads need to be suppressed during use.
    • Response Time: The nominal response time of each channel is 50ms.
    • Environmental Limits: The maximum ambient temperature it can withstand is 60°C.
    • Certification Standards: It holds certifications including IIC, Baseefa No. EX 88B2114BS 550: Part 7: 1977, and EN 50 020. It is suitable for Zone 0, IIC, T6 hazardous areas and Div 1, Group A hazardous locations.
    • Physical & Weight Details: The weight of the device is 260g. Unlike the previous model MTL 2212, only terminal 8 can be used for grounding connections.
Read more
Quick view

MTL 4516 Dual-Channel Hazardous-Area Switch

Technical Specifications
  • Input Parameters
    • It accepts inputs from Namur proximity detectors and mechanical switches, and applies an input voltage of 7 - 9V DC with a resistance of 1kΩ ± 10%.
    • The trigger threshold is set at above 2.1mA to close the relay and below 1.2mA to open the relay, with a hysteresis of 200µA and a nominal resistance of 650Ω.
  • Output Parameters
    • It is equipped with changeover relay contacts, and the relay has a resistive load rating of 0.5A at 35V DC, which can stably drive the corresponding safe - area loads.
    • The response time of the module is no more than 10ms, ensuring rapid response to signal changes from on - site sensors.
  • Power Supply and Isolation
    • The power supply voltage ranges from 20V DC to 35V DC, and the power consumption is 35mA at 24V DC, which is equivalent to 0.84W, presenting low power consumption performance.
    • It provides 250V AC galvanic isolation between the input, output and power circuits to avoid mutual interference between different circuits.
Read more
Quick view

MTL 4541 Single-Channel Intrinsically Safe 4-20mA HART Repeater Power Supply

Technical Specifications
  • Input Parameters
    • The hazardous - area input signal range covers 0 to 24mA, including over - range signals. It supplies 16.5V voltage to the transmitter when the current is 20mA.
    • It is compatible with 2 - wire or 3 - wire 4 - 20mA transmitters, and can also connect to separately powered current sources such as 4 - wire transmitters, though HART communication is not supported for the latter.
  • Output Parameters
    • The safe - area output signal range is 4 - 20mA, with an under/over - range of 0 - 24mA. The load resistance can reach 360Ω at 24mA and 450Ω at 20mA.
    • The safe - area circuit has an output resistance greater than 1MΩ, and the circuit ripple is less than 50µA peak - to - peak, ensuring stable output signals.
  • Accuracy and Response Performance
    • The transfer accuracy is better than 15µA at 20°C, and the temperature drift is less than 0.8µA/°C. The linearity error is less than 0.05%, and the temperature coefficient is 0.01% per °C.
    • The module settles to within 10% of the final value within 50µs, enabling rapid response to signal changes.
Read more
Quick view
