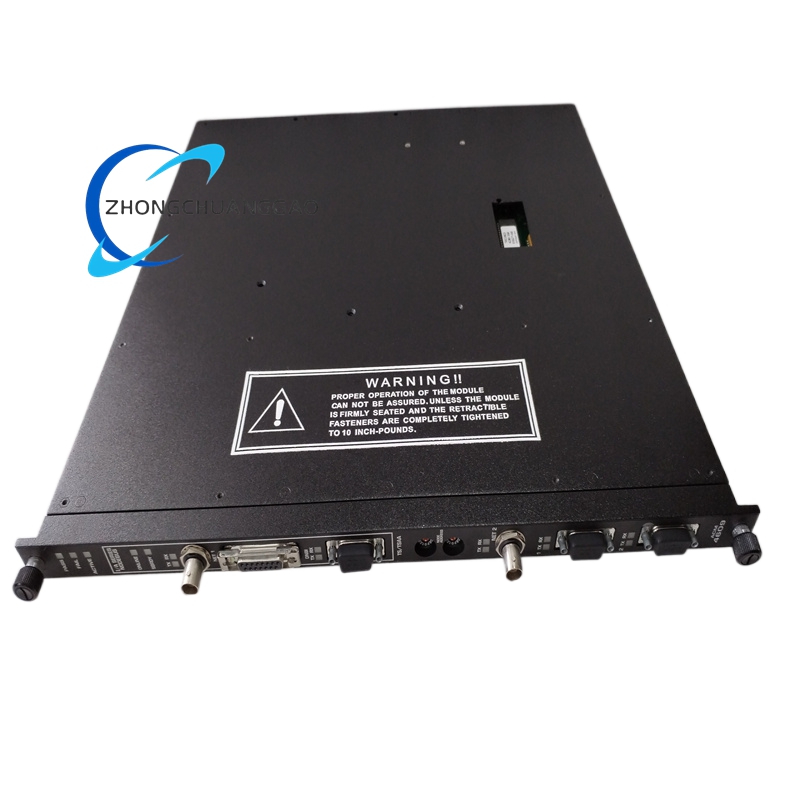

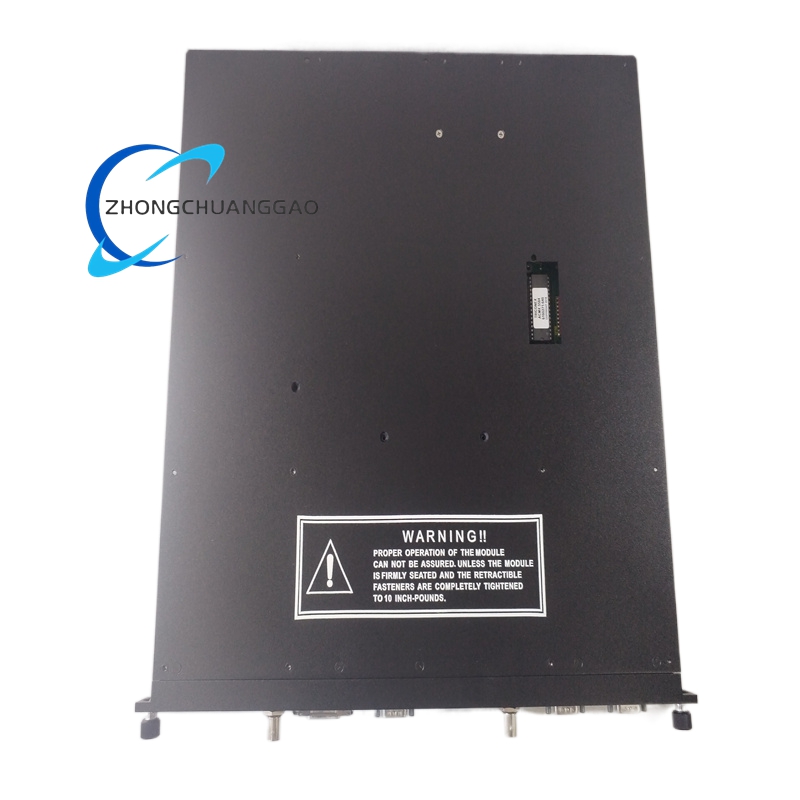

Triconex 4609 Communication Module

Product Overview
The Triconex 4609 is a high-performance communication module designed for the Triconex Tricon safety-instrumented system (SIS). It enables seamless integration of Triconex controllers with external systems, such as distributed control systems (DCS), human-machine interfaces (HMI), and other industrial networks. The module supports multiple communication protocols, ensuring compatibility with various industrial automation platforms.

Category:
Description

Technical Specifications

  • Communication Protocols: Supports Ethernet, Modbus, and other industrial protocols for data exchange.
  • Interface Type: Features multiple ports for redundant communication, enhancing system reliability.
  • Data Transfer Rate: High-speed data transmission capabilities to ensure real-time monitoring and control.
  • Power Supply: Operates on a 24 VDC power supply, compatible with standard industrial power systems.
  • Operating Temperature: -20°C to +60°C, suitable for harsh industrial environments.
  • Storage Temperature: -40°C to +85°C, ensuring long-term reliability.
  • Humidity Range: 5%–95% RH (non-condensing), adaptable to various environmental conditions.
  • Certifications: Complies with IEC 61508 SIL 3 and other relevant safety standards.

Functional Characteristics

  • Redundant Communication: Supports dual communication paths for enhanced system availability and fault tolerance.
  • High Reliability: Designed with fault-tolerant architecture to ensure continuous operation even in the event of a component failure.
  • Easy Integration: Seamlessly integrates with Triconex Tricon controllers and other industrial systems, simplifying system expansion and upgrades.
  • Diagnostic Capabilities: Provides comprehensive self-diagnostics to detect and report communication faults, facilitating timely maintenance.
  • Scalability: Supports multiple modules for large-scale system deployments, meeting the needs of complex industrial applications.

Application Scenarios

  • Oil and Gas: Used in refineries and gas processing plants for monitoring and controlling safety-critical processes, such as emergency shutdown systems (ESD) and fire and gas (F&G) detection.
  • Petrochemicals: Ensures safe operation in chemical processing plants by providing reliable communication between safety controllers and field devices.
  • Power Generation: Deployed in power plants for boiler protection, turbine control, and other critical applications where high system availability is essential.
  • Nuclear Energy: Used in nuclear power plants for safety-grade applications, adhering to strict regulatory requirements for system reliability and fault tolerance.
  • Other Industries: Suitable for transportation (railways, aviation), military facilities, and data centers where high reliability and safety are paramount.

Key Advantages

  • SIL 3 Certified: Meets the highest safety integrity level under IEC 61508 and IEC 61511 standards, ensuring compliance with global safety regulations.
  • High Availability: Redundant communication paths minimize downtime, ensuring continuous system operation.
  • Flexible Configuration: Supports multiple communication protocols and interfaces, allowing for easy integration with various industrial systems.
  • Robust Design: Withstands harsh industrial environments, including high temperatures, humidity, and electromagnetic interference.
  • Global Certifications: Approved for use in nuclear power plants and railway signaling systems, meeting international safety standards.
