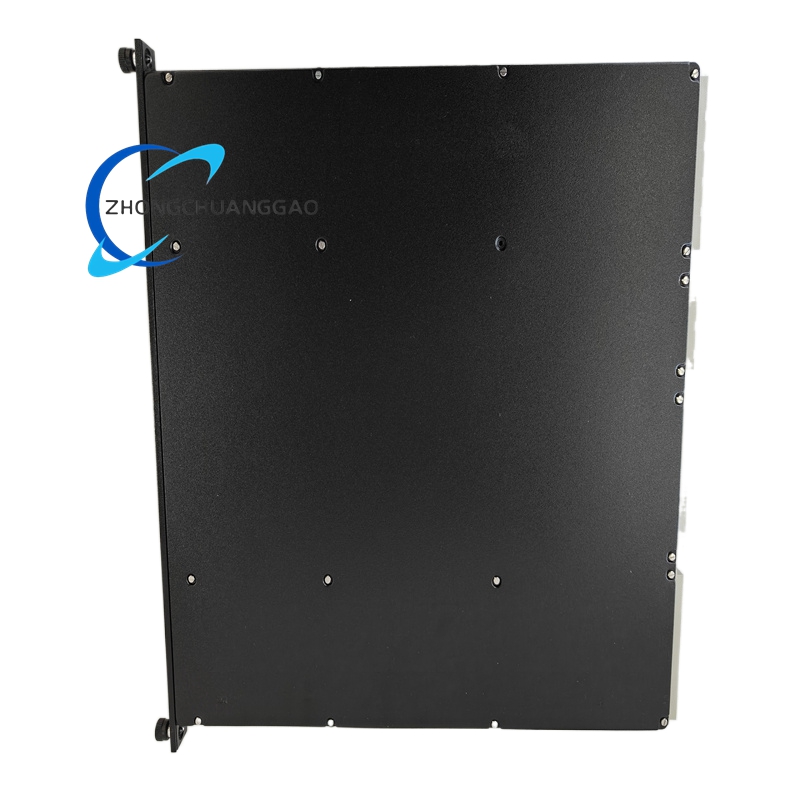

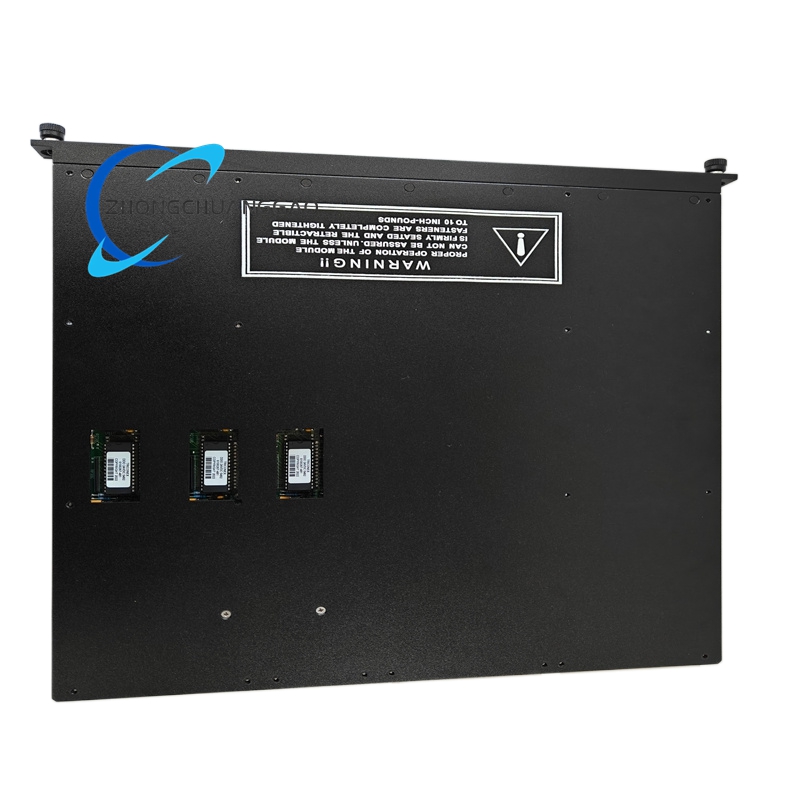

Triconex 3664 Digital Output Module - Image 1
Triconex 3664 Digital Output Module - Image 2
Click to enlarge
Triconex 3664 Digital Output Module
Triconex 3664 Digital Output Module - Image 2
Triconex 3481S2 Analog Output Module
Triconex 3481S2 Analog Output Module
Back to products
Triconex 4609 Communication Module
Triconex 4609 Communication Module

Triconex 3664 Digital Output Module

Product Overview
The Triconex 3664 is a high-reliability digital output module designed for safety-critical applications in industrial automation. It is part of the Triconex TMR (Triple Modular Redundant) architecture, ensuring fault tolerance and high system availability. The module is used to control field devices such as solenoid valves, relays, and actuators, playing a key role in safety instrumented systems (SIS) for process interlock and emergency shutdown (ESD) control applications.

Category:
Description

Technical Specifications

  • Output Channels: 32 independent digital output channels
  • Output Types: Supports relay or transistor outputs, directly driving field loads
  • Channel Isolation: Each output channel features optical isolation to prevent cross-channel interference
  • Redundancy Design: TMR architecture with three independent output paths per channel
  • Response Time: ≤5 ms (including filtering)
  • Diagnostic Functions: Supports hardware fault detection, self-diagnosis, and communication integrity monitoring
  • Protection Mechanisms: Short-circuit and overload protection
  • Operating Temperature: -20°C to +60°C
  • Storage Temperature: -40°C to +85°C
  • Humidity Range: 5%–95% RH (non-condensing)
  • Power Supply: 24V DC
  • Certifications: Complies with IEC 61508 SIL 3 safety integrity level standards

Functional Characteristics

  • High Reliability: TMR architecture ensures continuous operation even if one channel fails.
  • Fault Tolerance: Self-diagnostics detect faults and trigger alarms for timely maintenance.
  • Signal Quality Enhancement: Provides signal filtering and isolation to improve signal integrity.
  • Compatibility: Works seamlessly with other Triconex I/O modules and controllers in a TMR system.
  • Ease of Maintenance: Supports hot swapping, reducing downtime during maintenance.
  • Robust Design: Withstands harsh industrial environments, including high temperatures, humidity, and electromagnetic interference.

Application Scenarios

  • Oil and Gas: Used in refineries, gas processing plants, and pipelines for emergency shutdown systems (ESD) and process safety control.
  • Petrochemicals: Ensures safe operation in chemical processing plants by controlling reactor safety interlocks and equipment status signals.
  • Power Generation: Deployed in power plants for boiler protection and turbine control systems.
  • Nuclear Energy: Used in nuclear power plants for safety-grade applications, adhering to strict regulatory requirements.
  • Other Industries: Suitable for transportation (railways, aviation), military facilities, and data centers where high reliability and safety are essential.

Key Advantages

  • SIL 3 Certified: Meets the highest safety integrity level under IEC 61508 and IEC 61511 standards.
  • High Availability: TMR design minimizes downtime, ensuring continuous system operation.
  • Scalability: Supports integration with various Triconex I/O modules, allowing for flexible system expansion.
  • Global Certifications: Approved for use in nuclear power plants and railway signaling systems, meeting international safety standards.
