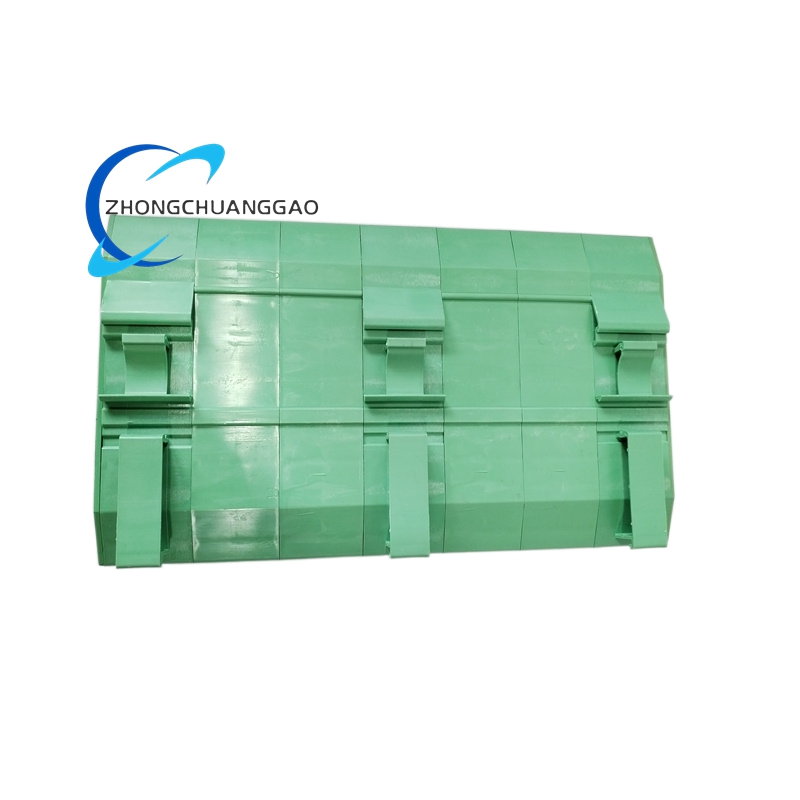

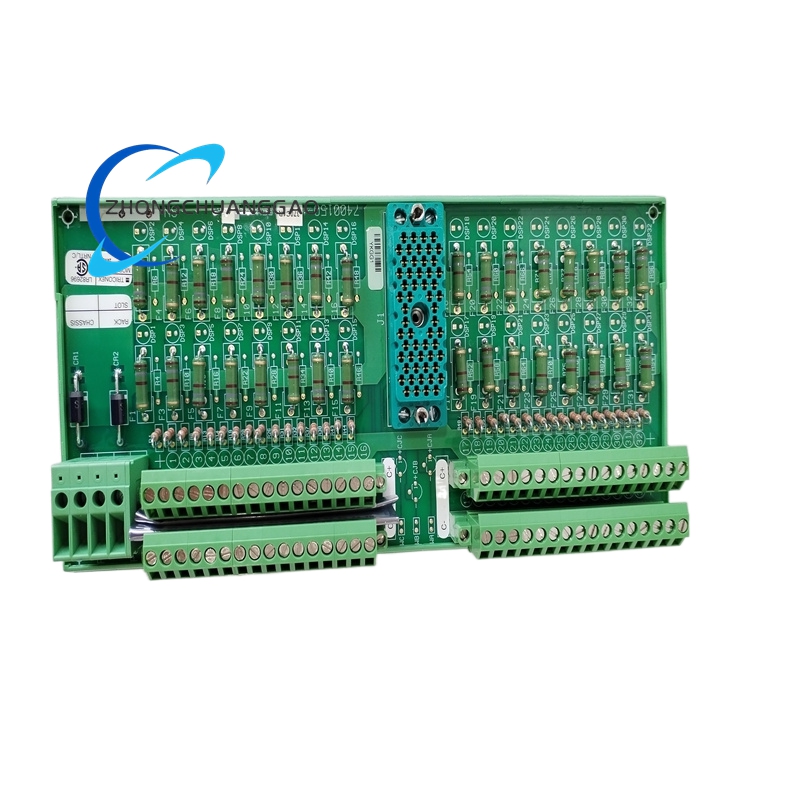

Triconex 9566-810F

Product Overview
The Triconex 9566-810F is a high-performance safety system module designed for industrial automation applications requiring high reliability and fault tolerance. It is part of the Triconex TMR (Triple Modular Redundant) architecture, ensuring continuous operation even in the event of a component failure. This module is widely used in safety-critical systems to monitor and control industrial processes, providing protection against hazardous events.

Category:
Description

Technical Specifications

  • Input Voltage: 24V DC
  • Output Voltage: 24V DC
  • Output Power: 100W
  • Dimensions: 173mm x 173mm x 55mm
  • Weight: Approximately 1.5kg
  • Operating Temperature: -20°C to +60°C
  • Storage Temperature: -40°C to +85°C
  • Humidity Range: 5%–95% RH (non-condensing)
  • Certifications: Complies with IEC 61508 SIL 3 and other relevant safety standards

Functional Characteristics

  • High Reliability: Utilizes TMR architecture with three independent channels for fault tolerance.
  • Safety Functions: Supports input/output signal processing, safety logic operations, and fault detection.
  • Flexible Configuration: Can be configured to meet specific application requirements.
  • Easy Integration: Compatible with other Triconex modules and systems for seamless integration.
  • Diagnostic Capabilities: Provides comprehensive self-diagnostics to detect and report faults.
  • Robust Design: Withstands harsh industrial environments, including high temperatures and humidity.

Application Scenarios

  • Oil and Gas: Used in refineries and gas processing plants for emergency shutdown systems (ESD) and fire and gas (F&G) detection.
  • Petrochemicals: Ensures safe operation in chemical processing plants by controlling reactor safety interlocks and equipment status signals.
  • Power Generation: Deployed in power plants for boiler protection and turbine control systems.
  • Nuclear Energy: Used in nuclear power plants for safety-grade applications, adhering to strict regulatory requirements.
  • Other Industries: Suitable for transportation (railways, aviation), military facilities, and data centers where high reliability and safety are essential.

Key Advantages

  • SIL 3 Certified: Meets the highest safety integrity level under IEC 61508 and IEC 61511 standards.
  • High Availability: TMR design minimizes downtime, ensuring continuous system operation.
  • Scalability: Supports integration with various Triconex modules for large-scale system deployments.
  • Global Certifications: Approved for use in nuclear power plants and railway signaling systems, meeting international safety standards.
