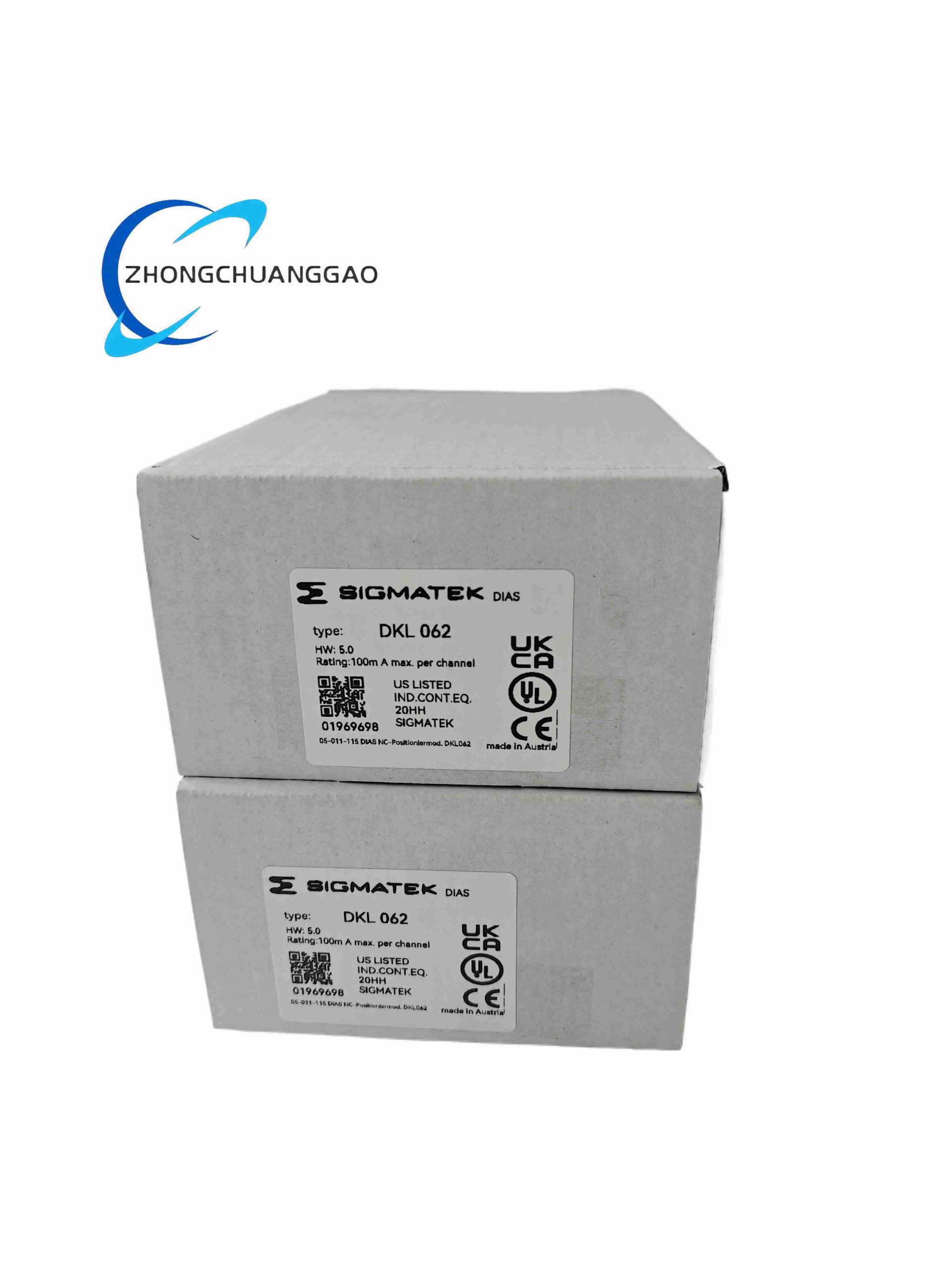

SIGMATEK DKL062

Product Name: DKL062 Digital Output Module, 8 × 24 V DC, 0.5 A transistor (source type)
Product Introduction: 8-channel solid-state digital output module with MOSFET / high-side switch outputs for driving relays, indicator lamps, solenoid valves up to 0.5 A per point.
Technical Specifications:
- Outputs: 8 channels, semiconductor (high-side, PNP source)

Category: Others

Description

- Output voltage: 24 V DC (nominal, range 20.4 … 28.8 V DC)
- Max. load current: 0.5 A per channel, total module max. typically 2 … 4 A (check backplane)
- Residual voltage (ON): < 0.5 V
- Leakage current (OFF): < 10 µA
- Switching frequency: up to 500 Hz (resistive load)
- Short-circuit / overload protection: yes (thermal shutdown with auto-reset)
- Isolation: 500 V (outputs ↔ bus)
- LEDs: 8 × yellow/green per channel
Features: Diagnostics via bus (short-circuit detected and reported); grouped or individually configurable; suitable for PWM at low frequency for simple dimming / valve hold.
Structure / Material: Polyamide housing, DIN rail clip, width ~25 mm typical for 8-channel version.
Application: Actuator control in packaging machines, material handling, process skids.
Installation & Notes: Use flyback diodes on inductive loads > 0.2 A. Ensure proper fusing on 24 V DC supply feeding the output module. Derating applies if ambient > 40 °C.
