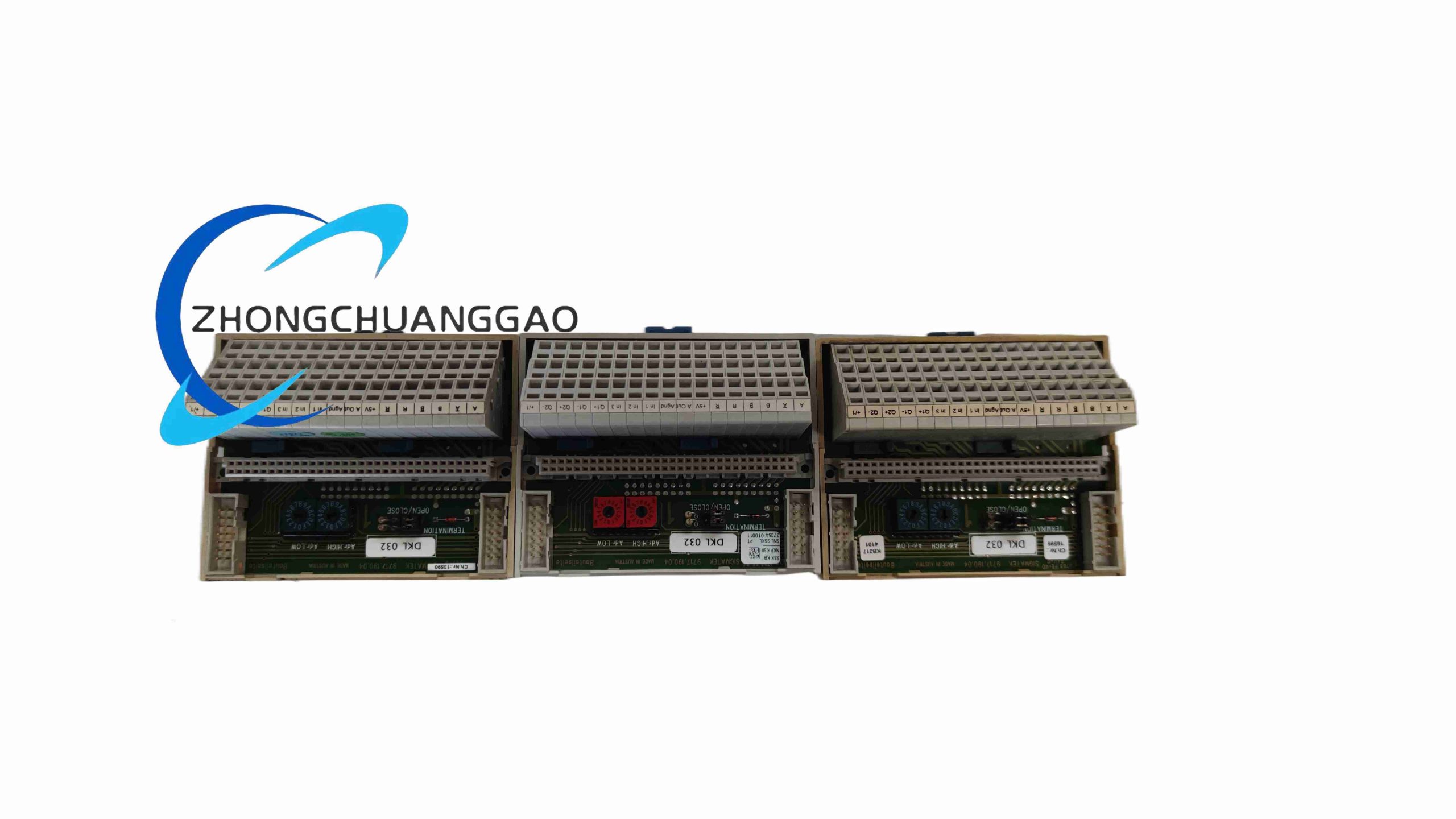

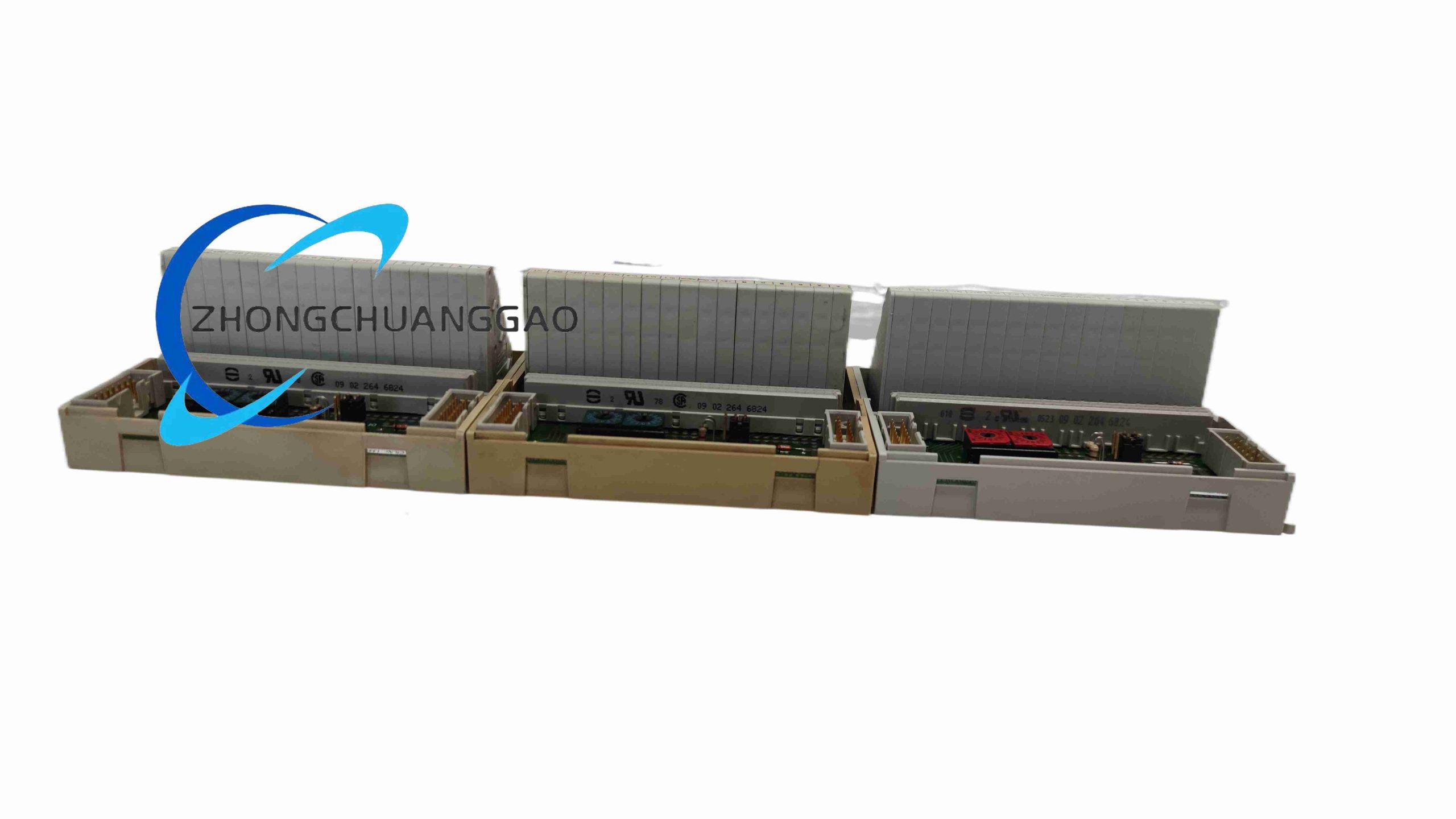

SIGMATEK DKL032

  • Product Name:​ DKL032 Digital Input Module, 8 × 24 V DC
  • Product Introduction:​ High-density 8-channel digital input module for acquiring dry-contact or 2-/3-wire sensor (PNP source-type) signals into the SIGMATEK DIAS control system.
  • Technical Specifications:
    • Inputs: 8 channels, 24 V DC, Type 1 / Type 3 per IEC 61131-2
Category:
Description
    • Voltage range: 20.4 … 28.8 V DC
    • “High” threshold: ≥ 15 V; “Low” ≤ 5 V
    • Input current: typ. 2.5–3 mA per channel
    • Input delay / filter: 3 ms (standard) or adjustable via software
    • Galvanic isolation: 500 V (field ↔ bus)
    • Backplane current draw: typ. 60 mA @ 5 V DC
    • LEDs: 8 × green status LEDs
  • Features:​ Group-common 0 V for all 8 inputs; reverse polarity protected; suitable for NPN or PNP wiring (typically PNP = positive-switching sensors in SIGMATEK standard).
  • Structure / Material:​ Flame-retardant polyamide housing (UL94V-0), DIN rail mount, width ~12.5 mm or 25 mm depending on rack generation.
  • Application:​ Machine control panels, conveyor status sensing, safety gate monitoring (non-safety-rated — use dedicated safety modules for SIL/PL rated inputs).
  • Installation & Notes:​ Verify sensor supply is referenced to same 0 V as DI common. Avoid mixing 0 V commons from different power supplies.
