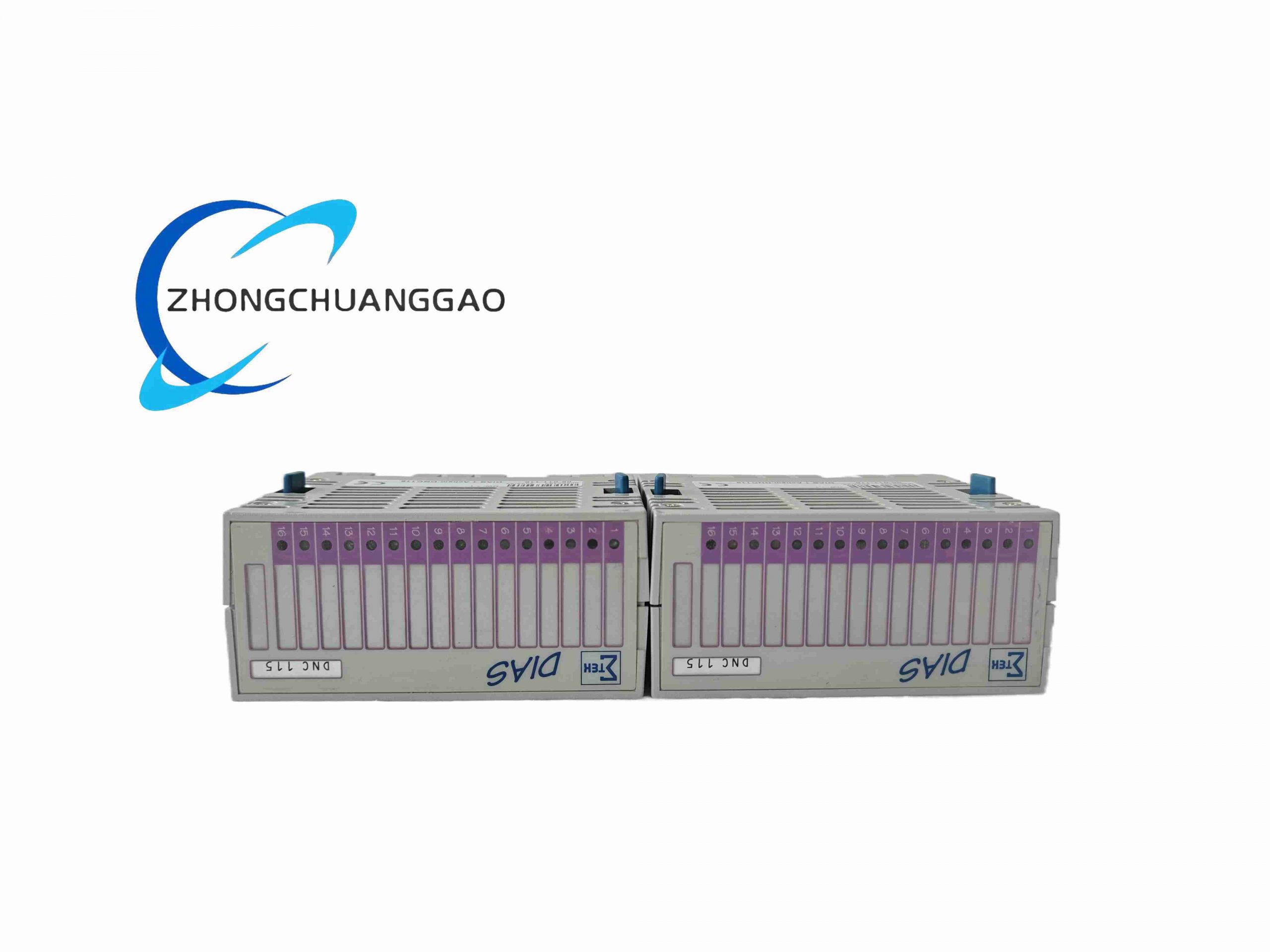

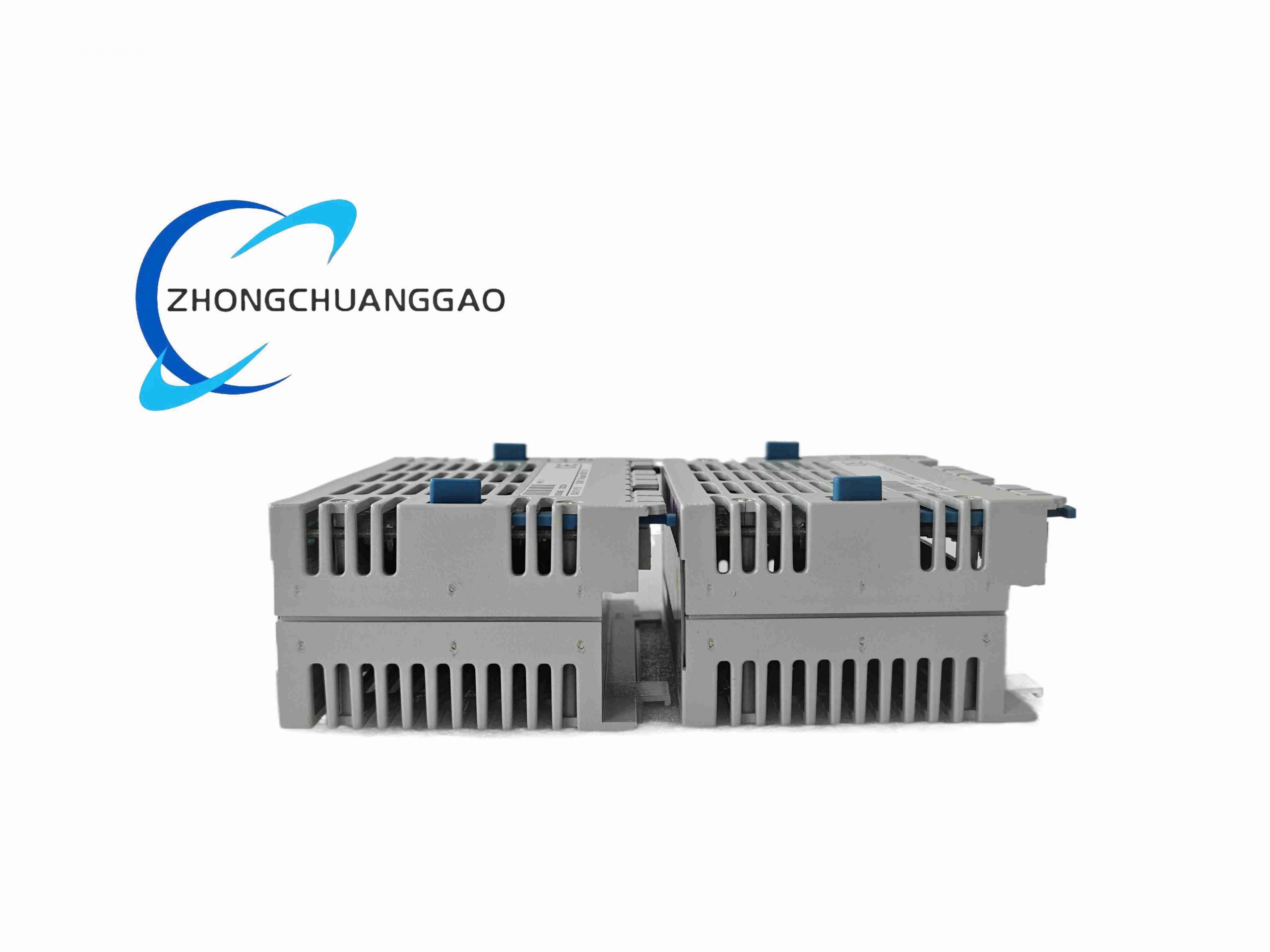

SIGMATEK DNC115

  • Product Name:​ DNC115 DIAS CPU / Ethernet Bus Coupler
  • Product Introduction:​ Central processing unit and bus coupler for SIGMATEK DIAS modular I/O system. Combines a 32-bit / multi-core industrial processor with onboard Ethernet (TCP/IP, Modbus TCP, SIGMATEK LASAL protocol), CANopen option, and local I/O bus management. Runs IEC 61131-3programs (IL, ST, LD, FBD, SFC, CFC) via LASAL engineering software.
Category:
Description
  • Technical Specifications:
    • Processor: 32-bit RISC / multi-core industrial CPU (clock typically 400–800 MHz depending on firmware generation)
    • Program memory: several MB (flash + battery-backed SRAM for retentive variables)
    • Interfaces: 2 × Ethernet 10/100 Mbps (RJ45, switch-capable), 1 × CAN (optional), 1 × RS232/485 (service port), DIAS backplane bus
    • I/O capacity: up to several hundred I/O modules on expanded DIAS bus segments
    • Real-time clock: yes, battery-backed
    • Supply: 24 V DC (typ. 200–500 mA depending on connected I/O)
    • Operating temp.: 0 … +55 °C (some variants –20 … +60 °C)
    • Protection: IP20, DIN rail mount
  • Features:​ Multitasking (up to 32 program tasks), online change, integrated web server, FTP, OPC server support, motion control capability when paired with axis modules, SD card slot on some versions for data logging.
  • Application:​ Mid-to-high complexity machine automation, packaging lines, special-purpose assembly cells, process sub-systems.
  • Installation & Notes:​ Requires LASAL programming software (V5/V6). Battery must be installed for retentive memory retention. Keep Ethernet cabling away from high-power lines for EMC compliance.
