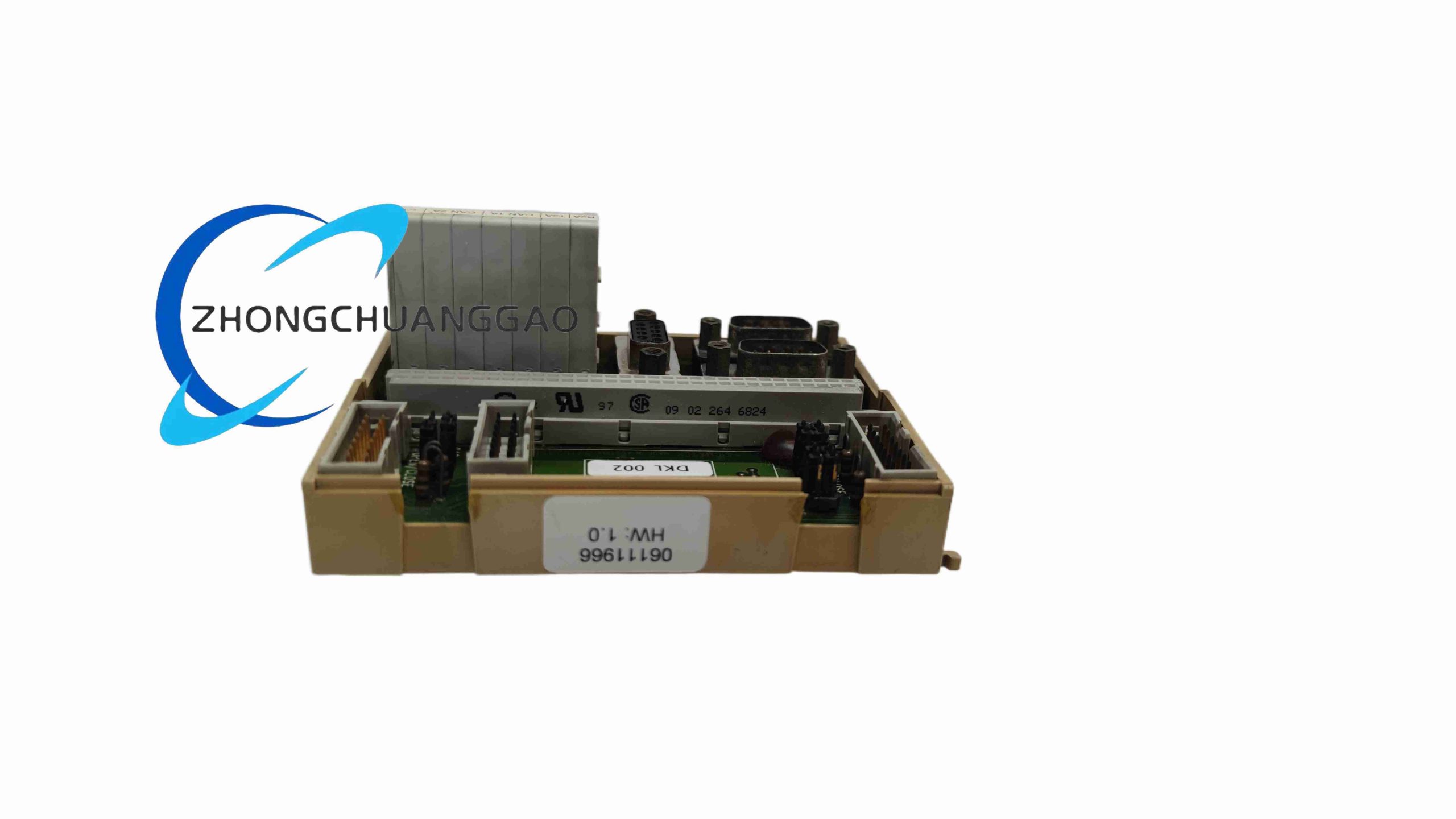

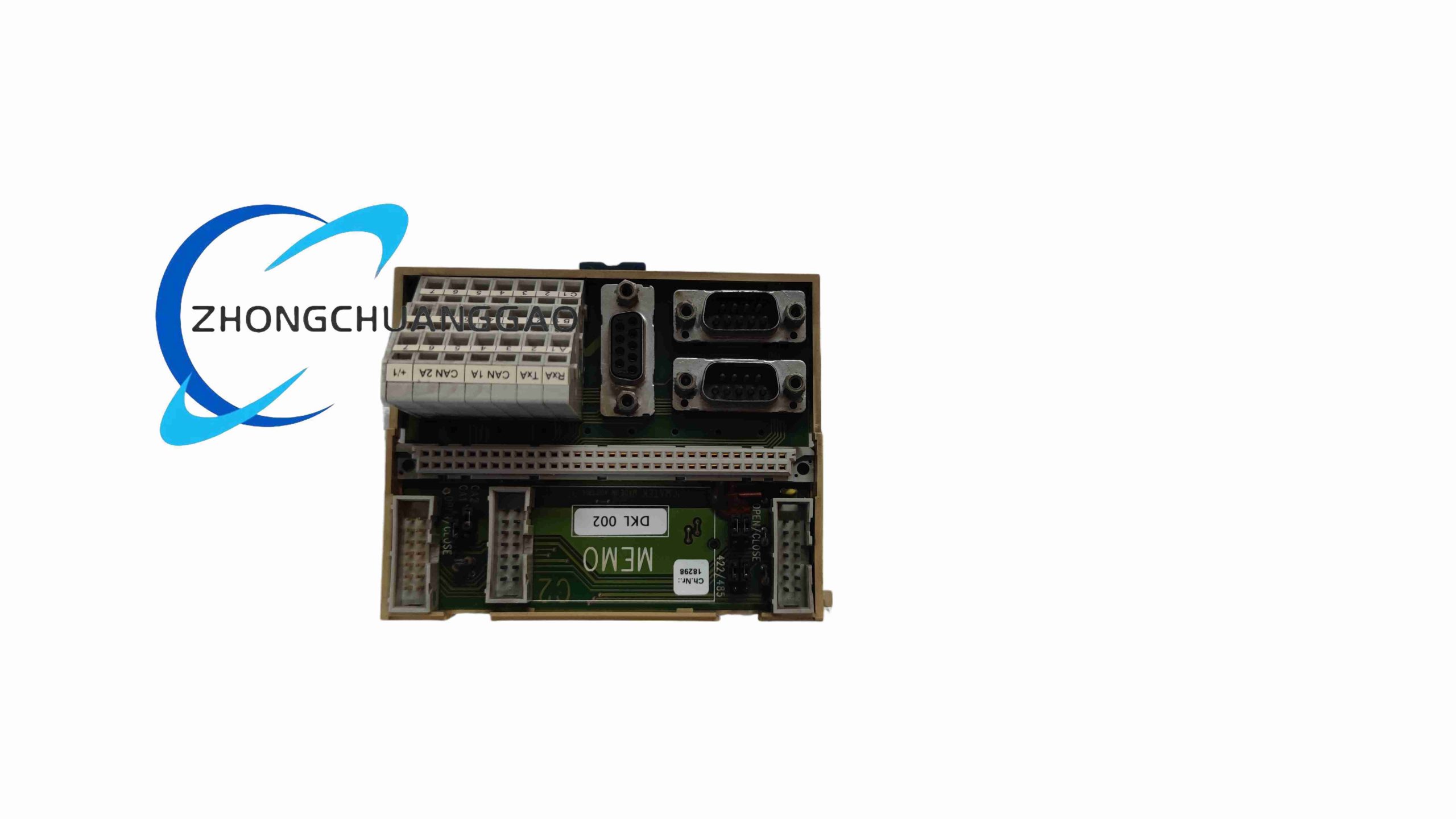

SIGMATEK DKL002

  • Product Name:​ DKL002 Digital Input Module (24 V DC, 2-channel)
  • Product Introduction:​ Compact digital input terminal for SIGMATEK DIAS bus-based automation systems. Acquires binary signals from sensors, switches or pushbuttons and transfers them via electrical isolation to the central CPU.
Category:
Description
  • Technical Specifications:
    • Number of inputs: 2 channels
    • Nominal voltage: 24 V DC​ (range 20.4 … 28.8 V DC)
    • Logic “1” threshold: ≥ 15 V DC; Logic “0”: ≤ 5 V DC
    • Input current (typ.): ~3 mA per channel
    • Input filter time: approx. 3 ms (software configurable on some CPUs)
    • Isolation: galvanic isolation 500 V between field side and system bus
    • Power consumption from backplane: typ. 30 … 50 mA @ 5 V DC
    • Status indication: 2 × LED (green) per channel
    • Connector: screw / spring-cage terminals (depending on variant)
  • Features:​ Short-circuit protected inputs, diagnostic LED per channel, hot-pluggable in DIAS rack, conforms to IEC 61131-2Type 1/Type 3 input characteristics.
  • Structure / Material:​ Polyamide (PA6-GF) housing, DIN rail mount (35 mm top-hat rail), width typically 12.5 mm.
  • Installation & Notes:​ Mount on SIGMATEK DIAS profile bus; ensure 24 V DC supply to bus coupler / power module. Do not exceed max total current on common 0 V line. Observe EMC grounding.
