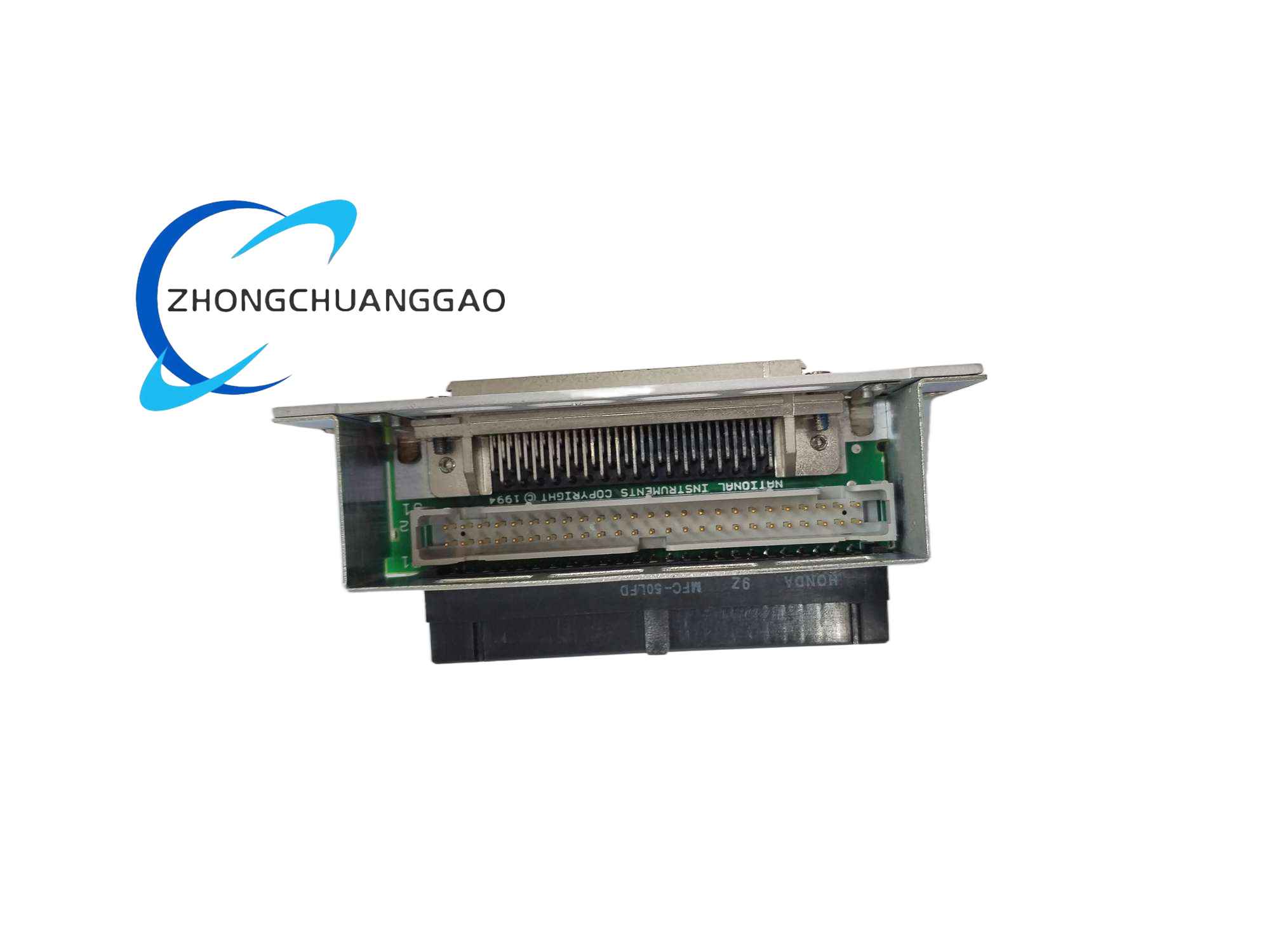

Product Name:​ SCXI Terminal Block / Connector Accessory
Product Introduction:​ Front-mounting terminal block or cable-interface accessory for NI SCXI signal-conditioning chassis, used to land field wires or adapt 96-pin DIN-C module front connectors to screw terminals or specific transducer types. Exact channel count depends on paired module; commonly paired with high-voltage digital or analog modules.
Category:
Description
Technical Specifications:
  • Connector to module: 96-pin DIN-C male
  • Field termination: screw terminals or header depending on paired module
  • Compatible modules: selected high-voltage digital and analog SCXI modules per NI manual
  • Voltage class: follows paired module rating (do not exceed module limit)
  • Enclosure: shielded metal/plastic hybrid housing
    Material Composition:​ Polyamide terminal carrier, phosphor-bronze screw contacts, nickel-plated steel shield can, tinned copper wire clamp
    Structural Features:​ Snap-on to SCXI module front panel via thumbscrews, strain-relief bar, earth solder lug, labeled channel map
    Working Principle:​ Passive wiring interface; no active conditioning. Transfers field signals to module front connector with shielding and ground continuity.
    Installation Requirements:​ Power down SCXI chassis; align 96-pin DIN-C without bending pins; tighten two thumbscrews; torque screw terminals 5–7 in-lb; attach shield lug to chassis ground.
    Usage Notes:​ Strip wire max 7 mm; no bare conductor past terminal; separate low-level analog from power wiring; verify module compatibility before mounting.
