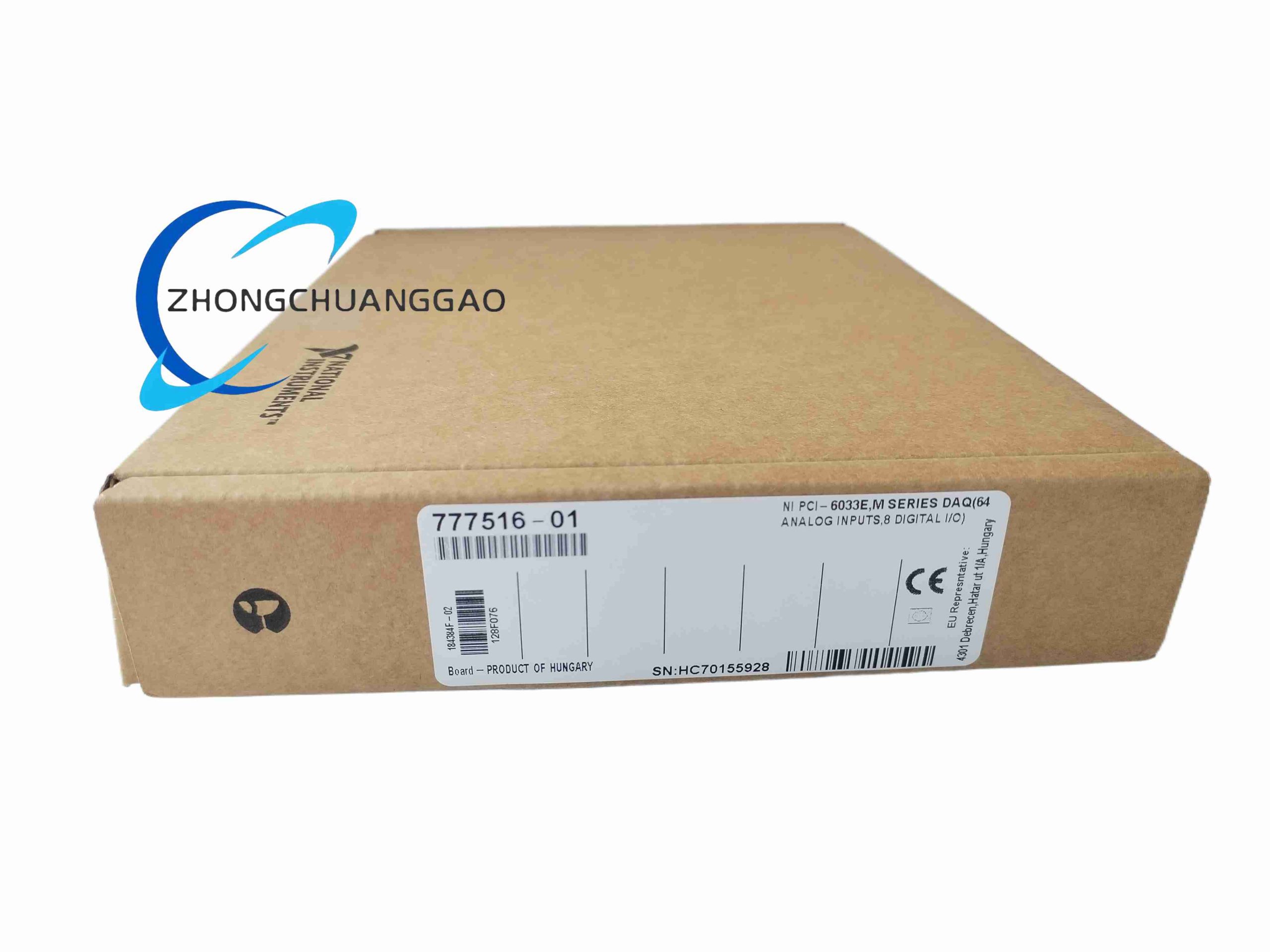

NI PCI-6033E

Product Introduction:

The PCI-6033E is a member of NI’s E-Series multifunction DAQ family. It plugs into a standard 32-bit PCI slot in a desktop PC or industrial computer and provides high-resolution analog input acquisition, digital I/O lines, and counter/timer functions. It is widely used for laboratory measurement, production test, and OEM data logging.

Category: NI

Description

Technical Specifications:

Bus Interface: 32-bit PCI 2.1 (5 V signaling)
Analog Input (AI): 64 single-ended / 32 differential channels (software-selectable)
ADC Resolution: 16-bit successive-approximation
Max Sample Rate: 100 kS/s (single channel aggregate; divided among scanned channels)
Input Ranges: ±10 V, ±5 V, ±2.5 V, ±1 V, ±500 mV, ±200 mV, ±100 mV, ±50 mV
Input Impedance: 100 GΩ || 100 pF
Analog Bandwidth (–3 dB): 255 kHz
Analog Output (AO): None on PCI-6033E (AI-only variant of E-Series)
Digital I/O: 8 bidirectional TTL/CMOS lines (5 V tolerant)
Counter/Timers: 2 × 24-bit, 20 MHz timebase (8254-compatible emulation)
FIFO Buffer: 512 samples (AI) for DMA/scanned acquisitions
DMA Channels: 3 scatter-gather DMA engines
Triggering: Analog edge, digital pattern, software trigger
Overvoltage Protection: ±25 V (powered), ±15 V (unpowered)
Operating Temp: 0 °C to +50 °C
Dimensions: Half-length PCI card (approx. 175 × 107 mm)
Software: NI-DAQmx, LabVIEW, LabWindows/CVI, Measurement & Automation Explorer (MAX), C/C++, Python (via ni-daqmx bindings), MATLAB

Features:

16-bit resolution enables measurement of small signal deviations (e.g., thermocouples, strain gauges) without external amplification
100 GΩ input impedance minimizes loading on high-impedance sensors
DMA-based continuous acquisition with very low CPU overhead
Fully calibrated — NIST-traceable factory calibration stored in onboard EEPROM

Applications: Laboratory data logging, sensor characterization benches, production functional test fixtures, acoustic/vibration signature capture (with external anti-alias filtering), educational labs.

Installation Notes: Requires NI-DAQmx driver (version appropriate to OS). For best analog performance, use differential mode with shielded twisted-pair cabling, connect AI GND to signal LO, and avoid running analog cables parallel to high-current power lines. Calibrate annually for high-accuracy work.
