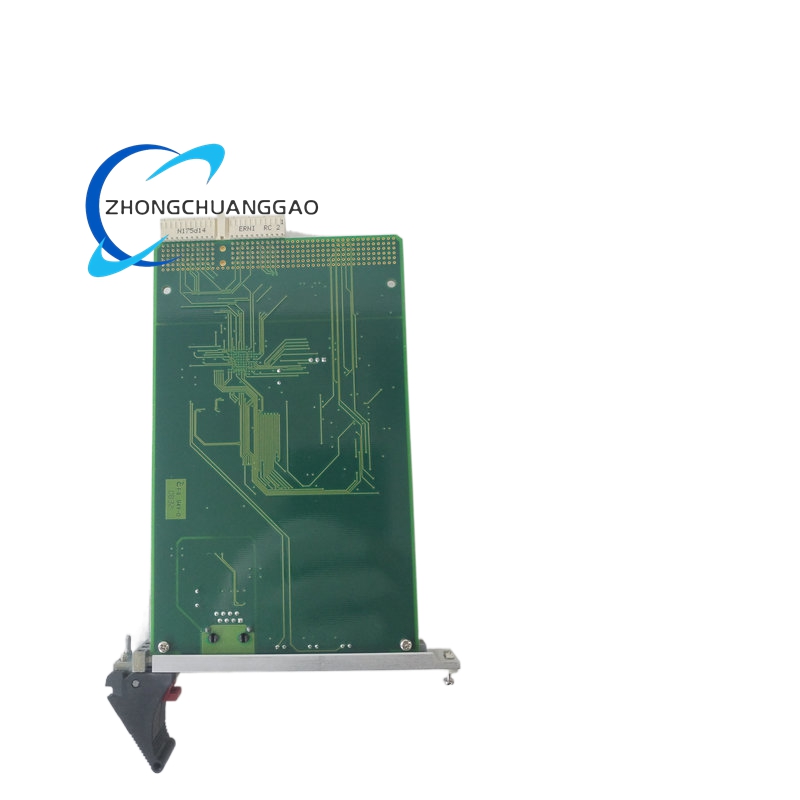

NI CPCI-8211

Model Series

Technical Specifications

• Form Factor: 3U CompactPCI 4HP Single Slot
• Bus Interface: PICMG 2.0 CompactPCI 32-bit PCI bus
• Analog Input Channels: 64 single-ended / 32 differential configurable
• A/D Resolution: 12-bit successive approximation ADC
• Max Sampling Rate: 1 MS/s aggregate system sampling speed
• Analog Output Channels: 4 independent DAC channels, 12-bit resolution
• Digital I/O: 8 DI / 8 DO TTL-compatible bidirectional channels
• Counter/Timer: 1 × 16-bit independent counter with 9 configurable gate modes
• Onboard FIFO Buffer: 8 K-word A/D input memory cache
• Isolation Rating: 1 kVrms channel-to-backplane electrical isolation
• Power Draw: 4.2 W typical operating power

Performance Parameters

• A/D Conversion Time: ≤ 0.75 μs per single channel
• Analog Input Impedance: 500 GΩ ultra-high impedance
• Maximum Non-Linear Error: ±1 LSB full scale range
• Full Scale Measurement Accuracy: 0.1% calibrated precision
• Analog Output Settling Time: < 2 μs to within ±0.01% final value
• Digital Input Threshold: 0.8 V low / 2.0 V high TTL logic level
• Counter Maximum Input Frequency: 1 MHz pulse input

Material Composition

• Front Panel: Black anodized 6061 aluminum alloy CompactPCI panel with D-Sub signal breakout connector
• PCB: 8-layer FR-4 industrial PCB with analog/digital ground split shielding layers
• Signal Conversion IC: High-stability AD825 programmable gain amplifiers, industrial grade 12-bit ADC/DAC chips
• Connector: 68-pin gold-plated D-Sub front panel signal connector, gold-plated CompactPCI backplane pins
• Mechanical Hardware: Stainless steel ejector lock lever and mounting fasteners

Structural Features

• Single-slot 3U CompactPCI design without auxiliary rear transition module for compact chassis integration
• Strict analog/digital circuit ground separation on PCB to eliminate crosstalk noise
• Onboard FIFO memory buffer reduces PCI bus data transfer interruption frequency
• Front panel single D-Sub connector consolidates all analog, digital and counter signal wiring
• Integrated overvoltage protection circuits on all analog input channels to prevent sensor surge damage

Working Principle

1. Module draws power from CompactPCI backplane bus; isolated power regulation circuit supplies analog signal conversion circuitry independent of digital logic power domain.
2. External analog sensor signals feed into programmable gain amplifier stage before 12-bit ADC sampling; sampled digital data stored in onboard FIFO buffer.
3. PCI bus DMA controller transfers buffered measurement data to host single-board computer memory without continuous CPU intervention.
4. Digital output channels convert host control logic signals to TTL level drive signals for external actuators; digital input channels read external switch/sensor logic states.
5. Independent counter/timer circuit captures external pulse frequency, period and quadrature encoder position signals for motion measurement applications.

Core Function Features

1. 64-channel multi-range analog input with software-selectable gain and single-ended/differential mode
2. Four independent analog output channels supporting ±10 V, ±5 V, 0–10 V, 0–5 V voltage output ranges
3. 8 bidirectional TTL digital I/O channels for relay, valve and logic sensor control
4. 16-bit high-speed counter/timer supporting pulse generation, frequency measurement and gate timing functions
5. Multiple trigger modes: software trigger, analog threshold trigger, digital external hardware trigger
6. Channel-to-backplane 1 kV isolation to block ground loop interference between field sensors and rack controller
7. Native NI DAQmx driver support for LabVIEW, C/C++, Python and LabWindows/CVI development environments

Advantage Highlights

1. All-in-one multifunction I/O eliminates need for separate analog input, output and counter expansion cards
2. Ultra-high analog input impedance prevents signal loading of low-output impedance transducers
3. Onboard FIFO buffer minimizes PCI bus bandwidth occupation for high-speed continuous sampling
4. Built-in overvoltage and overcurrent protection on all signal channels reduces field wiring fault damage risk
5. Compact single-slot 3U form factor maximizes chassis available expansion slots for additional I/O modules
6. Fully calibrated factory precision eliminates on-site gain/offset adjustment requirements

Applicable Industries

Installation Requirements

1. Insert into vacant 3U CompactPCI slot on PICMG 2.0 compliant backplane
2. Torque front panel ejector lock screw to 0.6 N·m for stable mechanical contact
3. Route analog sensor wiring separately from digital control and power cables to reduce crosstalk noise
4. Connect external signal shielding cable braids to chassis ground terminal for EMI suppression
5. Maintain minimum 8 mm clearance between adjacent DAQ modules for passive heat dissipation
6. Verify backplane PCI bus voltage output within 5 V ±5% tolerance before powering module

Operation & Maintenance Precautions

1. Do not apply analog input voltage exceeding ±15 V absolute maximum rating to avoid permanent ADC damage
2. Wear ESD wrist strap during all wiring, module insertion and disassembly operations
3. Clean D-Sub front panel connector pins annually with isopropyl alcohol to remove oxidation buildup
4. Disable analog input channels not in use to reduce background noise and power consumption
5. Avoid operating module under ambient temperature above 60 °C for continuous long-duration testing
6. Never hot-swap signal wiring while module is powered to prevent transient surge damage to signal conversion circuits
7. Calibrate analog input/output channels every 12 months per factory calibration procedure to maintain measurement accuracy
