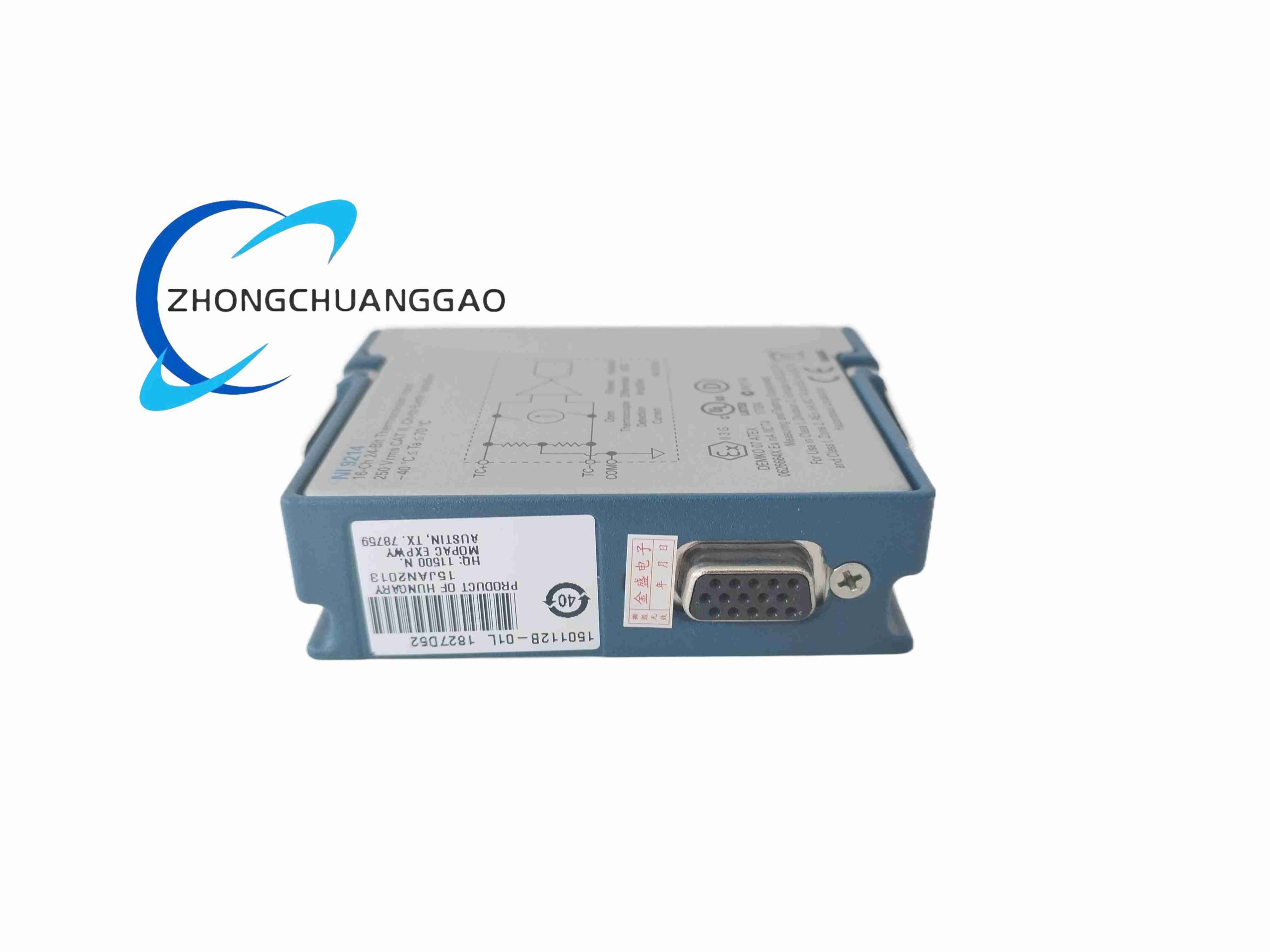

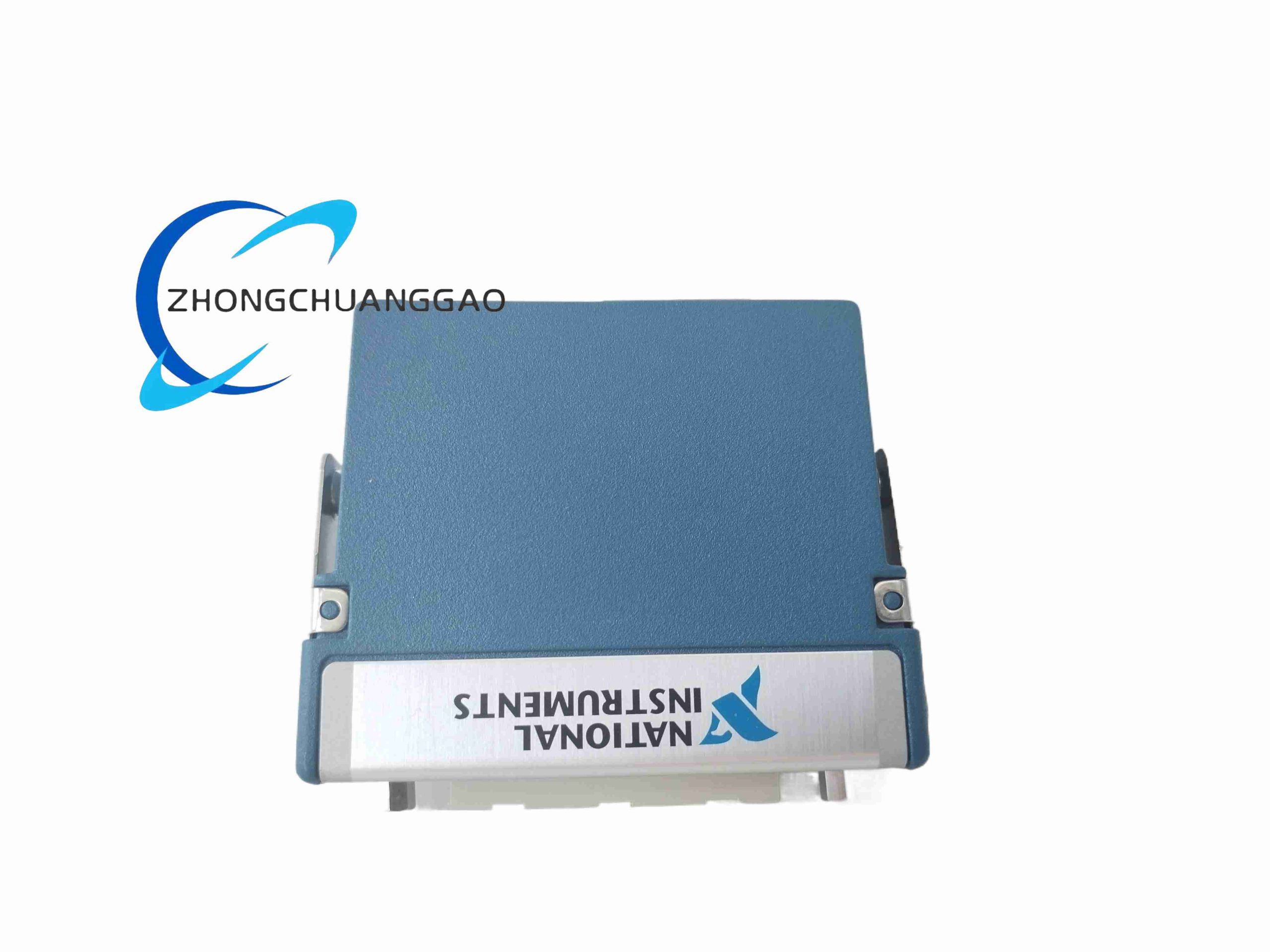

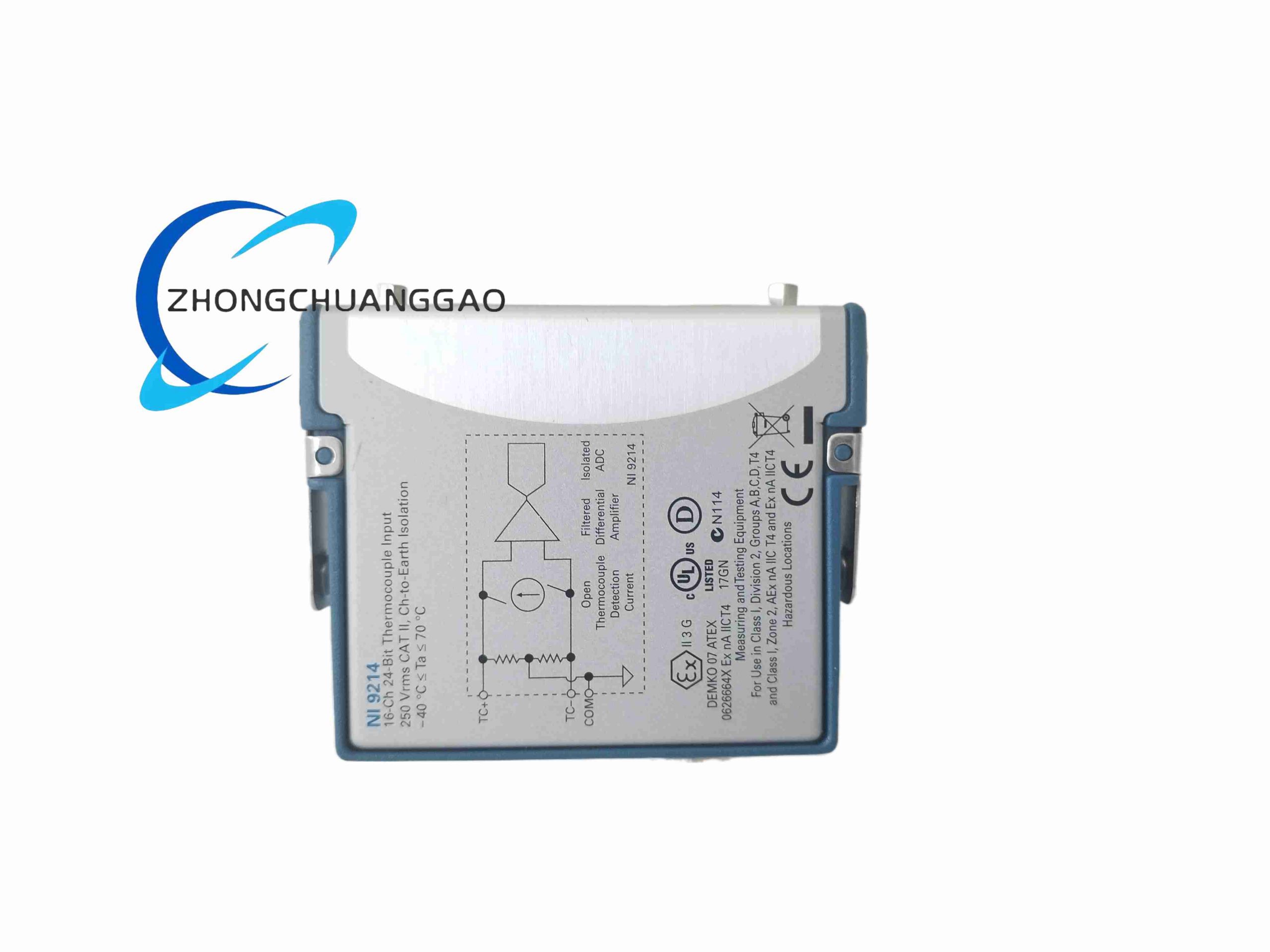

NI-9214

Product Name: C Series 16-Channel Thermocouple Input Module with Isothermal Terminal Block

Product Introduction:

24-bit delta-sigma thermocouple module shipped with TB-9214 isothermal block containing three CJC sensors to cancel terminal gradient. Targets high-accuracy furnace/oven/motor-temperature logging.

Category: NI

Description

Technical Specifications:

Channels: 16 TC + 1 internal auto-zero
Resolution: 24 bit
Types: J, K, T, E, N, B, R, S
Voltage range: ±78.125 mV
Aggregate rate: 68 S/s fast mode, 0.96 S/s high-res
Sensitivity: 0.01 °C (J/K/T/E/N), 0.03 °C (R/S), 0.04 °C (B)
CJC accuracy: ±0.25 °C @ 23±5 °C, ±0.6 °C @ −20…70 °C, ±0.9 °C @ −40…70 °C
CMRR: 100 dB ch-COM (high-res), 170 dB COM-earth
Isolation: 250 Vrms CAT II ch-earth
Open-thermocouple detect: Yes, 6 s settle on toggle
Noise: 220 nVrms high-res

Features: Multiple CJC sensors, isothermal block, 50/60 Hz rejection, autotzero channel.

Applications: Kiln profiling, engine exhaust TC arrays, environmental chambers, research lab thermocouple banks.

Installation Notes: Mount TB-9214 firmly to avoid air drafts across block; use twisted TC extension wire; do not mix TC types per module if CJC gradient matters.
