NI PXIe-8135

Product Name:​ NI PXIe-8135 PXI Express Embedded Controller (Intel Core i7-3610QE, quad-core)
Product Brief:​ High-performance embedded controller for PXI Express chassis. Features 3rd-gen Intel Core i7 quad-core processor, removable storage option, integrated peripherals, and up to 8 GB/s system bandwidth to PXIe backplane. Runs Windows or NI Linux Real-Time.
Category:
Description
Key Technical Specifications:
  • Processor:​ Intel Core i7-3610QE — 4 cores / 8 threads, 2.3 GHz base, up to 3.3 GHz Turbo Boost (single core)
  • Chipset:​ Mobile Intel QM77 Express

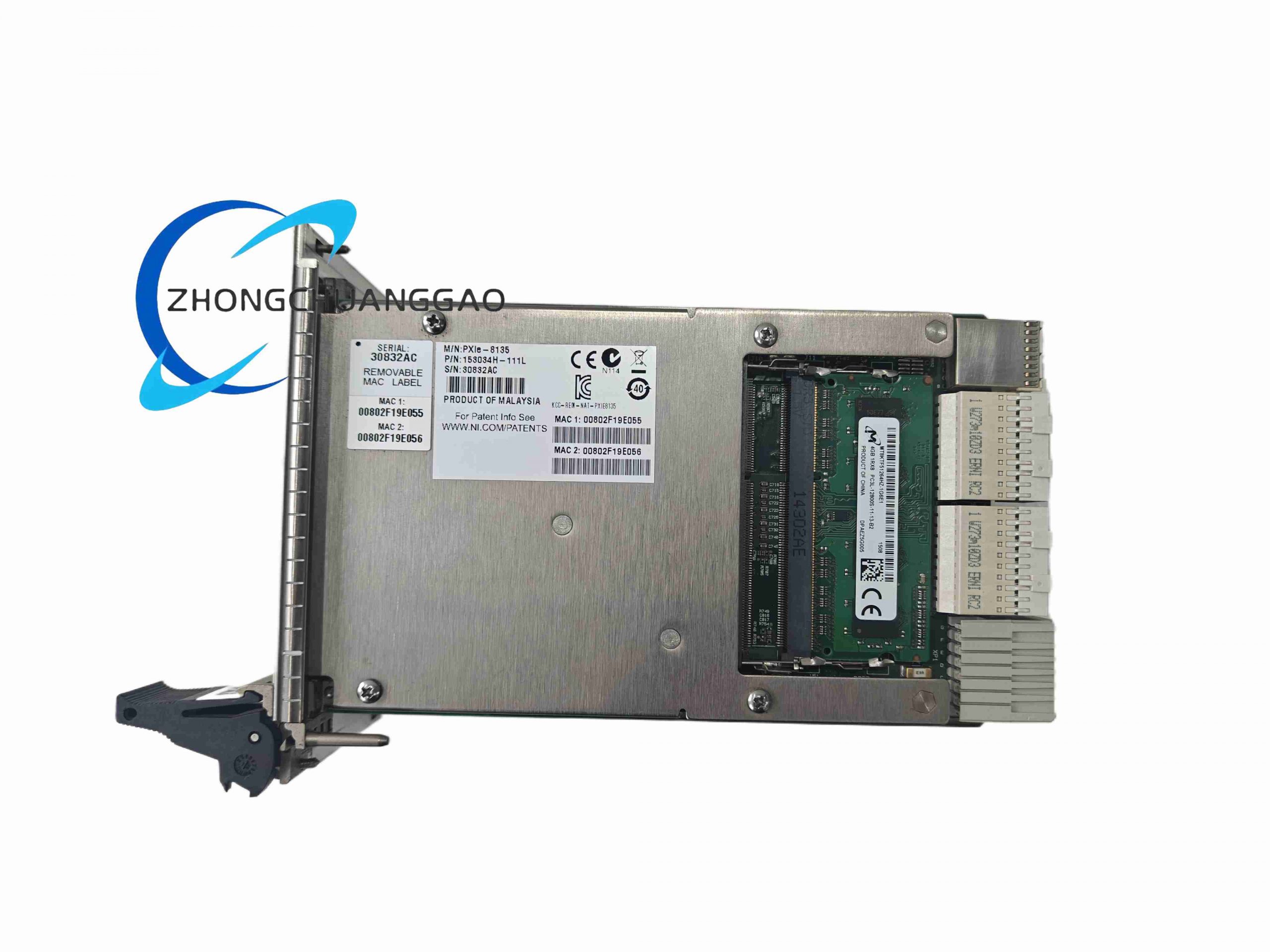

  • Memory (Standard / Max):​ 4 GB DDR3-1600 SO-DIMM standard (1 slot), expandable to 8 GB or 16 GB depending on revision

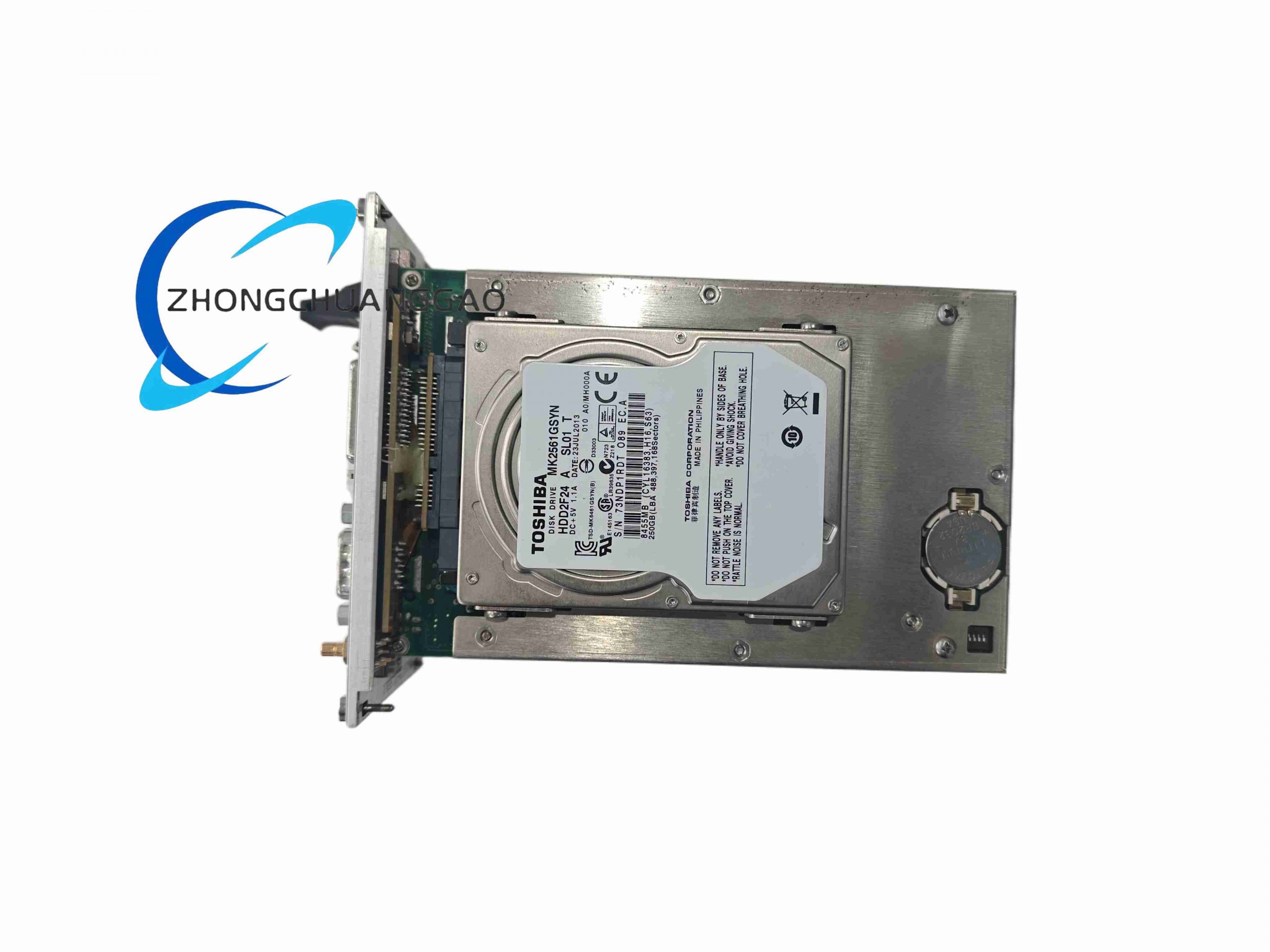

  • Storage:​ 2.5″ SATA HDD/SSD standard; optional front-accessible removable drive caddy (for declassification / image swap)
  • PXI Express Bandwidth:​ Up to 8 GB/s system bandwidth, 4 GB/s per-slot (x4 Gen 2 PCIe to backplane)

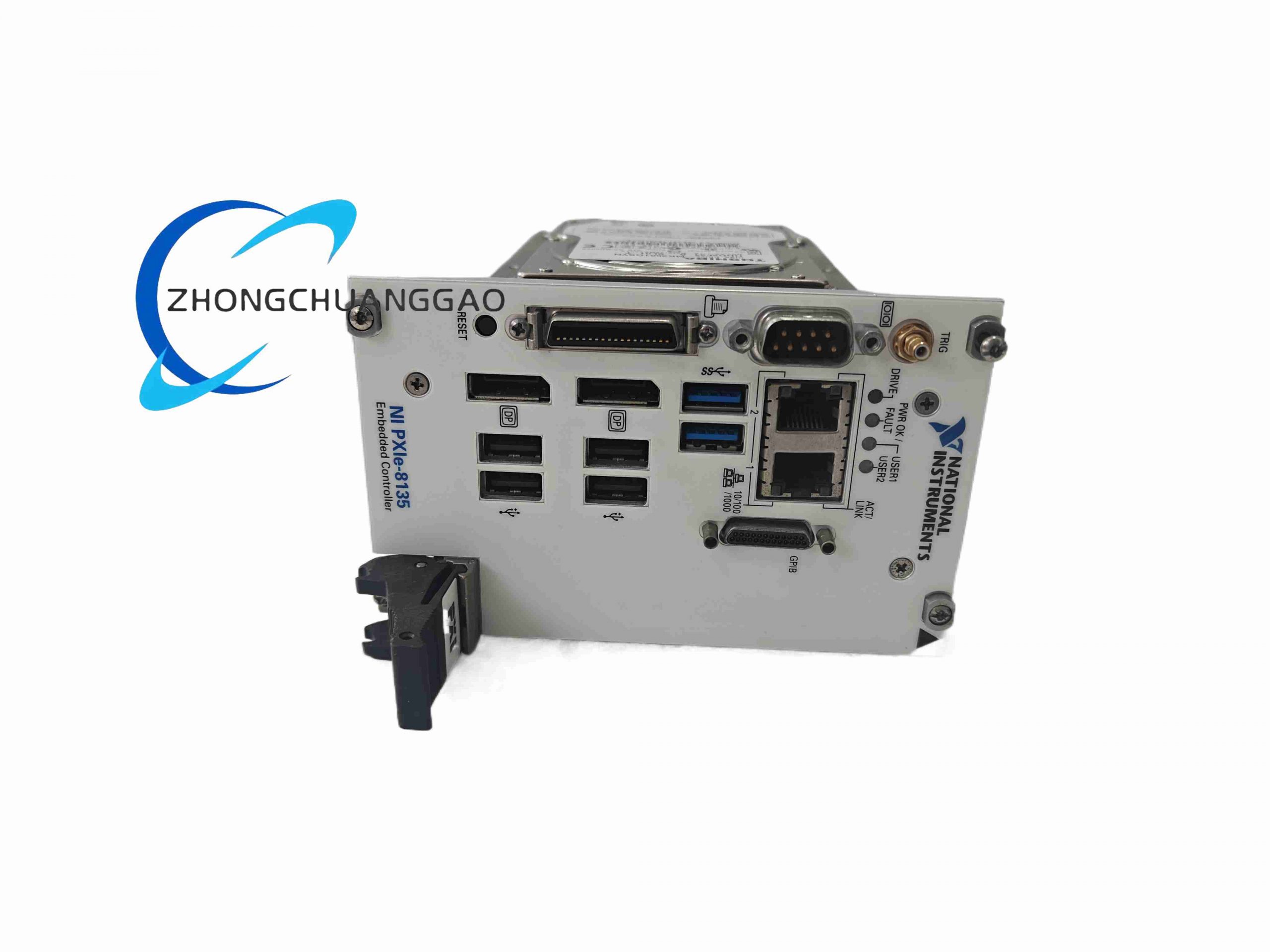

  • Front Panel I/O:
    • 2 × USB 3.0 SuperSpeed
    • 4 × USB 2.0 High Speed
    • 2 × Gigabit Ethernet (10/100/1000BASE-TX)
    • 1 × RS-232 serial port (D-sub 9)
    • DisplayPort (some revisions also have DVI-I via adapter)
    • Power & HDD activity LEDs
  • Watchdog Timer:​ Hardware watchdog with system reset or NMI on timeout
  • Operating Systems Supported:​ Windows 7/10 (64-bit), NI Linux Real-Time (PharLap ETS deprecated on newer; Linux RT supported), LabVIEW Real-Time
  • Slot Requirement:​ Occupies Slot 1 of PXIe chassis (3U single-slot)
  • Power:​ Supplied by PXI chassis backplane (typical 50–80 W depending on config)
  • Operating Temp:​ 0°C to +50°C (typical for lab grade; extended-temp versions may differ)
  • Dimensions:​ 160.7 × 33.3 × 269.5 mm (3U PXIe module form factor)
Applications:​ Automated test systems (ATE), RF / mixed-signal measurement, hardware-in-the-loop (HIL) simulation, data acquisition with intensive signal processing, production test stands.
Installation & Notes:​ Insert into Slot 1 of PXIe chassis — do NOT mix with older PXI-only controllers in same chassis. Use NI-MAX to identify and configure. For RT targets, format and install LabVIEW Real-Time via NI Measurement & Automation Explorer. Ensure chassis cooling is adequate — i7 controller dissipates significant heat.
