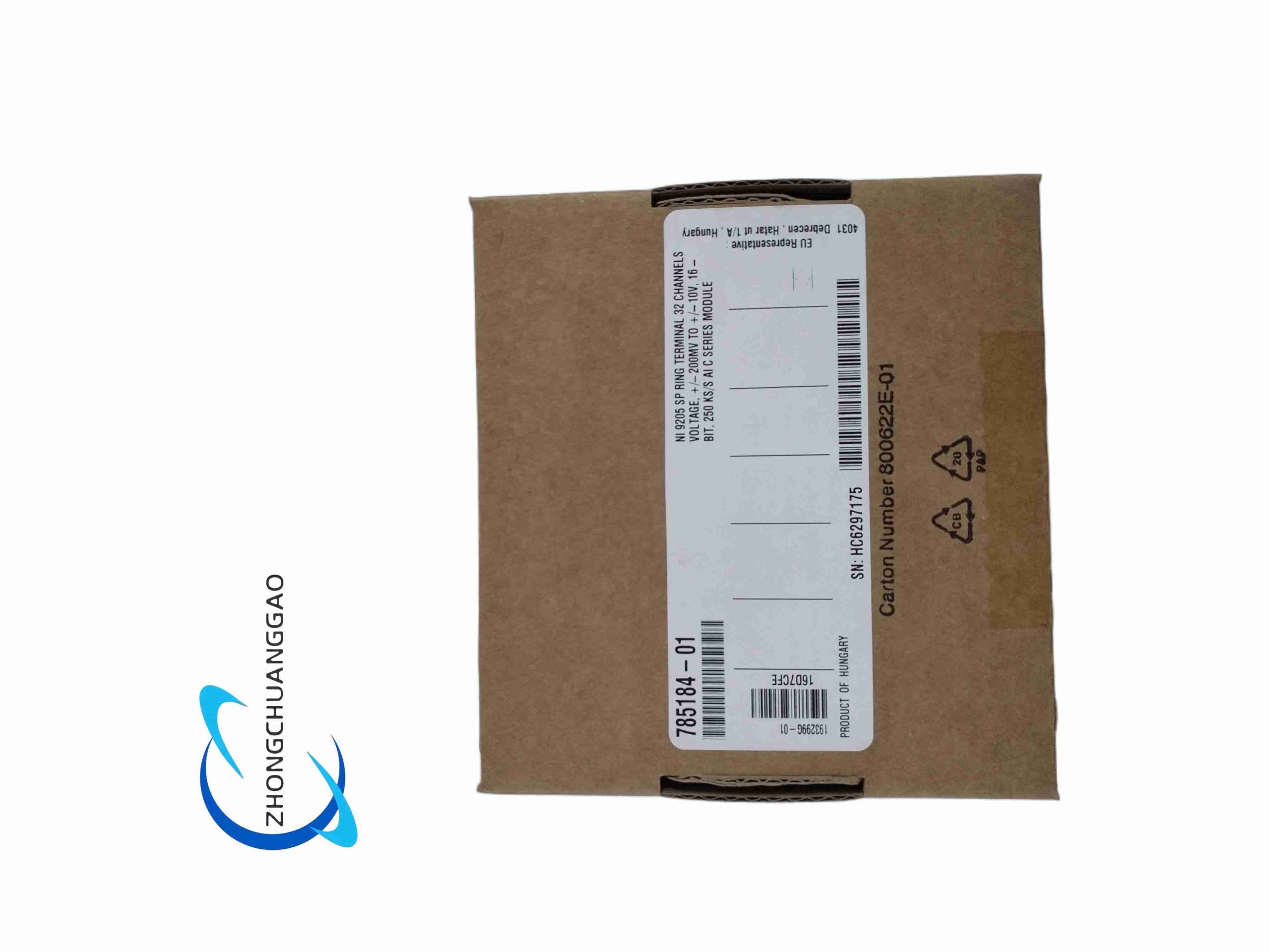

NI-9205

Product Name: C Series 32-Channel Single-Ended / 16-Channel Differential Analog Input Module

Product Introduction:

CompactDAQ/CompactRIO analog input module with 16-bit ADC, programmable gain and 250 kS/s aggregate throughput. Used for high-channel-count voltage acquisition.

Category: Uncategorized

Description

Technical Specifications:

Channels: 32 single-ended or 16 differential
Resolution: 16 bit, no missing codes (DNL guaranteed)
Max sample rate: 250 kS/s (CompactDAQ/cRIO), 222 kS/s (R-series)
Ranges: ±10 V, ±5 V, ±1 V, ±0.2 V DC-coupled
Overrange: 4 % on ±10 V range
Input impedance: > 10 GΩ || 100 pF powered, 4.7 kΩ fault
Bias current: ±100 pA
CMR: 100 dB DC–60 Hz
Crosstalk: −65 dB adjacent @ 100 kHz
Bandwidth: 370 kHz
Overvoltage protect: ±30 V per channel
Analog trigger: 10-bit, 370 kHz BW
Isolation: 250 Vrms ch-earth (module dependent)
MTBF: 775,832 h @ 25 °C Bellcore

Features: Multiplexer + PGA + 16-bit ADC, software-selectable range, fast settling (4 µs full-scale step).

Applications: LabVIEW test benches, DAQ racks, sensor sweeping, power-electronics voltage logging.

Installation Notes: In CompactDAQ use differential wiring for noisy environments; keep COM reference stable; avoid exceeding ±10.4 V signal+common-mode.
