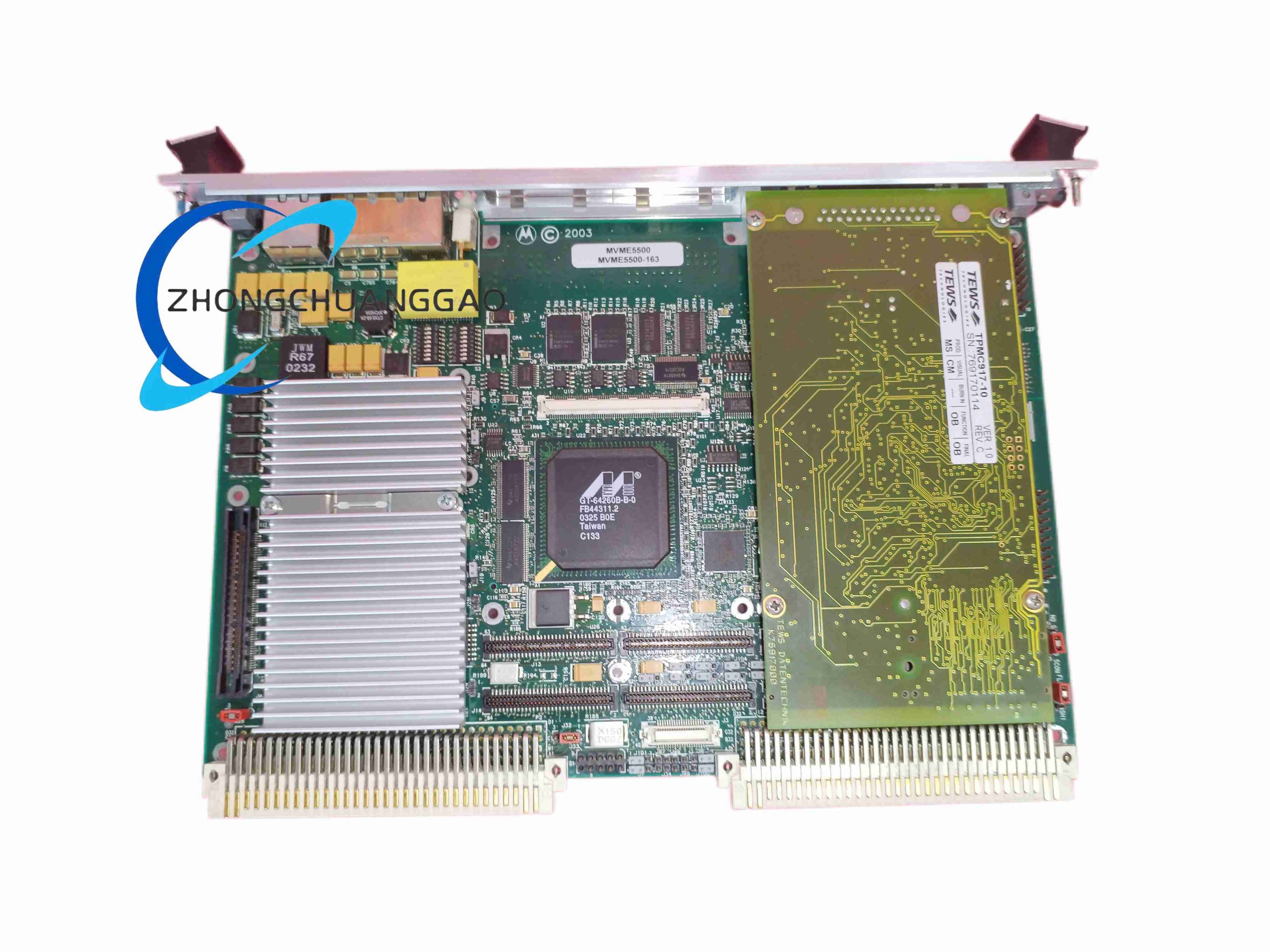

Motorola MVME550-163 - Image 1

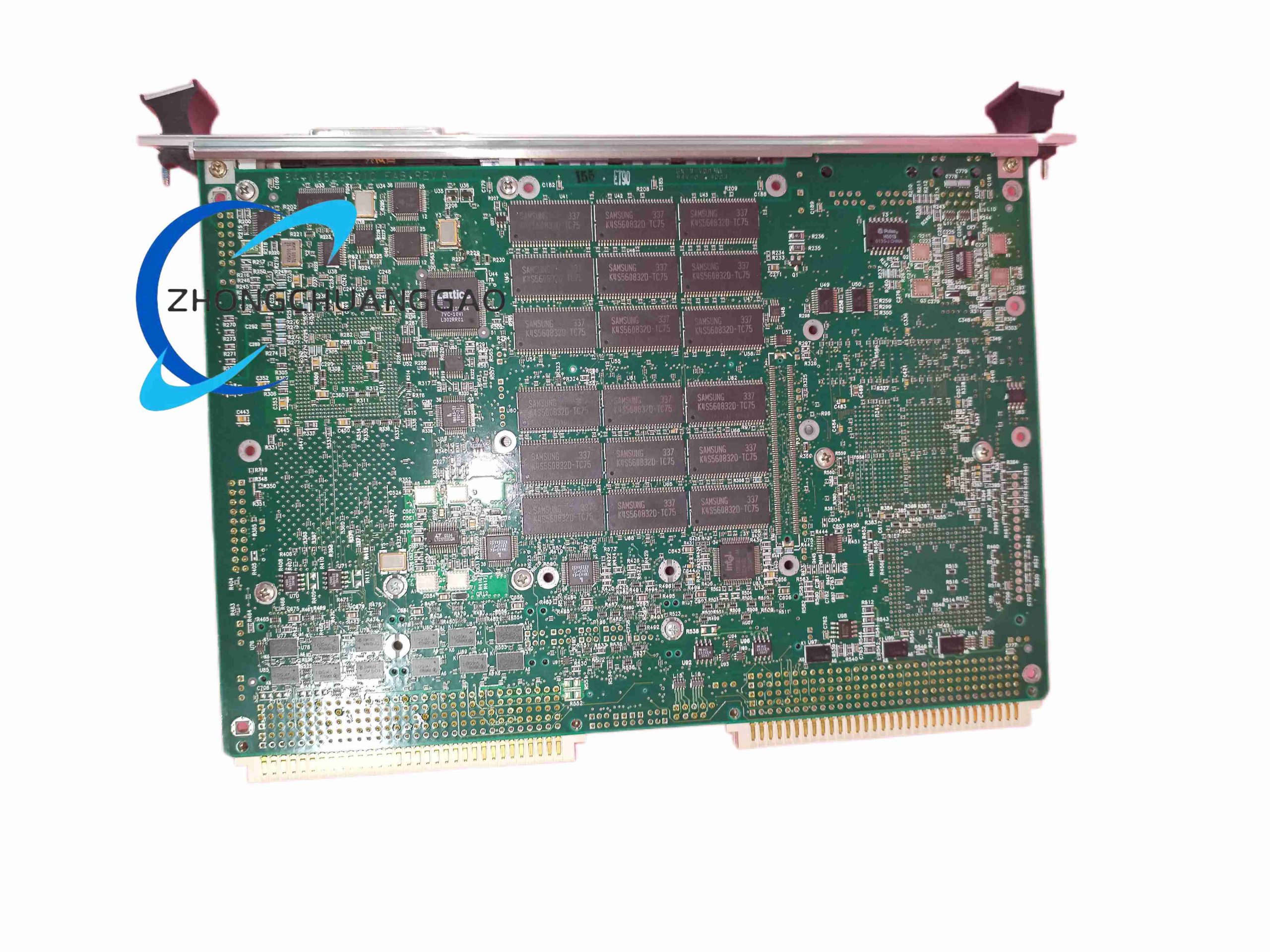

Motorola MVME550-163 - Image 2
Click to enlarge
Motorola MVME550-163
Motorola MVME550-163 - Image 2
Motorola MVME162PA-344E
Motorola MVME162PA-344E
Back to products
Motorola MVME167-33B
Motorola MVME167-33B

Motorola MVME550-163

Product Name:​ MVME550-163 VME SBC (Early MVME5500-Class PowerPC)
Product Brief:​ 6U VME board bridging 68k era to PowerPC; MPC7400/MPC7410 class CPU at sub-1 GHz, intended for data-acquisition and mid-range DSP offload.
Processor:​ PowerPC MPC755 or MPC7400 ~400–550 MHz, AltiVec on 7400/7450 spin, 32 KB L1, 256 KB–1 MB L2
Category:
Description
Memory:​ 128–256 MB SDRAM (ECC optional), 16–32 MB Flash
Bus:​ VME64, Tundra Universe II bridge, A32/D64 BLT
PCI / PMC:​ 1–2 × 32-bit 33 MHz PMC sites
Networking:​ 10/100Base-TX Ethernet
Serial:​ 2 × UART (one front RJ-45, one header)
Mechanical:​ 6U VME, 233.4 × 160 mm
Power:​ +5 V @ ~4 A, +3.3 V, +12 V aux, 20–25 W typ.
Environment:​ 0–60 °C commercial, -40–+71 °C conformal-coated variant
OS:​ VxWorks 5.4/6.x, Linux PPC
Applications:​ Signal processing, protocol analyzers, legacy VME technology refresh
Cautions:​ Early silicon stepping may lack AltiVec enable fuse; verify CPU mask before DSP code port.
