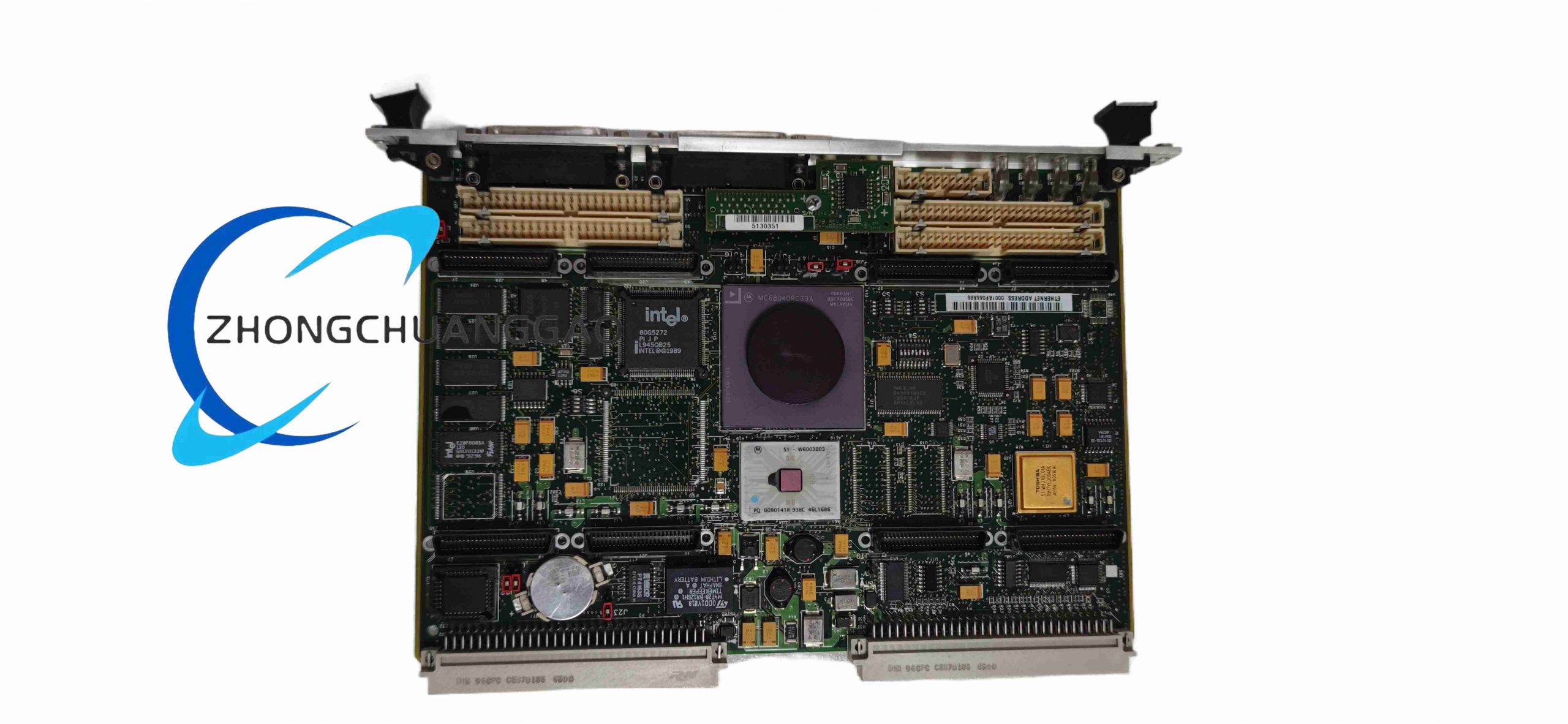

Motorola MVME162PA-344E - Image 1

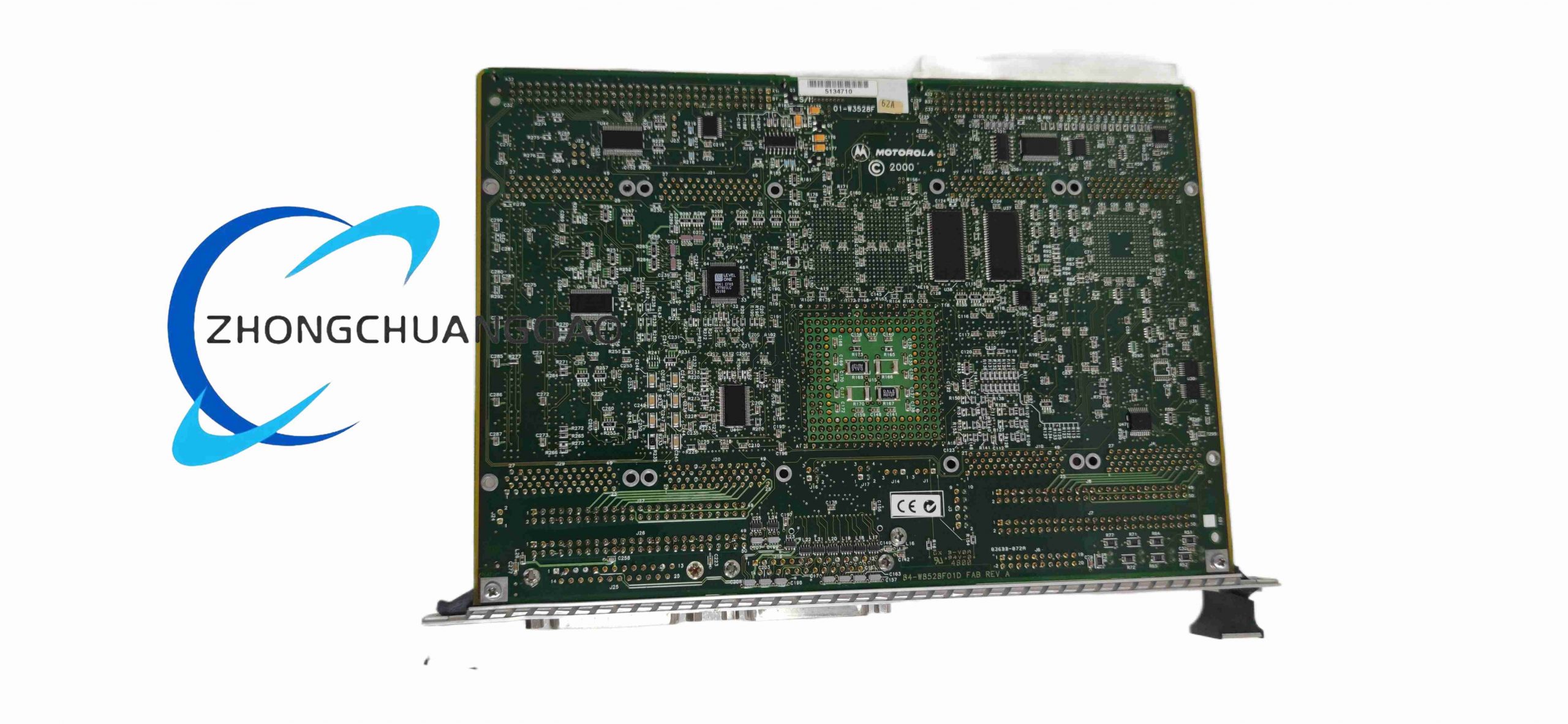

Motorola MVME162PA-344E - Image 2
Click to enlarge
Motorola MVME162PA-344E
Motorola MVME162PA-344E - Image 2
Motorola MVME162-512A
Motorola MVME162-512A
Back to products
Motorola MVME550-163
Motorola MVME550-163

Motorola MVME162PA-344E

Product Name:​ MVME162PA-344E 6U VME MPU Module (Wide-Temp)
Product Brief:​ High-memory, ruggedized MVME162PA subfamily board with 16 MB ECC SDRAM, dual PMC sites, and extended thermal range for defense and outdoor telecom.
Processor:​ MC68040RC33A 25 MHz (some builds 33 MHz), FPU, second-gen Petra ASIC
Category:
Description
Memory:​ 16 MB ECC SDRAM, 128 KB SRAM, 1 MB Flash boot
Bus:​ VME64 A32/D32, A24/D16 slave, system controller capable
Networking:​ 10/100 Mbps Ethernet (via onboard transceiver)
Serial:​ 2 × RS-232/422/485 DB-9
Expansion:​ 2 × PMC (PCI Mezzanine Card) sites, 2 × IndustryPack
Timers:​ 6 × 32-bit tick timers, programmable watchdog
RTC:​ Battery-backed TOD
Mechanical:​ 233 × 160 × 40 mm, 6U double-height variant
Power:​ 24 V DC input (18–32 V allowed) on some carrier configs, or standard +5 V VME primary
Environment:​ -40 °C to +100 °C (industrial wide-temp), CE/UL/ATEX/IECEx reported on some batches
OS:​ VxWorks, Linux, QNX via Motorola BSP
Applications:​ Radar front-end control, mobile military shelters, oil & gas RTU
Install Notes:​ Use conductive ESD rail; torque front-panel screws to chassis ground; PMC I/O routed to P2 needs matching rear-transition module.
Cautions:​ 24 V models are not +5 V-only; confirm backplane power class before insertion.
