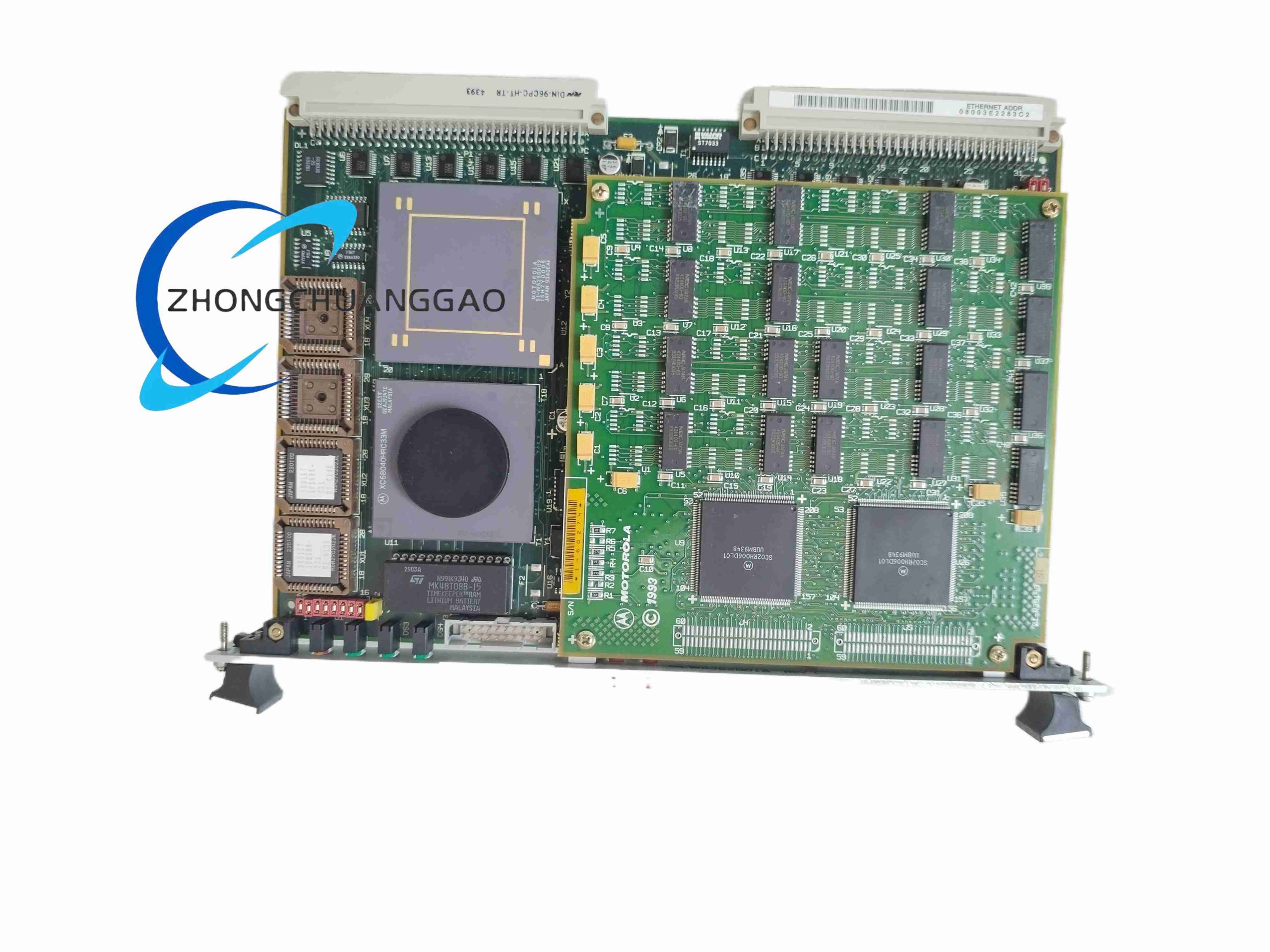

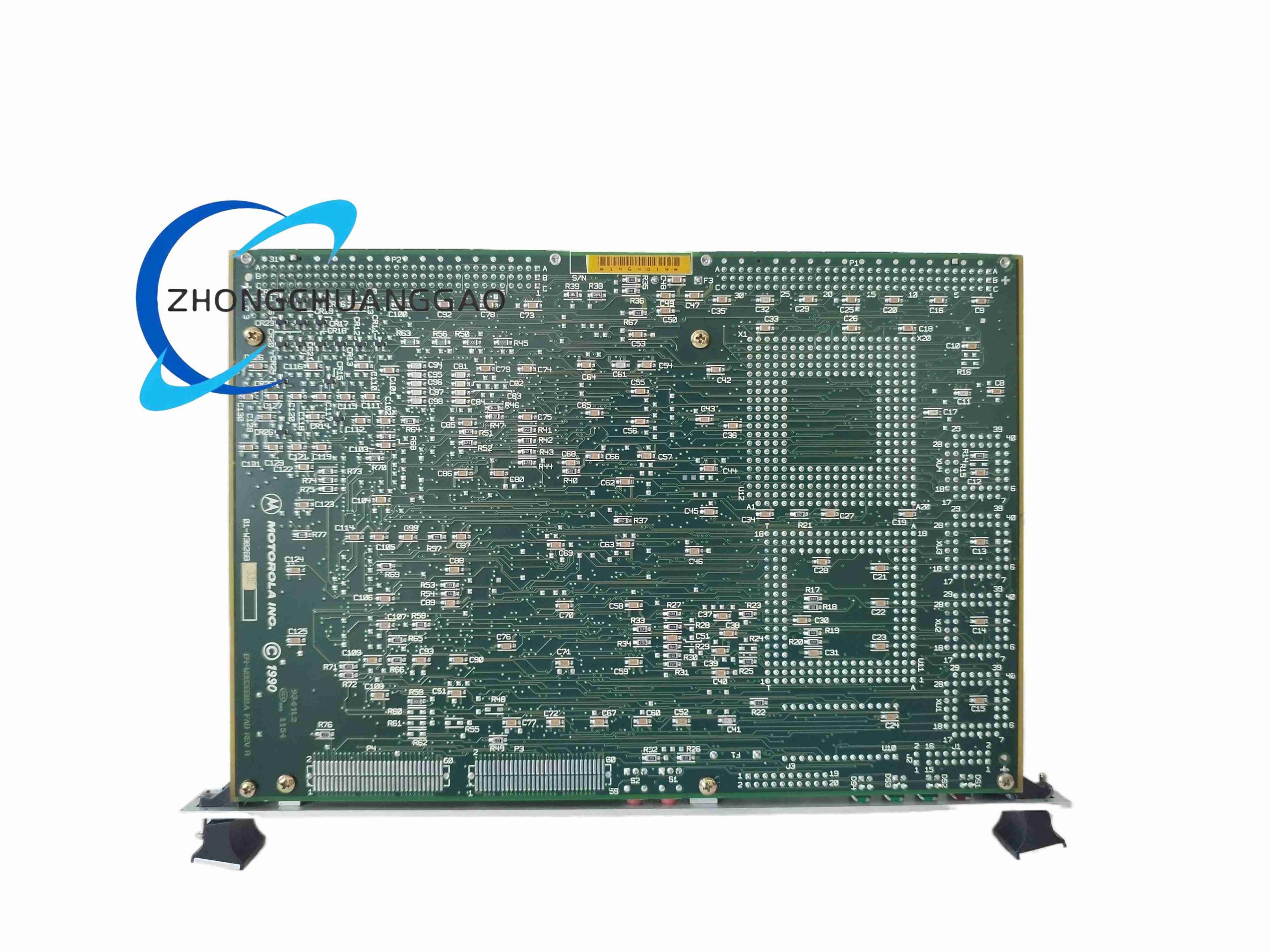

Motorola MVME167-33B

Product Name:​ MVME167-33B 6U VME SBC (MC68040 33 MHz)
Product Brief:​ Performance-topping 68k VME board of the MVME167 line, often used in aerospace test rigs and scientific cameras.
Processor:​ MC68040 33 MHz, FPU, MMU, 8 KB cache
Category:
Description
Memory:​ 8–16 MB DRAM (parity), 128 KB NVRAM, 1 MB Flash/EPROM boot
Bus:​ VME32/64 A32/D32, 7-level interrupt, VMEbus master/slave
Networking:​ 10 Mbps AUI Ethernet (no RJ-45 on base)
Serial:​ 2 × EIA-232, 1 × parallel
Expansion:​ 1–2 × IP slots depending on revision
Timers:​ 4 × 32-bit timers, watchdog, RTC
Mechanical:​ 160 × 233 mm 6U single-height
Power:​ +5 V @ 3.2 A, ±12 V, ~15 W
Environment:​ 0–60 °C
Firmware:​ 167Bug
OS:​ VxWorks, OS-9, BSD-m68k
Applications:​ Flight simulator I/O, telescope control, semiconductor tool controllers
Install Notes:​ Set CPU speed grade jumper; ensure backplane supports 33 MHz 68040 bus loading.
Cautions:​ Higher heat than 25 MHz 162; add slot baffle if chassis airflow <1 m/s.
