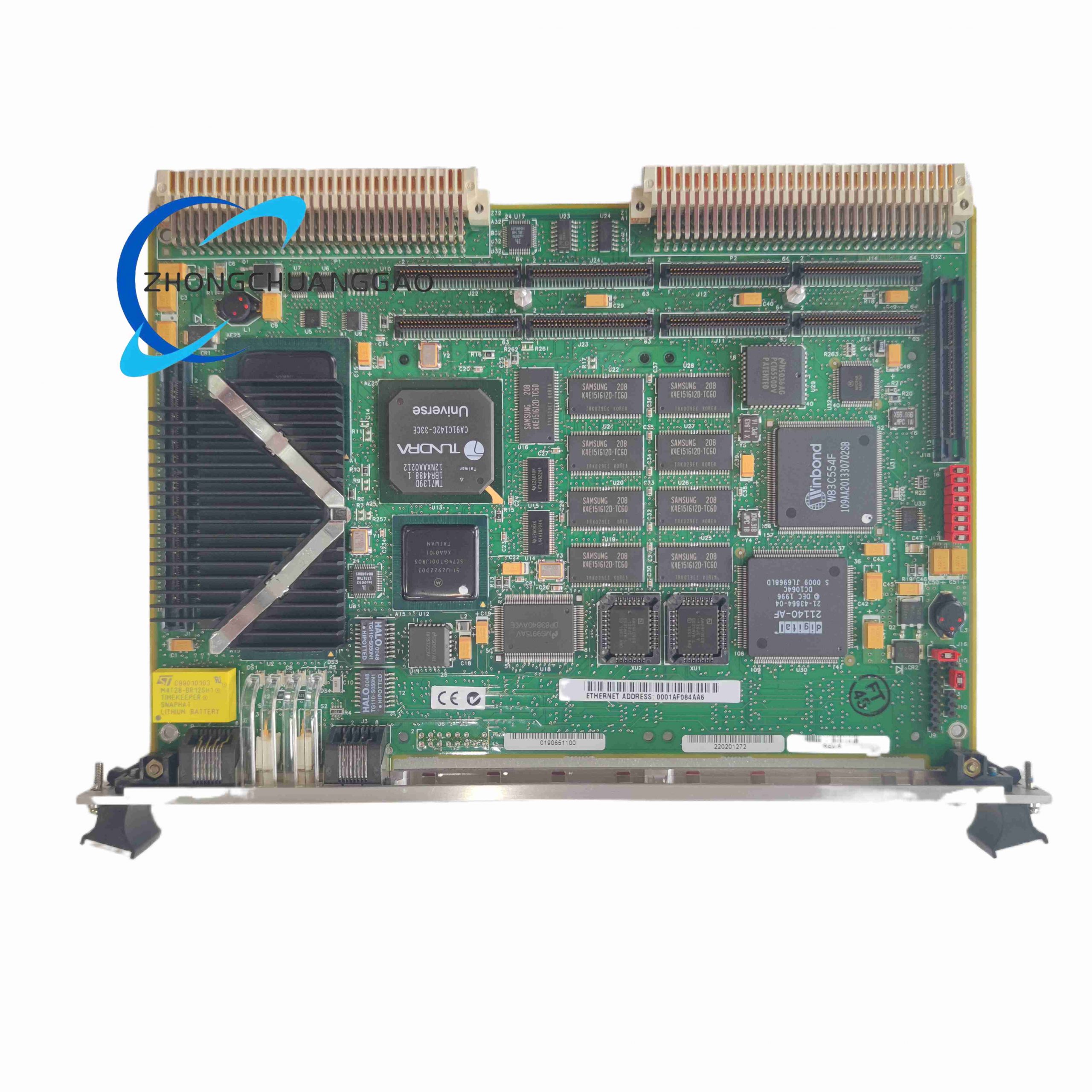

Motorola MVME2301-900 - Image 1

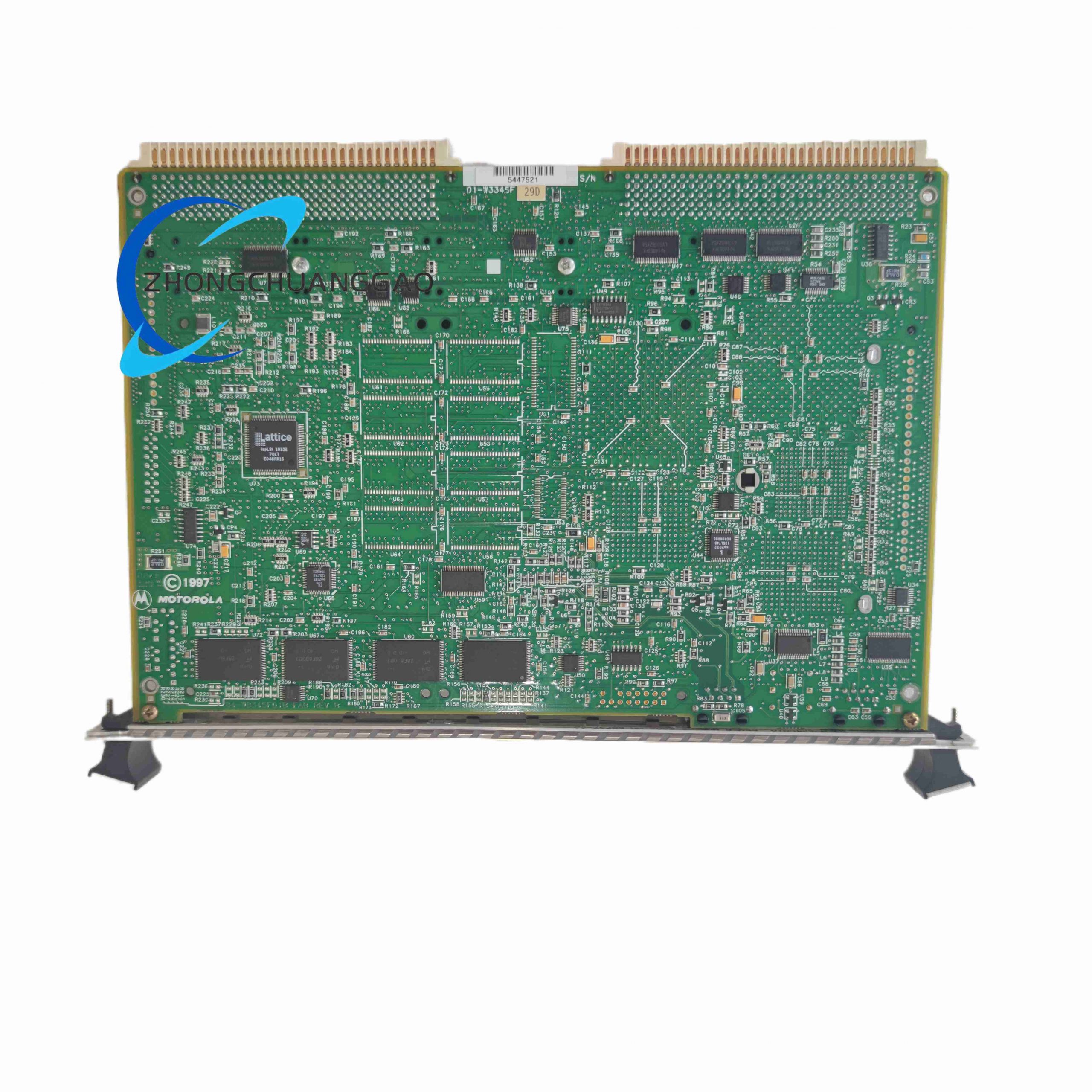

Motorola MVME2301-900 - Image 2
Click to enlarge
Motorola MVME2301-900
Motorola MVME2301-900 - Image 2

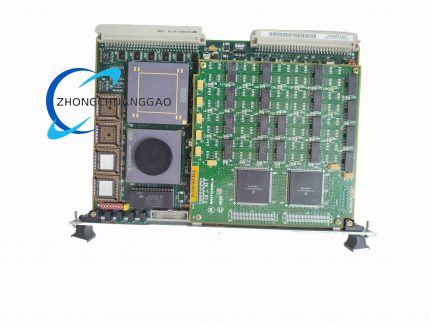

Motorola MVME167-33B
Motorola MVME167-33B
Back to products
Motorola MVME2400-0361
Motorola MVME2400-0361

Motorola MVME2301-900

Product Name:​ MVME2301-900 PowerPC 6U VME Processor Module
Product Brief:​ Part of Motorola’s PowerPlus architecture migration; MPC603e-class CPU, focused on comms and soft-real-time control.
Processor:​ PowerPC 603e 200–300 MHz, 32 KB L1
Memory:​ 32–128 MB ECC SDRAM, 4–8 MB Flash, 32 KB NVRAM
Category:
Description
Bus:​ VME64, Universe I/II, A32/D64
PCI/PMC:​ 1 × PMC site 32-bit 33 MHz
Networking:​ 10/100 Mbps Ethernet
Serial:​ 1–2 × RS-232
Mechanical:​ 6U VME 233 × 160 mm
Power:​ +5 V, +3.3 V, 15–18 W
Environment:​ 0–60 °C (some -40 start)
OS:​ VxWorks, Linux PPC
Applications:​ ATM edge node control, utility SCADA gateway
Cautions:​ 603e lacks AltiVec; not suitable for vector DSP.
