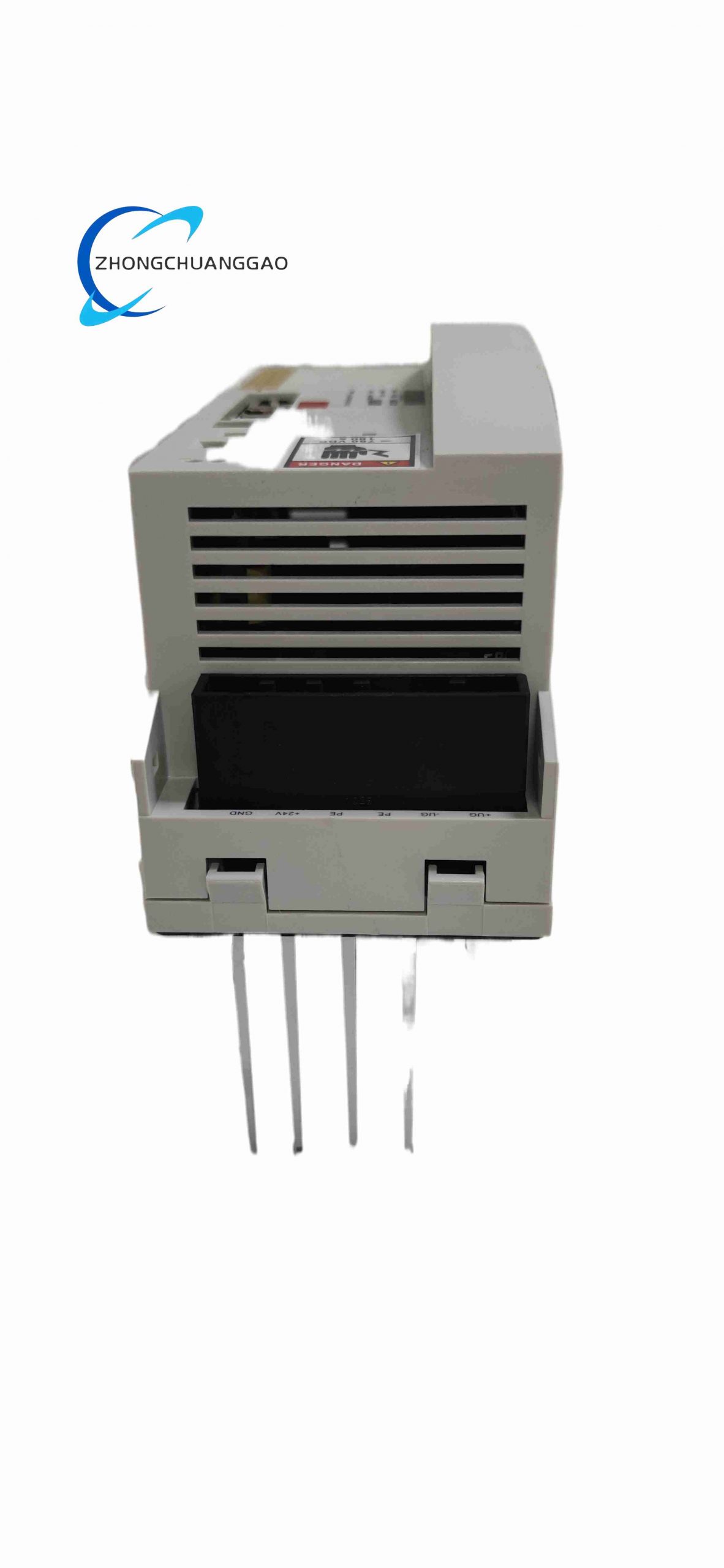

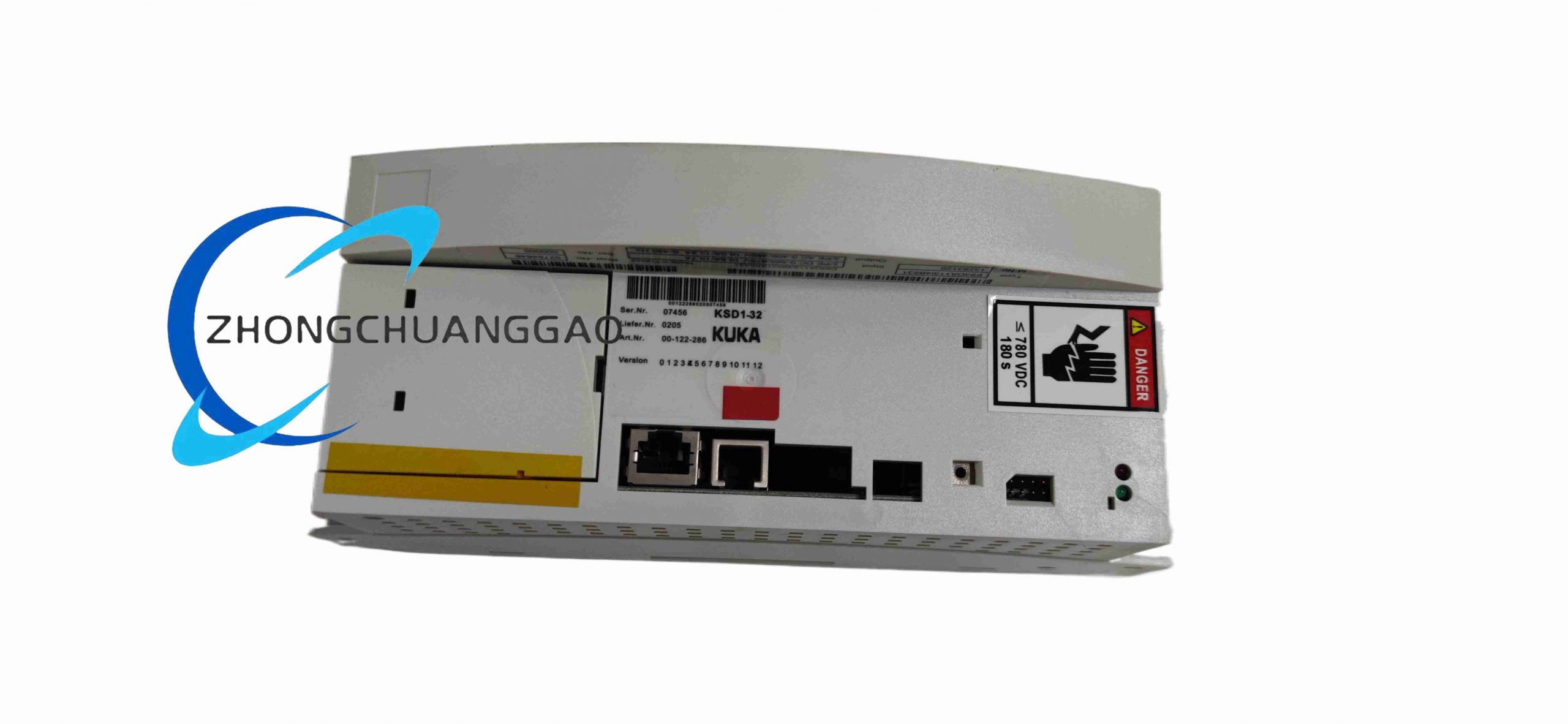

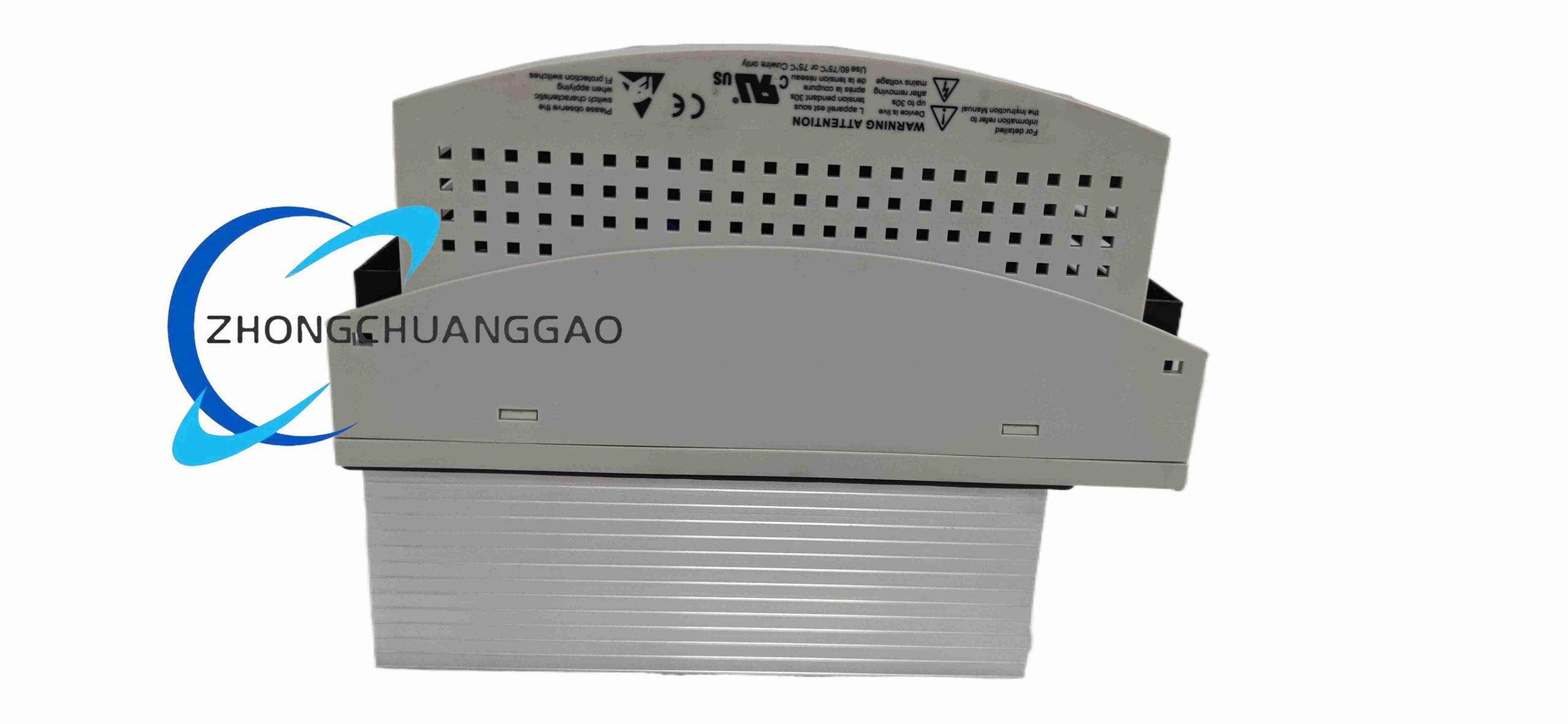

KUKA KSD1-32

  • Product Name: KUKA KSD1-32 Single-Axis Servo Drive Module
  • Product Introduction: Higher-current variant of the KSD1 series, engineered for medium-to-heavy load axes (e.g., A1/A2 base/shoulder joints) in KUKA KRC2/VKRC2 robotic systems.
Category:
Description
  • Technical Specifications:
    • Rated Output Current: 16A (some references cite 32A rating depending on config), Peak 32A-64A
    • Input Voltage: DC 0-565/675V (19.6/15.7A)
    • Output Voltage: 3-Phase AC 0-400/480V (16.0/12.8A)
    • Output Frequency: 0-480 Hz
    • Protection Class: IP20
    • Operating Temp: 0°C to +40°C
  • Functional Features: Advanced vector control algorithms; built-in safety diagnostics; handles high inertia and rapid acceleration loads.
  • Application Scenarios: Heavy payload handling, automotive body welding, large component assembly with KR 16/30/60 series robots.
  • Structural Features: Similar modular form factor to KSD1-16 but typically includes enhanced thermal management (larger heatsink or forced cooling).
  • Installation Requirements: Same rack mounting as KSD1-16; requires verification of DC bus capacity and cabinet ventilation.
  • Precautions: Peak current must align with motor specifications; upgrading from 16A to 32A is safer than downgrading; monitor thermal conditions closely.
