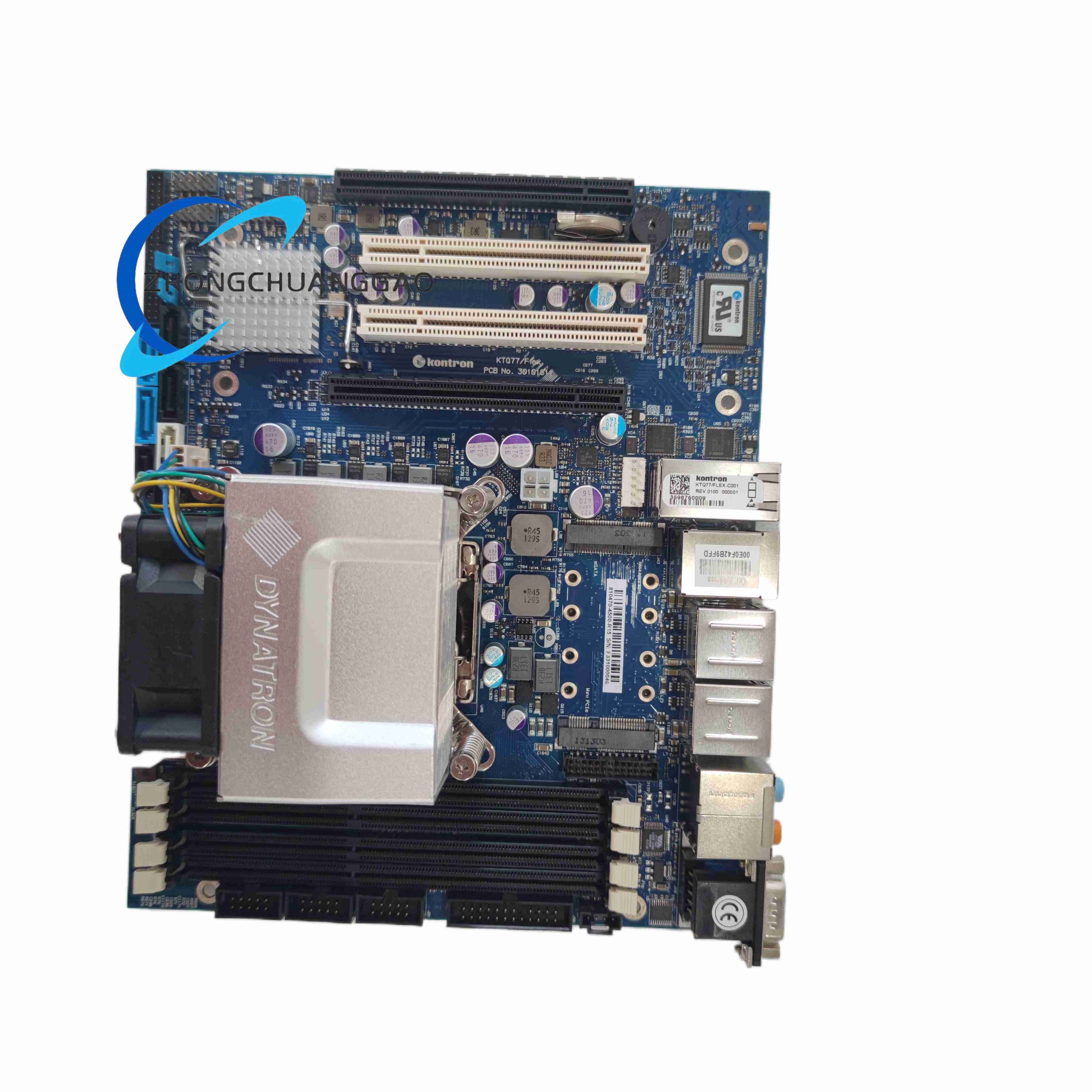

Kontron KTQ77FLEX 30101611 - Image 1

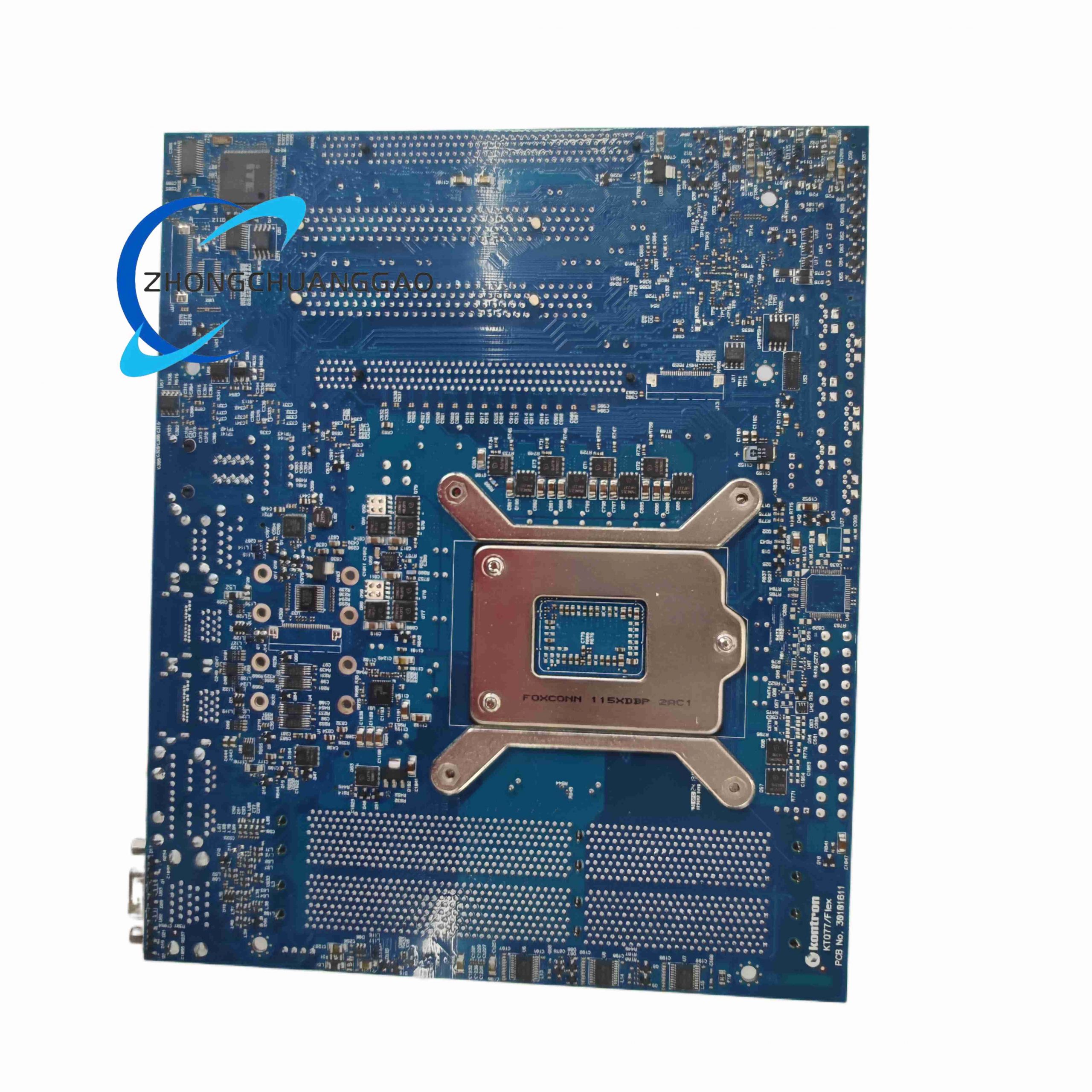

Kontron KTQ77FLEX 30101611 - Image 2
Click to enlarge
Kontron KTQ77FLEX 30101611
Kontron KTQ77FLEX 30101611 - Image 2
KUKA KSD1-32
KUKA KSD1-32
Back to products
BERTHOLD LB444
BERTHOLD LB444

Kontron KTQ77FLEX 30101611

  • Product Name: Kontron KTQ77/FLEX Embedded FLEX-ATX Motherboard (Part No. 30101611)
  • Product Introduction: Long-term available industrial-grade motherboard based on Intel Q77 chipset, designed for embedded computing and industrial automation requiring high graphics and CPU performance.
Category:
Description
  • Technical Specifications:
    • Processor Support: 3rd Gen Intel Core i7/i5/i3, Pentium, Celeron (up to 3.8 GHz, DMI 2.0)
    • Memory: Up to 32GB DDR3 (1067/1333/1600 MHz), 4 slots
    • Graphics: Integrated Intel HD Graphics, supports 3 independent displays (2x DisplayPort, 1x CRT/VGA)
    • Storage: 6x SATA (4x SATA II, 2x SATA III) with RAID 0/1/5/10
    • Expansion: 1x PCIe x16, 1x PCIe x4, 2x PCI 32-bit/33MHz, 1x Mini-PCIe, 1x mSATA
    • Connectivity: 3x Gigabit Ethernet (one with Intel AMT 8.0), 4x USB 3.0, 10x USB 2.0, 4x COM
    • Form Factor: FLEX-ATX (228.6mm x 190.5mm)
    • Operating Temp: 0°C to +60°C
  • Functional Features: TPM 1.2 support, GPIO (up to 160 lines via embedded feature connector), HD Audio (VIA 1708B), long-term availability (up to 7 years).
  • Application Scenarios: Digital signage, medical imaging equipment, gaming/POS, industrial automation HMI, future-oriented embedded devices.
  • Material/Structure: FR4 multilayer PCB with solid capacitors, metal rear I/O shielding, mounting holes compliant with industrial chassis standards.
  • Installation Requirements: Standard FLEX-ATX screw mounts; requires compatible CPU cooler and DDR3 memory; ensure adequate airflow for 3rd Gen Core processors.
  • Precautions: Ensure BIOS version supports specific CPU stepping; handle ESD-sensitive components during installation; verify power supply meets 12V rail requirements.
