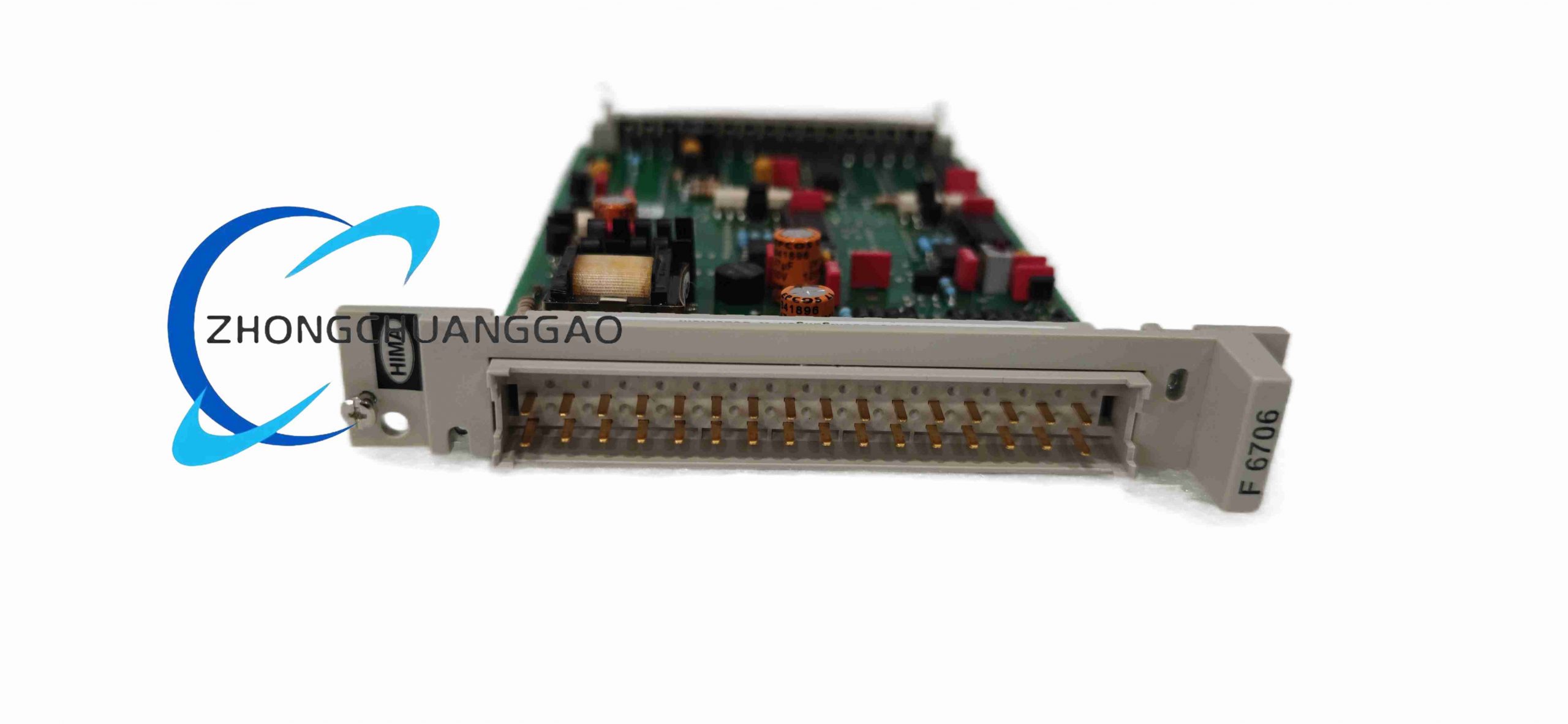

HIMA F6706 - Image 1

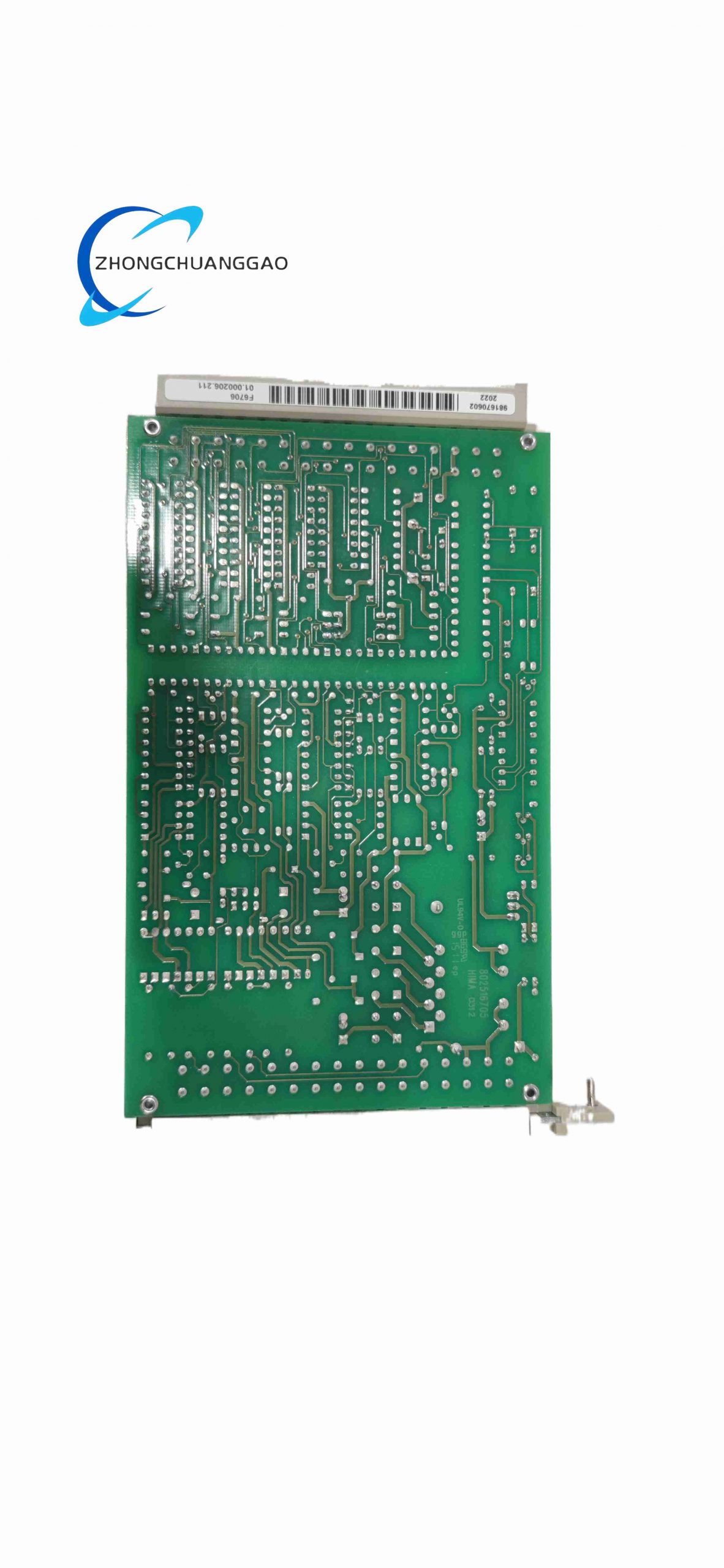

HIMA F6706 - Image 2

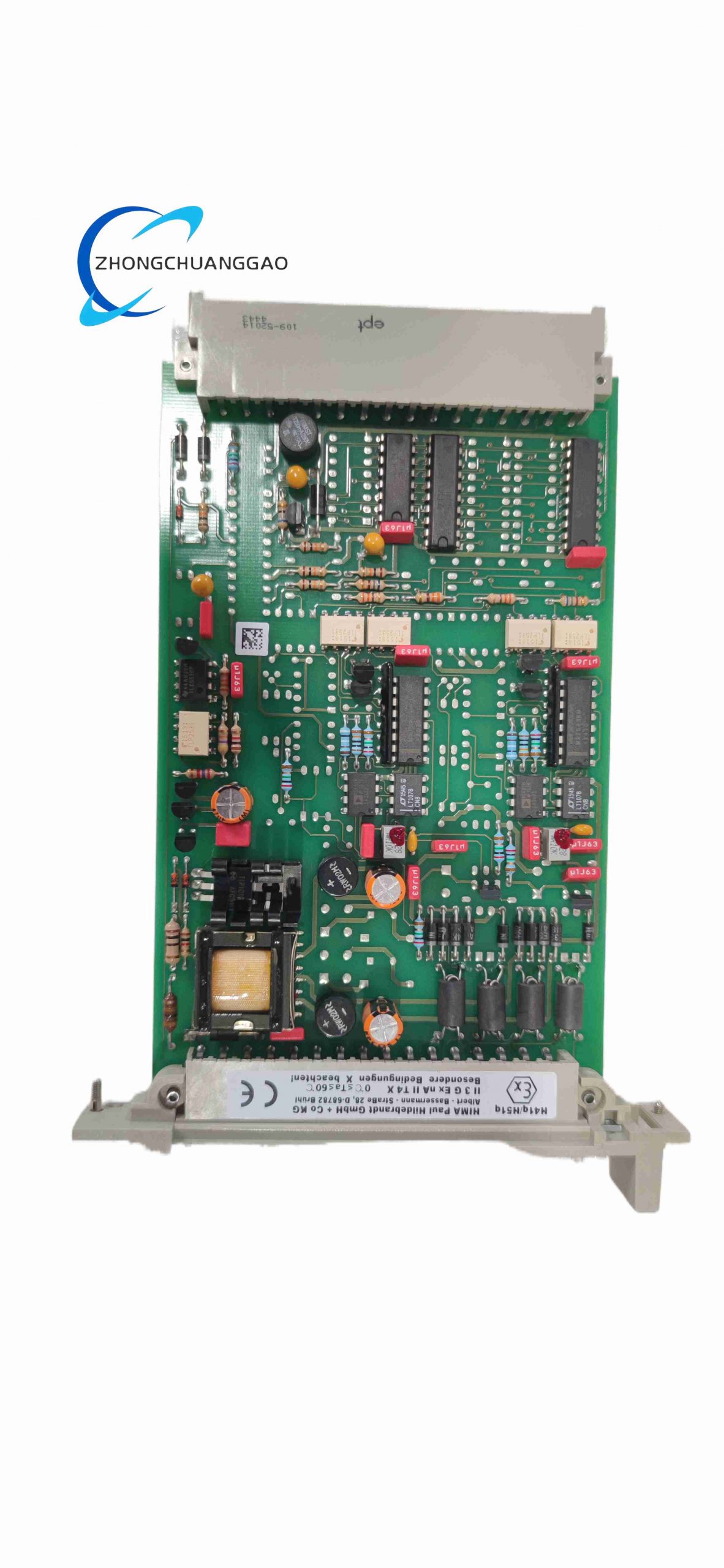

HIMA F6706 - Image 3
Click to enlarge
HIMA F6706
HIMA F6706 - Image 2
HIMA F6706 - Image 3
Electro-Craft F-4030-Q-H04AA
Electro-Craft F-4030-Q-H04AA
Back to products
HIMA F7130A
HIMA F7130A

HIMA F6706

  • Product Name: Communication Module
  • Product Introduction: Industrial communication interface module for HIMA safety systems, enabling data exchange over Ethernet and fieldbus protocols.
  • Technical Specifications:
    • Operating Voltage: 24 V DC
Category:
Description
    • Power Consumption: 5 W
    • Communication Interfaces: Ethernet (RJ45), Profibus, Modbus
    • Data Rate: 100 Mbit/s​ (Ethernet)
    • Operating Temperature: -40°C to +85°C
    • Weight: Approx. 0.15 kg​ (also cited 0.5 kg)
    • Certifications: CE, UL, ATEX
  • Functional Features: Protocol bridging between safety controller and upper-level SCADA/DCS; redundant media support; LED status for link/activity.
  • Performance Parameters: Latency minimized for safety data; compliant with industrial EMC standards (EN 61000).
  • Material Composition: Rugged industrial plastic/metal hybrid housing; gold-plated contacts.
  • Structural Features: Compact plug-in module; front-port RJ45 and terminal block; DIN or rack mount.
  • Working Principle: Converts backplane safety data to Ethernet frames or Profibus telegrams with safety checksum; cyclic data exchange with watchdog supervision; loss of communication forces predefined safe state.
  • Advantage Highlights: Multi-protocol support reduces gateway hardware; wide temperature range; SIL-aware communication diagnostics.
  • Applicable Industries: Process Automation, Power, Oil & Gas, Hybrid Safety-Process Plants.
  • Model Series: HIMA F6 / F Series Communication Modules.
  • Installation Requirements: Insert into HIMA rack with communication backplane; terminate Ethernet cables with industrial shielded RJ45; set node address via DIP switch or software; ensure 24 V DC​ auxiliary power stable.
  • Usage Precautions: Avoid bending Ethernet cables at radius <25 mm; confirm firmware supports selected protocol version; in ATEX zones, ensure overall system certification covers module installation; do not hot-plug Ethernet cables during data transfer.
