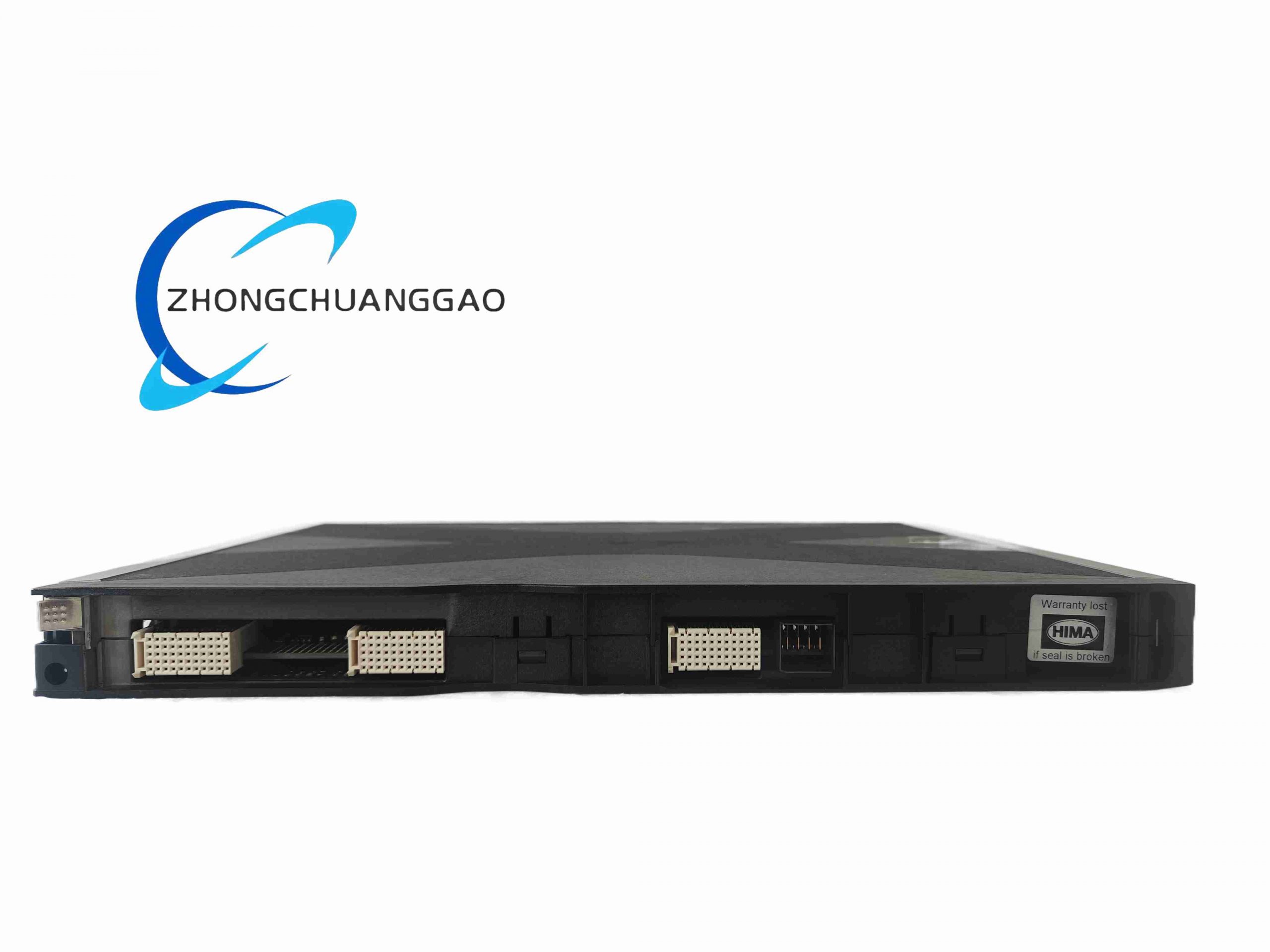

HIMA X-COM01 985260001/985260000 - Image 1

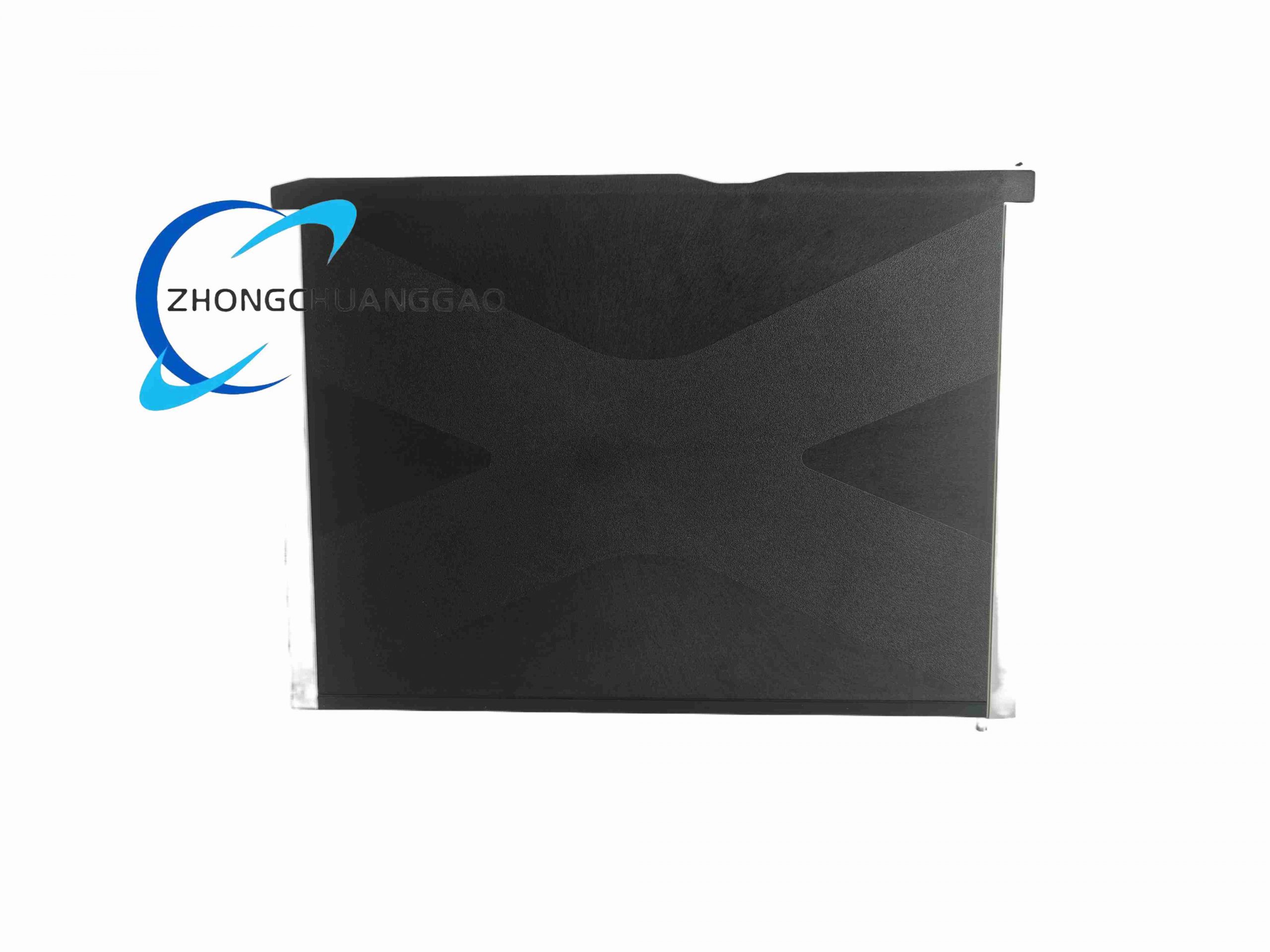

HIMA X-COM01 985260001/985260000 - Image 2
Click to enlarge
HIMA X-COM01 985260001/985260000
HIMA X-COM01 985260001/985260000 - Image 2
METSO D201925
METSO D201925
Back to products
HIMA X-CPU01
HIMA X-CPU01

HIMA X-COM01 985260001/985260000

Product Name:​ HIMax Communication Module
Overview:​ High-speed safety-certified communication interface for the HIMA HIMax Safety Instrumented System (SIS). Acts as the gateway between HIMax racks and external networks (DCS, SCADA, peer HIMax controllers). Designed with non-interference principle — loss of external communication does NOT affect safety logic execution.
Category:
Description
Key Features:
  • SIL 3 certified per IEC 61508/ IEC 61511
  • Supports HIMA Safeethernet, Modbus TCP (Master/Slave), PROFINET IO, EtherNet/IP
  • Redundant communication paths with automatic switchover
  • Hot-swappable in redundant pairs
    Technical Specifications:
  • Interfaces:​ 2 × RJ45 Gigabit Ethernet (10/100/1000 Mbps), optional fiber; 2 × RS-485 serial
  • Protocols:​ Safeethernet (SIL 3 over standard Ethernet), Modbus TCP, PROFINET IO, EtherNet/IP
  • Power Supply:​ 24 V DC (typical 5 W consumption)
  • Diagnostics:​ Link monitoring, CRC-32 integrity check, module health LED, error logging to CPU
  • Mounting:​ Plugs into HIMax base plate (occupies 1 slot), DIN-rail rack mount
  • Dimensions (approx.):​ 40.5 × 240 × 175 mm | Weight: ~0.75 kg
  • Operating Temp.:​ 0 °C to +60 °C | Storage: –40 °C to +85 °C
  • Humidity:​ 5–95 % RH, non-condensing
  • EMC:​ Compliant with IEC 61000-6-2/ IEC 61000-6-4
    Applications:​ Oil & gas ESD, refinery SIS-DCS integration, turbine protection, fire & gas system networking.
