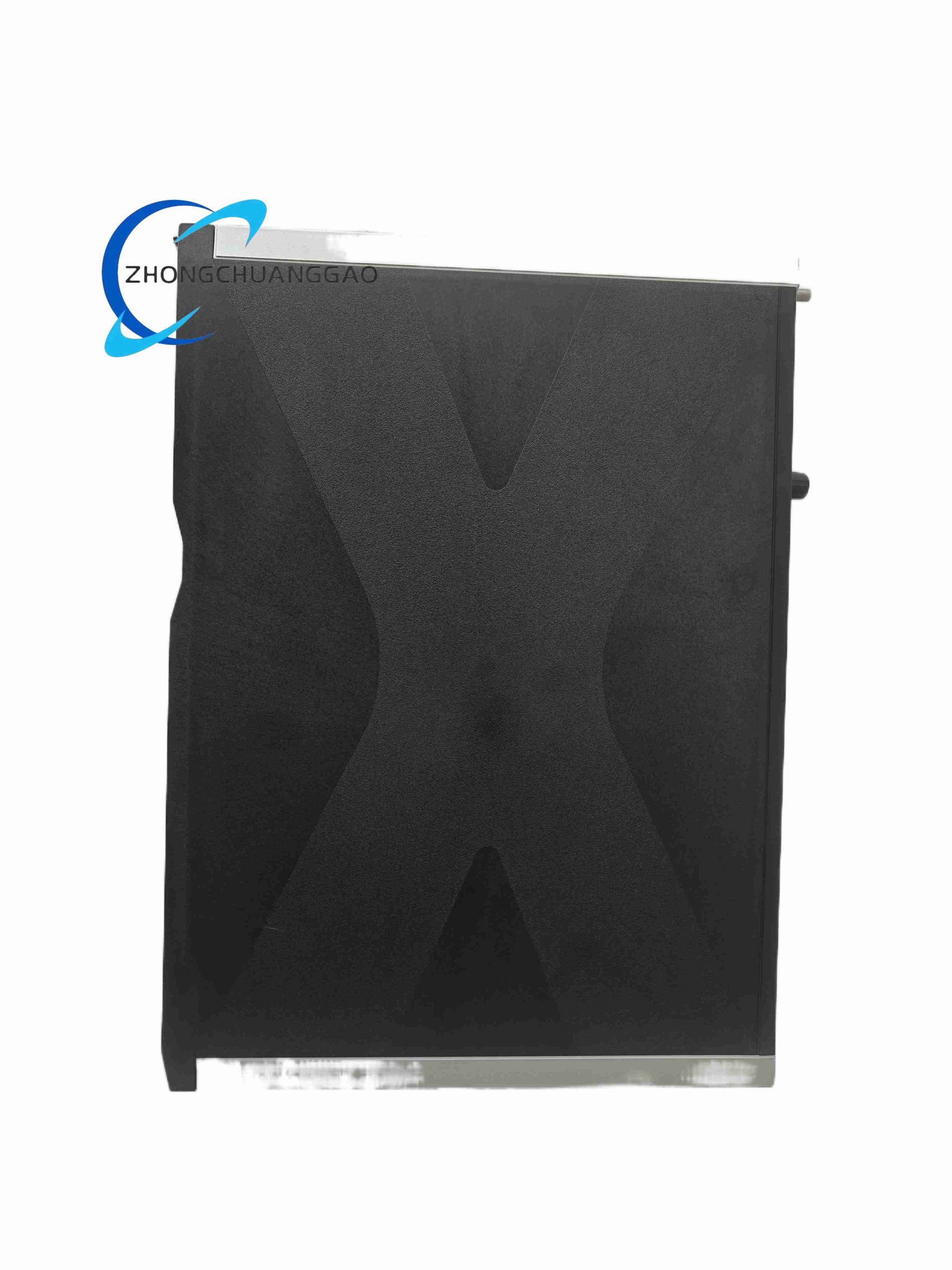

HIMA X-CPU01 - Image 1

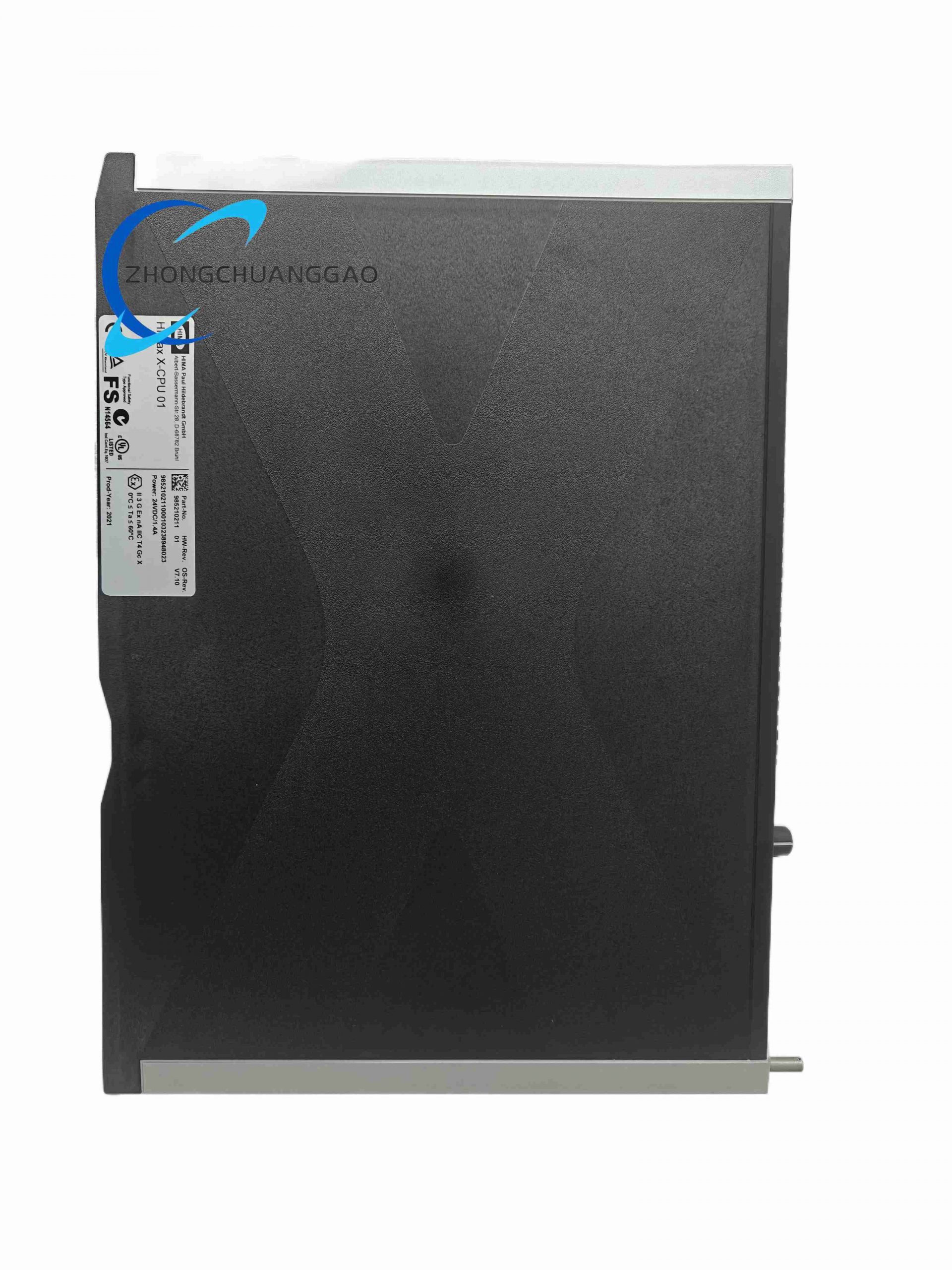

HIMA X-CPU01 - Image 2
Click to enlarge
HIMA X-CPU01
HIMA X-CPU01 - Image 2
HIMA X-COM01 985260001/985260000
HIMA X-COM01 985260001/985260000
Back to products
HIMA X-DI3201A
HIMA X-DI3201A

HIMA X-CPU01

Product Name:​ HIMax Safety Central Processing Unit Module
Overview:​ Central processor for HIMA HIMax safety controllers (H41q / H51q racks). Executes user safety programs, manages I/O scanning, handles redundant CPU operation, and provides secure Ethernet communication. TÜV-certified for high-integrity safety applications.
Category:
Description
Key Features:
  • SIL 3 (IEC 61508), AK6 (EN 50156), PL e (ISO 13849-1)
  • Supports 1oo1, 1oo2, 2oo2, 2oo3 architectures
  • Redundant CPU pairs with bumpless auto-switchover (<50 ms)
  • Self-test & watchdog with safe state on fault
    Technical Specifications:
  • Processor:​ High-performance RISC multi-core, 32-bit safety architecture
  • Memory:​ 512 MB RAM / 256 MB Flash (typical, varies by firmware)
  • Program Capacity:​ Up to 32 user programs; large I/O mapping capability
  • Cycle Time:​ Safety task response <10 ms; logic scan configurable
  • Communication:​ Integrated Ethernet 10/100/1000 Mbps + backplane bus; works with X-COM01 for extended protocols
  • Power Supply:​ 24 V DC (±20 %), typical consumption ~15 W
  • Mounting:​ HIMax rack slot via connection board (X-CB series)
  • Dimensions:​ ~128 × 165 × 130 mm | Weight: ~0.3 kg
  • Operating Temp.:​ –20 °C to +60 °C
  • Diagnostics:​ LEDs for RUN/STOP/ERROR/COM, event buffer, online diagnostics via HIMA Safety Suite / ELOP II
    Applications:​ ESD systems, burner management (BMS), HIPPS, emergency depressurizing, critical machine safety.
