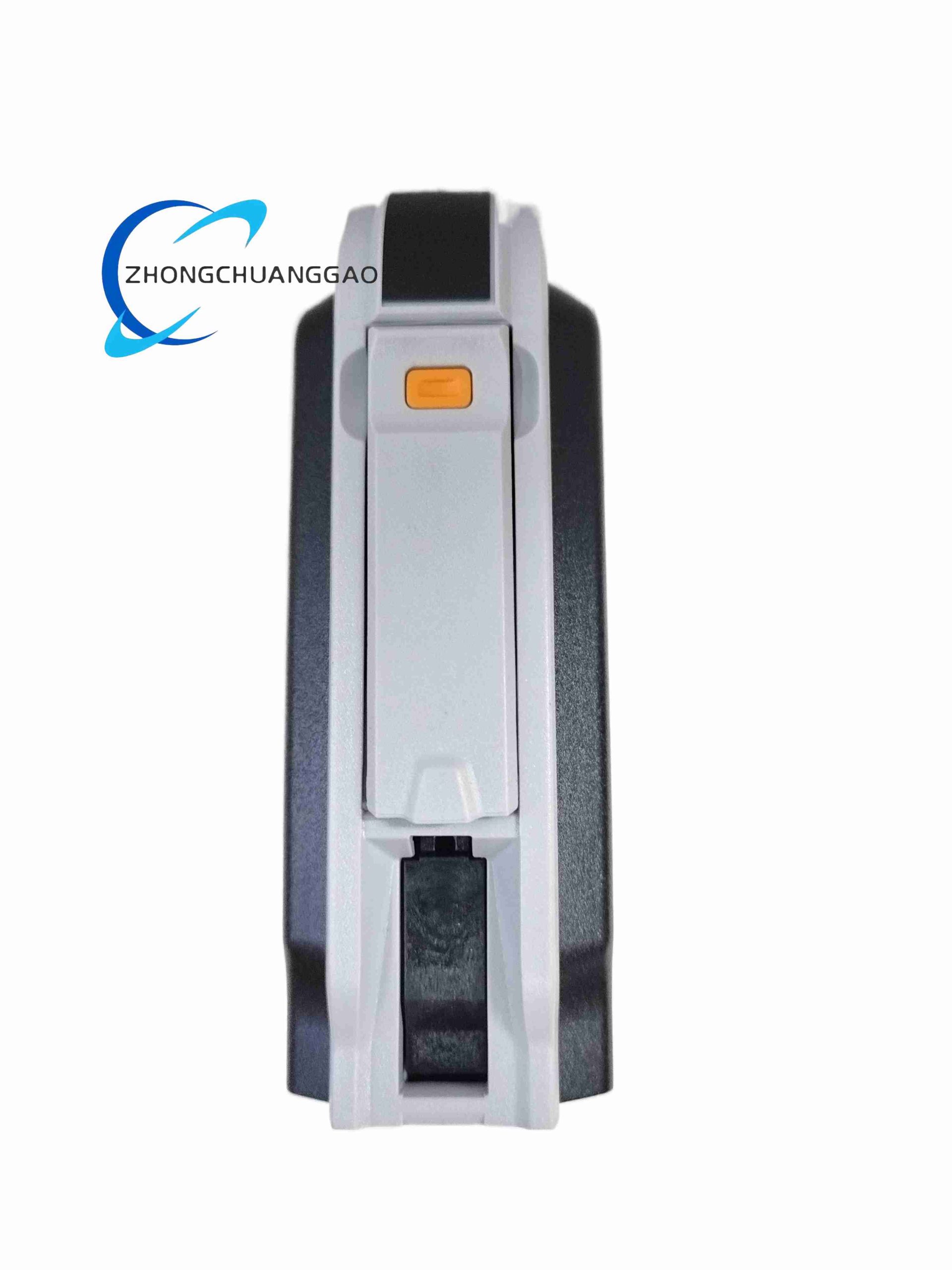

Emerson KJ3242X1-BK1 - Image 1
Emerson KJ3242X1-BK1 - Image 2
Emerson KJ3242X1-BK1 - Image 3
Emerson KJ3242X1-BK1 - Image 4
Click to enlarge

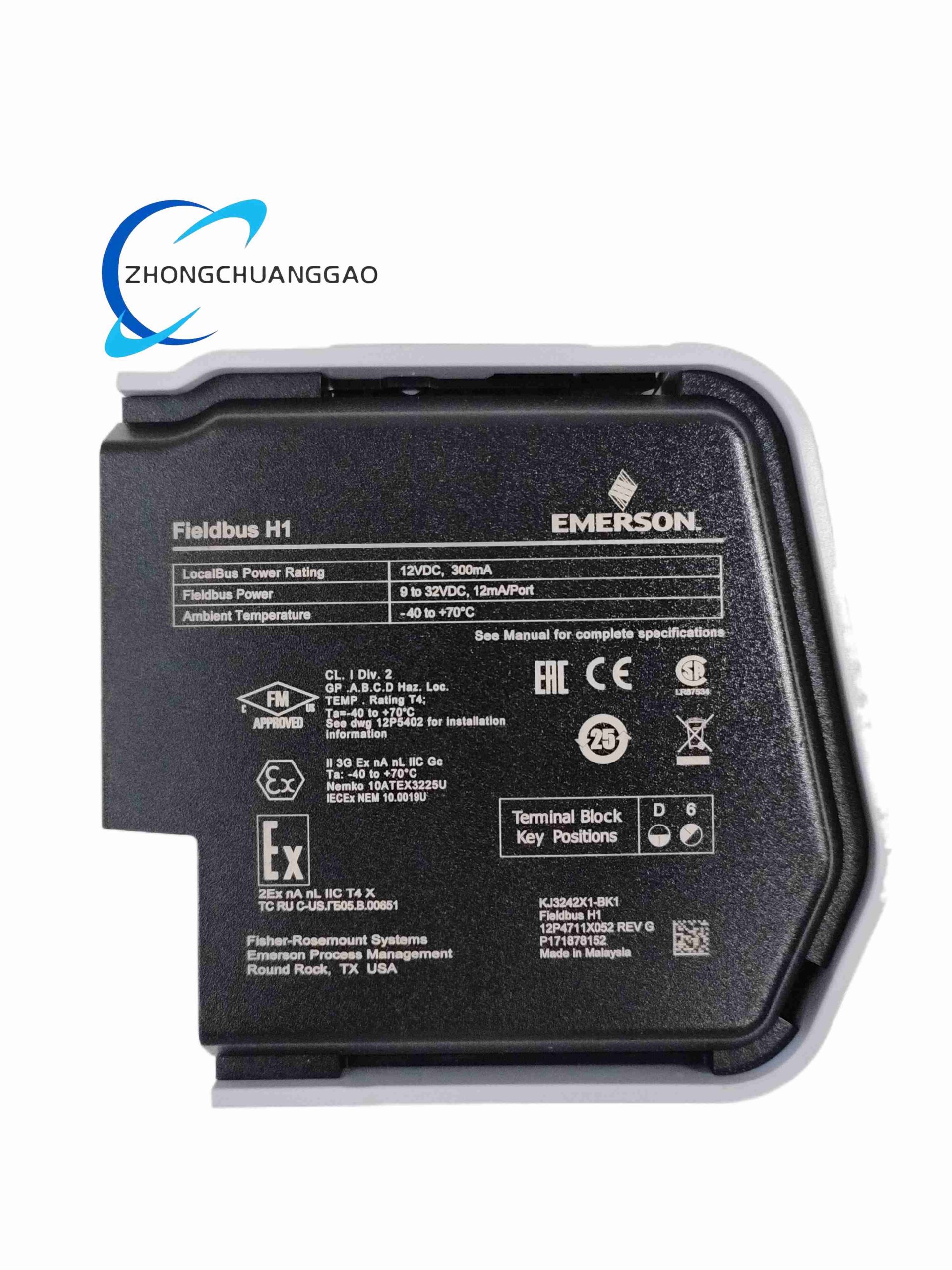

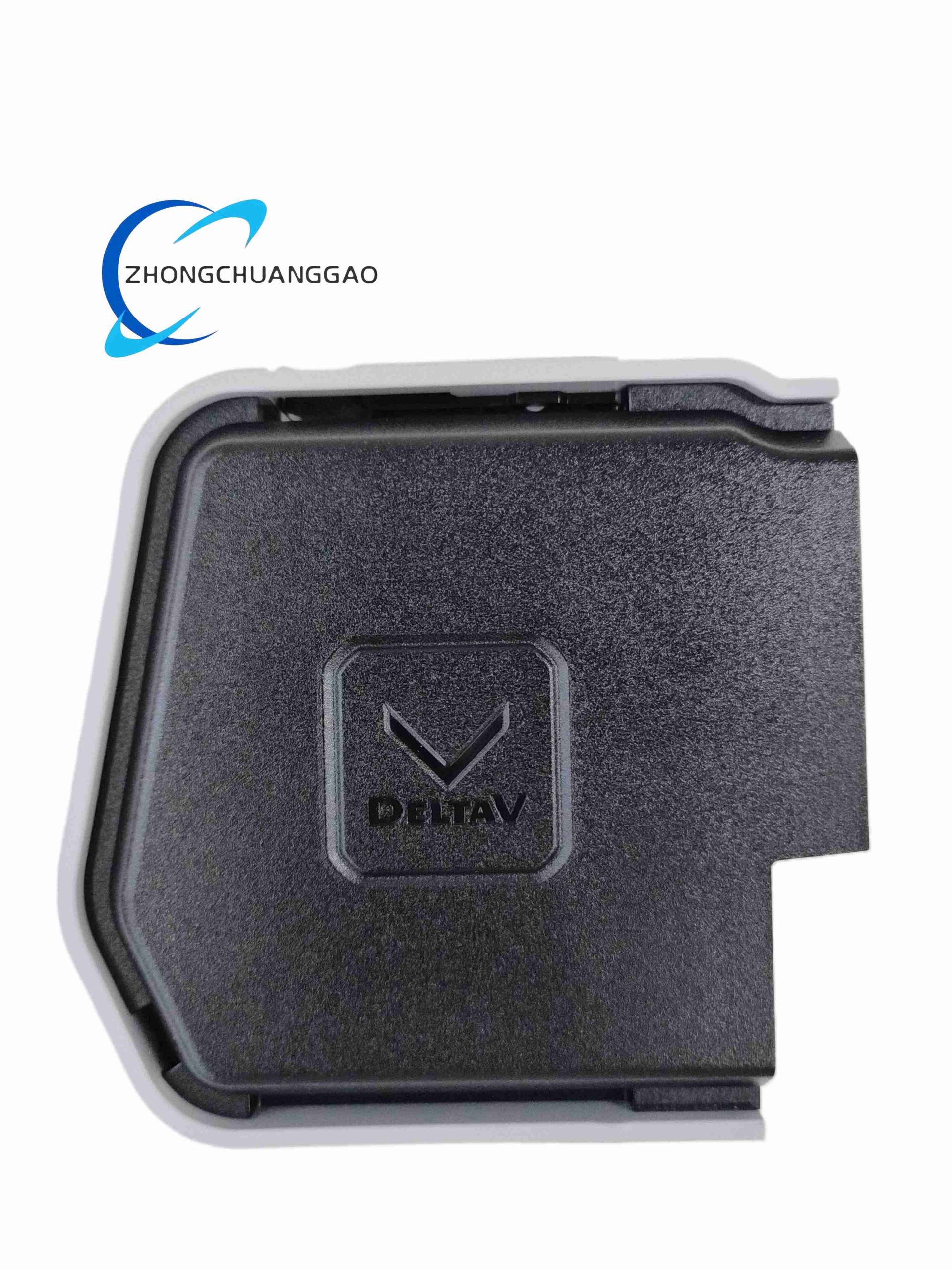

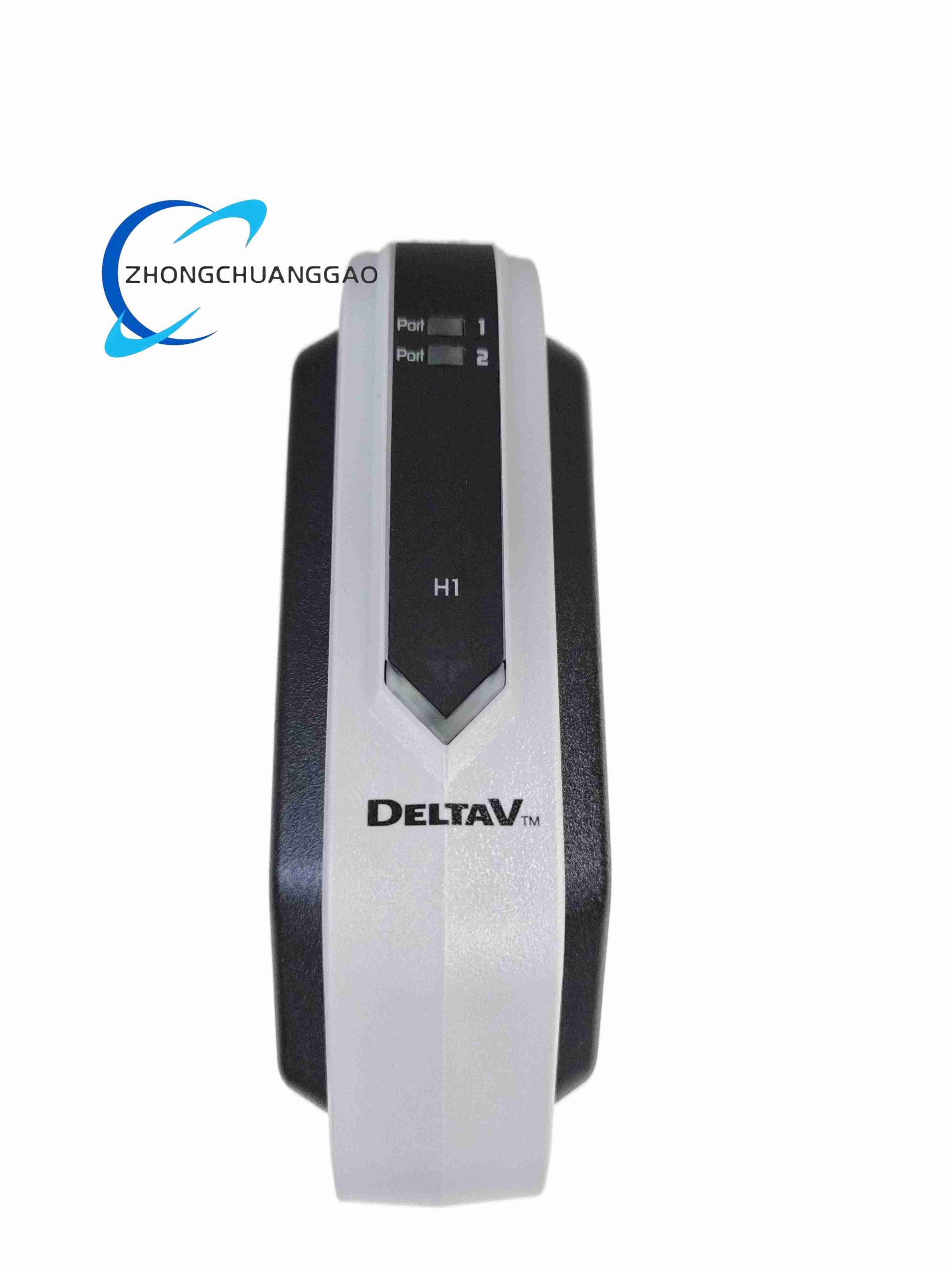

Emerson KJ3242X1-BK1
Emerson KJ3242X1-BK1 - Image 2
Emerson KJ3242X1-BK1 - Image 3
Emerson KJ3242X1-BK1 - Image 4
Emerson KJ3242X1-BA1
Emerson KJ3242X1-BA1
Back to products
Emerson KJ3242X1-FA1
Emerson KJ3242X1-FA1

Emerson KJ3242X1-BK1

  • Product Name: DeltaV S-Series Interface Module / Terminal Block (Serial or Fieldbus)
  • Product Introduction: A companion component to the KJ3242X1 series interface cards, providing robust field termination and signal conditioning support.
Category:
Description
  • Technical Specifications:
    • System: Emerson DeltaV Distributed Control System
    • Temp Range: -40°C to +70°C
    • Contaminants: ISA-S71.04 Class G3
    • Mounting: Standard DeltaV Carrier / DIN Rail
  • Functional Features: Rotary keying for correct module pairing, integrated EMC shielding options, support for high-density wiring.
  • Application Scenarios: Used in chemical processing, refining, and pharmaceutical plants for secure field device termination.
  • Material & Structure: Flame-retardant polymer housing with nickel-plated copper alloy terminals for corrosion resistance.
  • Working Principle: Distributes field signals to the electronic interface card while providing transient suppression and ground reference isolation.
  • Installation Requirements: Ensure bussed field power does not exceed 30 VDC; fit module cover (e.g., KJ4001X1-FA1) on unoccupied slots.
  • Usage Notes: No user-serviceable parts; avoid condensation during operation; maximum carrier/extender length must not exceed 6.5 meters.
