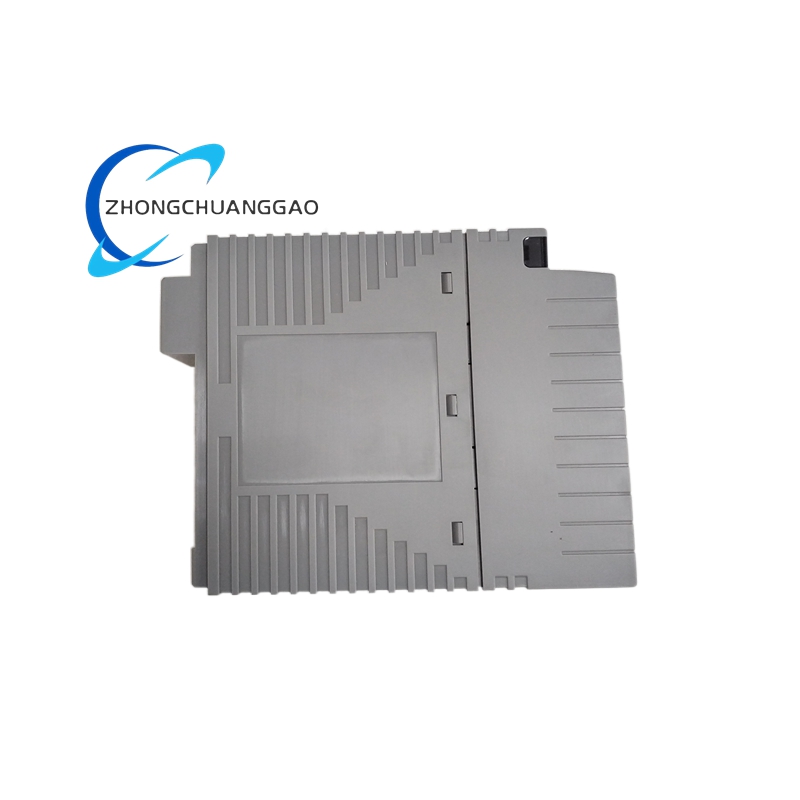

Technical Specifications
- Output Channel Count: 16 independent galvanically isolated digital output channels
- Nominal Field Operating Voltage: 24 V DC
- Allowable Input Voltage Range: 20.4 V DC ~ 26.4 V DC
- Output Circuit Topology: Current sink solid-state transistor output
- Per-channel maximum load current: 50 mA continuous DC
- OFF-state leakage maximum value: 0.08 mA per channel
- Channel isolation dielectric withstand voltage: 1500 V AC 1 minute between channel and system circuit
- Backplane Communication Bus: ESB bus Centum VP FCU rack interface
- Physical Size: 107.5 mm (W) × 130 mm (H) × 32.8 mm (D)
- Net Weight: 190 g
Functional Features
- Pressure clamp terminal block standard wiring interface for field 24 V DC actuator connection
- Two output operation modes: static ON/OFF status output, short pulse trigger output
- Per-channel independent overcurrent hardware protection without cross-channel fault propagation
- Real-time open-circuit load fault diagnosis function uploaded to DCS human-machine operation station
- Low power consumption circuit design reduces FCU rack overall heat generation density
- Front panel 16 independent red LED channel status indicators for intuitive on-site maintenance inspection
- Compatible with dual-redundant ESB bus communication architecture for high-availability control system configuration
Performance Parameters
- Standard status output response time: ≤ 4 ms
- Pulse output adjustable width range: 10 ms ~ 3600 s
- Channel mutual interference crosstalk: ≤ -70 dB
- Operating ambient temperature: 0 °C ~ +55 °C
- Storage temperature range: -20 °C ~ +70 °C
- Vibration resistance standard: IEC 60068-2-6 industrial cabinet vibration test compliance
Material Composition
- Outer housing: Flame-retardant black ABS industrial plastic enclosure
- Main circuit PCB: FR-4 high-temperature flame-retardant substrate with gold-plated ESB backplane contact fingers
- Isolation elements: Low-power high-speed optocoupler isolation chips for each output channel
- Wiring terminals: Nickel-plated copper alloy pressure clamp terminal blocks with anti-loosening spring structure
- Indicator components: Low-power SMD red LED channel status light diodes
Structural Characteristics
- Horizontal FCU rack standard plug-in module with front panel locking fastener
- Rear edge dedicated ESB bus gold finger contact strip for rack backplane communication
- Independent PCB isolation partition between internal control circuit and field output channel circuits
- Front panel centralized terminal wiring compartment covered by detachable plastic protective cover
- Compact uniform size matching all Yokogawa ADV series I/O modules for consistent rack layout
Working Principle
FCU transmits digital control commands via ESB backplane bus to ADV569-P00 internal logic chip. Control signals pass through independent optocoupler isolation circuits to drive sink-type transistor output channels, switching 24 V DC field power supply to auxiliary field actuators. Real-time current sampling circuits detect abnormal load conditions on each channel; fault digital signals are isolated and uploaded back to FCU for alarm and event logging in DCS operation station database.
Advantage Highlights
- Compact 16-channel low-current output design optimized for auxiliary alarm lamps, small signal relays and low-power indicator devices
- Low overall power consumption reduces FCU cabinet cooling load and long-term operation energy cost
- Perfect mechanical and communication compatibility with ADV551-P60 main output modules for mixed rack deployment
- Simplified wiring terminal structure reduces on-site wiring construction time and maintenance complexity
- Low vibration resistance mechanical design stable operation in industrial cabinet with nearby pump and fan vibration sources
- Full Centum VP DCS software native support without special driver or configuration tool software
Applicable Industries
Small-scale chemical batch processing plants, municipal water supply and wastewater treatment facilities, food and beverage production automation lines, heating power station auxiliary control systems, building central HVAC industrial control cabinets
Product Series
Yokogawa ADV Digital Output Module Series (ADV569-P00 16-channel low-current expansion model, ADV551-P60 high-density heavy-load main output module)
Installation Requirements
- Install horizontally into standard Centum VP FCU ESB backplane rack slots and fully engage front panel locking buckle
- Field wiring adopts shielded twisted pair cable, single-point grounding at cabinet main ground copper bar
- External 24 V DC field power supply must reserve sufficient current margin for all 16 channels simultaneous activation
- Maintain minimum 10 mm vertical and horizontal air gap between adjacent rack I/O modules
- Terminate all unused output channels with standard load resistance plug-in terminals to avoid stray signal interference
Use & Maintenance Precautions
- Prohibit connecting field loads drawing continuous current exceeding 50 mA per single channel
- Perform full rack power cut-off before module plug/unplug operation to protect ESB bus communication chips
- Avoid installation inside cabinets with high concentration of corrosive gas or oil mist atmosphere
- Tighten terminal block fixing screws during quarterly cabinet routine maintenance to eliminate loose wiring overheating risk
- Inductive auxiliary loads must install reverse freewheel diode parallel to load terminals to suppress voltage spike damage
- Front panel wiring protective cover must remain closed during normal equipment operation to prevent accidental live terminal contact
