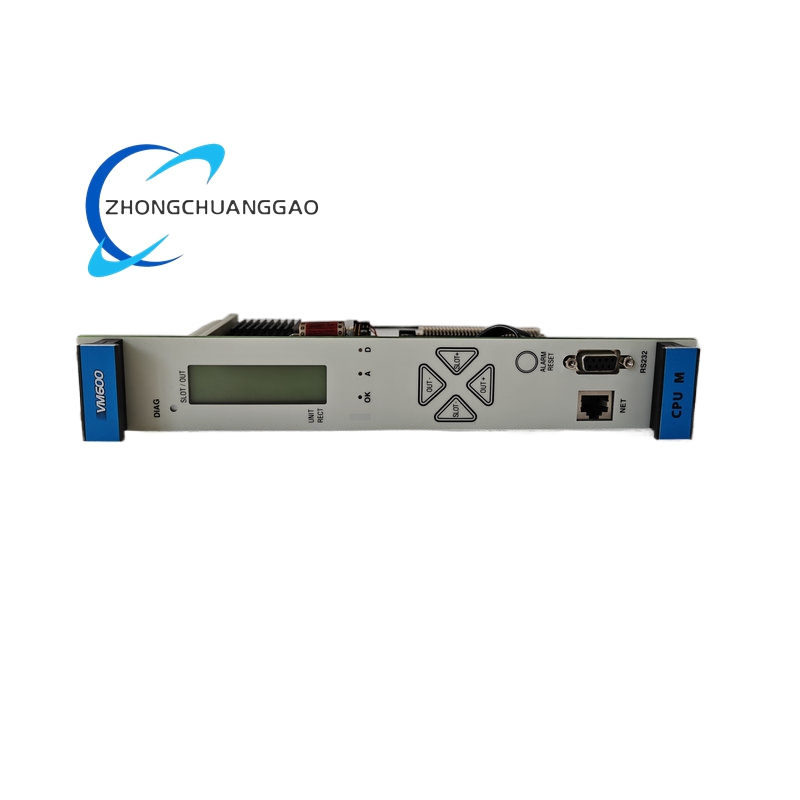

VIBRO-METER CPUM 200-595-077-331

Model Series

Technical Specifications

• Product Part Number: 200-595-077-331
• Processor Core: 32-bit high-speed industrial real-time embedded processor
• Onboard Memory: 128 MB RAM for real-time data buffering, 512 MB Flash non-volatile storage
• System Bus Interface: VM600 internal rack backplane high-speed parallel data bus
• External Communication Interfaces: 1 × 10/100 Mbps Ethernet RJ45, 1 × RS-232 serial debug port
• Supported Industrial Protocols: Modbus TCP, Modbus RTU, PROFINET FMS
• Power Supply Input: 24 V DC from VM600 rack backplane, typical power consumption 18 W
• Form Factor: 6U Eurocard rack-mount plug-in module
• Channel Compatibility: Interoperable with MPC4 protection cards, AMC8 measurement input cards

Performance Parameters

• Real-Time Data Sampling Latency: < 1 ms per vibration measurement channel
• Maximum Concurrent Supported Measurement Channels: 128 total rack-wide sensor channels
• FFT Signal Processing Resolution: 1024-point high-speed spectral analysis per channel
• Ethernet Communication Throughput: 100 Mbps full-duplex for real-time trend data transmission
• Alarm Response Time: < 2 ms threshold crossing detection & relay trigger output
• Operating Vibration Tolerance: 1.5 Grms (10–1000 Hz continuous vibration)
• Operating Temperature Range: -25 °C to +60 °C

Material Composition

• Front Panel: Black anodized 6061 aluminum alloy 6U rack panel with status LED indicator array
• PCB Substrate: 10-layer FR-4 industrial PCB with isolated analog/digital ground shielding layers
• Memory Devices: Industrial wide-temperature Flash and DRAM memory chips
• Connectors: Gold-plated VM600 proprietary backplane edge connectors, gold-plated RJ45 Ethernet port
• Heat Dissipation: Passive aluminum extruded heat sink bonded to main processor chip
• Mechanical Hardware: Stainless steel ejector lever and anti-loose rack locking fasteners

Structural Features

• Standard 6U Eurocard plug-in architecture compatible with all VM600 series rack backplanes
• Front panel multi-color LED status indicators for power, run, fault, communication and alarm states
• Passive finned aluminum heat sink for fanless continuous processor operation
• Isolated Ethernet communication circuit separated from internal rack measurement bus to eliminate data crosstalk
• Onboard non-volatile Flash storage retains system configuration, alarm event logs and historical vibration trend data during power loss
• Internal high-speed parallel backplane bus enabling synchronized multi-channel vibration signal processing across all rack measurement cards

Working Principle

1. Receives stabilized 24 V DC power supply from VM600 rack backplane; onboard power regulation circuit supplies processor, memory and communication peripherals.
2. Communicates via proprietary high-speed internal rack bus with all installed MPC4/AMC8 vibration measurement cards to collect raw accelerometer, velocity and displacement sensor data.
3. Executes real-time signal processing algorithms including FFT spectral analysis, order tracking, band-pass filtering and peak-to-peak amplitude calculation for machinery vibration signals.
4. Compares processed vibration parameter values against user-configured alarm threshold limits; triggers rack relay output contacts on threshold violation and stores timestamped fault event logs to onboard Flash memory.
5. Transmits processed trend data, alarm status and raw waveform snapshots to external SCADA, PLC and HMI systems via Ethernet Modbus TCP / PROFINET industrial communication protocols.
6. Supports local configuration and firmware update via front panel RS-232 serial debug port using VM600 MPSx engineering software.

Core Function Features

1. Full rack centralized real-time processing for all vibration measurement and machinery protection channels
2. Multi-alarm threshold classification (alert, danger, trip) with configurable relay output interlock logic
3. High-resolution FFT spectral analysis and time waveform snapshot storage for post-fault machinery diagnosis
4. Multi-protocol industrial Ethernet communication for seamless integration with plant DCS and SCADA control systems
5. Non-volatile storage of all system configuration parameters and long-term historical vibration trend data
6. Front panel LED real-time status visualization for rapid on-site fault diagnosis without external software
7. Hot-swap compatible within powered VM600 rack without disrupting remaining channel measurement operations

Advantage Highlights

1. Single CPU module manages full rack machinery protection and condition monitoring functions to reduce system component count
2. Fanless passive cooling design delivers maintenance-free long-term continuous operation inside sealed industrial cabinets
3. High-speed internal rack bus maintains synchronous multi-channel vibration sampling for rotating machinery phase analysis
4. Native support for major industrial fieldbus protocols eliminates additional gateway hardware for DCS integration
5. Permanent onboard data logging eliminates external data recorder hardware requirements for machinery fault traceability
6. Hot-swap capability minimizes plant monitoring system downtime during CPU module replacement or maintenance

Applicable Industries

Installation Requirements

1. Install into dedicated CPU slot position on standard VM600 6U rack backplane
2. Ensure unobstructed vertical air circulation around module passive heat sink (minimum 15 mm clearance)
3. Torque front panel ejector lock screw to 1.0 N·m to establish full mechanical grounding with rack frame
4. Route Ethernet communication cable separately from high-voltage power wiring to avoid EMI interference
5. Verify rack backplane 24 V DC supply voltage remains within 22 V – 26 V DC operating range before powering module
6. Connect front panel RS-232 port only to isolated engineering laptop during configuration & firmware upgrade operations

Operation & Maintenance Precautions

1. Wear ESD wrist strap during all module insertion, extraction and wiring modification operations
2. Do not operate rack cabinet ambient temperature exceeding +60 °C continuous to prevent processor thermal throttling
3. Clear heat sink fin dust accumulation every 12 months to maintain full passive heat dissipation efficiency
4. Complete full system configuration backup to external storage before performing CPU firmware upgrade
5. Avoid hot-swap operation during active machinery trip alarm states to prevent temporary data logging interruption
6. Replace damaged RJ45 Ethernet port connectors only with factory original spare components
7. Perform annual calibration verification of all vibration alarm threshold logic via VM600 MPSx software diagnostic tools
