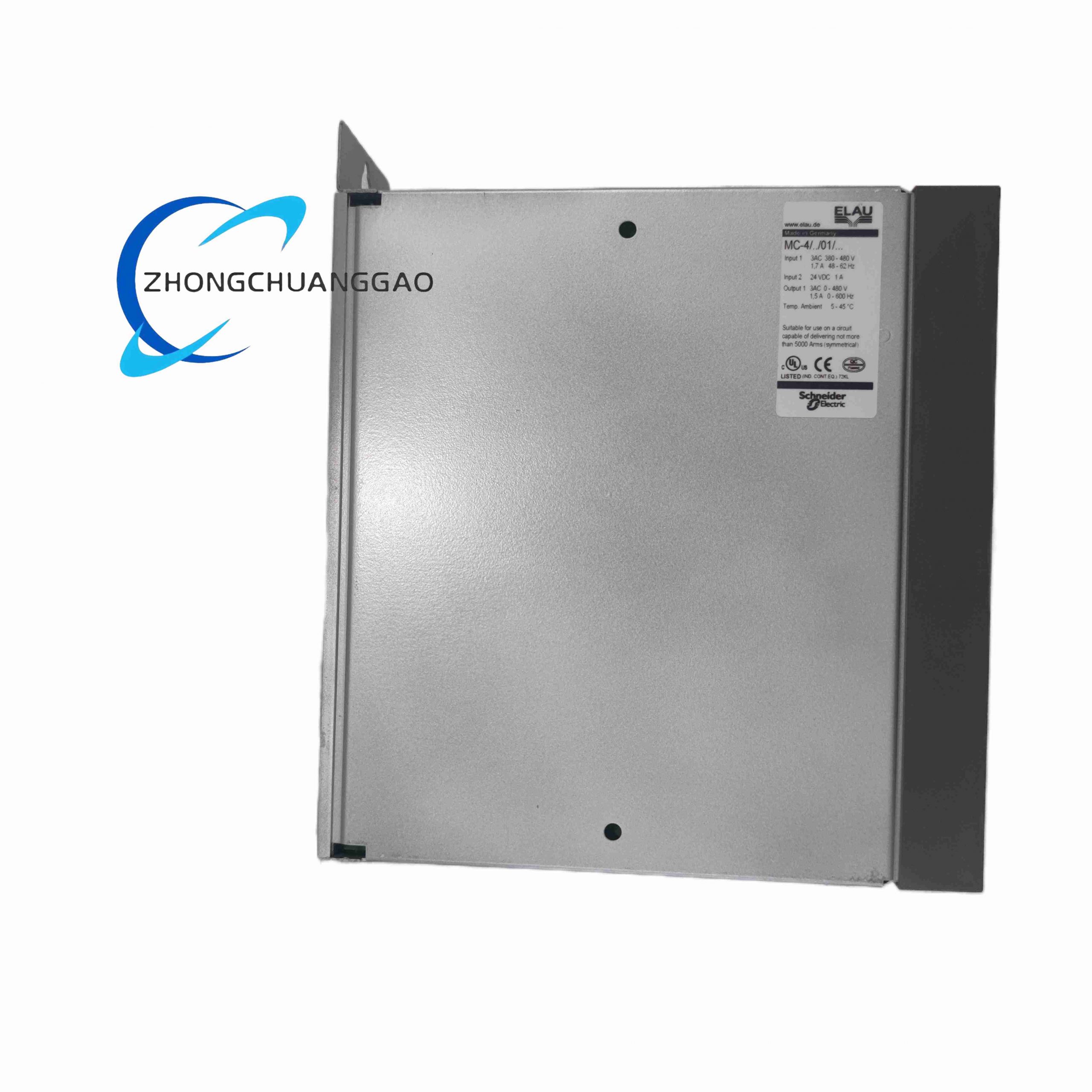

Technical Specifications & Performance Parameters:
-
Model: MC-41101400
-
Series: Lexium 65 / MC-4 Series
-
Type: Servo Drive Module
-
Rated Power: 1.5 kW
-
Voltage Range: 380 V AC (three-phase)
-
Rated Current: 4.2 A
-
Speed Range: 0 to 3000 rpm
-
Torque Range: 0 to 3.7 Nm
-
Control Modes: Position, Speed, Torque
-
Communication: CANopen, EtherCAT, Modbus RTU
-
Protection Rating: IP65 (drive module rating; note: many drives are IP20 unless enclosed)
-
Operating Temperature: -10 °C to +40 °C
-
Storage Temperature: -25 °C to +70 °C
-
Humidity: 5% to 95% RH (non-condensing)
-
Dimensions: 190 mm x 70 mm x 40 mm
-
Weight: Approx. 1.2 kg
-
Certifications: UL 508, CSA C22.2 No.142, CE, RoHS, IEC 60529
Material Composition & Structure:
-

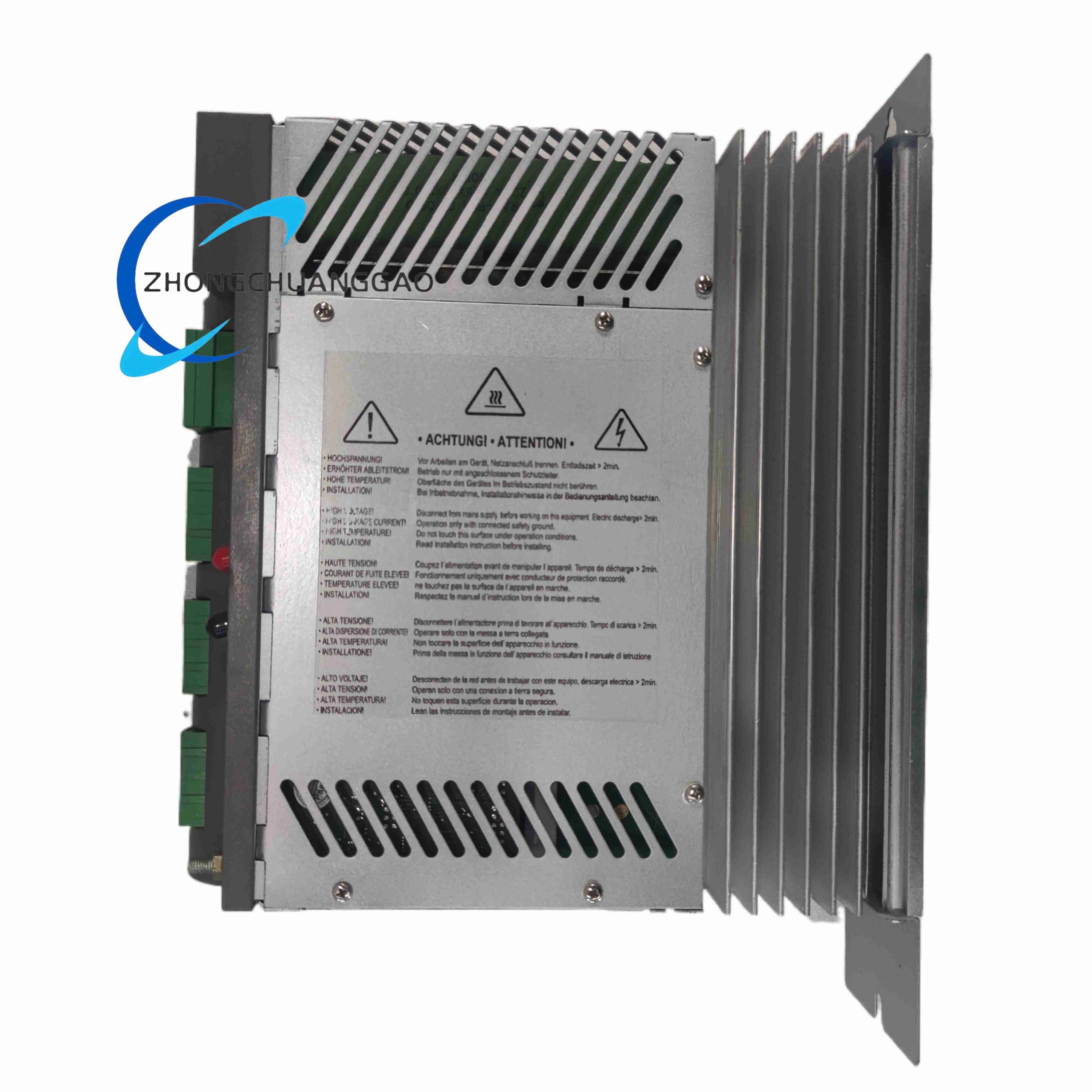

Housing: Metal casing with heatsink (IP65 rated variant includes sealed enclosure)
-
Internal: IGBT power stage, DSP controller, isolated communication interfaces
-

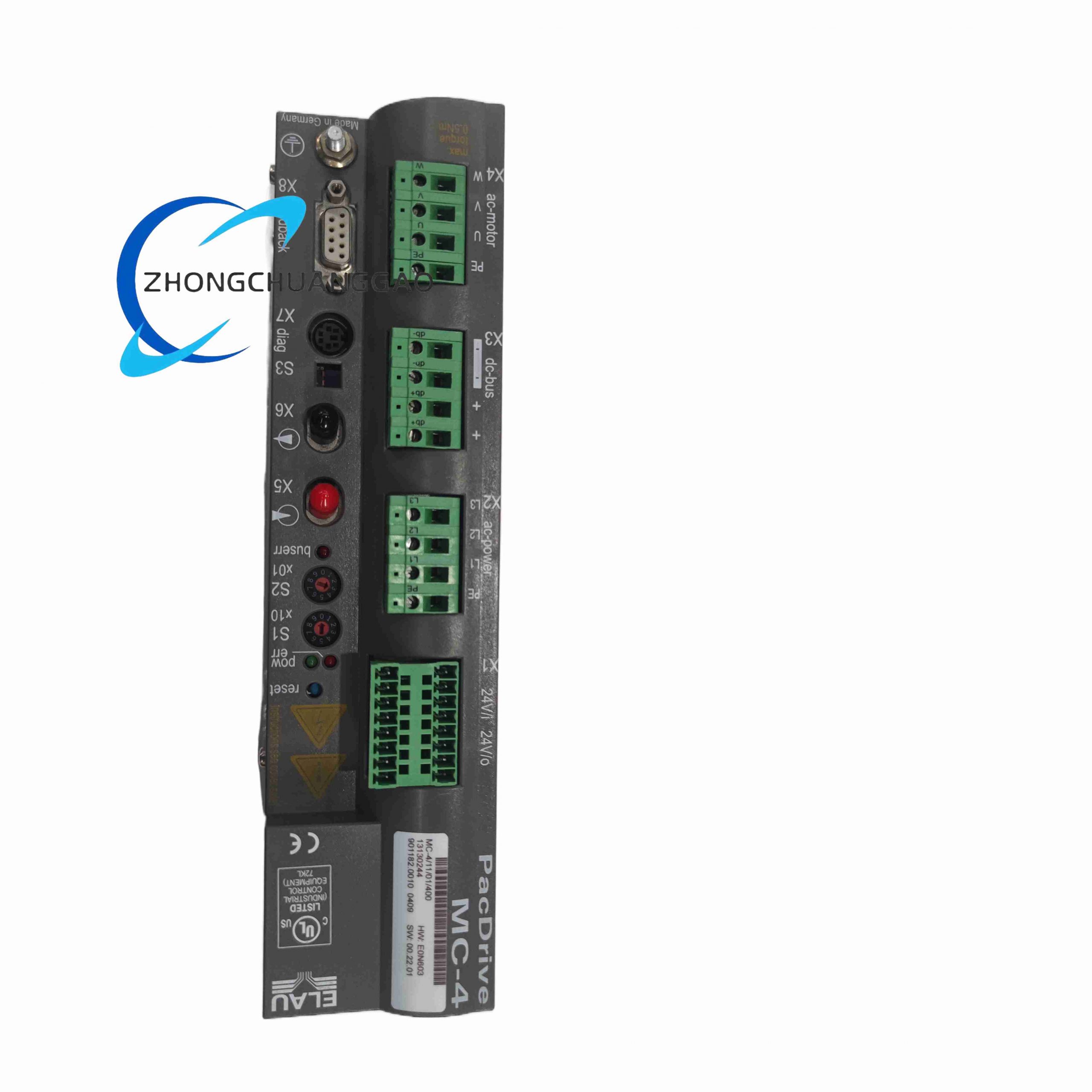

Connectors: Shielded motor terminal, encoder connector, control I/O terminal block
-
Cooling: Natural convection or forced air (depending on load/enclosure)
Functional Features & Working Principle:
-
Working Principle: Receives motion commands via fieldbus or pulse/direction, compares with motor feedback, and modulates three-phase power using space vector PWM to achieve precise torque, speed, or position control.
-
High Precision: Advanced vector control algorithms ensure positioning accuracy and repeatability.
-
Multi-Protocol Support: Seamless integration into diverse automation architectures (EtherCAT for high-speed sync, CANopen for standard).
-
Diagnostics: Rich fault detection (overcurrent, overvoltage, encoder error, overheating) with status LEDs and communication reporting.
-
High Overload Capacity: Designed to handle peak torques during acceleration/deceleration phases.
Application Scenarios:
-
CNC milling and machining centers
-
Robotic arm joint control
-
Automatic packaging lines (fillers, cartoners)
-
Printing machine rollers and registration
-
Conveyor systems and material handling
-
Textile and food processing machinery
Installation Requirements & Usage Notes:
-
IP65 version suits harsh environments but still requires proper cable glands and sealing to maintain rating.
-
Ensure three-phase supply matches drive input; phase sequence matters for motor direction.
-
Use ferrules on stranded wires for terminal blocks to prevent loose connections.
-
Motor and drive grounding must be low impedance; separate power and signal cable runs.
-
Set motor parameters (rated current, inductance, encoder type) correctly in auto-tuning or commissioning software before operation.
-
If IP20 (typical book-frame drive), it must be mounted inside a cabinet with IP54+ rating; ensure clearance for airflow (usually 50mm top/bottom).
